Item no.:21131311Herst.-Art.-Nr.:NDR-75-24

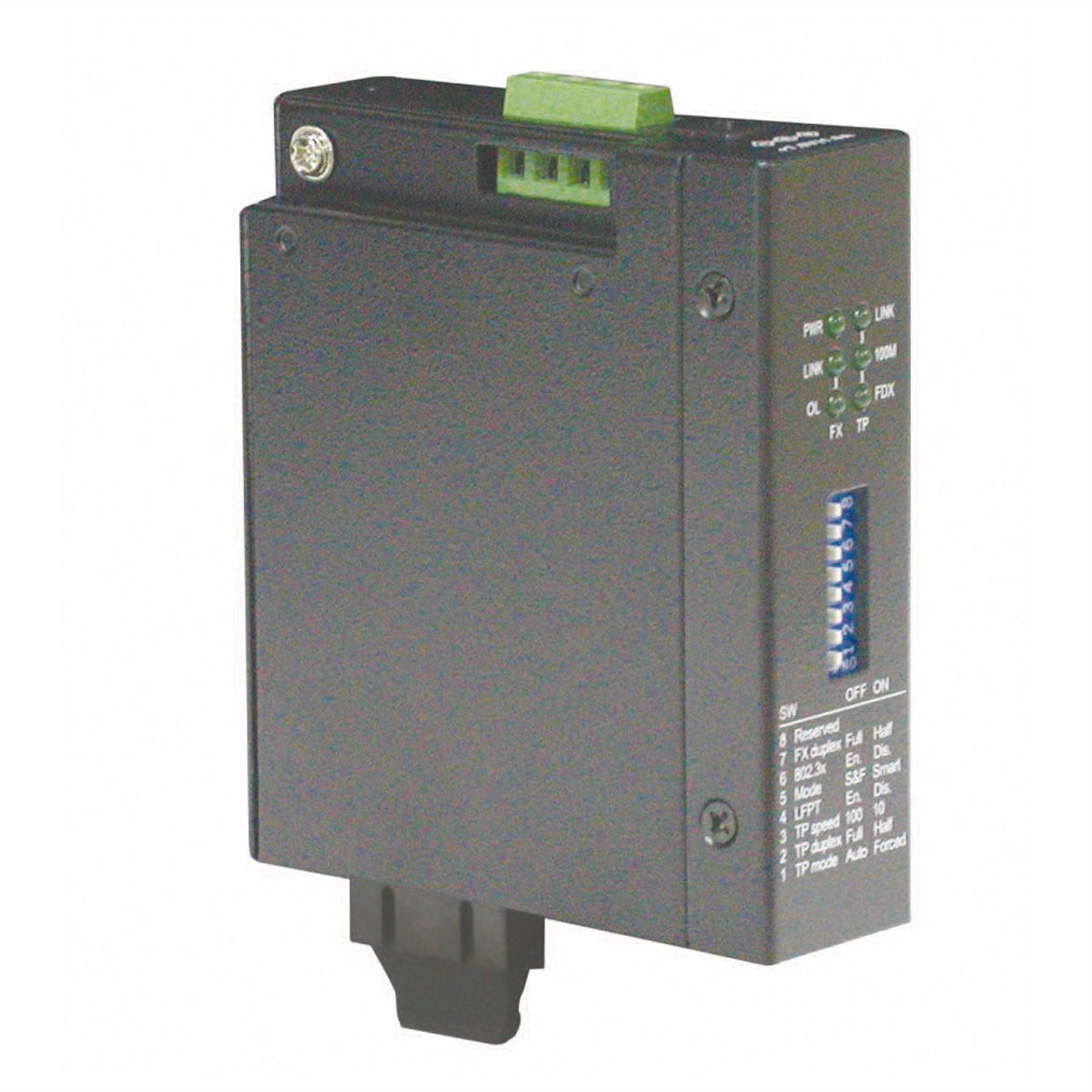

ROLINE Industrial Converter 10/100Base-T - Multimode Optical Fiber, SC
Item no.
21131143
Brand / Manufacturer
ROLINE
Manuf. item no.
21.13.1143
EAN
7611990176663
Item weight
0.2 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
- Support full wire speed copper-to-fiber media conversion for 10/100Mbit/s speed and media types
- Support auto-negotiation 10/100Mbps or forced mode on TP copper port
- Auto MDI/MDI-X crossover function on the TP copper port
- Provide Link Fault Pass Through function
- Provide comprehensive manual configuration settings
- Transparent conversion to 802.1Q VLAN tagged packets
- Provides Far End Fault function on FX (fiber) port
- Low power consumption
- DC Input via terminal block or DC power jack (6.3mm/2.0mm)
- Power: Input: 7 - 30V DC, Consumption: 2.6W (max.)
- Operating Temperature: - 10 °C - +70 °C
- Supports DIN rail mounting
- Industrial-rated Emission and Immunity performance
- Dimensions: 28 x 82 x 95 mm (WxDxH)
- As according Power Supply Unit we recommend 21.13.1226
Specifications
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Media Converter
- Colour
- black
- Scope of delivery
- 1x converter, 1x top-hat rail, 1x product CD-ROM, 1x installation guide
- RJ-45 Port (Mbps/s)
- 10/100
- Fibre Ports (Mbps)
- 100
- Quantity of RJ45 ports
- 1
- Quantity of fibre SC ports
- 1
- Fibre
- Multi mode
- Ethernet fibre standard
- 100Base-FX
- Max. range 50 µm fibre
- 2 km
- Max. range 62,5 µm fibre
- 2 km
- Managed
- no
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 70 °C
- Height
- 95 mm
- Width
- 28 mm
- Depth
- 82 mm
- Weight
- 277.2 g
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 130 mm
- Depth of packaging (single piece)
- 150 mm
- Package weight (single piece)
- 0.2 kg
Accesories
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/roline.png "ROLINE Logo")
The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
