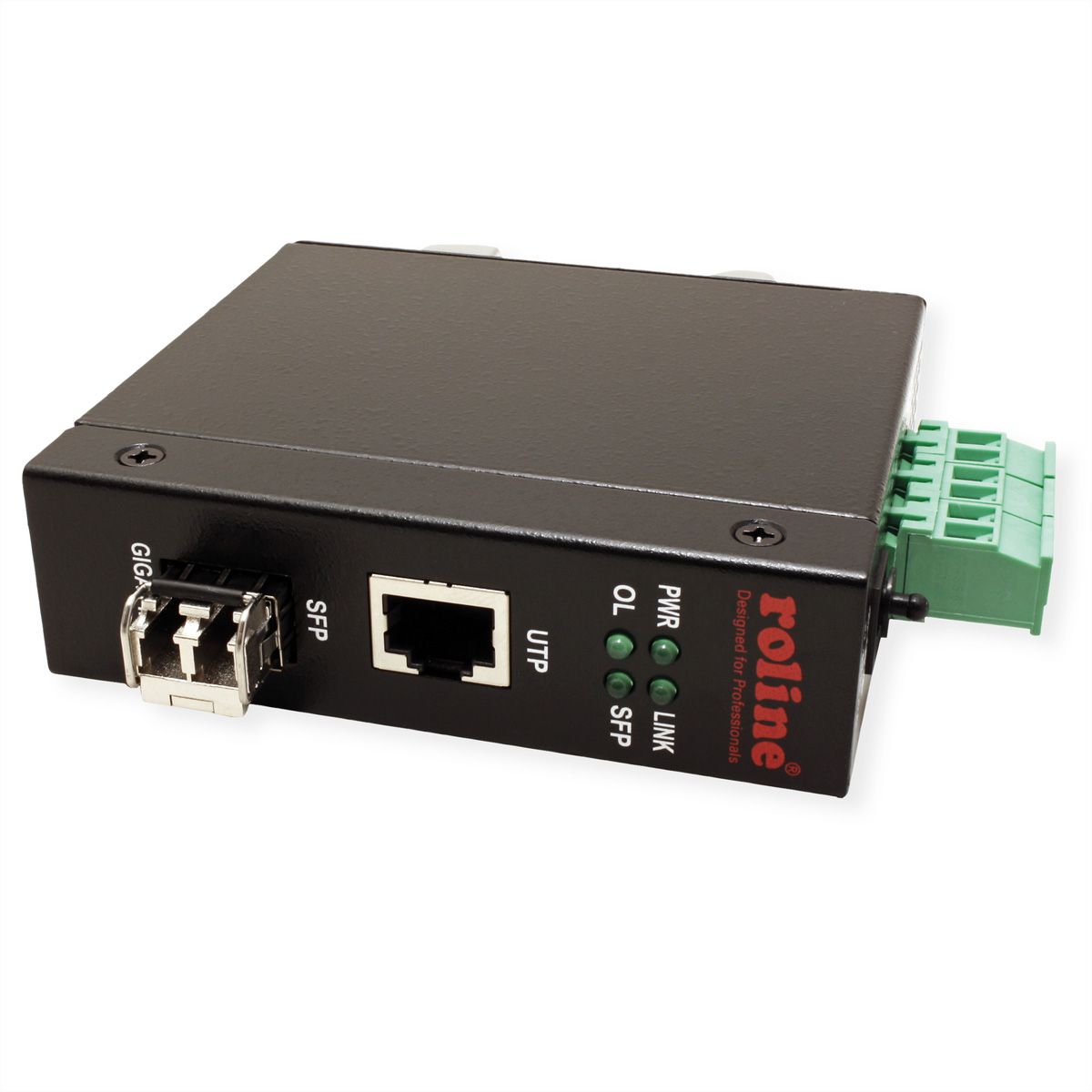

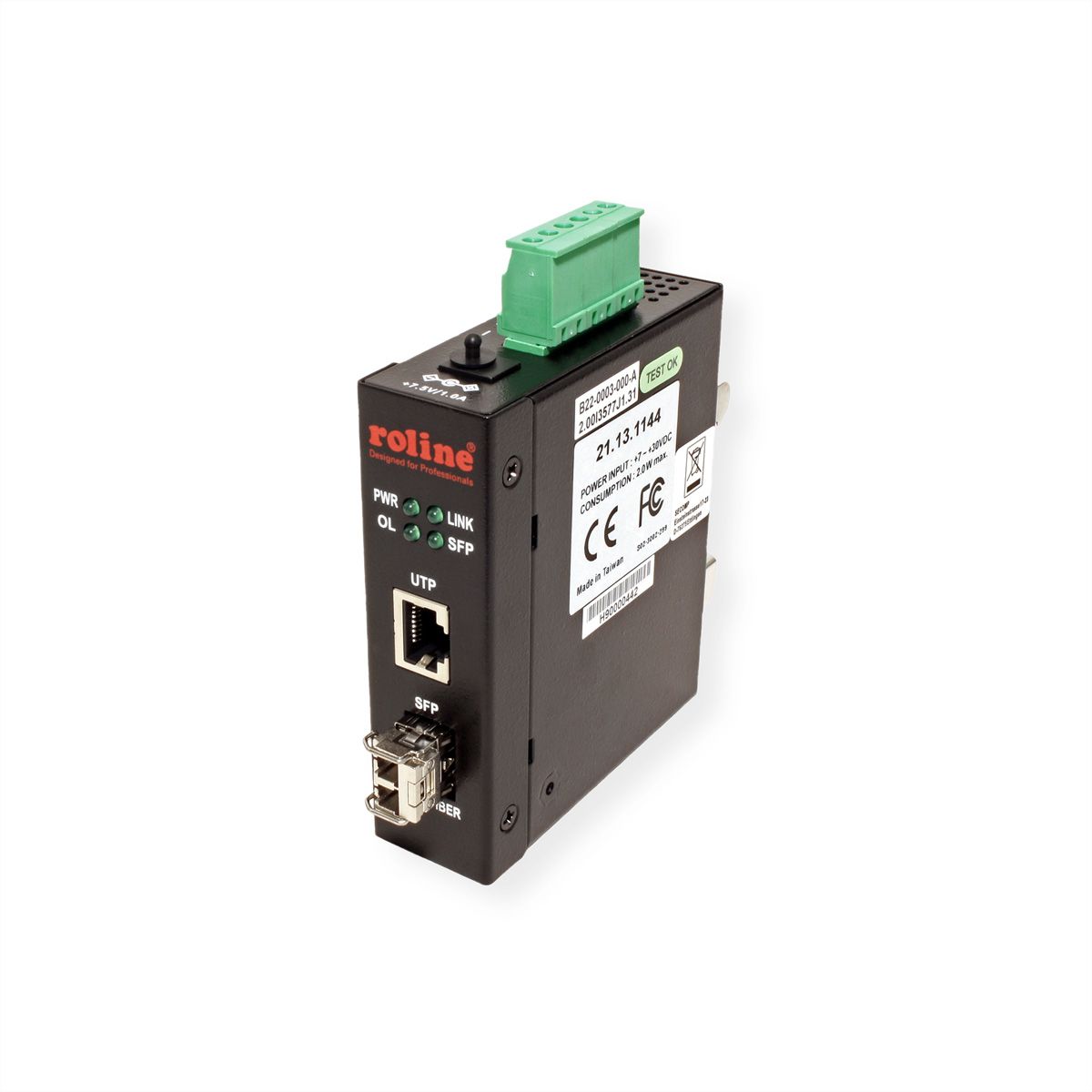

ROLINE Industrial Converter RJ-45, incl. mini GBIC, Fiber Optic 1000SX/LC

Item no. 21131144 Brand / Manufacturer ROLINE Manuf. item no. 21.13.1144 EAN 7611990176670 Item weight 0.346 kg
ROLINE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

  • Provides direct media conversion for Gigabit copper and Gigabit fiber
  • Plug and play design with no configuration setting
  • Support DIN-rail mounting and panel mounting

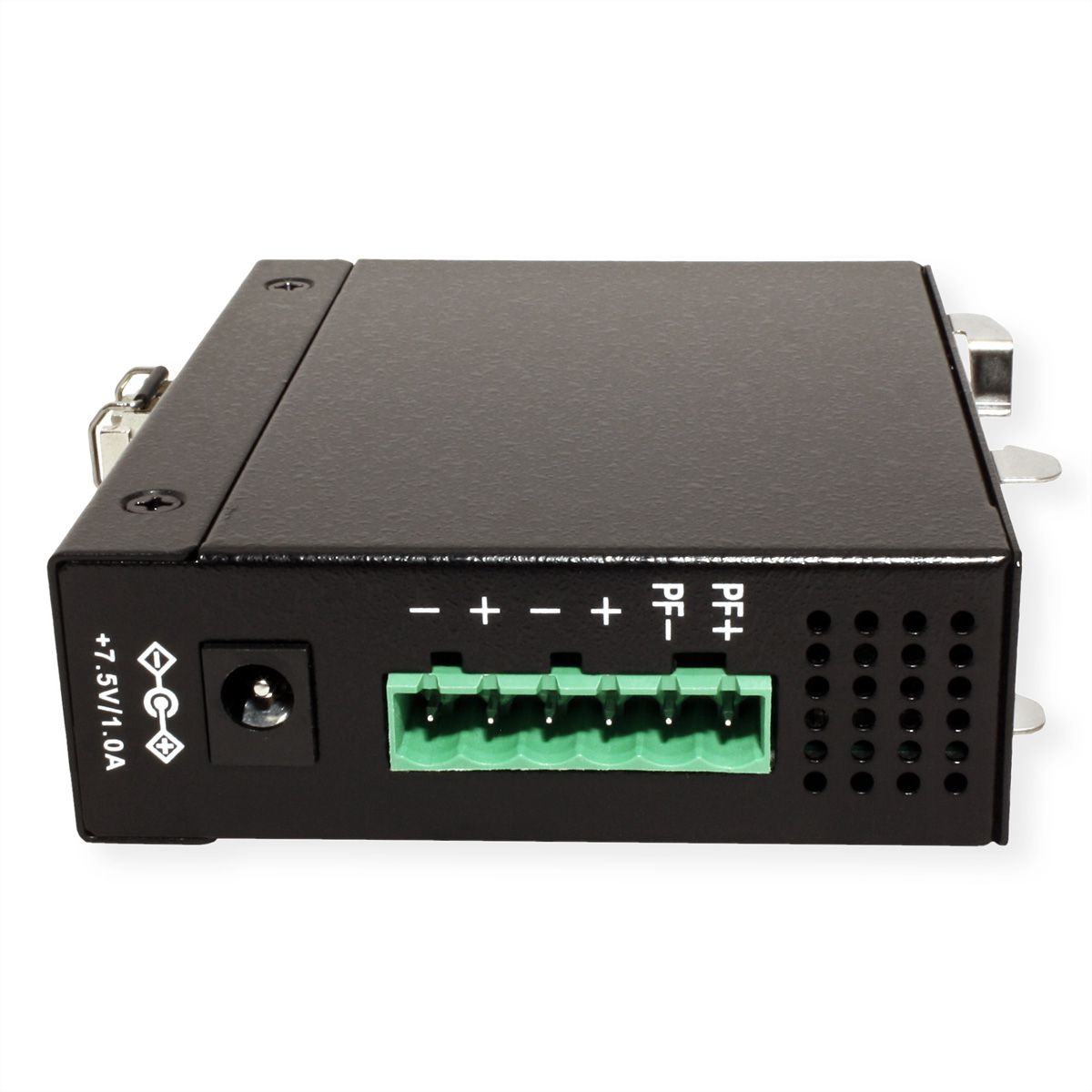

  • Two power interface types: screw terminal block and DC Jack
  • Low power consumption
  • Support full wire speed conversion
  • Support transparent conversion of any packet types with no packet length limitation
  • Support auto-negotiation with link partners
  • Provide link pass through between copper and fiber link

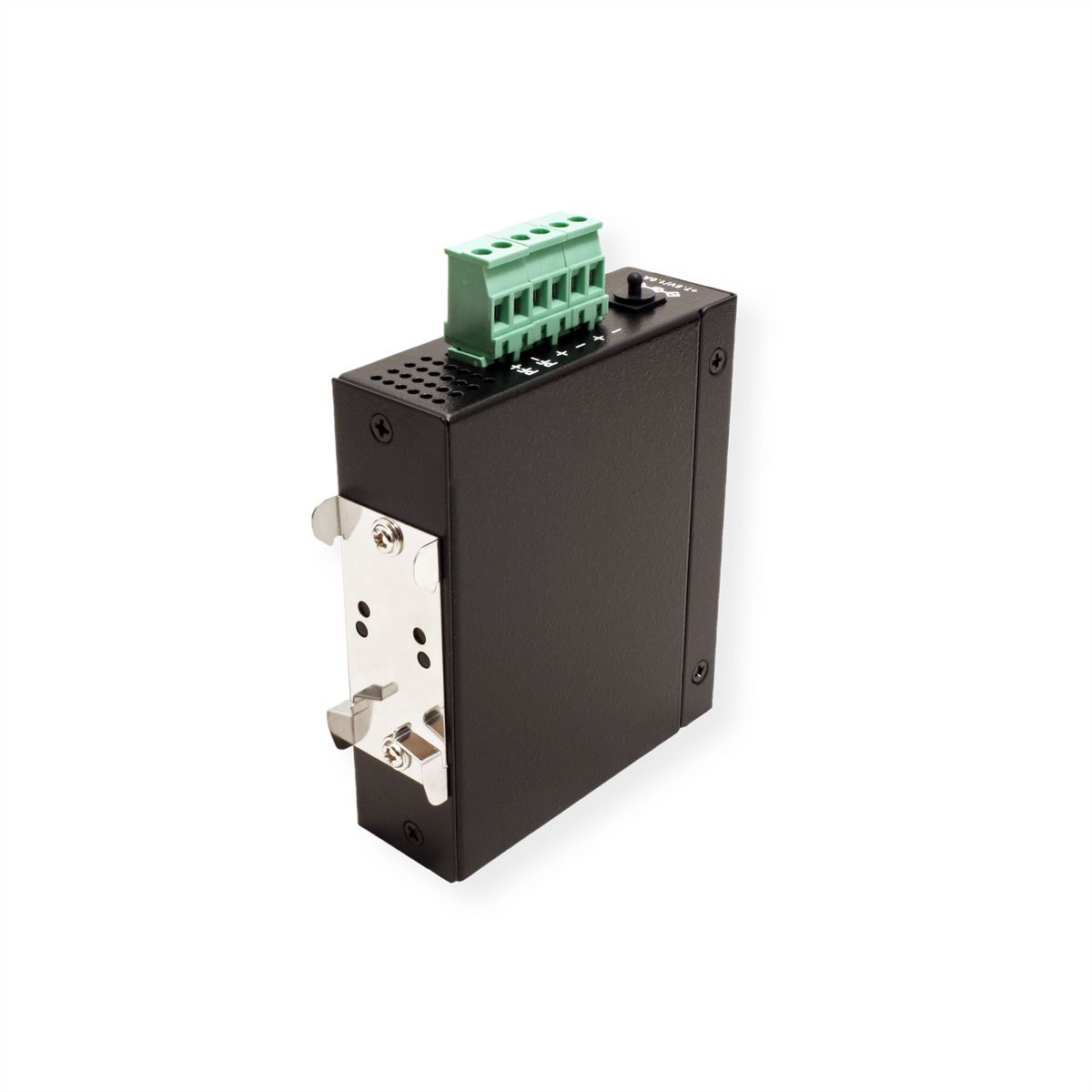

  • Supports DIN-rail mounting
  • Copper port:
- Shielded RJ-45,1000Mbps
- Auto-negotiation capable
- Auto-MDI/MDI-X crossover function
  • Fiber port:
- SFP connector with pre-configured SFP fiber transceiver
- Far End Fault support
  • Power: Input: 7 - 30V DC, consumption: 2,5W (max.)
  • Operating Temperature: - 20 °C - +70 °C
  • Dimensions: 28 x 82 x 95 mm (WxDxH)

Specifications

Manufacturer
ROLINE
Product group
Network converters
Product type
Media Converter
Colour
black

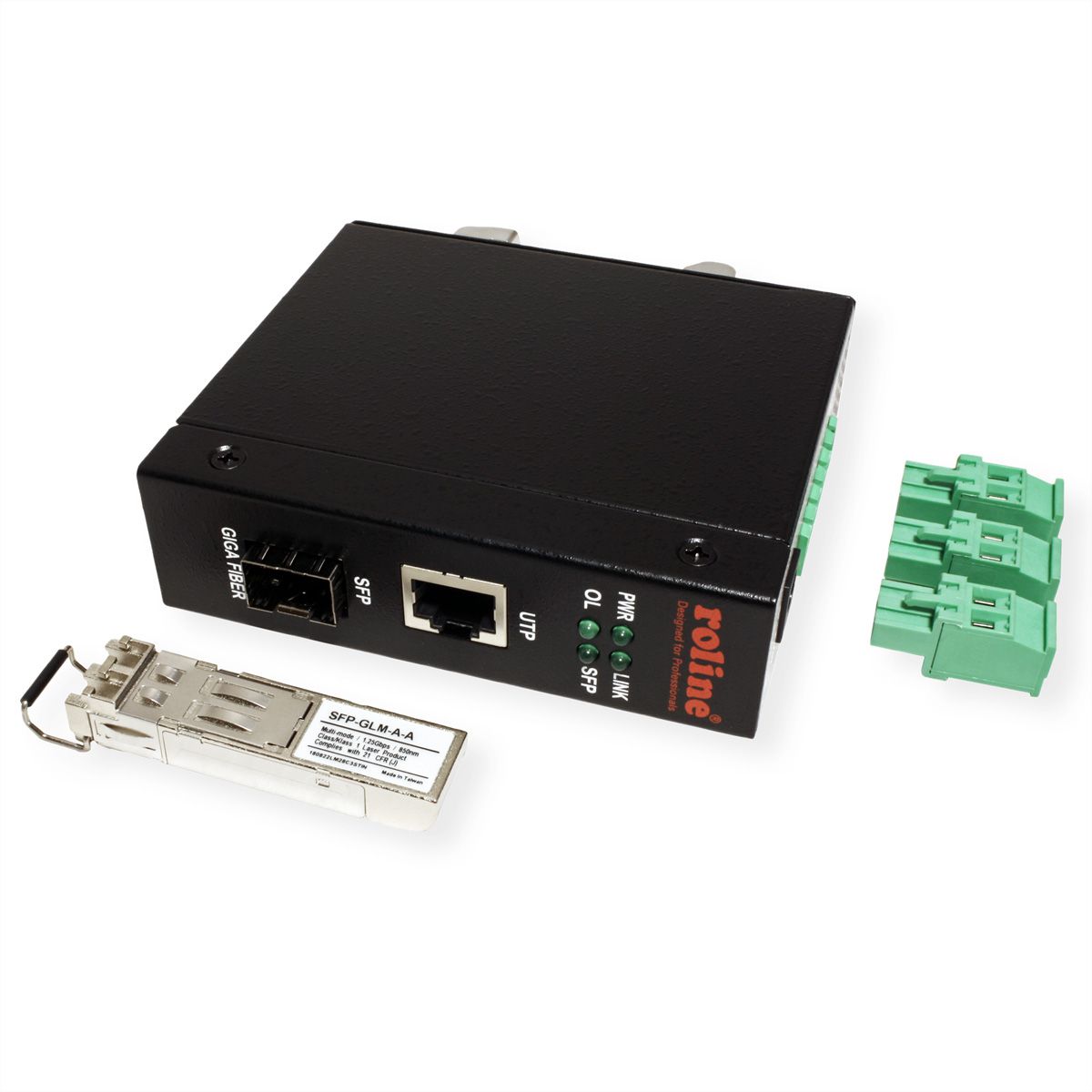

Scope of delivery
1x converter, 1x terminal block, 1x product CD-ROM
RJ-45 Port (Mbps/s)
1000
Fibre Ports (Mbps)
1000
Quantity of RJ45 ports
1
Quantity of fibre LC ports
1
Fibre
Multi mode
Ethernet fibre standard
1000Base-SX
Max. range 50 µm fibre
500 m
Max. range 62,5 µm fibre
220 m
Managed
no
Operating temperature min.
-20 °C
Operating temperature max.
70 °C
Height
95 mm
Width
28 mm
Depth
82 mm
Weight
279.55 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
170 mm
Package weight (single piece)
0.346 kg

Downloads

Product data sheet - English (47.0 KB) Manufacturer data sheet - English (567.0 KB)
