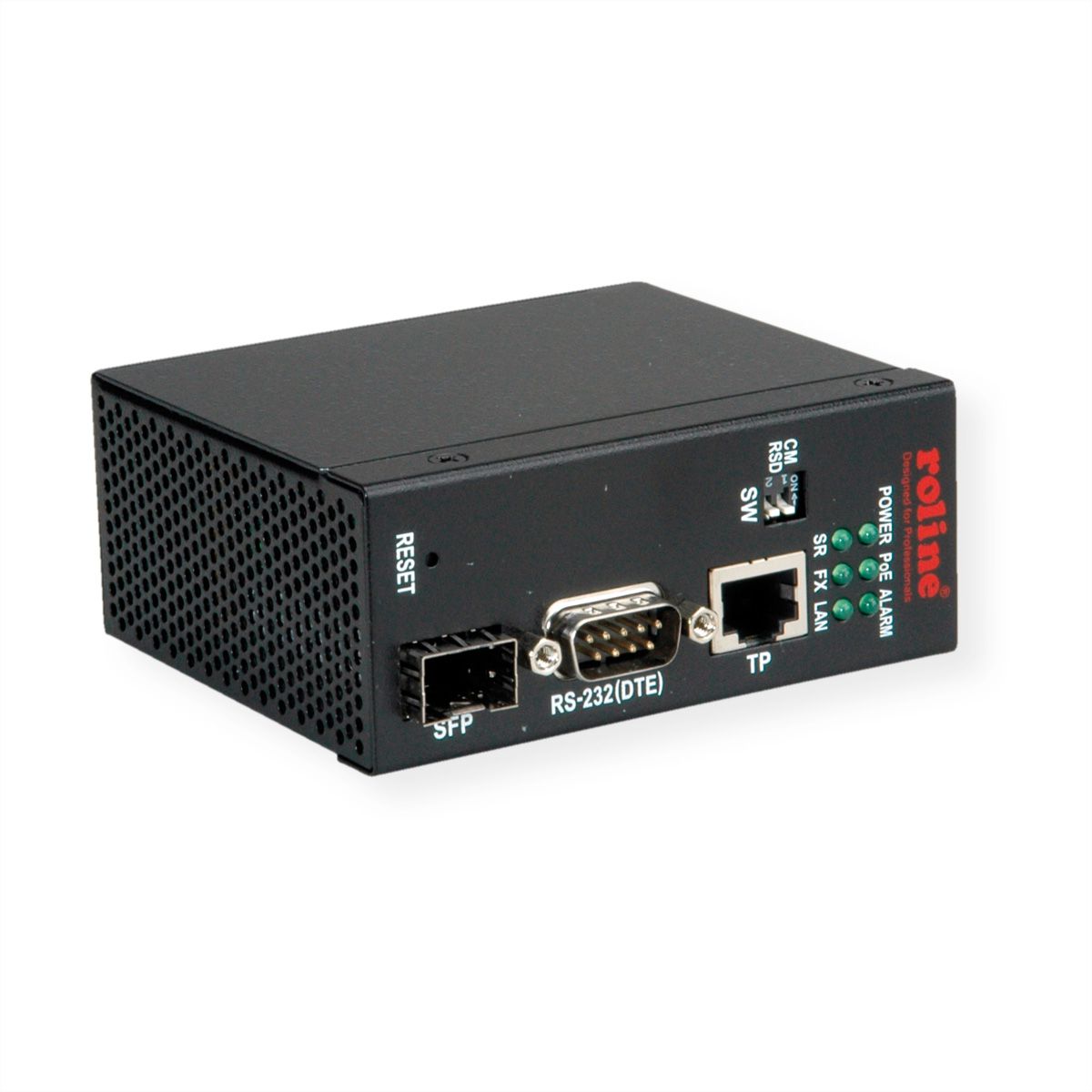

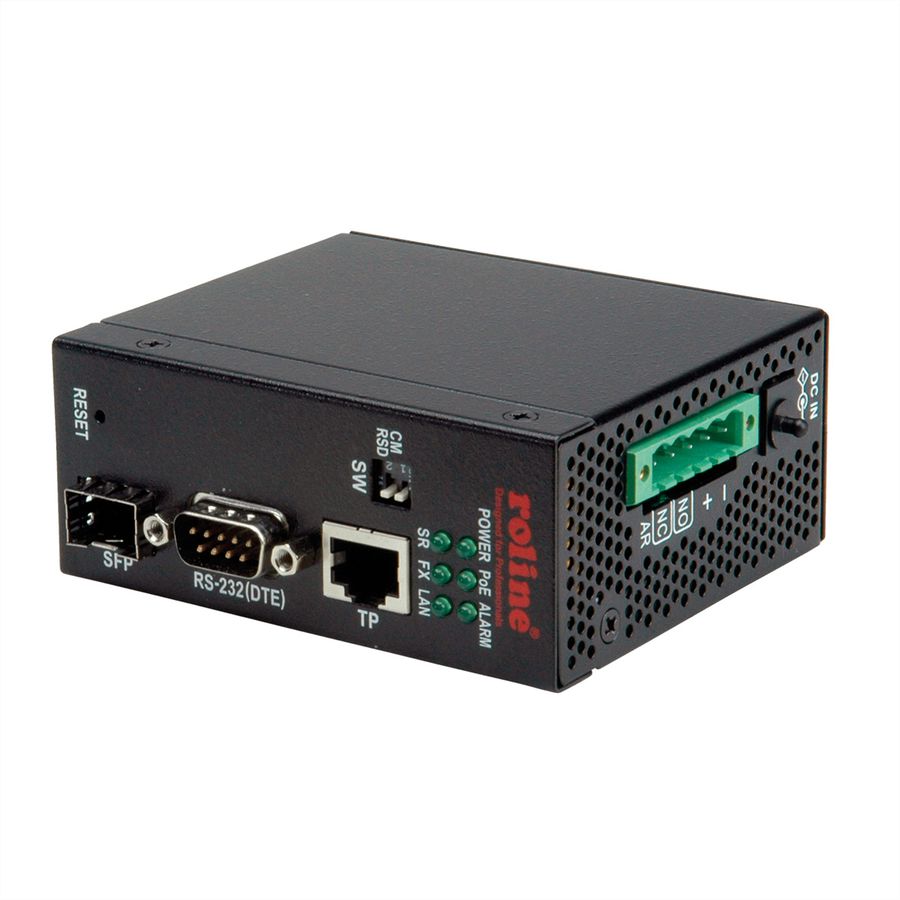

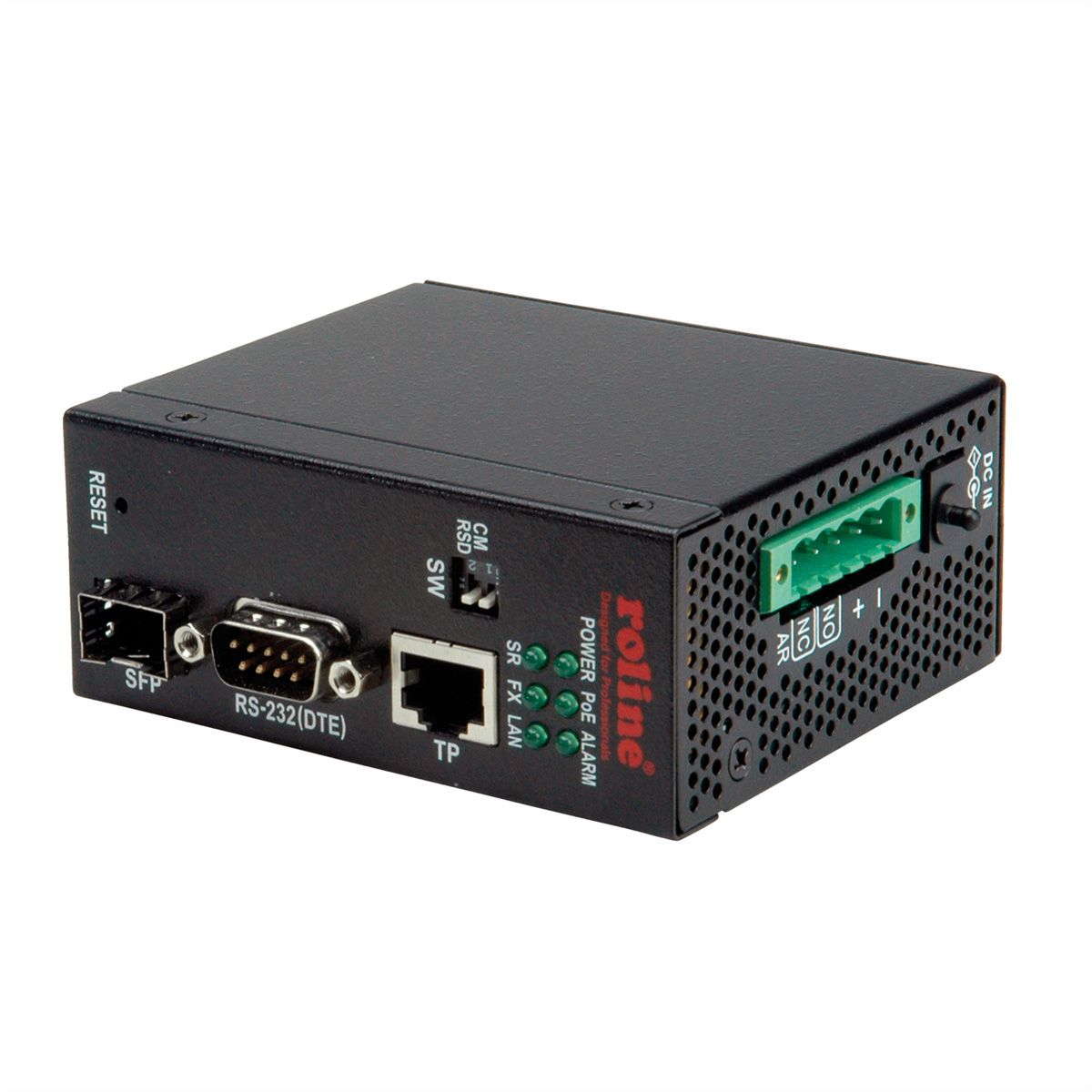

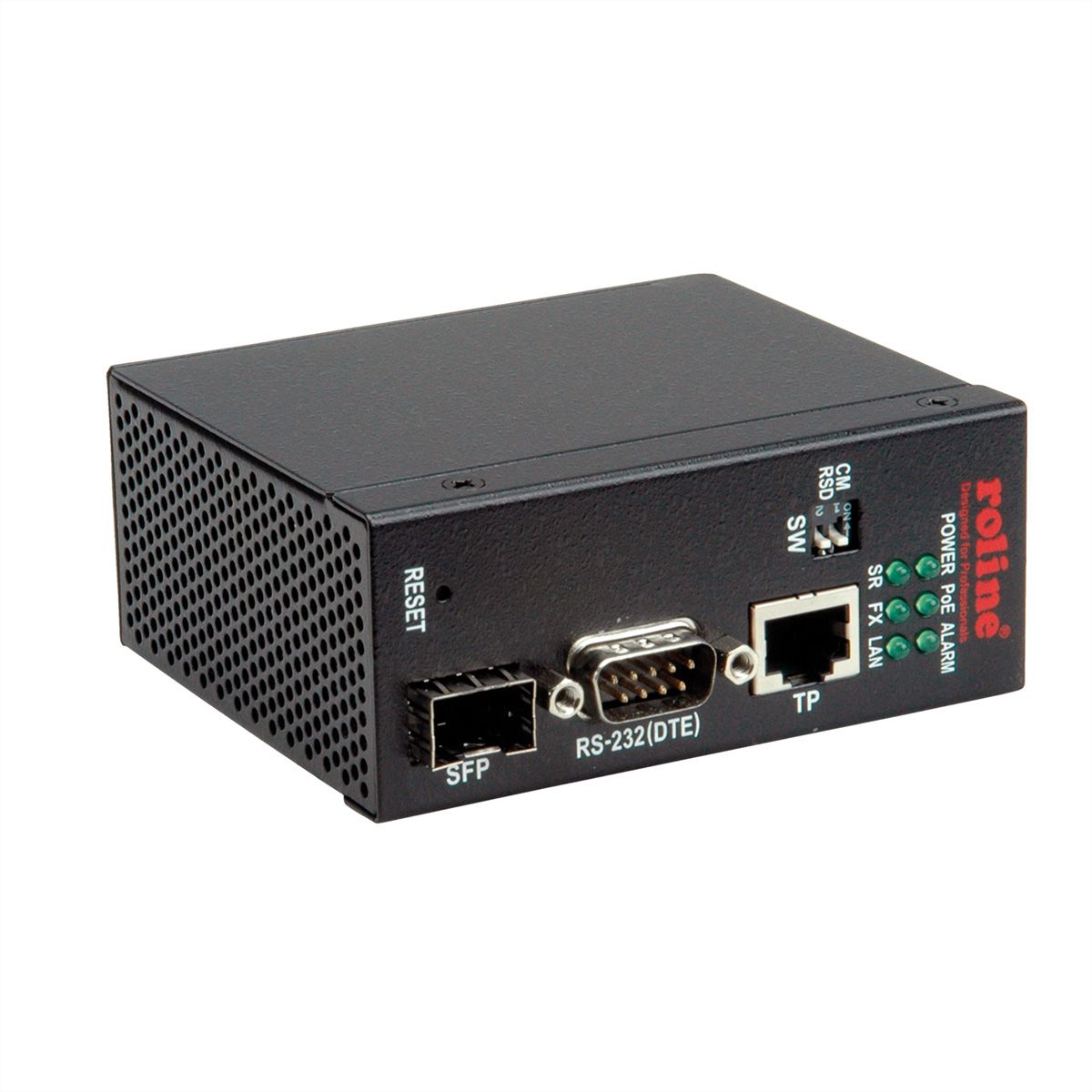

ROLINE Industrial Ethernet to Serial Media Converters (RS-232), 1x SFP

Item no. 21131138 Brand / Manufacturer ROLINE Manuf. item no. 21.13.1138 EAN 7611990176366 Item weight 0.403 kg
ROLINE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

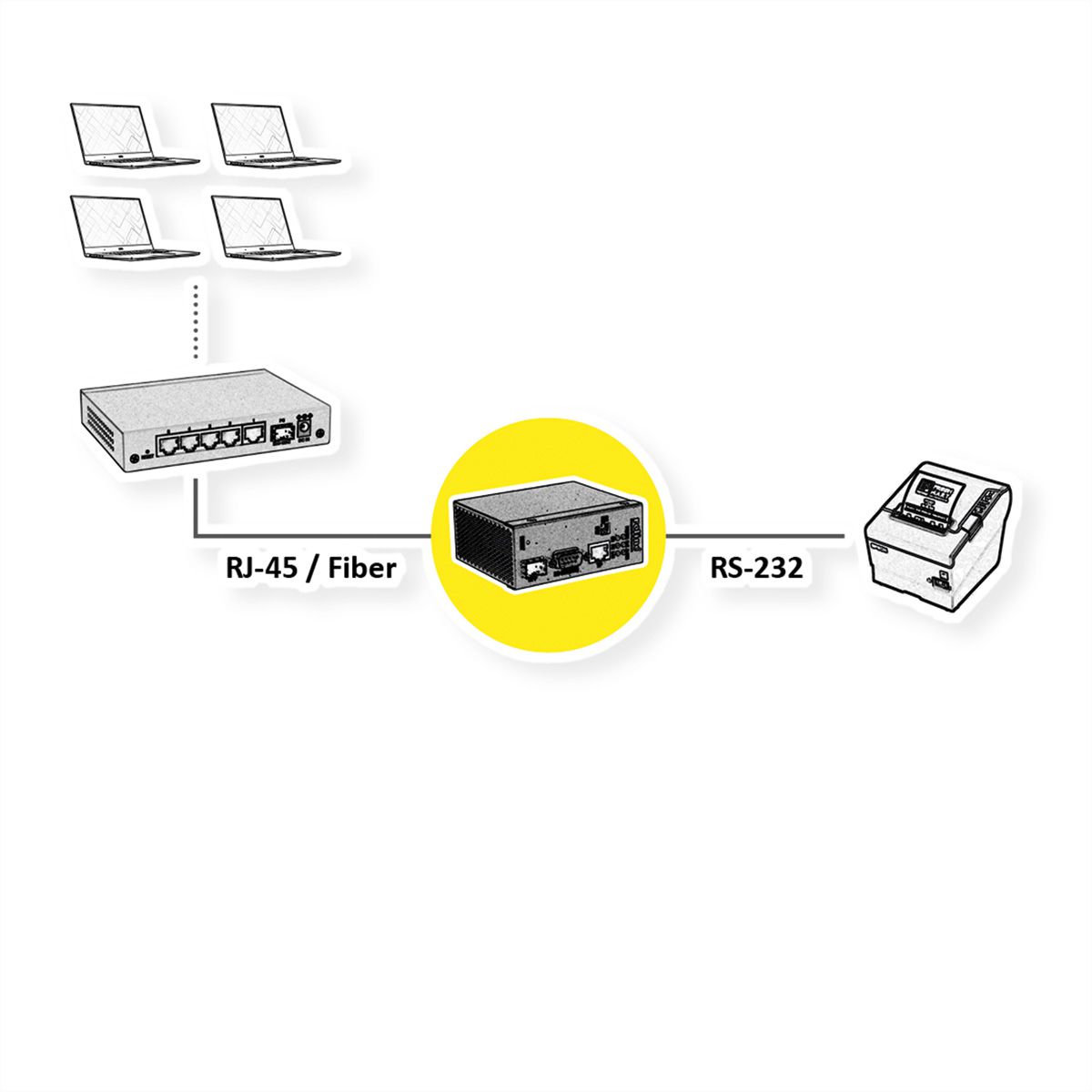

Network media converter from Ethernet (RJ-45) to serial (RS-232), for use in industrial environments - including an additional SFP port!

  • Ethernet interface provides combo port of 10/100Mbps copper RJ-45 and 100M fiber SFP slot
  • Serial interface RS-232
  • Serial port supports baud-rate up to 230400bps
  • Galvanic isolation on serial interface
  • Data conversion throughput up to 230Kbps
  • Wide range of direct power voltage support, DC 8V-60V
  • Powered over Ethernet through RJ-45 interface (PoE-enabled)
  • Alarm relay output for power failure, port link down and failure in connecting to server
  • Application support for remote COM port, serial server over TCP, reverse telnet, pair connection, and serial broadcast
  • Remote COM driver support for Windows PC
  • Web-based and serial-based console configuration
  • Event notification over SMTP and SNMP traps
  • Designed for industrial environments with:

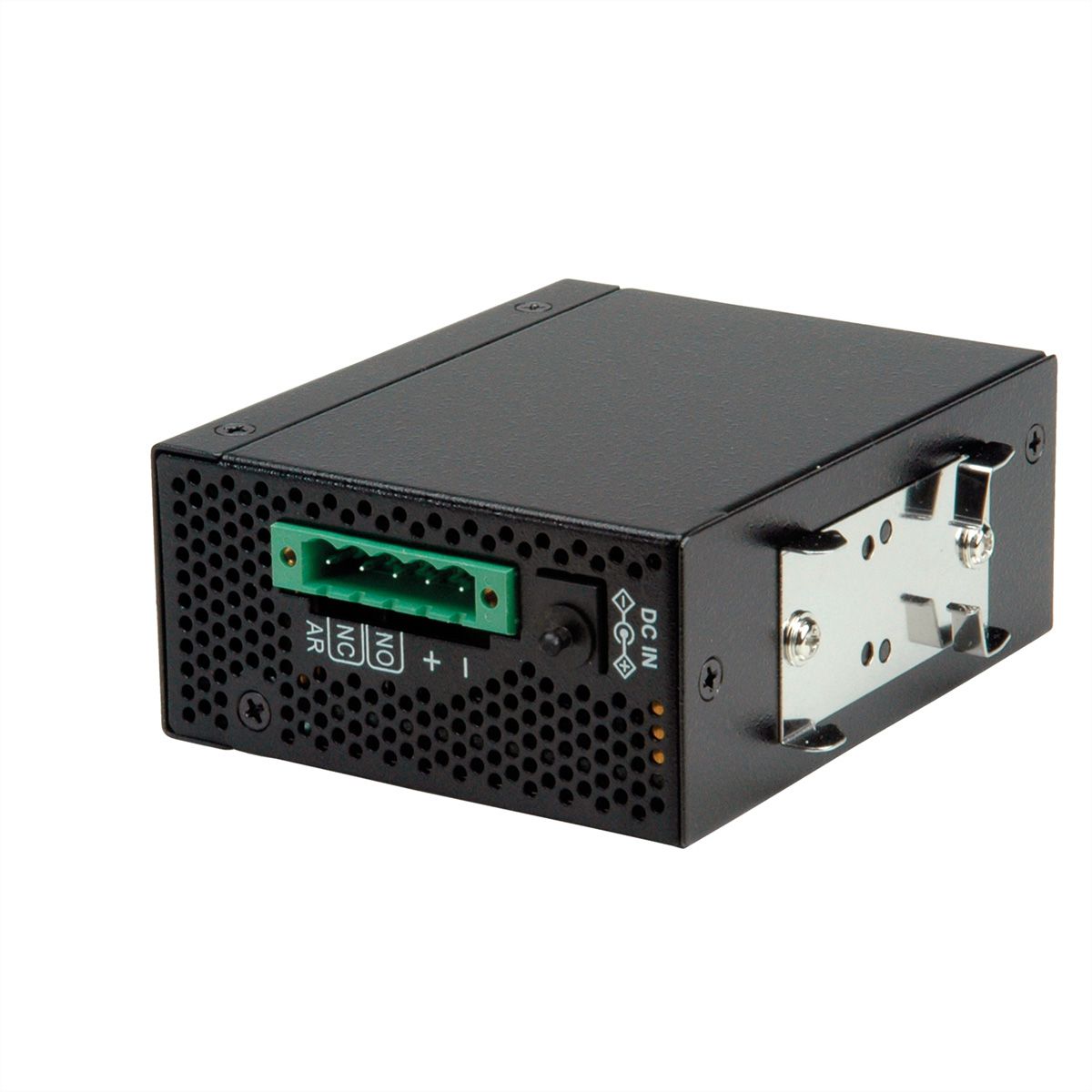

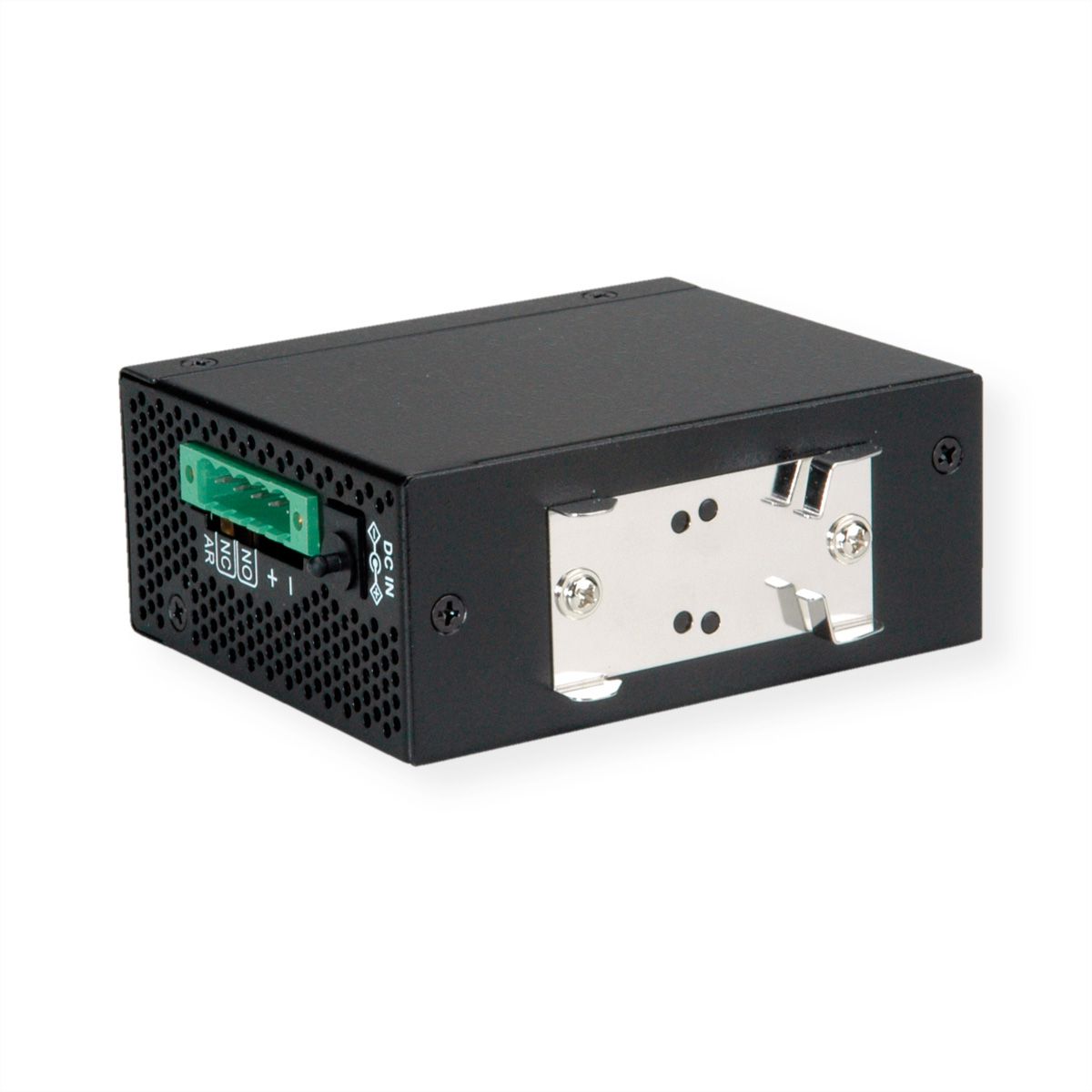

- Terminal block and DC plug (6.3 mm/2.0 mm) power connectors
- Fanless, rugged metal housing
  • Power: Input: 8 - 60 VDC
  • Power over Ethernet:
- IEEE 802.3af, voltage input range: +36 - +57VDC
  • Operating Temperature: - 30 °C - +70 °C

Specifications

Manufacturer
ROLINE
Product group
Network converters
Product type
Media Converter
Colour
black
Scope of delivery
1x switch, 1x terminal block, 1x product CD-ROM
Fibre
Multi mode
Max. range 50 µm fibre
2 km
Managed
no
Operating temperature min.
-30 °C
Operating temperature max.
70 °C
Weight
305.1 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
150 mm
Package weight (single piece)
0.403 kg
Quantity of fibre ST ports
1

Downloads

Product data sheet - English (44.8 KB) User manual - Deutsch (2.5 MB) User manual - English (2.5 MB) User manual - Français (2.3 MB)
