ROLINE Industrial Gigabit PoE++ Mid-Span Injector, 90W

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Available - can be delivered within 24 hours

Ordered by 2 p.m. - usually shipped the same day

Item no.	21131202
Brand / Manufacturer	ROLINE
Manuf. item no.	21.13.1202
EAN	7630049612440
Item weight	0.278 kg

Description

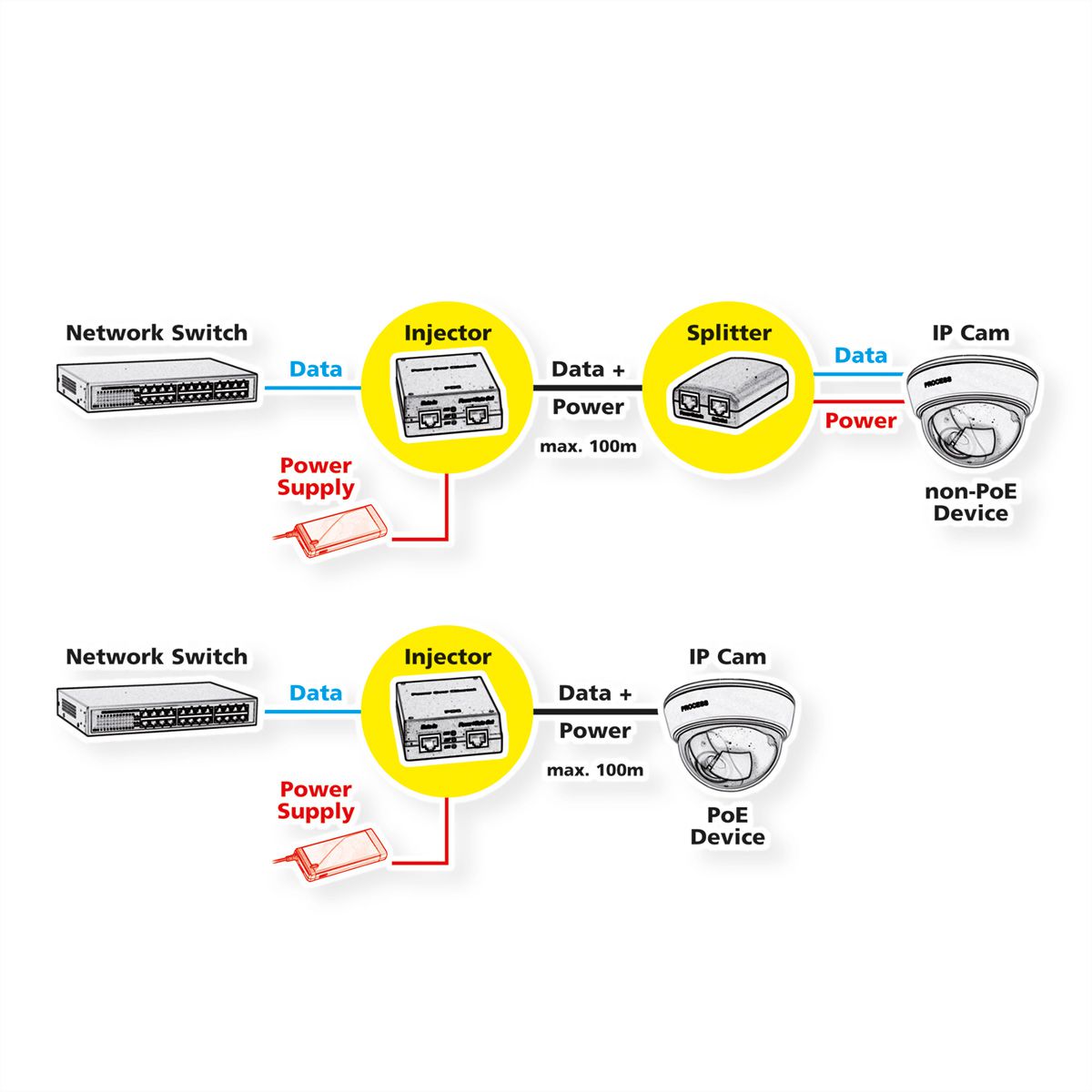

The ROLINE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable.

A PSE supplies the current together with the data in the network cable. It doesn't need no longer an additional own power supply of the device.

Supply of data and power into the network cables

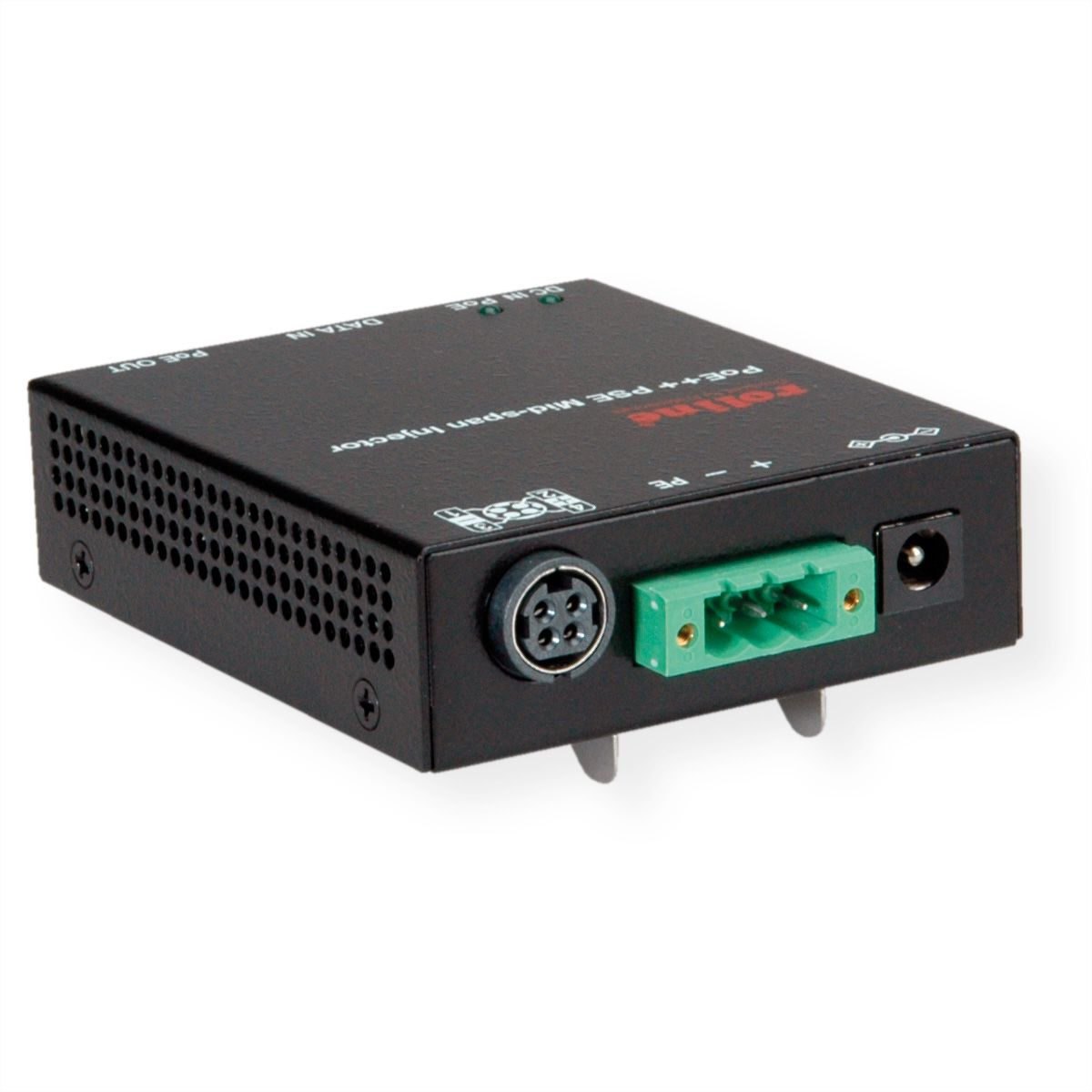

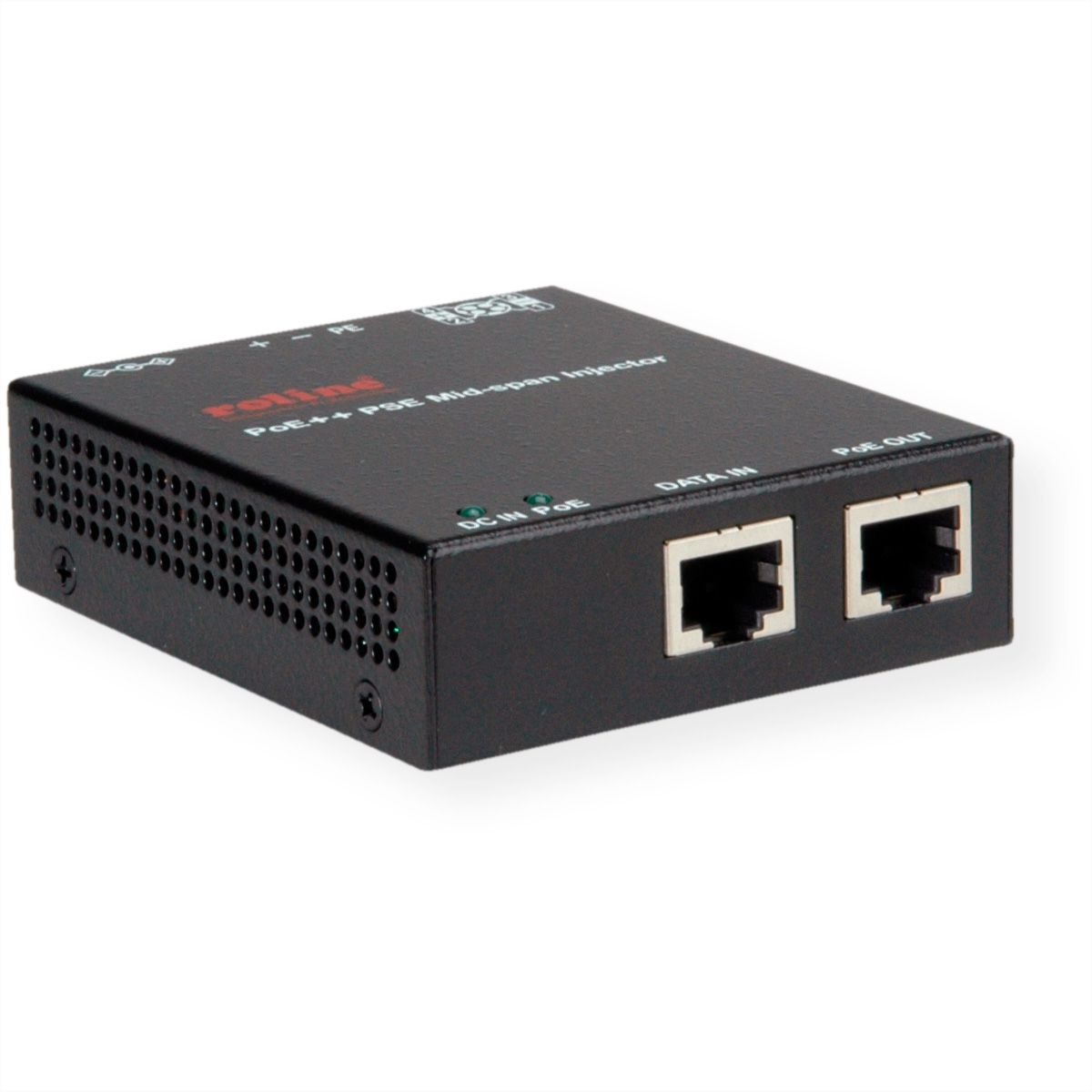

Connectors: 1x RJ-45 port (Data In, Data input), 1x power socket (Power In, input power supply), 1x RJ-45 port (Data & Power Out, output data and power)
Compatible with 802.3af and 802.3at
Power via PoE++: up to 90W
LED indicators for Power, Link / Act. and PoE
Output voltage: 802.3af standard (45V-57V DC)
Contents: Injector, manual

Specifications

Manufacturer	ROLINE
Product group	PoE adapter
Product type	Gigabit PoE-Injector
Colour	black
Scope of delivery	Injector, handleiding
Power over Ethernet (PoE)	PoE++
Quantity of PoE ports	1
Max. PoE output power per port	90 W
Max. PoE output power (total)	90 W
Dimensions (HxWxD)	85 x 73 x 24 mm
Mains connection	Loose cable / screw terminals
Height	85 mm
Width	73 mm
Depth	24 mm
Weight	184 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	150 mm
Package weight (single piece)	0.278 kg
