Item no.:21170320Herst.-Art.-Nr.:21.17.0320

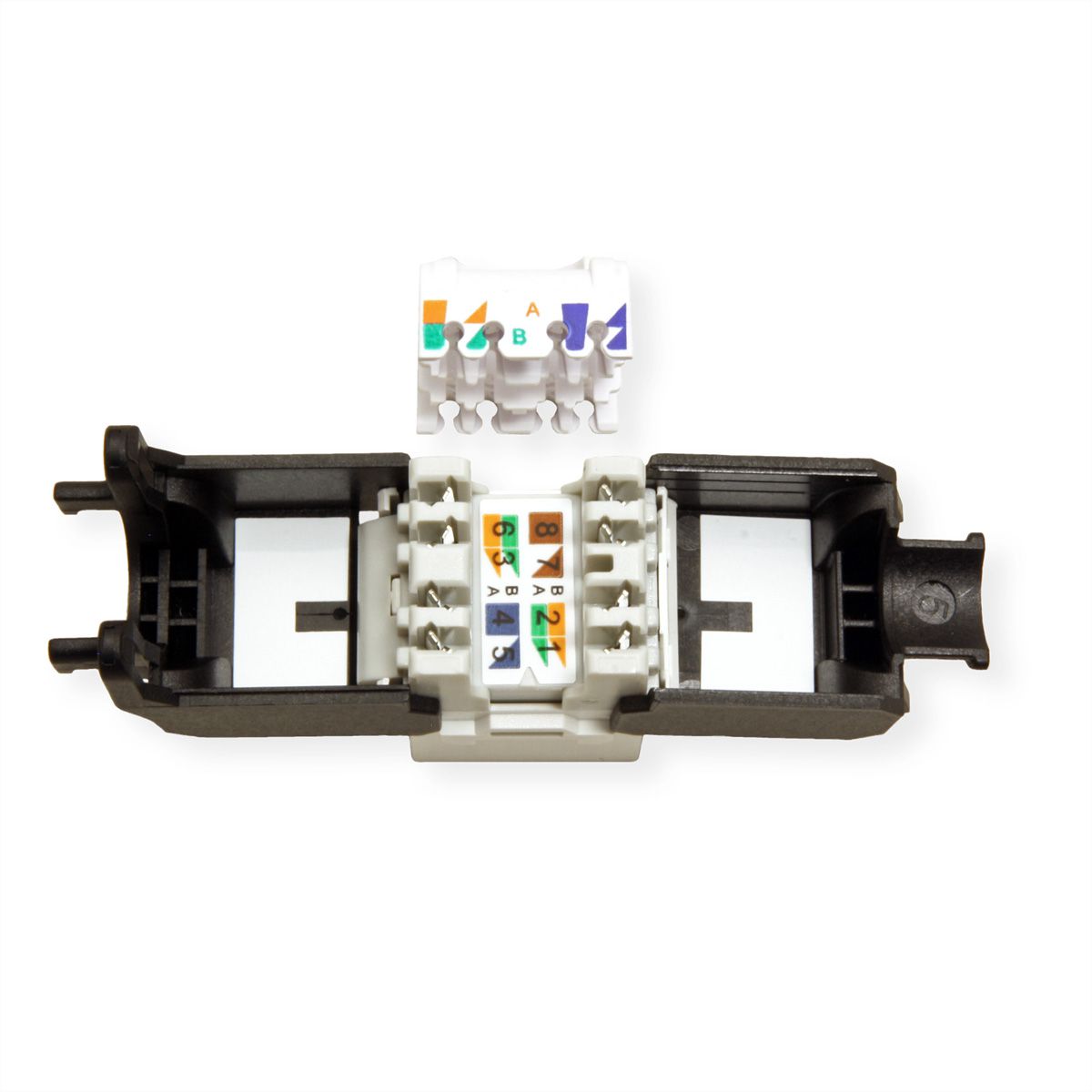

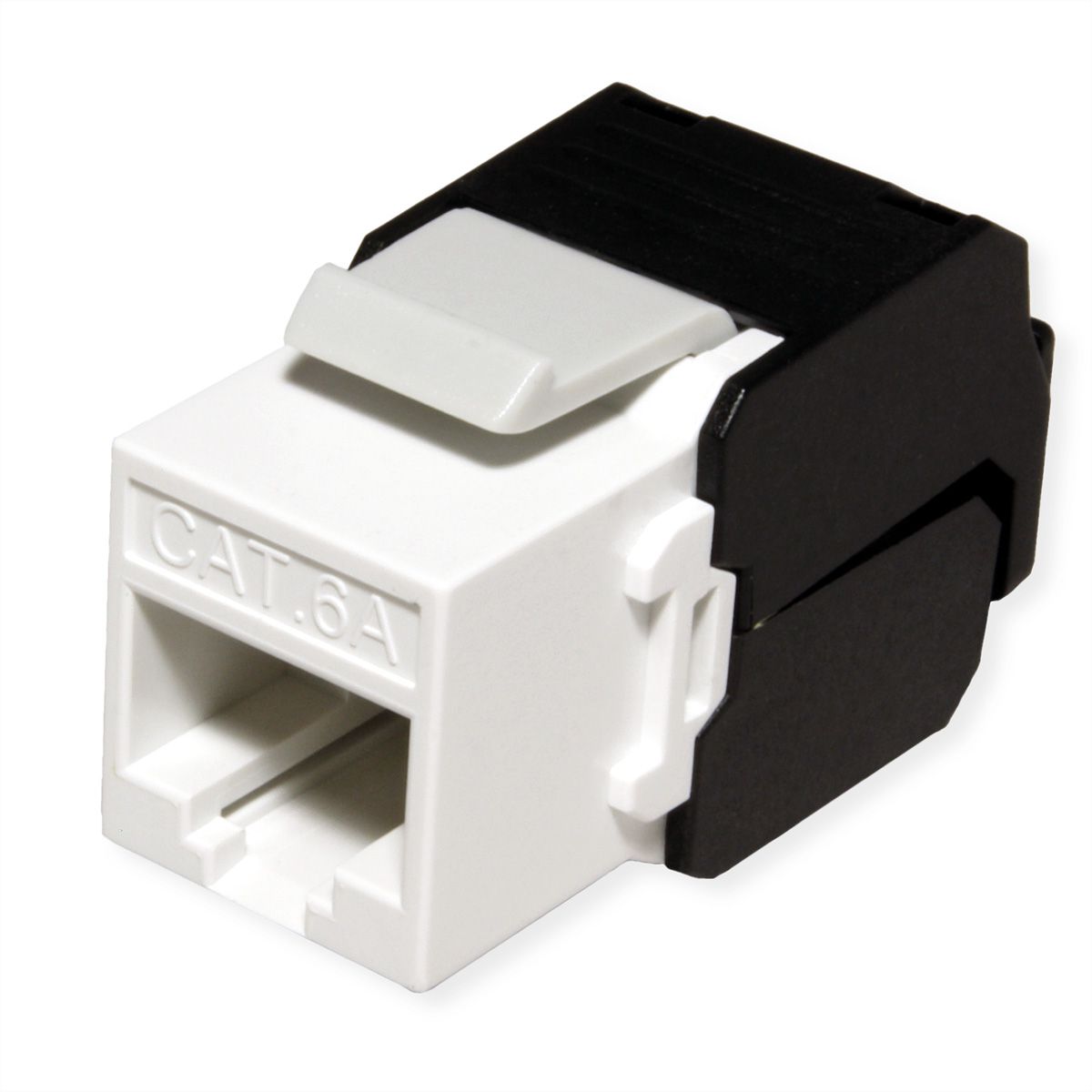

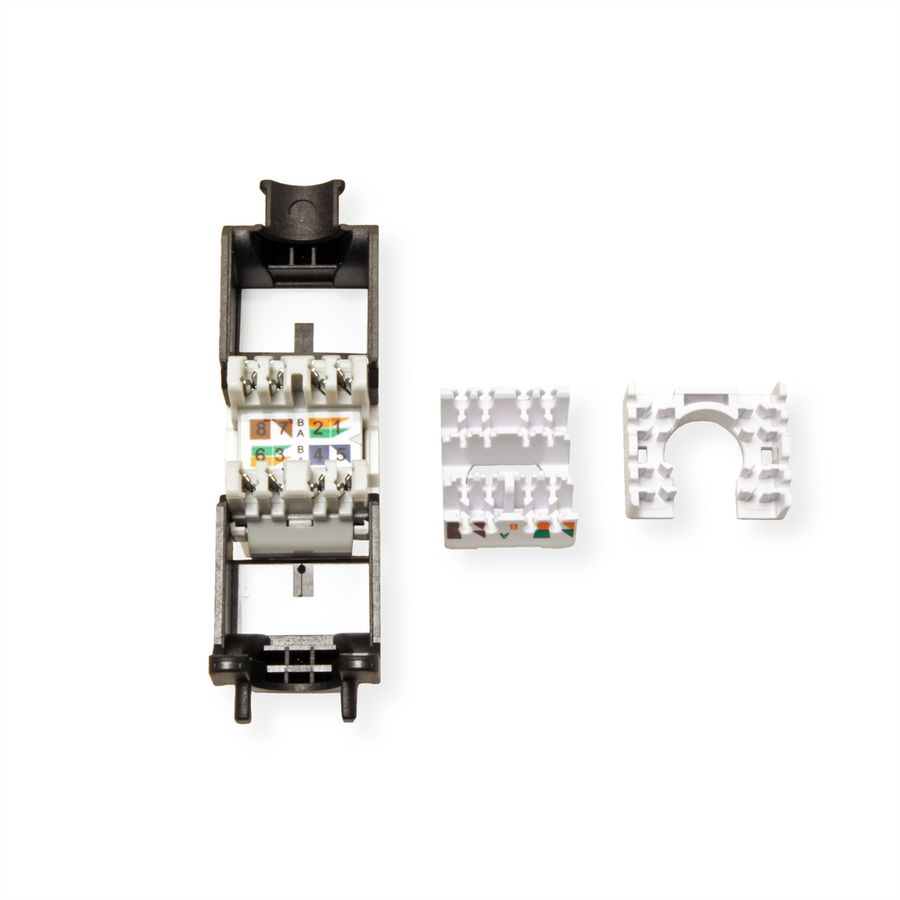

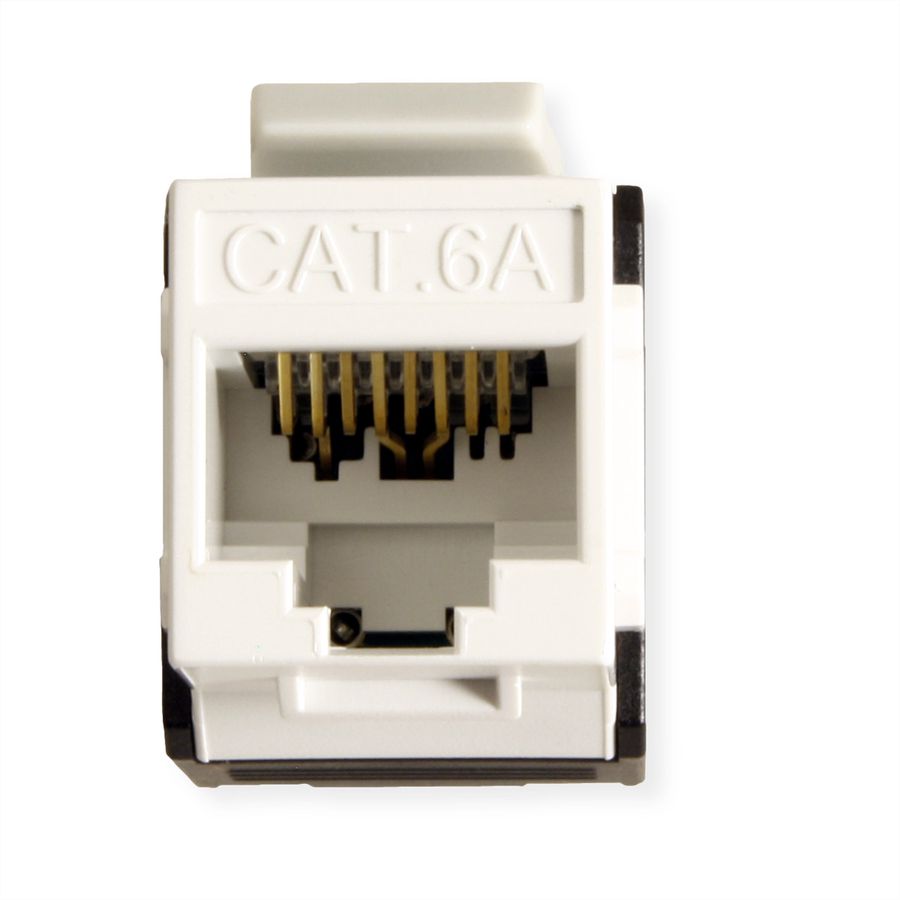

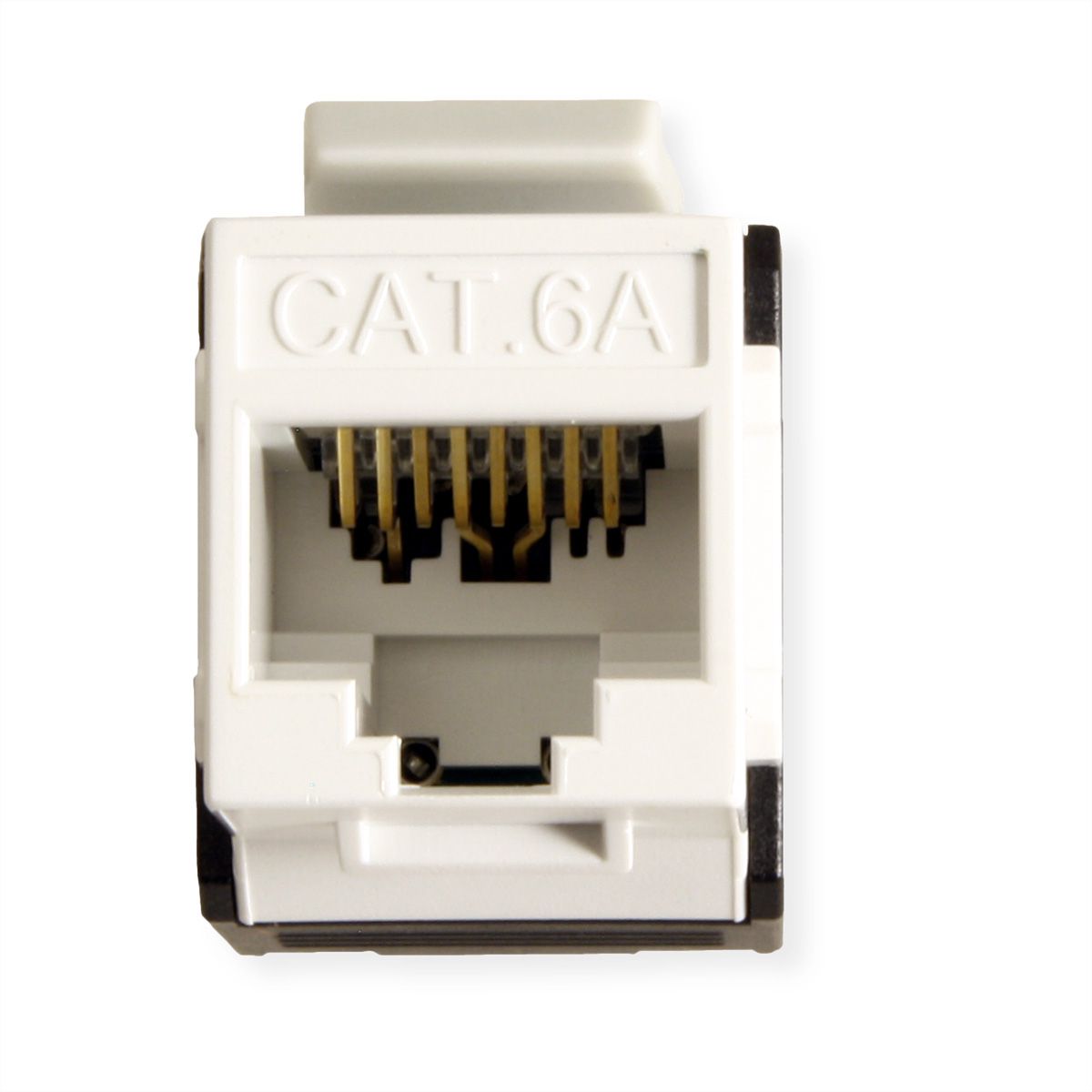

ROLINE Keystone Jack, Cat.6A (Class EA), RJ-45, UTP, tool-free, white
Item no.
26110337
Brand / Manufacturer
ROLINE
Manuf. item no.
26.11.0337
EAN
7611990198481
Item weight
0.02 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
- The Cat.6a keystones support data transfer rates of up to 10 GBit/s and a bandwidth of 500 MHz
- Assembling takes place over LSA plus
- Colour code on the keystone jacks is based on the standard EIA/TIA 568
- Can be used together with Keystone Module frame 26.11.0357 (black) or 26.11.0356 (light grey), Flush Mount Wall Oulet for Keystones, 2-port (25.16.8579)
- Colour: white
Specifications
- Manufacturer
- ROLINE
- Product group
- Connection technology TP
- Product type
- RJ45 Keystone Jack
- Colour
- white
- Scope of delivery
- 1x Keystone
- Shield type
- Not screened
- Transfer quality
- Cat6A / Class EA
- Quantity of ports
- 1
- Assembly cable connection
- Krone LSAplus
- Assignment
- EIA/TIA 568A & 568B
- Connection direction
- Straight
- Operating temperature min.
- -10 °C
- Operating temperature max.
- 60 °C
- Height
- 23 mm
- Width
- 16 mm
- Depth
- 38 mm
- Weight
- 7.8 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 70 mm
- Depth of packaging (single piece)
- 120 mm
- Package weight (single piece)
- 0.02 kg
