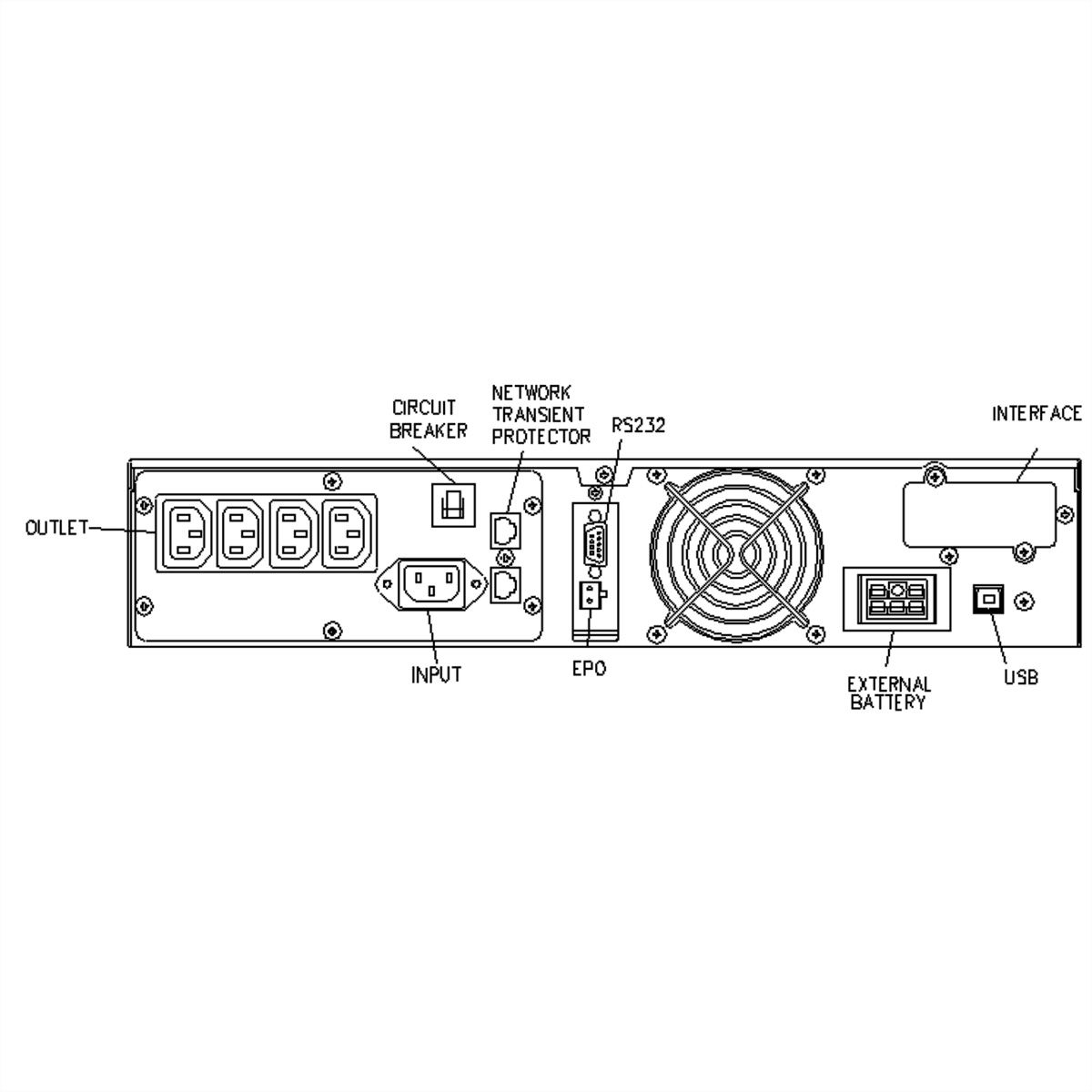

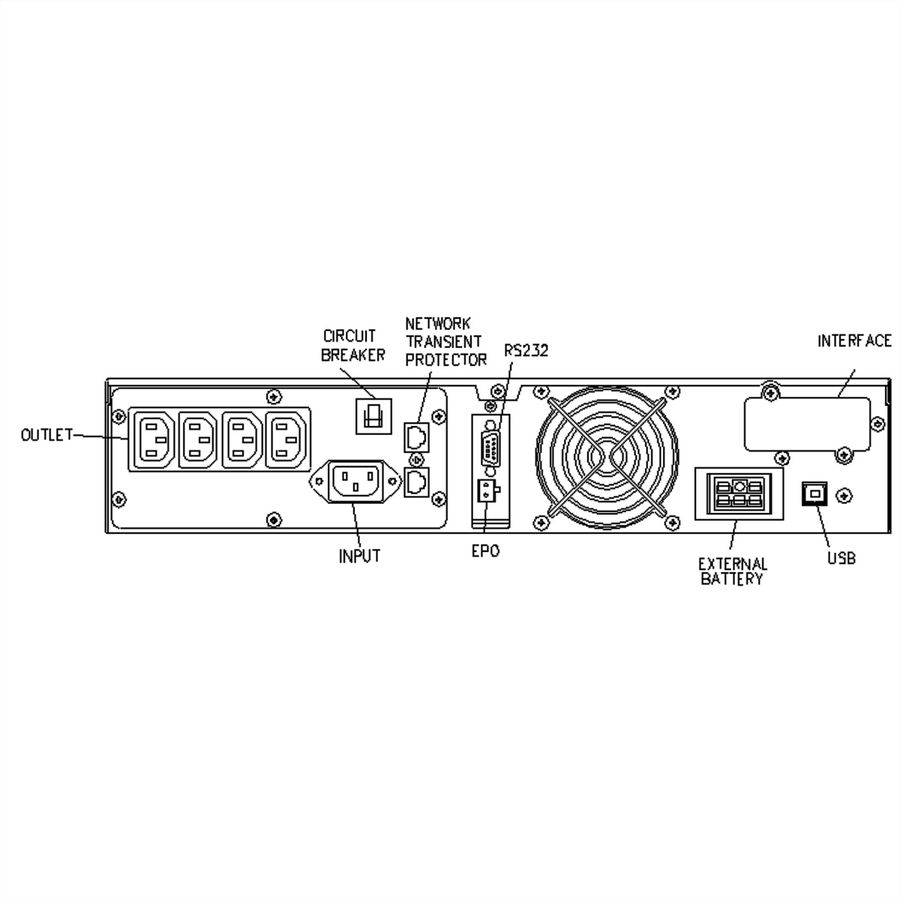

ROLINE ProSecure II 700 RM2U - Online UPS, 19" Rack Version

Item no. 19401088 Brand / Manufacturer ROLINE Manuf. item no. 19.40.1088 EAN 7611990154883 Item weight 16.651 kg

Output (VA/W):

Interface:

ROLINE ProSecure II 700 RM2U - Online UPS, 19" Rack Version

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

This item is transported on a pallet; additional shipping costs will be charged!

Download PDF

Description

The ROLINE ProSecure Series - for optimum power protection is a truly state of the art online double conversion UPS, ideal for all essential computer systems and servers. Protects against: power failure, power sag, power surge, under voltage, over voltage, switch transient, line noise, frequency variation, harmonic distortion.

Product features:

Cold start function (DC power on)
Lightning and surge protection
Battery replacement warning
Emergency Power Off function
Battery remain time display
LCD display front panel
Power factor correction
Support USB communication
Multiple language LCD display
On line output voltage selected
Hot swappable battery by user
True on-line technology provides all power protection
Pure sine-wave output with less than 3% THD
Fully digitized microprocessor controlled
Short Circuit and overload protection
Advanced

management (ABM)

Automatic battery charge in UPS off mode
Automatic diagnostics & battery check
RS-232 communication port with monitoring software
Network/fax/modem surge protection
Extended back up time with battery pack
Load segmentation receptacles controllable
High efficiency mode selectable
Fan speed auto control when loads varies
UPS Management Software : Windows NT/ 2k / XP / 7 / 8 /Server 2003 / 2008 / 2012 x86/x64,

MAC OS X (Intel) 10.6.x, 10.7.x, 10.8.x Mountain Lion, 10.9.x MavericksMAC OS, LINUX

Contents: UPS, cable set, UPS management software

Specifications

Manufacturer: ROLINE
Product group: UPS
Product type: UPS Online, Rackmount
Colour: grey
Scope of delivery: UPS, Software, Cable Set
Classification (IEC 62040-3): VFI-SS-111
UPS technology: Online
Power class: 600 ... 900 VA
Output (VA/W): 700 / 490
Efficiency: 95 %
Backup time: 6 min
Backup time full/half-load: 6 / 10 min
Dimensions (HxWxD): 88 x 428 x 425 mm; 2 HE
Mounting form: 19" Rackmount
Voltage (input): 160-230V
Voltage (output): 230V
Output voltage regulation: ± 2%
Frequency: 50Hz ± 3%
Connector type (input): cold connector IEC 320 C14
Outputs: 4
Connector type (output): 4x cold connector IEC 320 C13
Phase in/output: 230V/230V / 50Hz
Over current protection: EMI,- RFI-Filter
Max. quantity of delay expansion units: 2
Slots for adapter card: 1
Interface: RS232, USB
RS-232 Interface: yes
USB 2.0 Interface: yes
Hot swap batteries: Yes, front side
Bypass: Automatic + manual
Additional over current protector: no
Activity: Display
Activity LED: 5
Activity Display: LCD
incl.Management Software: Windows
Internal cooling: Active, fan
Ambient temperature: 0 - 40 °C
Mains connection: Cold appliance connection
Battery category: Industrial battery
Number of batteries: 2 pieces
Battery Voltage: 12 V
Battery Capacity: 7 Ah
Battery type: Pack
Battery: built-in
Battery technology: Lead-acid
Operating temperature min.: 0 °C
Operating temperature max.: 40 °C
Height: 88 mm
Width: 428 mm
Depth: 425 mm
Weight: 16 kg
Height of packaging (single piece): 200 mm
Width of packaging (single piece): 540 mm
Depth of packaging (single piece): 540 mm
Package weight (single piece): 16.651 kg
Delay expansion unit: 2
Slot for adapter card: 1

Back up time

Power rating (VA / W): with 0 / 1 / 2 Battery pack (minutes), according to manufacturer
700/490: 6 / 33 / 67
630/441: 7 / 39 / 77
560/392: 8 / 45 / 87
490/343: 10 / 55 / 102
420/294: 13 / 67 / 125
350/245: 18 / 80 / 150
280/196: 24 / 105 / 200
210/147: 38 / 150 / 280
140/98: 60 / 240 / 450
70/49: 95 / 500 / 900
