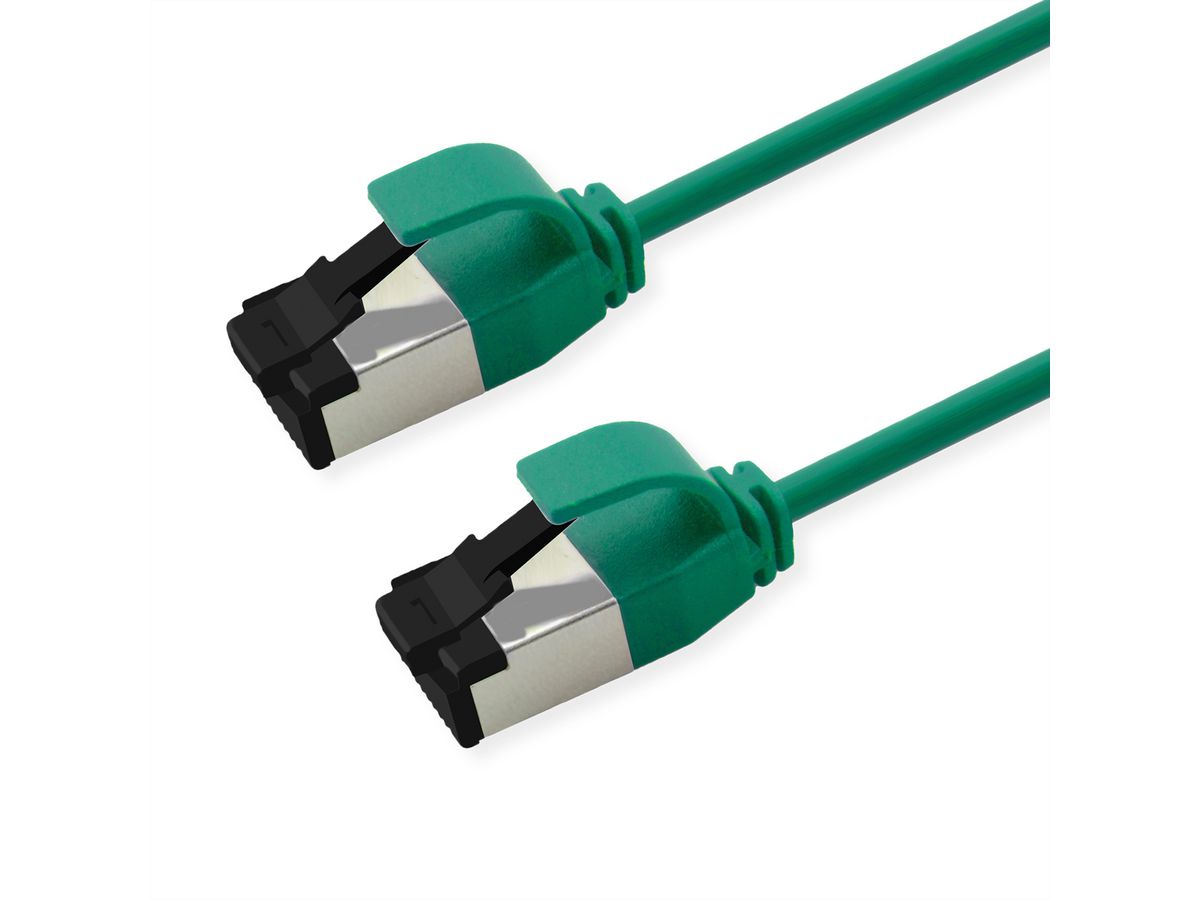

ROLINE S/FTP Patch Cord Cat. 8.1 (Class I), LSOH, Slim, PoE, green, 0.5 m
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21153430 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 21.15.3430 |
| EAN | 7630049638693 |
| Item weight | 0.02 kg |
:strip_icc():strip_exif()/bilder/icons/icon_rj45_cat8.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_rj45_sftp.png){kind=icon}
|
|
| Colour | |
| Length | |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
High-quality, slim and double shielded Category 8.1 (Class I) Patch Cord with screened RJ-45 connectors on both ends – for data rates of up to 40 gigabits per second. Moreover, this patch cord is halogen-free, flame-retardant and low-smoke (LSOH) and also suitable for PoE.
- Double shielded Cat. 8.1 (Class I) patch cord with screened RJ-45 connectors on both ends
- Bare copper wires
- Supports PoE
- Suitable for 40 Gigabit Ethernet networks
- High-quality gold-plated contacts
- Halogen-free, flame-retardant and low-smoke (LSOH)
- Durable thanks to molded kink protection
- Contact settings 1:1, in accordance with the EIA/TIA 568 standard
- Construction: 8-wire stranded cable, pair shielding with aluminum foil
- Slim thanks to a small outer cable diameter of only 4.5 ± 0.2mm
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Twisted Pair Cable |
| Product type | S/FTP patch cord (PiMF) |
| Colour | green |
| Length | 0.5 m |
| Scope of delivery | Patchcord |
| Shield type | S/FTP (PiMF) |
| Transfer quality | Cat8.1 / Class I |
| Impedance | 100 Ohm |
| Quantity of wires | 8 |
| Conductor cross section (AWG) | AWG 28 |
| Power over Ethernet (PoE) | yes |
| Conductor type | Stranded |
| Crossed | no |
| Slim cable | yes |
| Bend radius | 27 mm |
| Assignment | EIA/TIA 568B |
| Locking lever | yes |
| Anti-kink sleeve | Moulded-on |
| External cable diameter | 4.5 mm +/- 0.2 mm |
| Cable LSOH | yes |
| Material (external cable mantle) | TPE |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Male |
| Connector Type RJ45 | Standard |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 75 °C |
| Weight | 15 g |
| Height of packaging (single piece) | 10 mm |
| Width of packaging (single piece) | 60 mm |
| Depth of packaging (single piece) | 60 mm |
| Package weight (single piece) | 0.02 kg |
| Technical particularity | Snagless connectoren, 10GBit/s |
