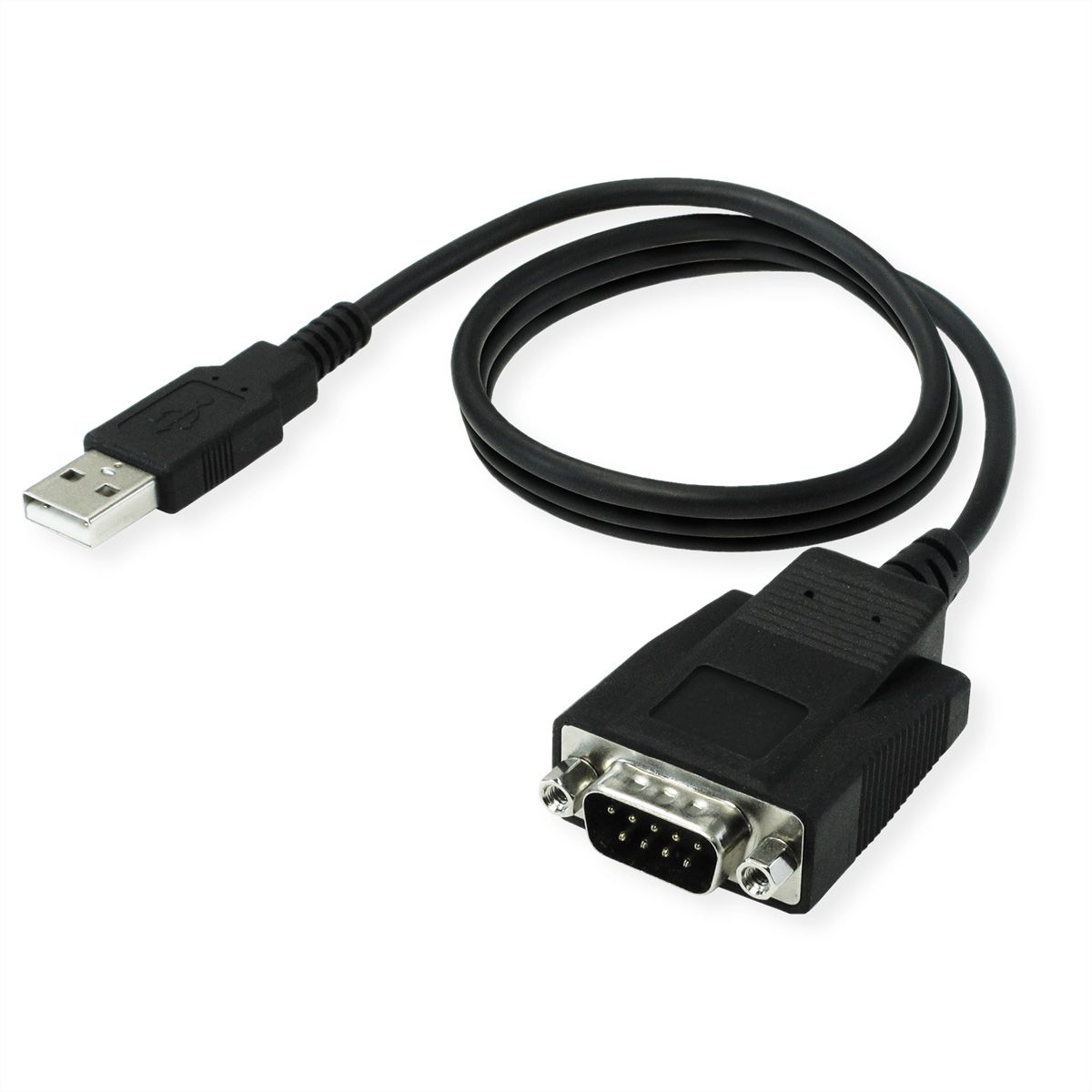

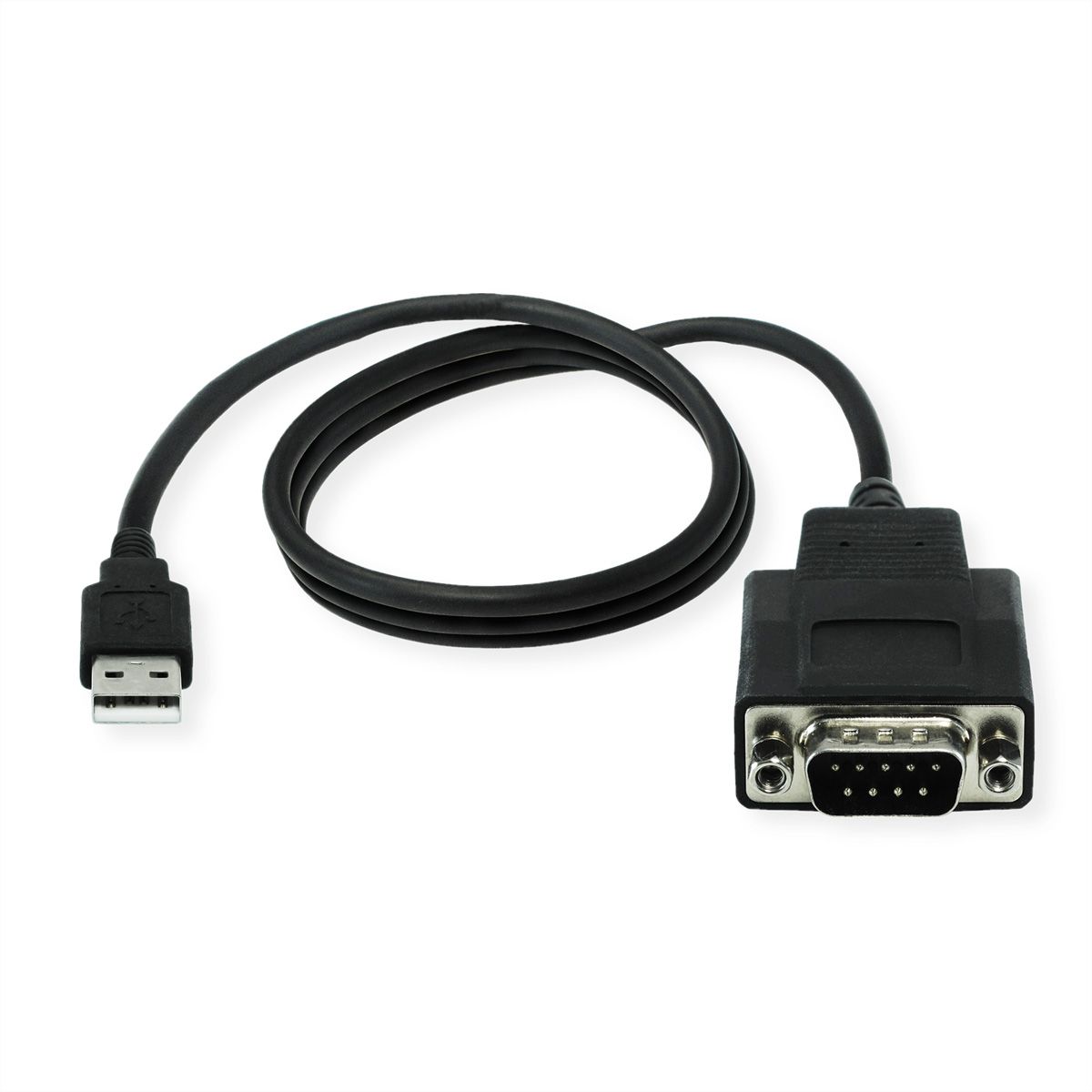

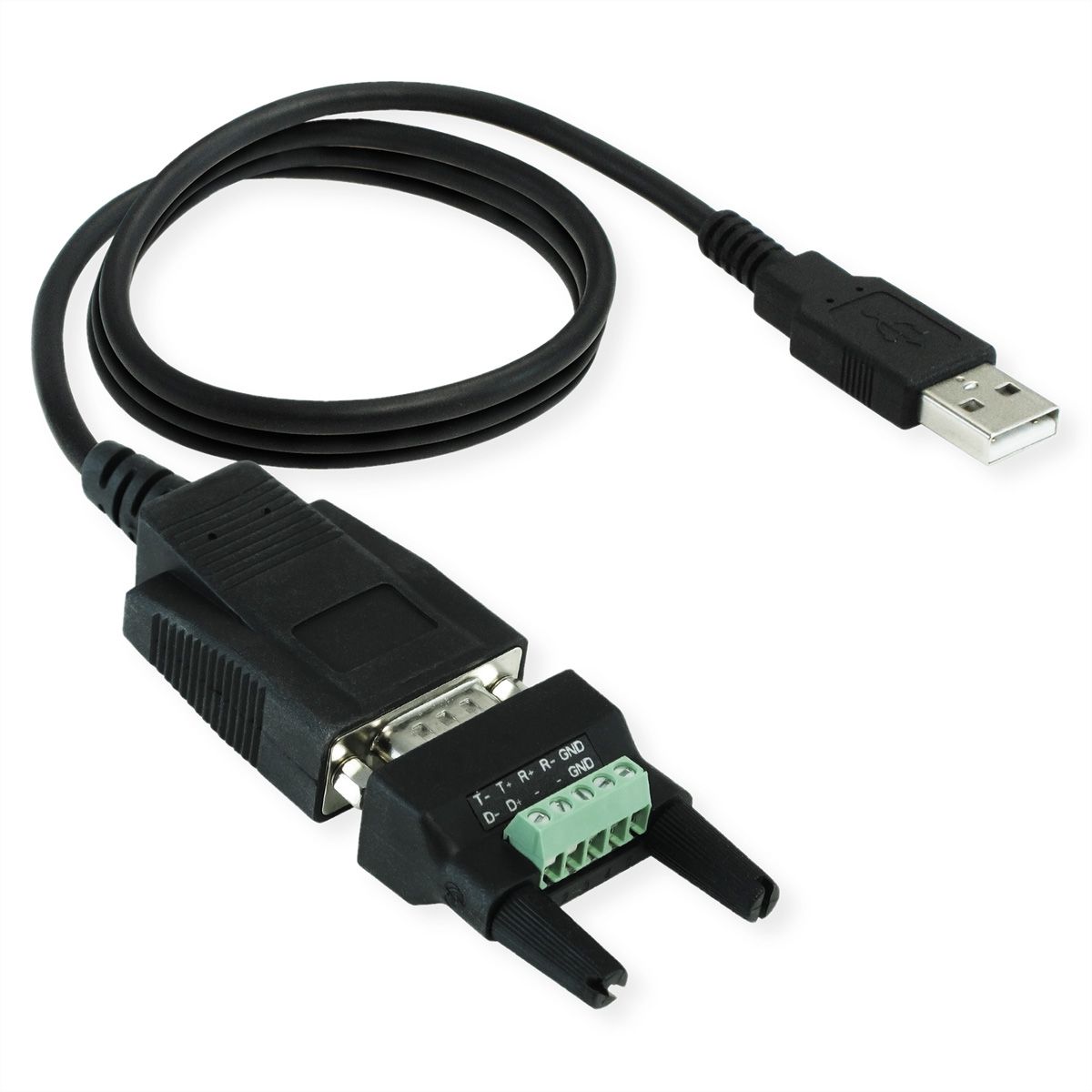

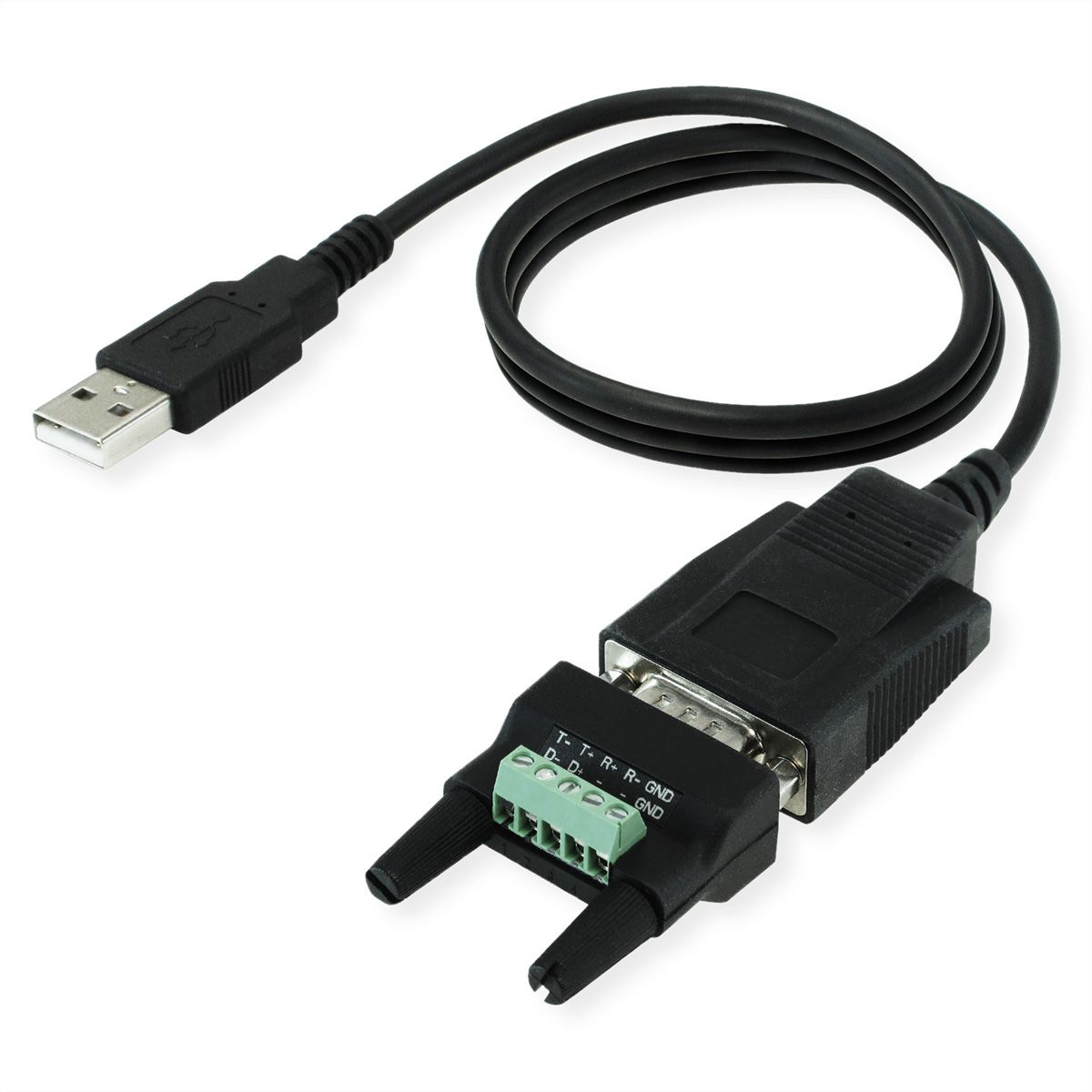

ROLINE USB to RS-422/485 Converter
Item no.
12021174
Brand / Manufacturer
ROLINE
Manuf. item no.
12.02.1174
EAN
7630049634329
Item weight
0.25 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
USB-to-serial converter for use with computers without a serial interface and mobile devices, which often only offer USB interfaces.

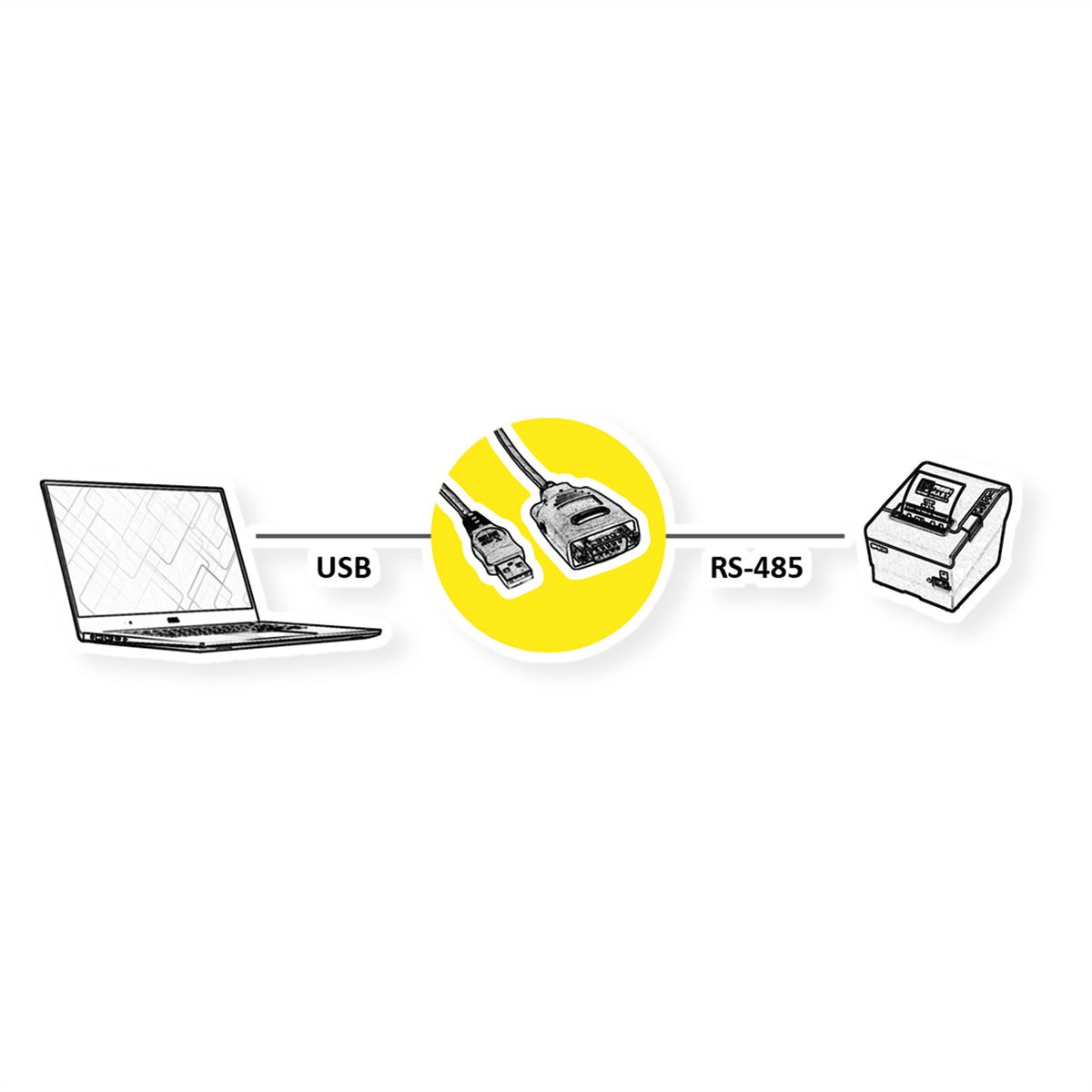

This converter provides an extra Serial RS-422/485 port via USB connection- To connect serial devices (e.g. modem) to one USB port
- Built-in +/- 15 KV ESD protection

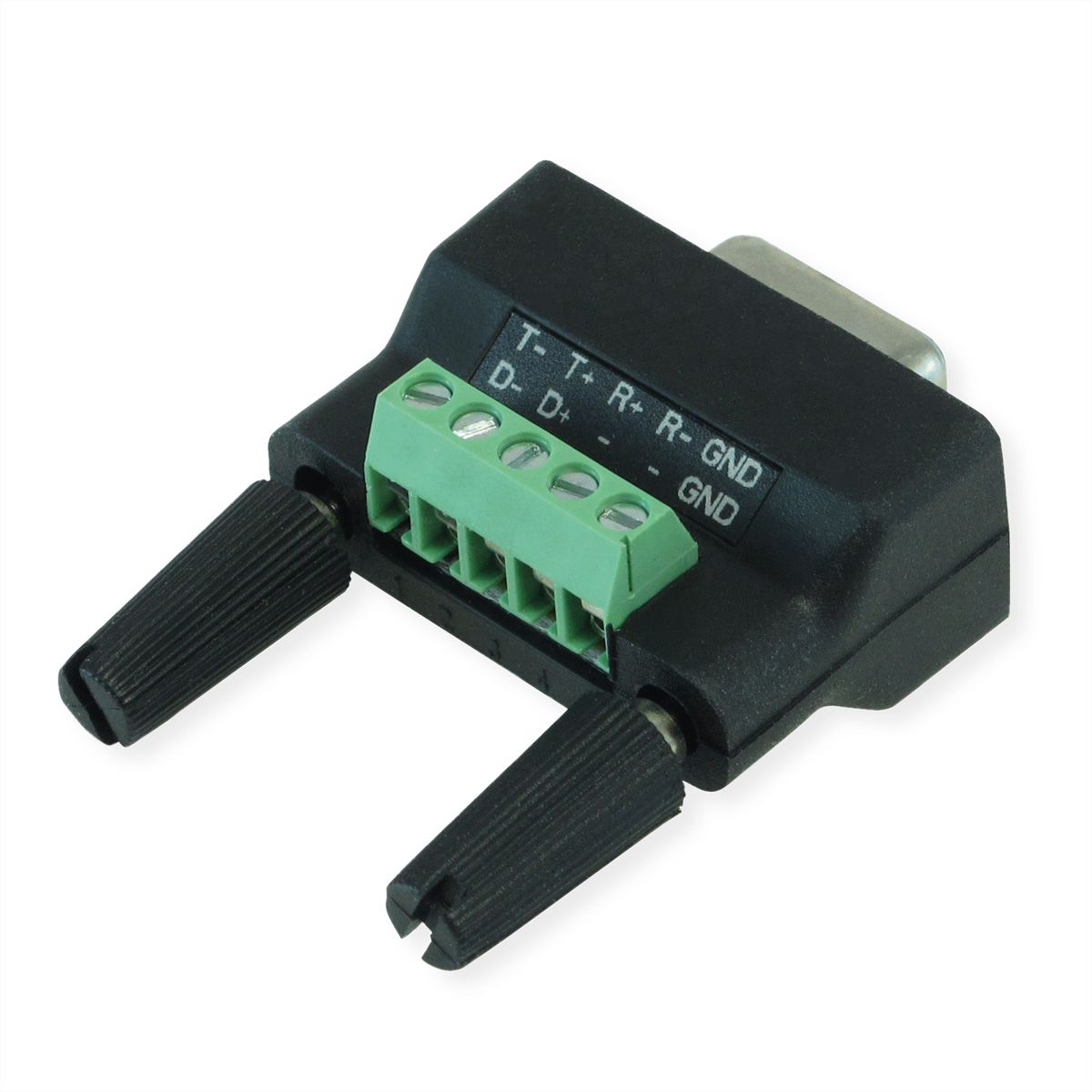

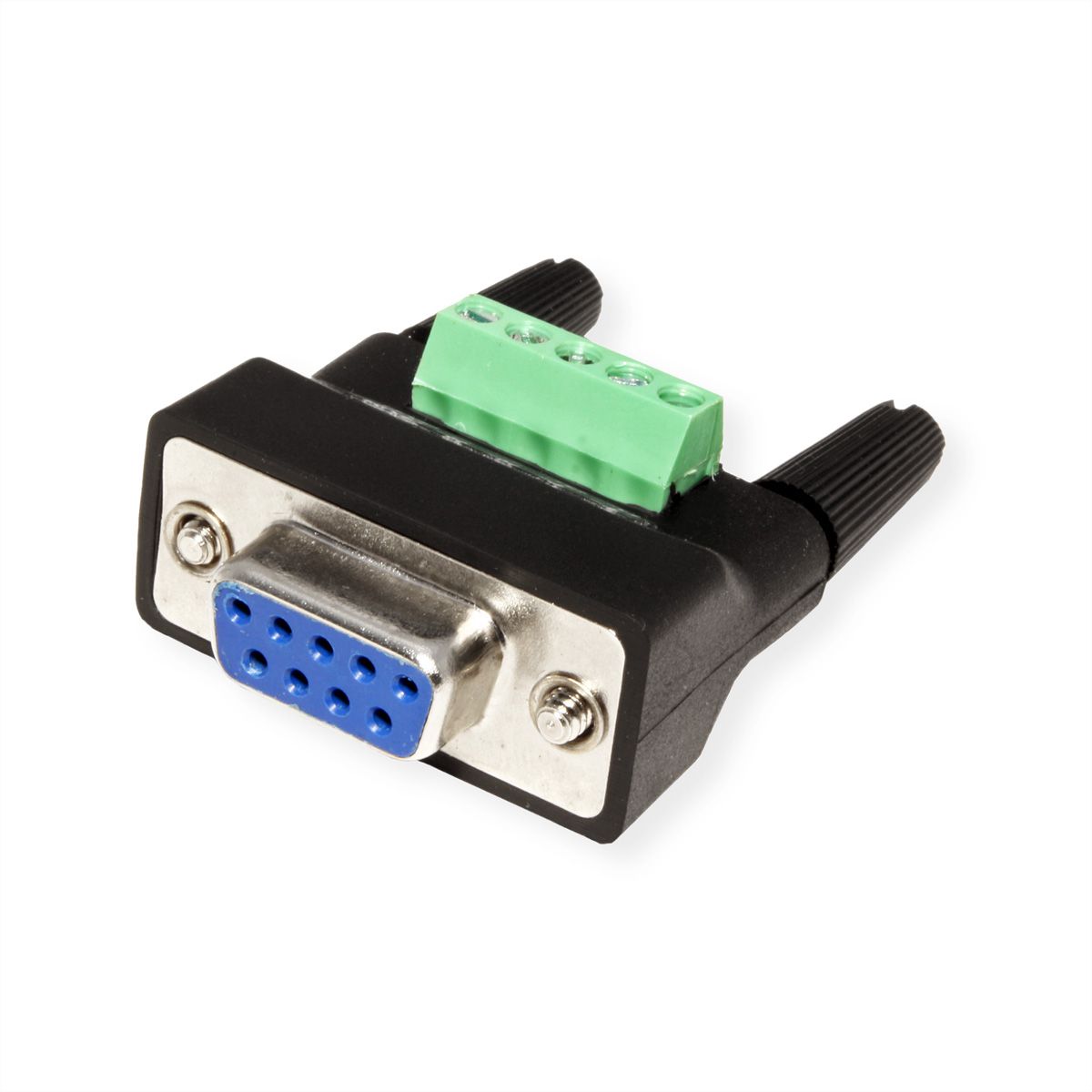

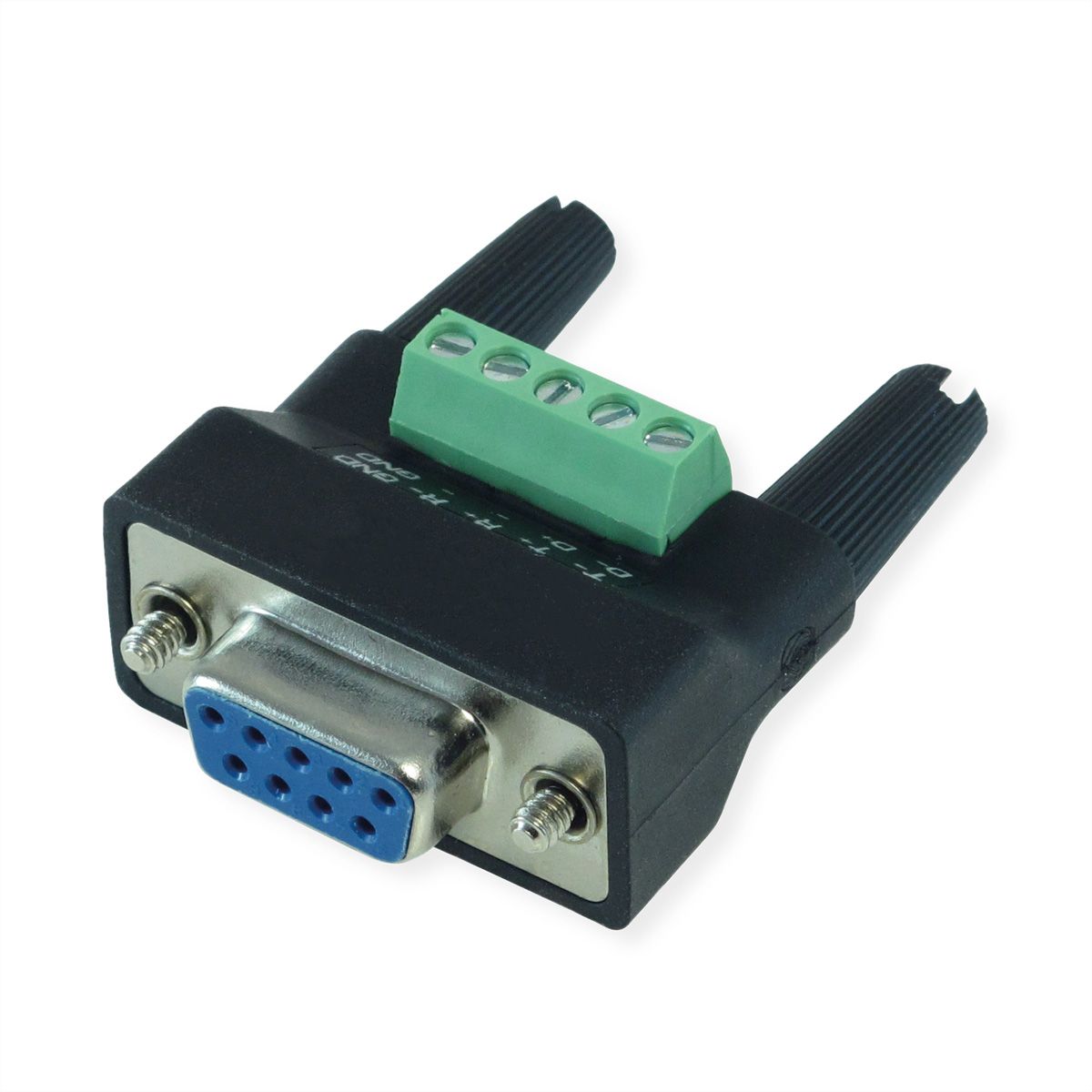

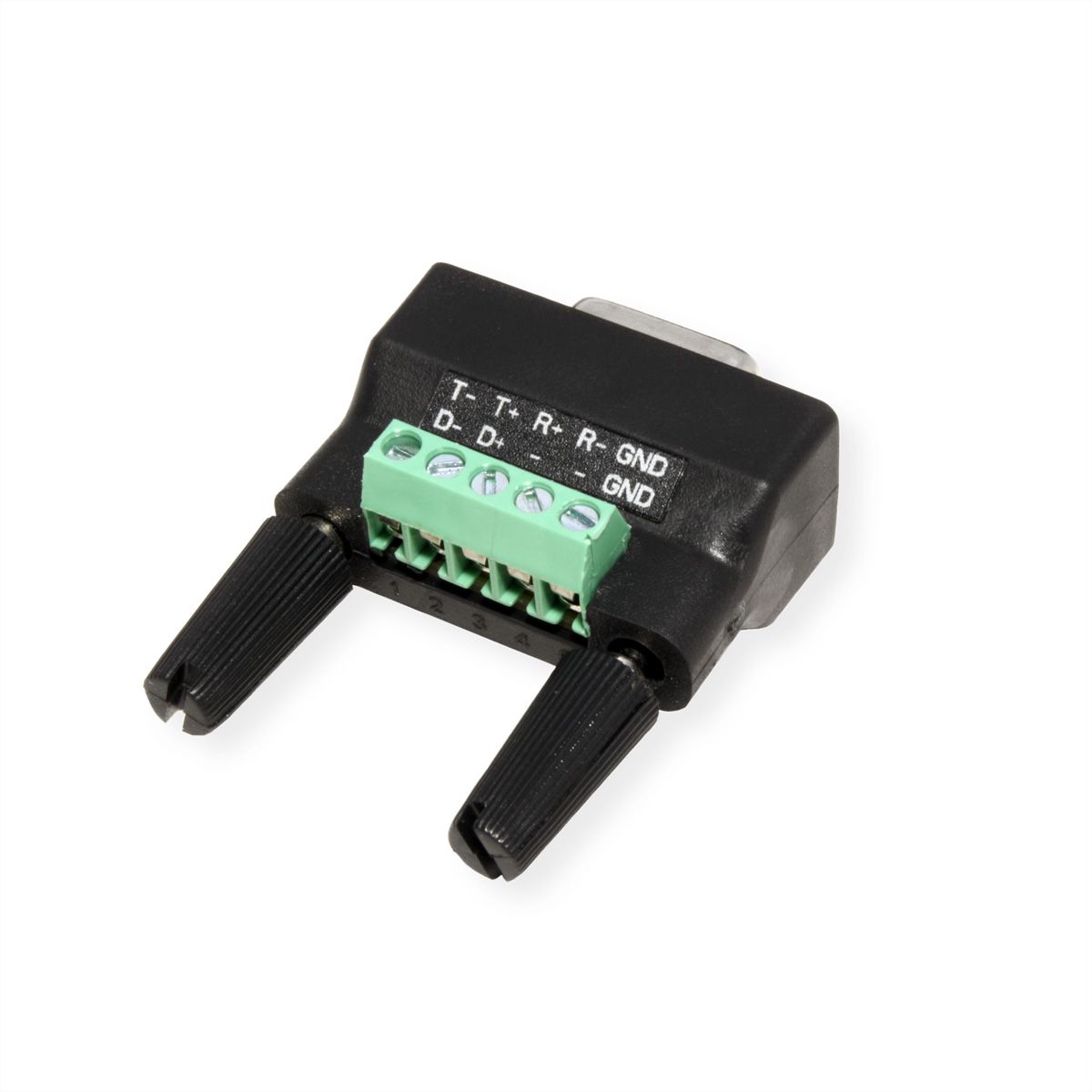

- DB9 female to 5 pin terminal block adapter included
- Supports data transfer rates of up to 921.6 kbit/s
- Power supply via USB interface from PC / notebook
- Plug & play
- Supports Microsoft Windows and Linux
Specifications
- Manufacturer
- ROLINE
- Product group
- Adapters, Terminators, Converters
- Product type
- USB - Serial Converter
- Colour
- black
- Length
- 1.2 m
- Scope of delivery

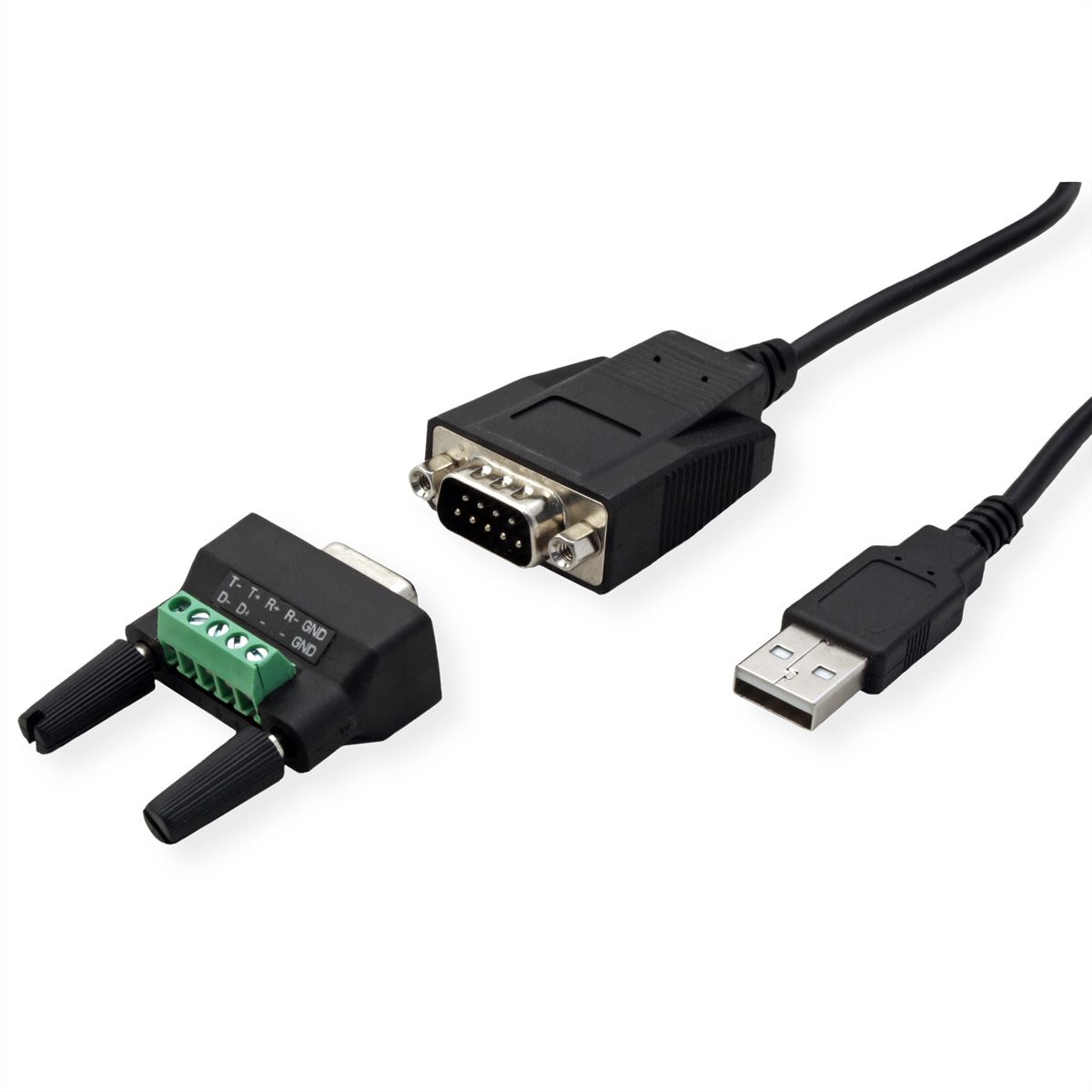

- Converter Cable, DB9 Female - to 5 Pin Terminal Block Adapter, User Manual
- Side 1 connection (PC)
- USB A Male
- Side 2 connection (Peripherals)
- DB9 Male
- Side 1 Connector Type
- USB 2.0 Type A
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- D-Sub 9-pin (DE-9)
- Side 2 Connector Gender
- Male
- Conversion direction
- USB - RS422/485
- Colour (Cable)
- black
- Area of application
- External
- Hand locking screws
- yes
- Material
- Kabellengte 1,2 m
- Technical particularity
- Windows 7 / 8 / 10 / 11 and Linux 2.6.x or later
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 60 °C
- Storage temperature min.
- -30 °C
- Storage temperature max.
- 85 °C
- Height
- 15 mm
- Width
- 33 mm
- Depth
- 45 mm
- Weight
- 80.5 g
- Height of packaging (single piece)
- 20 mm
- Width of packaging (single piece)
- 100 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.25 kg
