Description

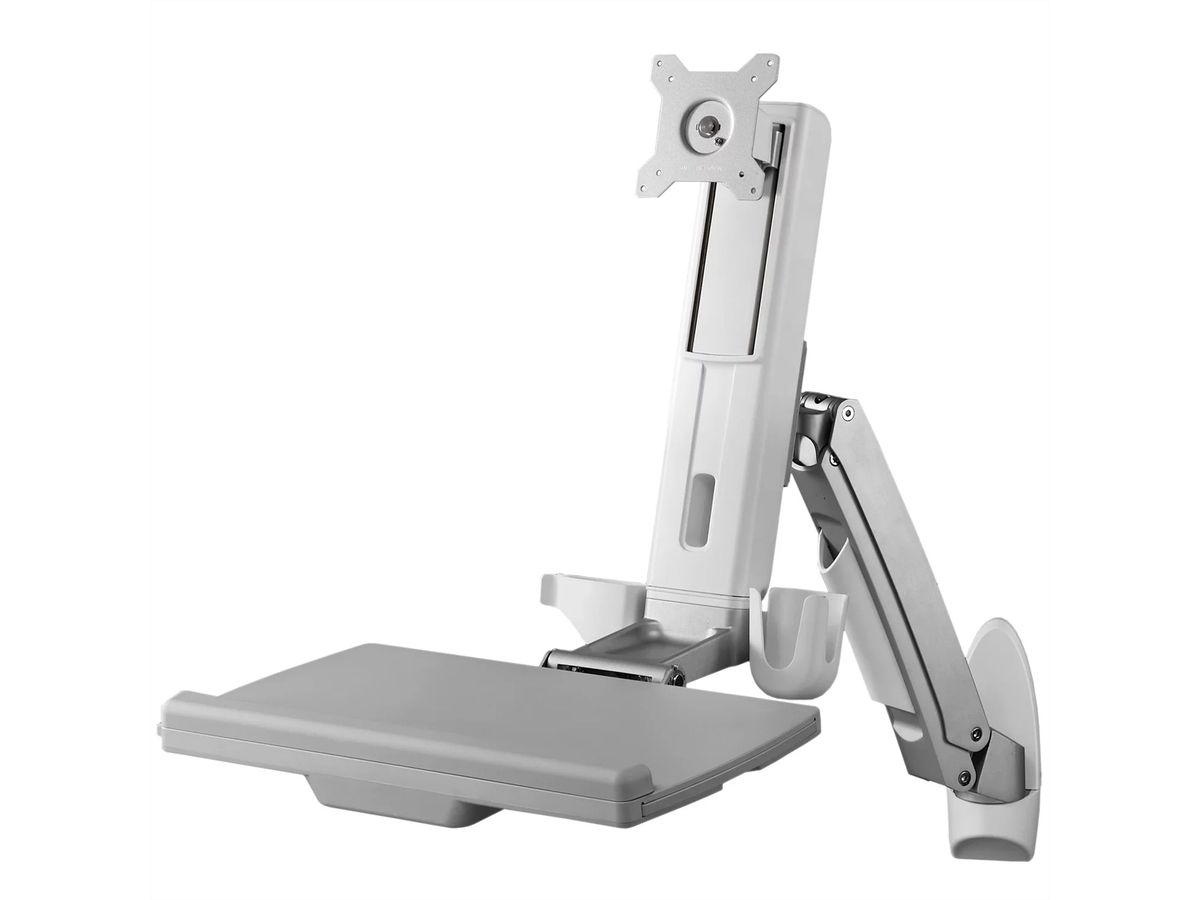

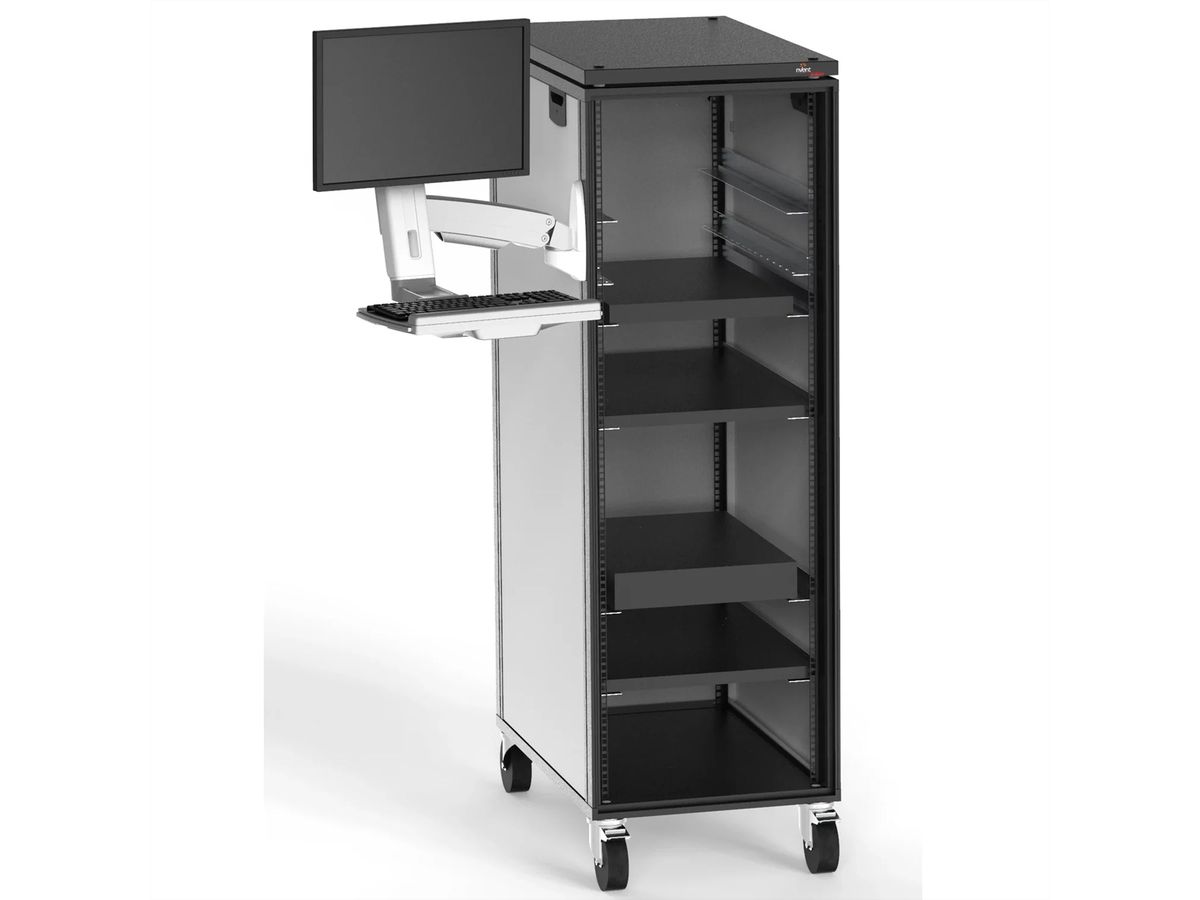

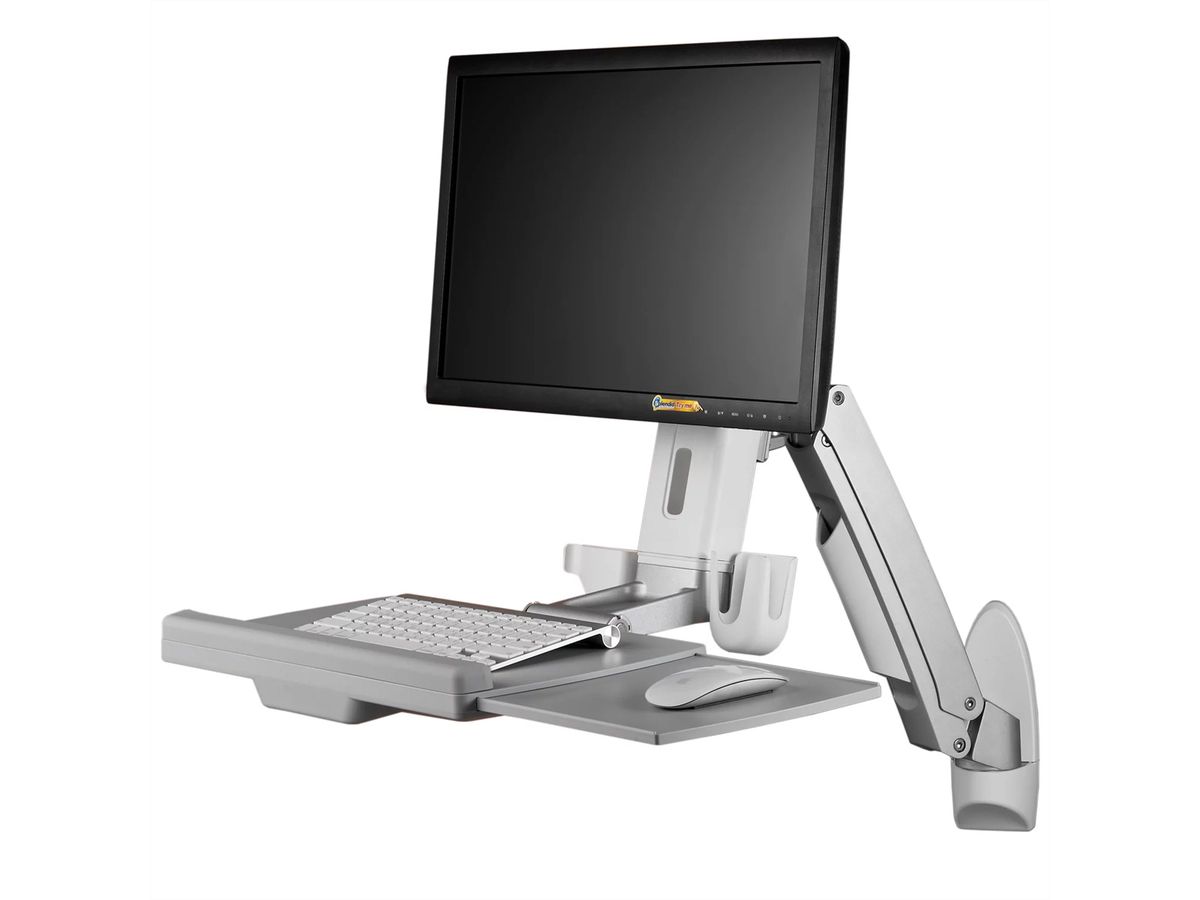

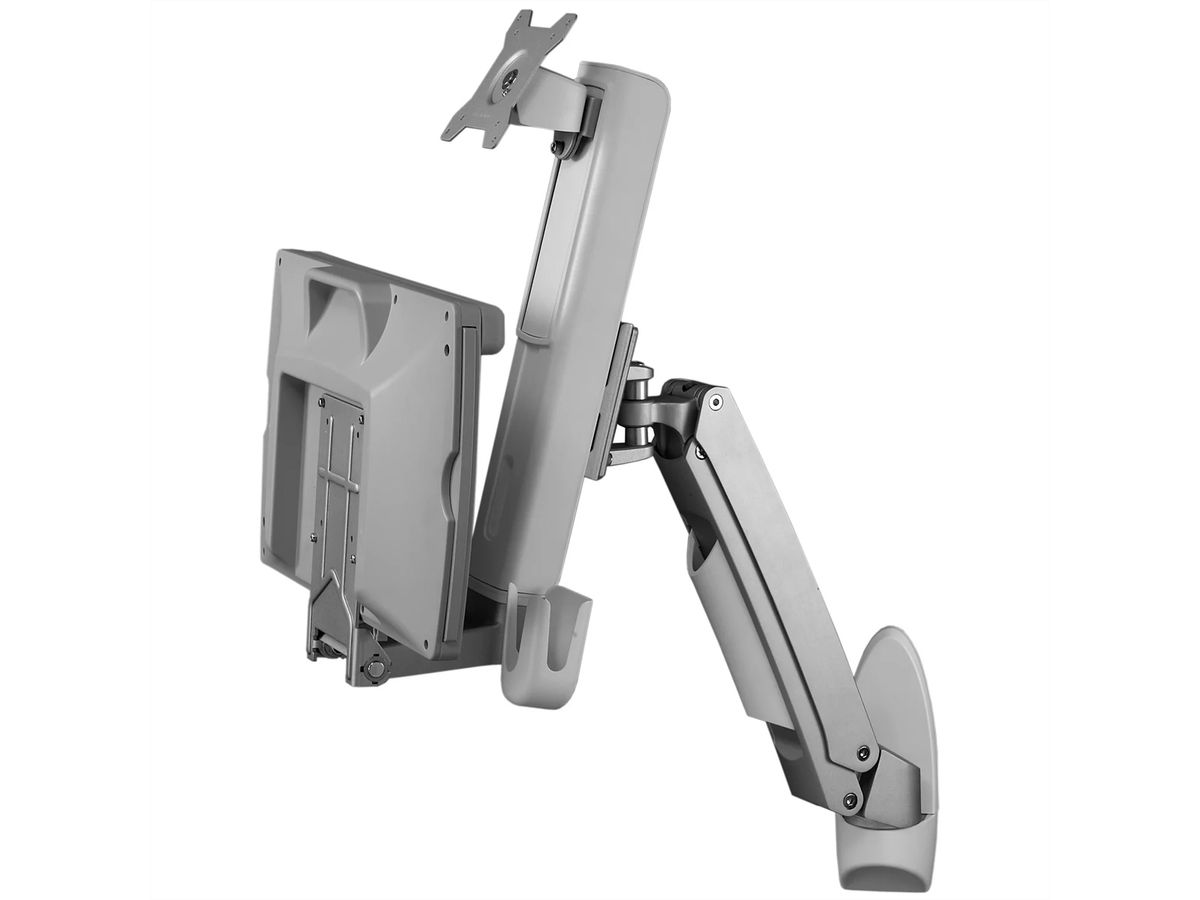

Pendant arm with keyboard tray with high flexibility and operability to connect HMI for the operator The collapsable articulate arm is ideal for a rack mounted stand workstation. It's an easy to install rack mountable appendage which allow panoramic movement possibilities for mounting a flat screen monitor and keyboard & mouse in industrial environments.

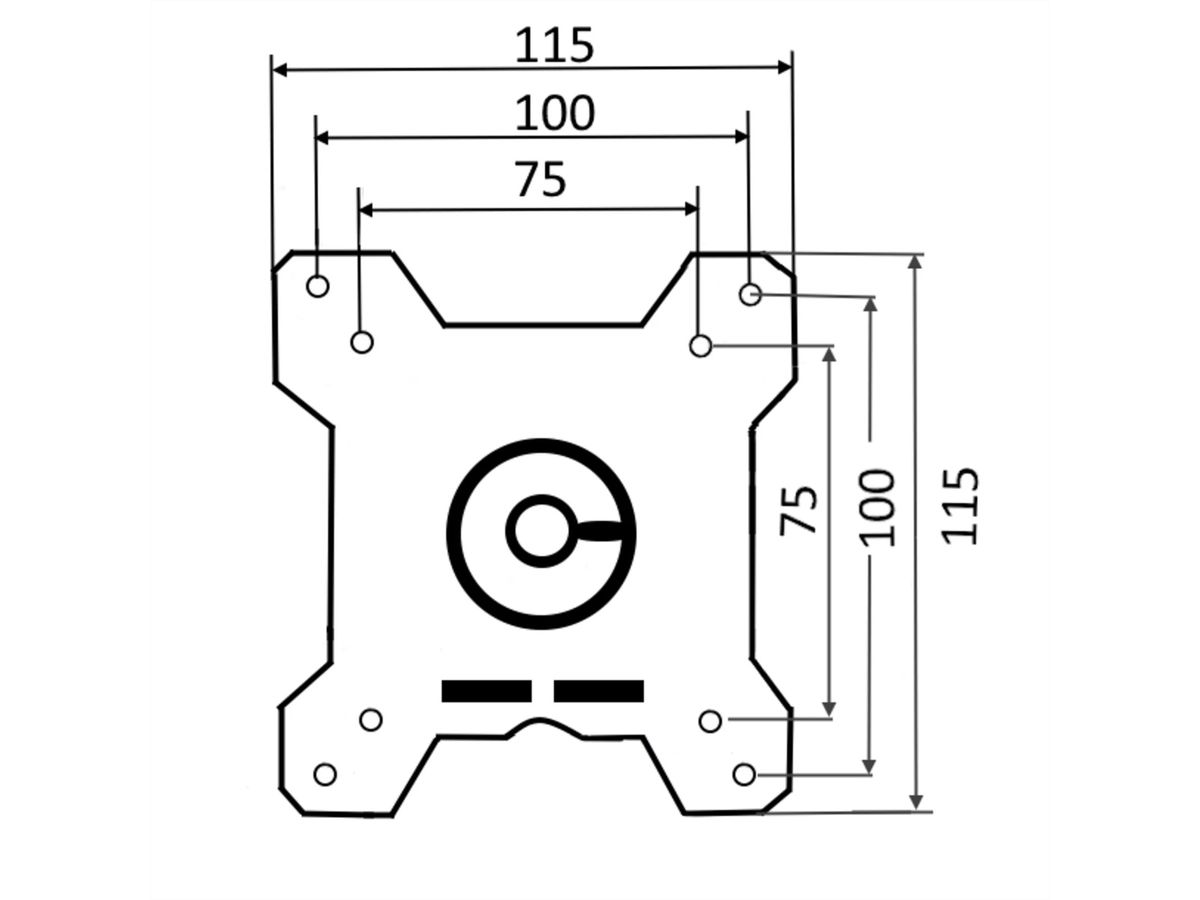

• Support arm for mounting of flat screen monitor, Vesa Adapter 75x75 mm and 100x100 mm, keyboard and mouse on
• Fixing is to the side of the Heavy-Duty frame
• Static load-carrying capacity of arm maximal 8 kg, static load-carrying capacity of keyboard maximal 2.5 kg
• Support arm: Height-adjustable 300 mm; Angle of rotation on cabinet 180°; Monitor rotation angle 340° (fitted on cabinet 270°); Monitor tilt angle 60°; Integrated cable routing
• Suitable for industrial and laboratory applications
• Keyboard and Mouse storage place

Specifications

Manufacturer	SCHROFF
Product group	LCD-Monitor arms
Product type	Monitor Arms
Colour	silver
Maximum weight capacity	8 kg
Quantity of pivots	3
Fixing	Fixing is to the side of the Heavy-Duty frame
Maximal arm length	300 mm
Inclinable	yes
Height adjustable	yes
Rotatable	yes
Number of monitors	1
VESA 75 x 75 mm	yes
VESA 100 x 100 mm	yes
Height of packaging (single piece)	220 mm
Width of packaging (single piece)	420 mm
Depth of packaging (single piece)	590 mm
Package weight (single piece)	10.418 kg

Downloads

Manufacturer data sheet - Deutsch (2.8 MB)

Download

Manufacturer data sheet - English (2.8 MB)

Download

Accesories

SCHROFF Monitor Arm Mounting Kit for Novastar HD Cabinet

Item no.:	26175352
Manuf. item no.	25630184

None EUR incl. VAT



SCHROFF Monitor Arm Mounting Kit for Varistar Cabinet with Bolted Side Panels

Item no.:	26175371
Manuf. item no.	25630185

None EUR incl. VAT



Compatible with

SCHROFF Monitor Arm Mounting Kit for Novastar HD Cabinet

Item no.:	26175352

None EUR incl. VAT



SCHROFF Monitor Arm Mounting Kit for Varistar Cabinet with Bolted Side Panels

Item no.:	26175371

None EUR incl. VAT





The SCHROFF brand range includes a wide range of accessories for everything to do with electronic assemblies - from card holders, conduction-cooled circuit board frames, front panels and grills to subracks, housings, backplanes, power supplies, cabinets and pre-assembled slots for embedded computer systems.

The SCHROFF brand has been a global leader in electronic packaging systems for over five decades.
