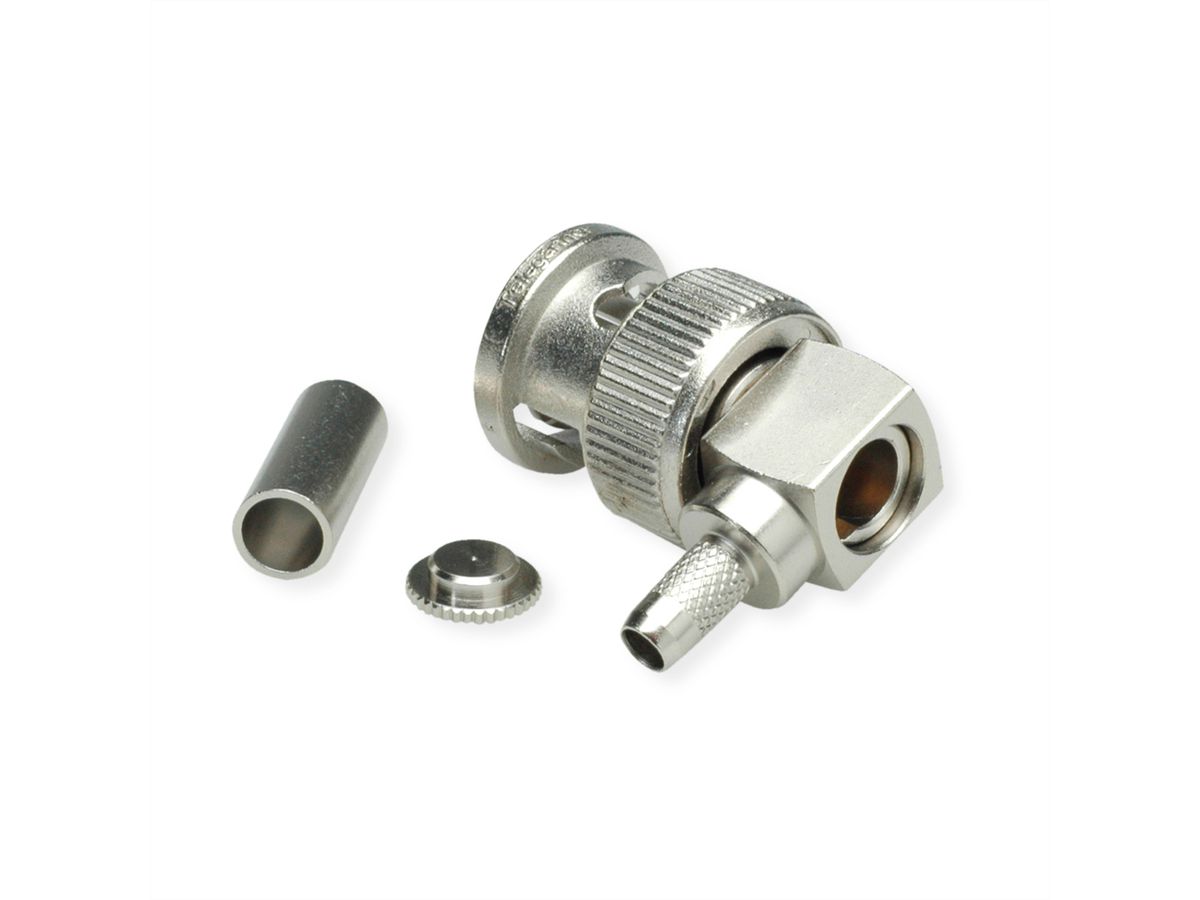

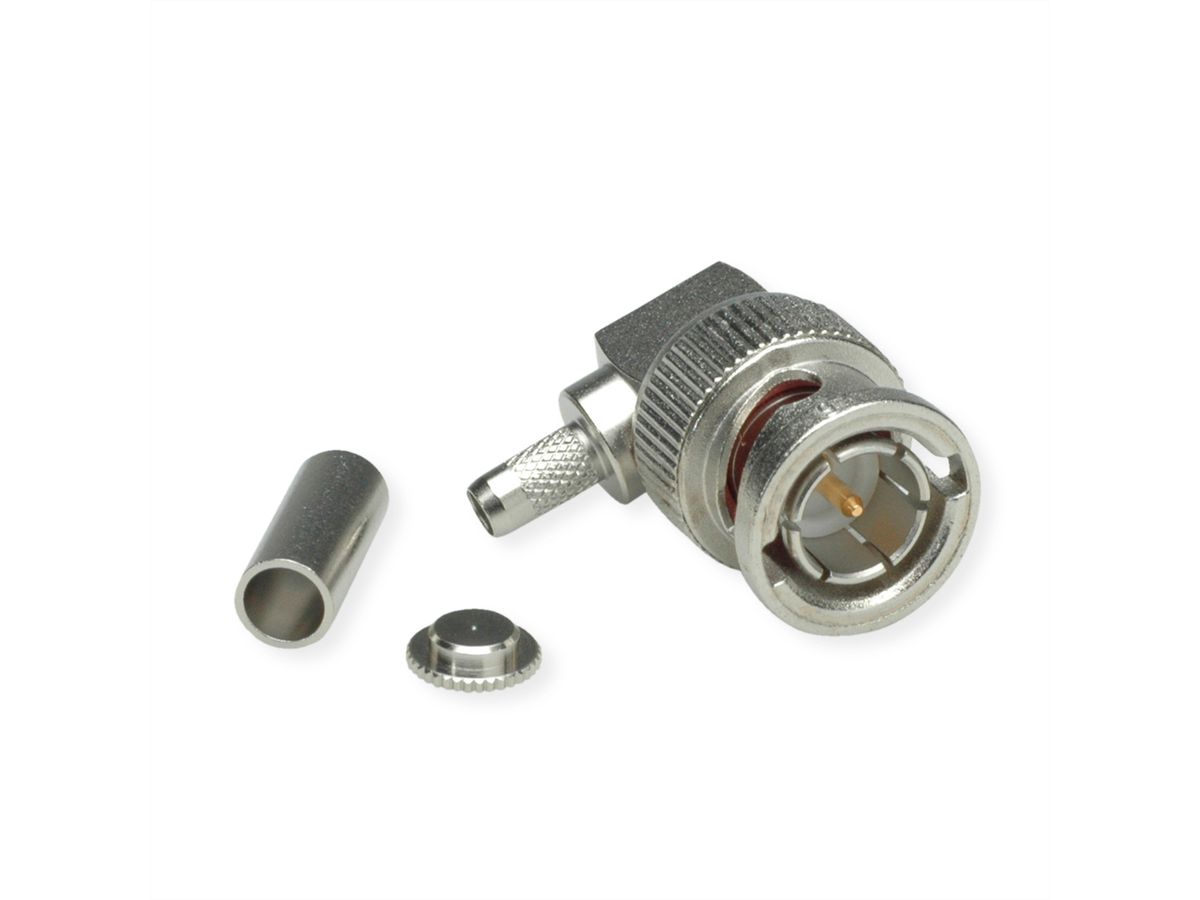

TELEGÄRTNER BNC Angle Plug Crimp, G13 (0.4/2.5) solder/crimp
Item no.
21170482
Brand / Manufacturer
TELEGÄRTNER
Manuf. item no.
100023458
EAN
4018359103958
Item weight
0.014 kg
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/telegartner.png "TELEGÄRTNER")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.
- Article name: BNC Plg 90 sd/cr G13 G50 Z75 (Old item number J01002A0029)
- Impedance 75 Ω
- Cable group; cable: G13 (0.4/2.5) *); G50 (0.45/2.0-3.4), 0.4/2.5, 2YCY 0.4/2.5-3.8, HF 2172, TELASS 50, 02Y(ST)CH 0.45/2.0-3.4, 02Y(ST)CY 0.45/2.0-3.4, 02YS(ST)CH 0.45/2.0-3.4, 02YS(ST)CY 0.45/2.0-3.4, 2.5C-2V, NCX1 391300 0.53/2.45-3.6, RG-180B/U, RG-195A/U
- Remarks: solder/crimp

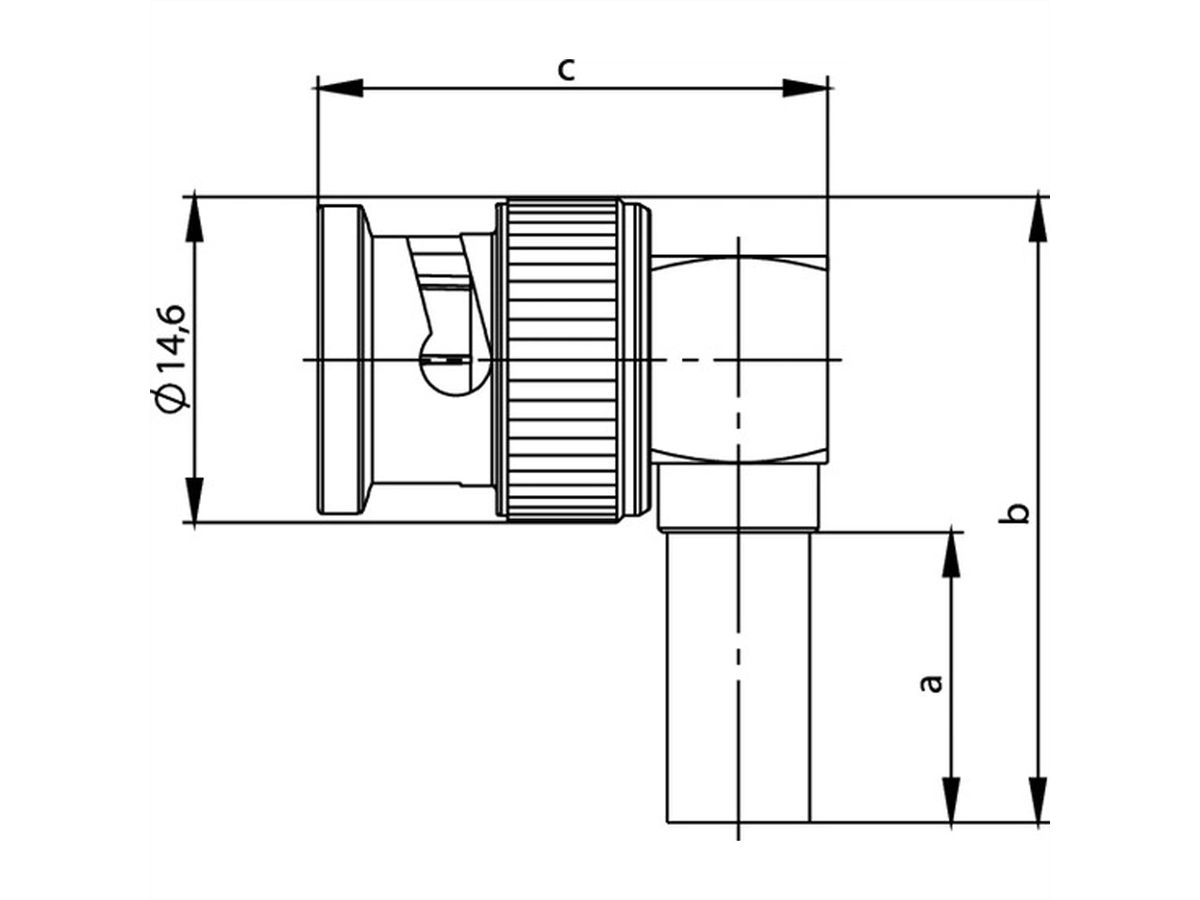

- Dimensions: a=13, b=28.2; c=~23
- Assembly: A0504
Specifications
- Manufacturer
- TELEGÄRTNER
- Product group
- Coaxial Connectors
- Product type
- BNC Angle Plug Crimp
- Colour
- silver
- Quantity of ports
- 1
- Side 1 Connector Type
- BNC connector
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
- Solder / Crimp termination
- Protection class (IP Code)
- IP54
- Connection direction
- angled
- Characteristic impedance
- 75 Ohm
- Frequency range (max.)
- 4 GHz
- Operating temperature min.
- -40 °C
- Operating temperature max.
- 120 °C
- Height
- 28.2 mm
- Width
- 14.6 mm
- Depth
- 23 mm
- Weight
- 12 g
- Height of packaging (single piece)
- 30 mm
- Width of packaging (single piece)
- 90 mm
- Depth of packaging (single piece)
- 140 mm
- Package weight (single piece)
- 0.014 kg
