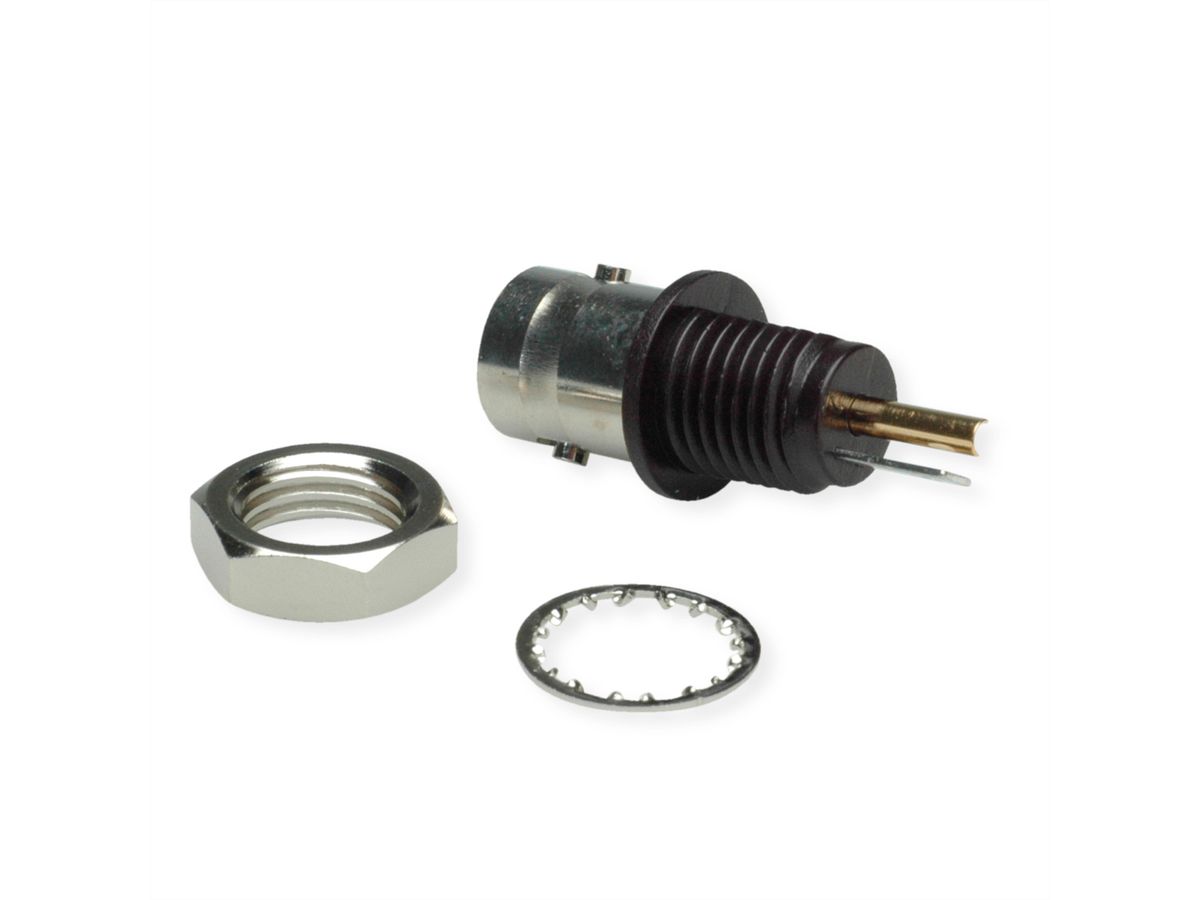

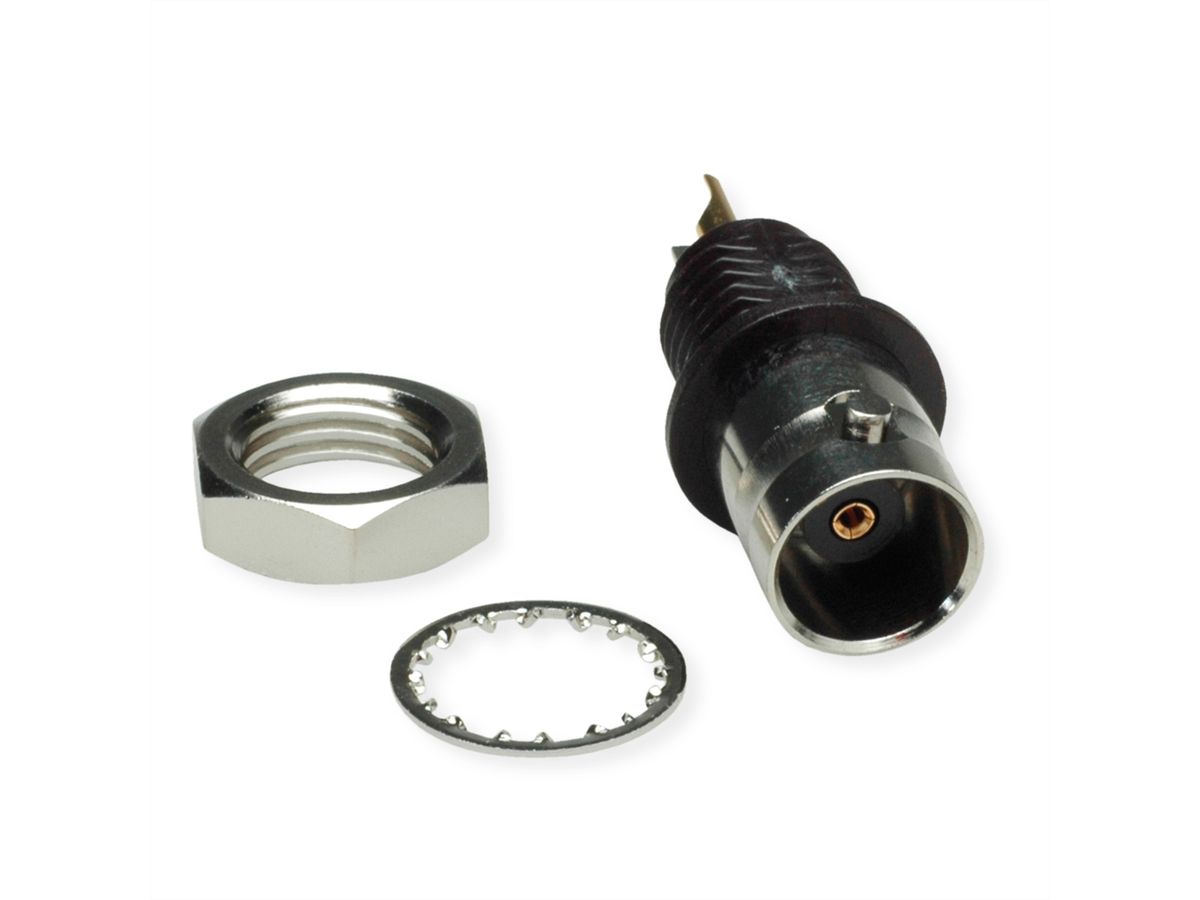

TELEGÄRTNER BNC Bulkhead Socket, insulated with black insulating flange
Item no.
21170492
Brand / Manufacturer
TELEGÄRTNER
Manuf. item no.
100023436
EAN
4018359103521
Item weight
0.009 kg
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/telegartner.png "TELEGÄRTNER")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.
- Article name: BNC Jck str Bkhd sd/sd InsWash Z50 (Old item number J01001D0043)
- Impedance: 50 Ω
- Remarks: with black insulating flange
- Mount. dim.: Z113
Specifications
- Manufacturer
- TELEGÄRTNER
- Product group
- Coaxial Connectors
- Product type
- BNC Bulkhead Socket, insulated
- Colour
- silver
- Quantity of ports
- 1
- Side 1 Connector Type
- BNC connector
- Side 1 Connector Gender
- Female
- Side 2 Connector Type
- Solder termination
- Protection class (IP Code)
- IP54
- Connection direction
- Straight
- Characteristic impedance
- 50 Ohm
- Frequency range (max.)
- 4 GHz

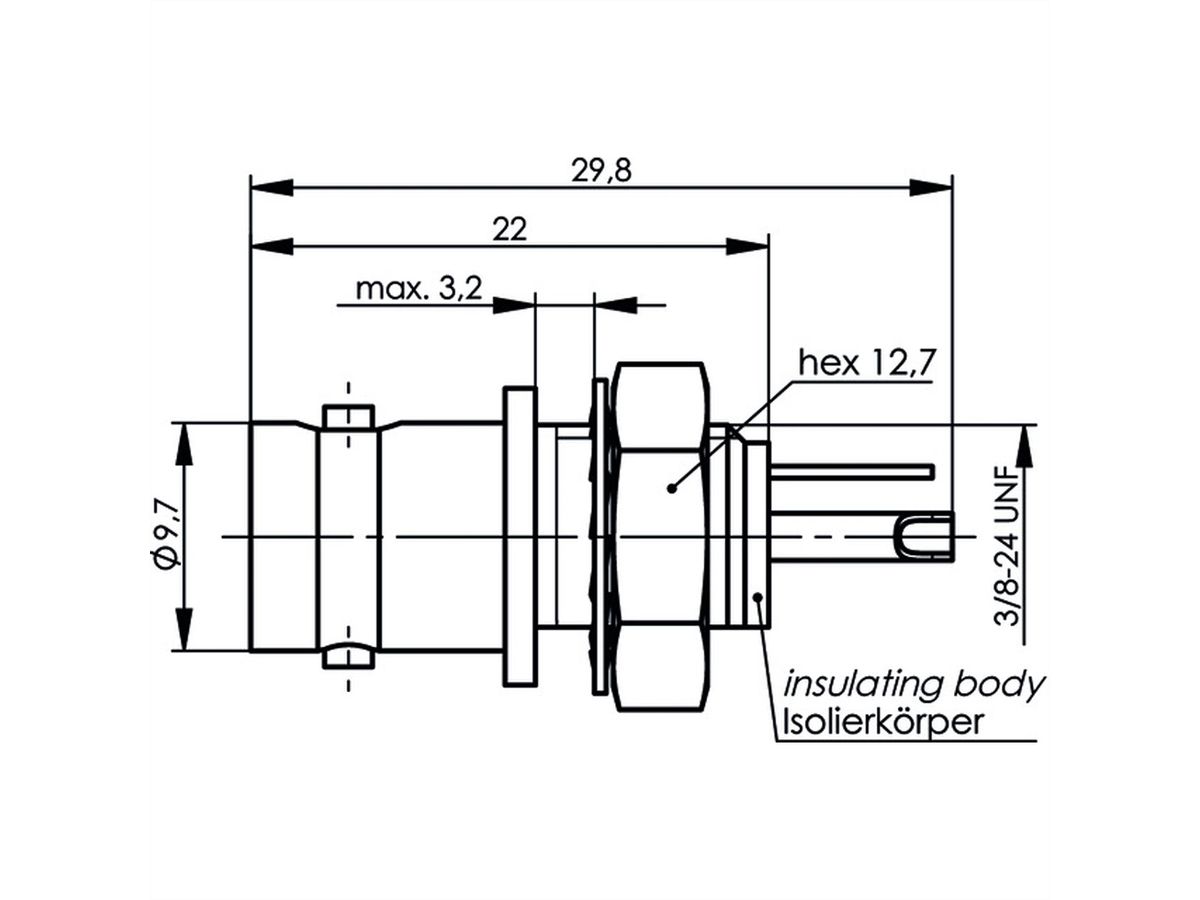

- Height
- 12.7 mm
- Width
- 12.7 mm
- Depth
- 29.8 mm
- Weight
- 7.08 g
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 30 mm
- Depth of packaging (single piece)
- 20 mm
- Package weight (single piece)
- 0.009 kg
The products of the TELEGÄRTNER brand stand for professional connection technology.
