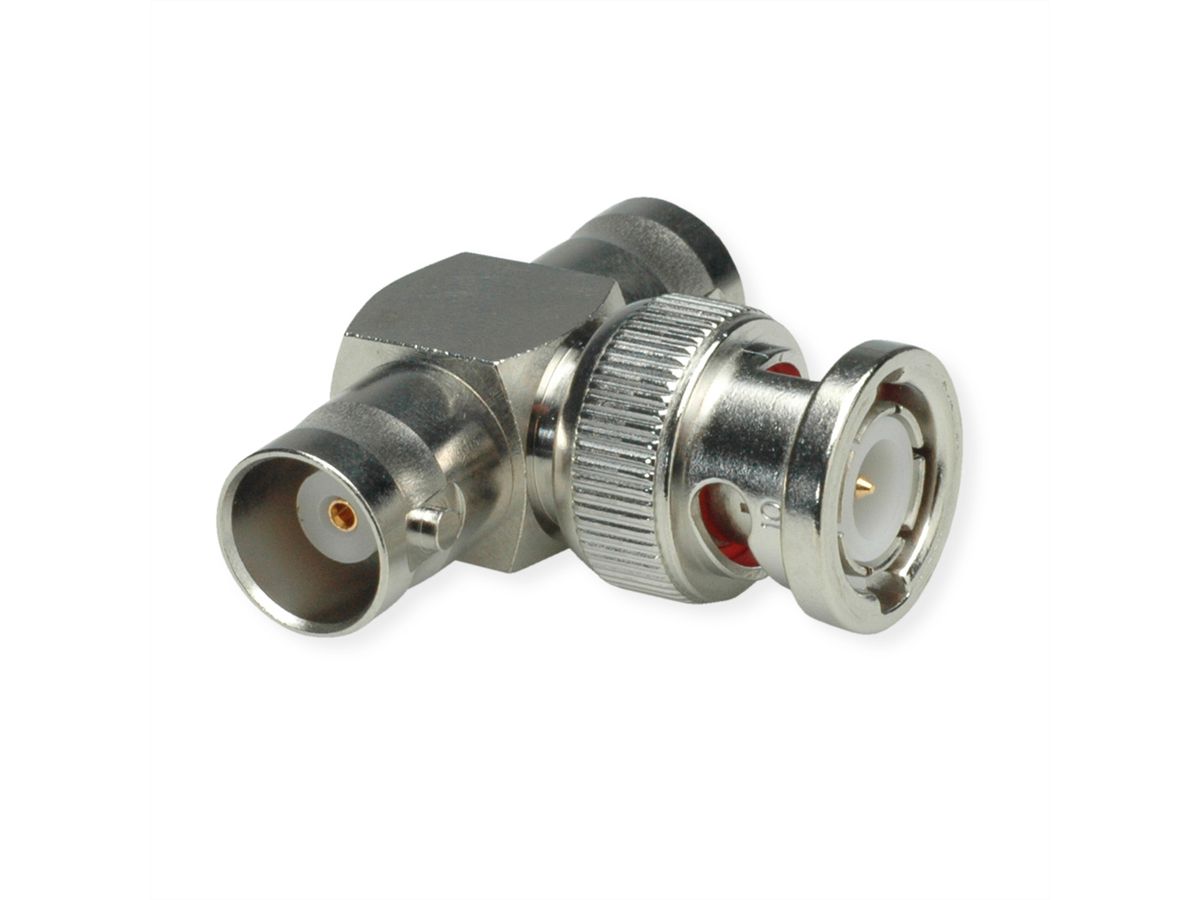

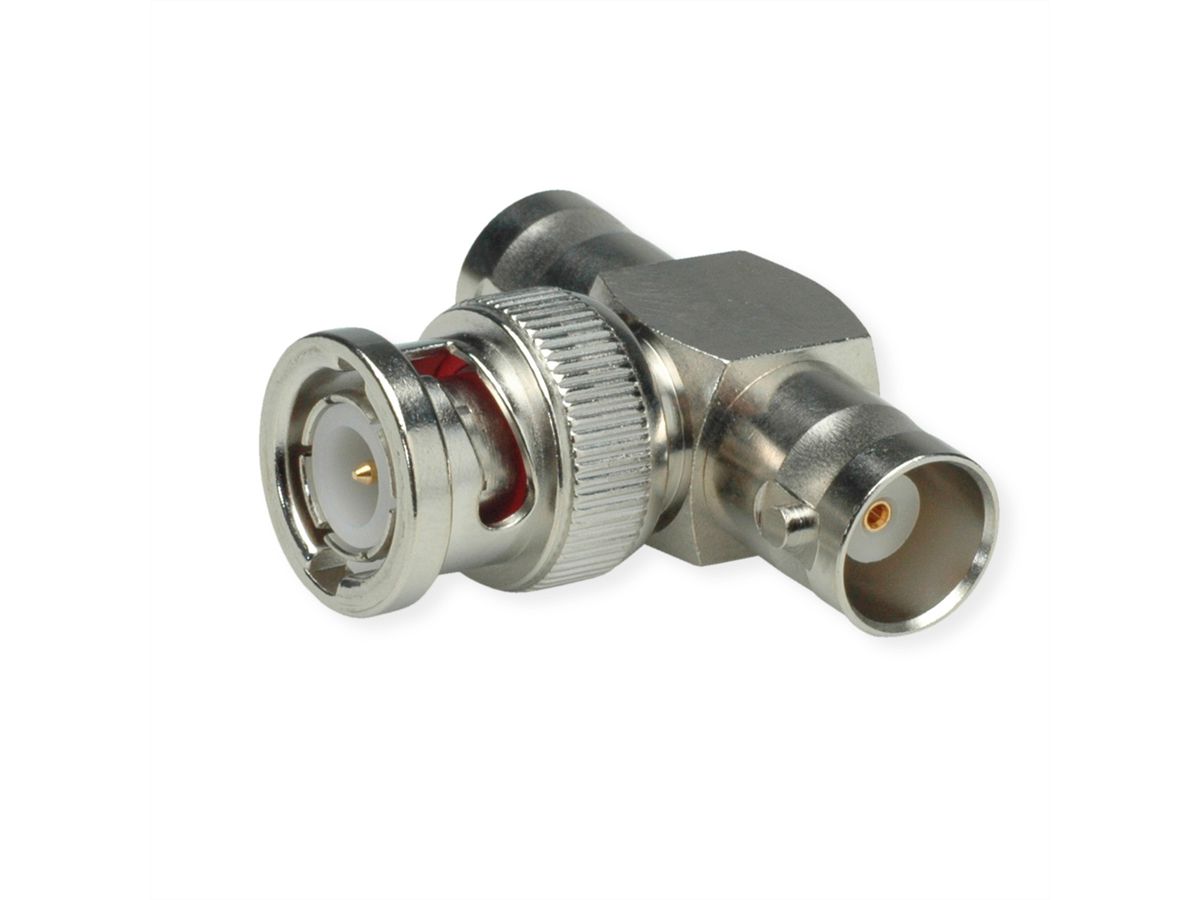

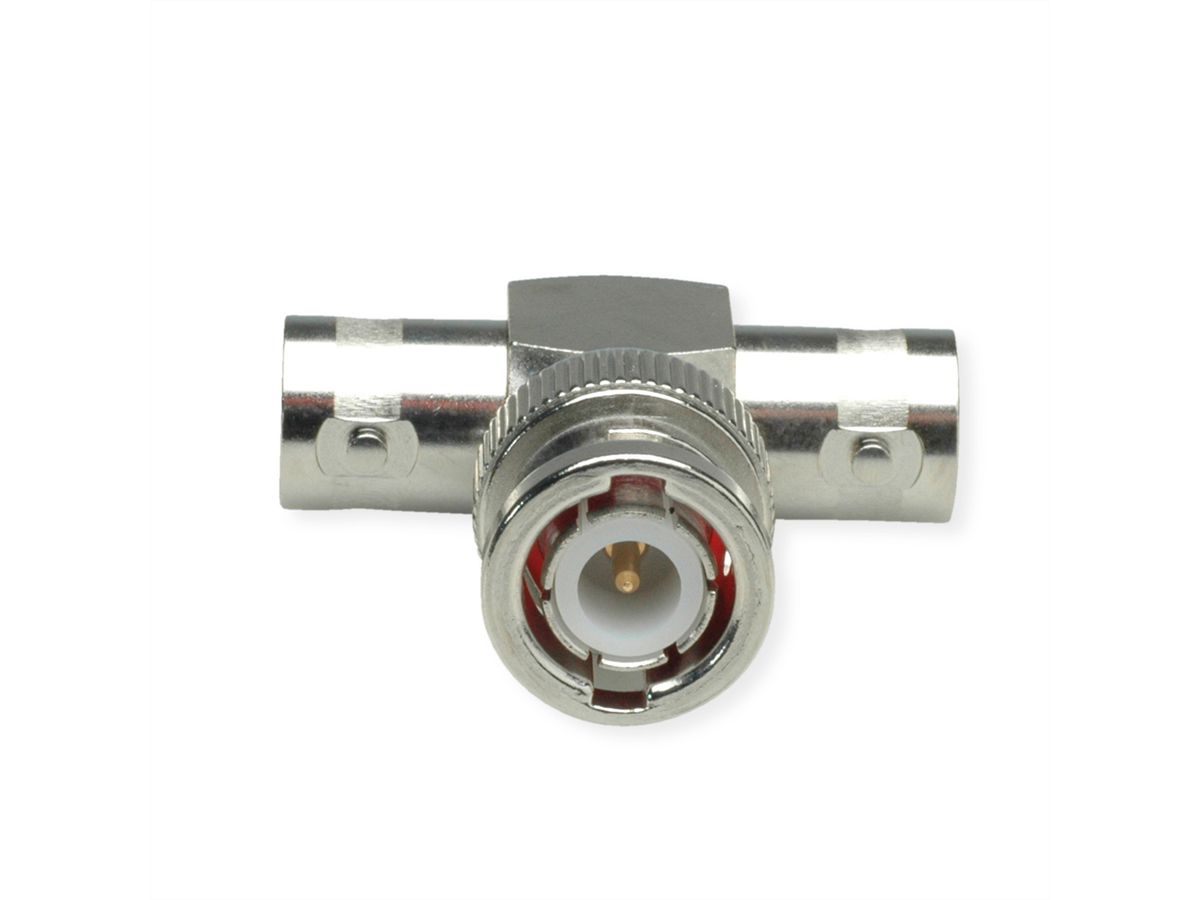

TELEGÄRTNER BNC T Adaptor
Item no.
21170493
Brand / Manufacturer
TELEGÄRTNER
Manuf. item no.
100023597
EAN
4018359106003
Item weight
0.022 kg
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/telegartner.png "TELEGÄRTNER")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. BNC connectors are used for signal, data and video transmission applications.
- Article name: BNC T-Adapt f-m-f L.C. Z50 (Old item number J01004F0616)
- Impedance: 50 Ω
- Type: f-m-f
- Remarks: Low cost type f < 500 MHz
Specifications
- Manufacturer
- TELEGÄRTNER
- Product group
- Coaxial Connectors
- Product type
- BNC T Adaptor
- Colour
- silver
- Quantity of ports
- 2
- Side 1 Connector Type
- BNC connector
- Side 1 Connector Gender
- Male
- Side 2 Connector Type
-
- BNC connector
- BNC connector
- Side 2 Connector Gender
- Female
- Protection class (IP Code)
- IP54
- Connection direction
- vertical
- Characteristic impedance
- 50 Ohm
- Frequency range (max.)
- 4 GHz

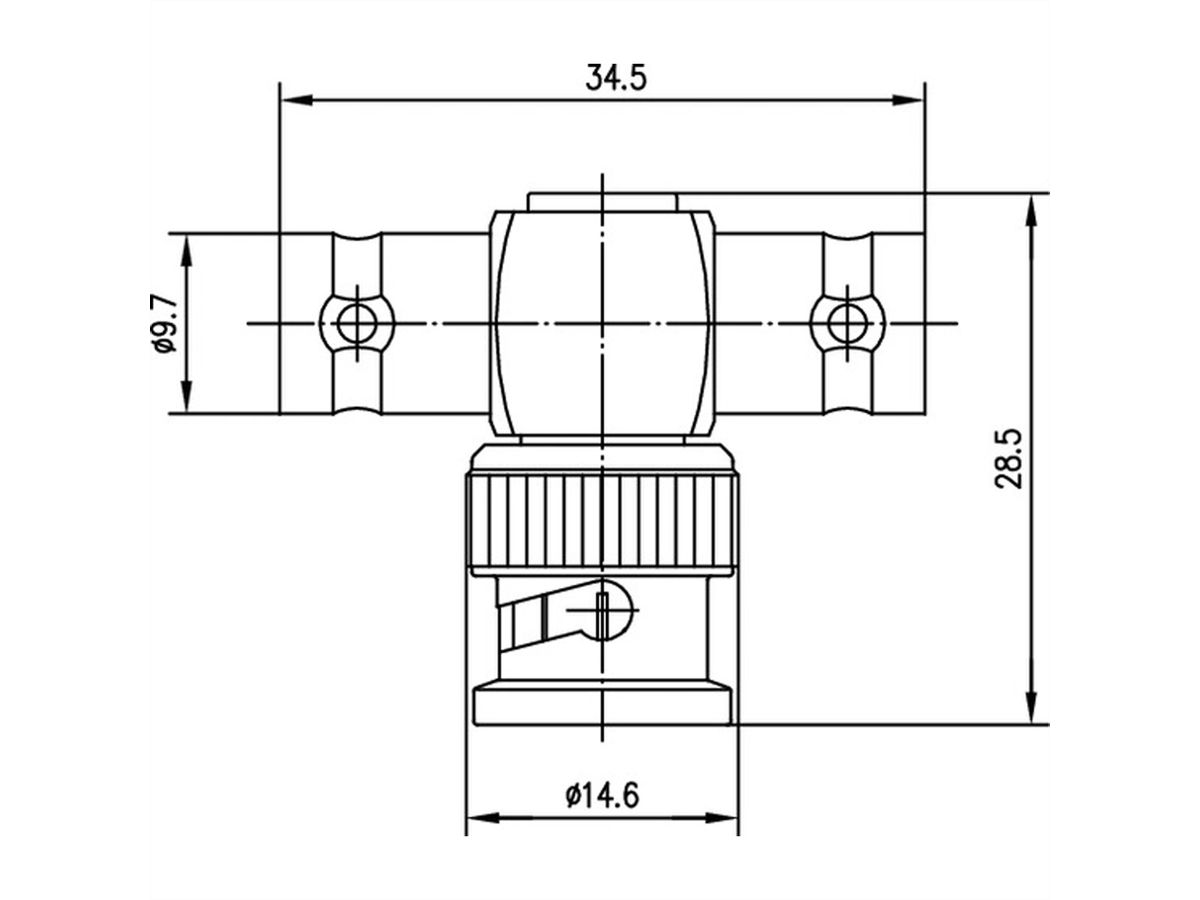

- Height
- 28.5 mm
- Width
- 14.6 mm
- Depth
- 34.5 mm
- Weight
- 22 g
- Height of packaging (single piece)
- 10 mm
- Width of packaging (single piece)
- 40 mm
- Depth of packaging (single piece)
- 40 mm
- Package weight (single piece)
- 0.022 kg
