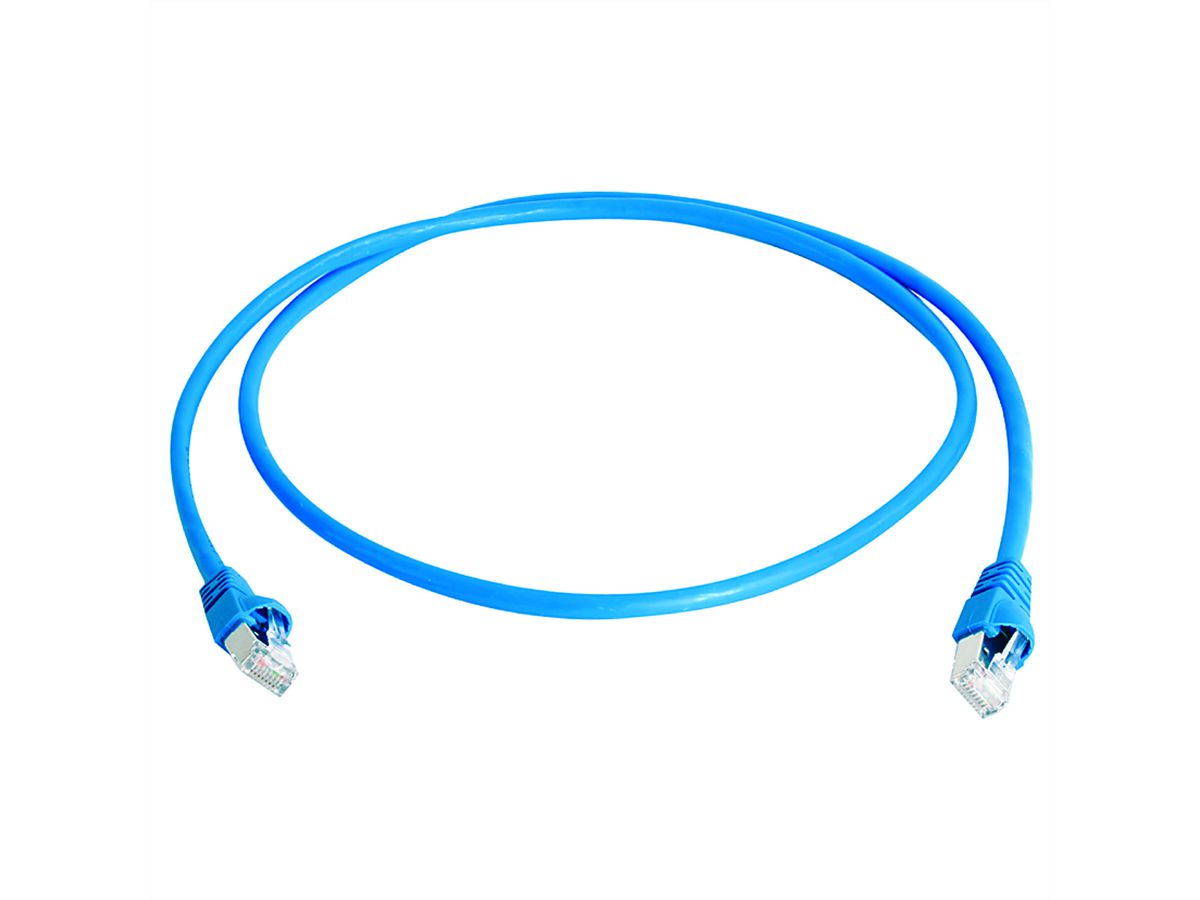

TELEGÄRTNER Mini patch cord S/FTP Cat.6A, MP8 FS500, LSZH, 1:1, blue, 1.5 m

Item no. 21160556 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100008343 EAN 4018359462628 Item weight 0.046 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/06/2026
Download PDF

Description

Mini Patchkabel Cat.6A (IEC) MP8 FS 500 LSZH

  • Anschlussfolge nach EIA/TIA 568B
  • 360° Steckerabschirmung rundum geschlossen (geschirmte Kabel)
  • Flexibel und zugentlastet
  • Angespritzte Tülle
  • Kabelmantel und Tülle: PVC bzw. LSZH (=halogenfrei, flammwidrig)
  • Geeignet für 10 Gigabit Ethernet

Specifications

Manufacturer
TELEGÄRTNER
Product group
Twisted Pair Cable
Product type
S/FTP patch cord (PiMF)
Colour
blue
Length
1.5 m
Shield type
S/FTP (PiMF)
Transfer quality
Cat6A / Class EA
Quantity of wires
8
Conductor cross section (AWG)
AWG 30
Conductor type
Stranded
Crossed
no
Assignment
1:1
Locking lever
yes
Anti-kink sleeve
Moulded-on
Cable LSOH
yes
Side 1 Connector Type
RJ-45
Side 1 Connector Gender
Male
Side 2 Connector Type
RJ-45
Side 2 Connector Gender
Male
Operating temperature min.
-40 °C
Operating temperature max.
75 °C
Weight
54 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
120 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
0.046 kg

Downloads

Manufacturer data sheet - Deutsch (614.5 KB) Manufacturer data sheet - English (614.5 KB)

Product security

Information in accordance with the EU Product Safety Regulation, (GPSR):


Telegärtner Karl Gärtner GmbH
Lerchenstr. 35, 71144 Steinenbronn, Germany
info@telegaertner.com
