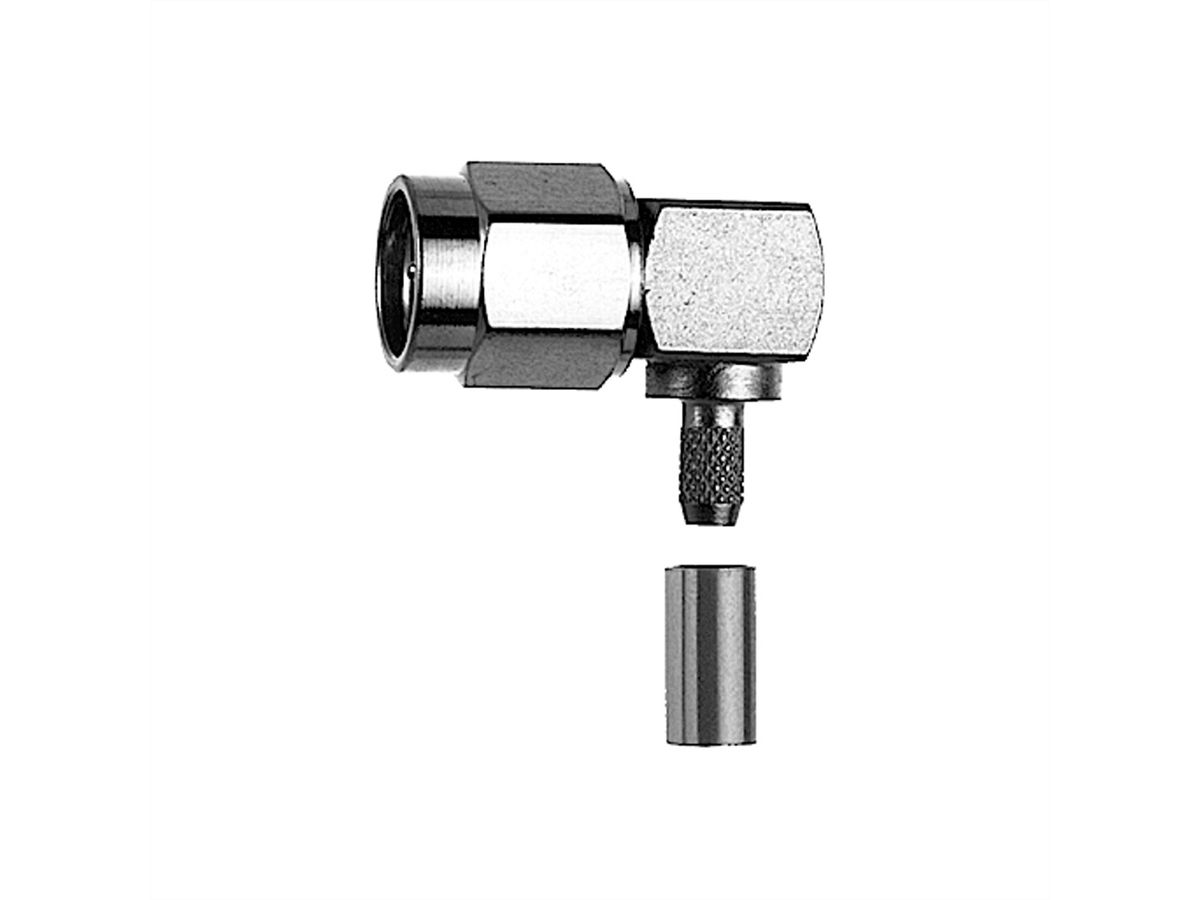

TELEGÄRTNER R-SMA angle plug G1 (RG-58C/U) solder/crimp

Item no. 21170434 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100024656 EAN 4018359282479 Item weight 0.006 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

R-SMA connectors are supplied with a threaded coupling, are vibration resistant and can be used up to frequencies of over 6 GHz (depending on type). The impedance is controlled at 50 Ohm. The term “reverse-polarised connectors” is used where, for example, a standard cable plug has a female centre contact, instead of a male centre contact. Reverse-polarised connectors are mainly used in WLAN applications.

  • Article name: R-SMA Plg 90 sd/cr G1 Au (Old item number J01150R0021)
  • Cable group; cable: G1 (RG-58C/U), RG-58C/U, 7806A, 9907, CNT-195, HPF 195, KX 15, LMR-195, WCX195
  • Remarks: solder/crimp

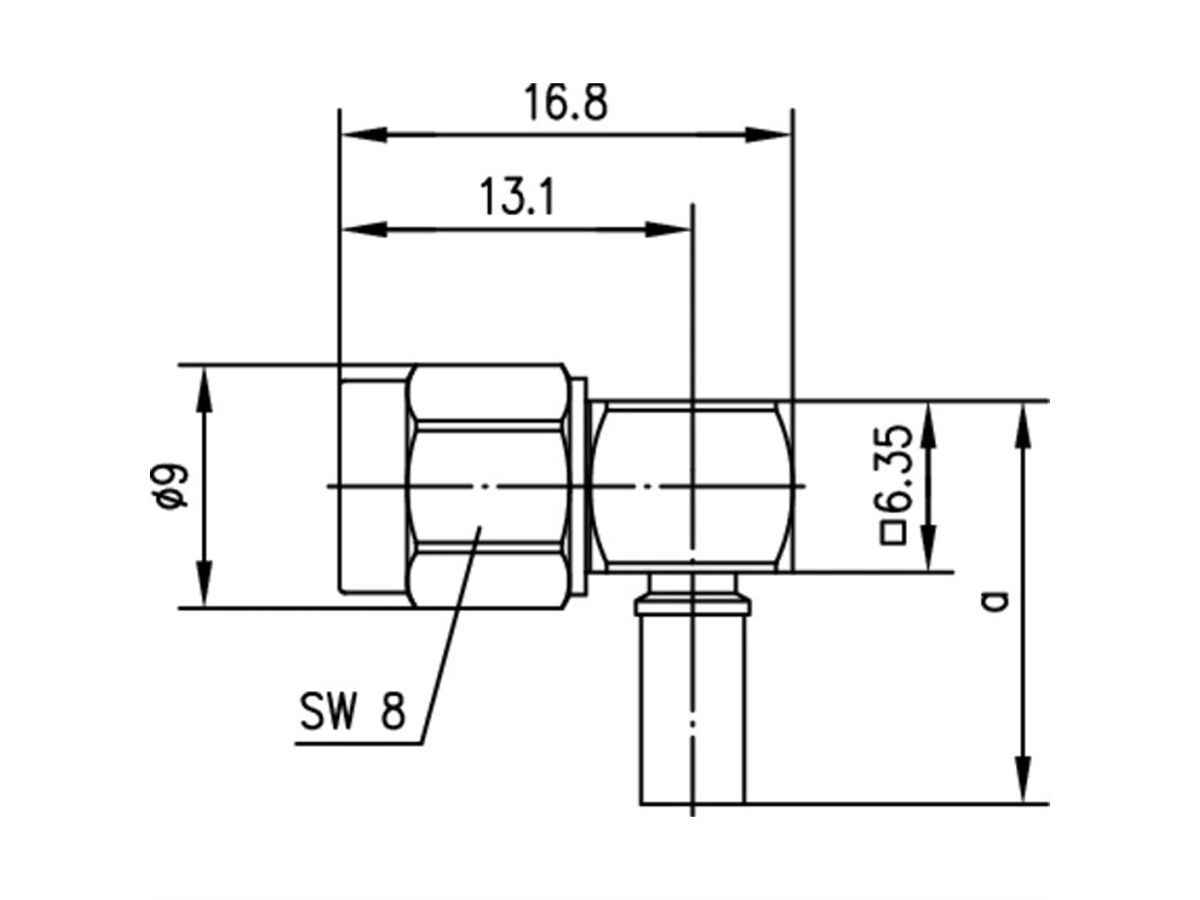

  • Dimensions: a=21
  • Assembly: C0405

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
R-SMA Angle Plug Crimp
Colour
gold
Quantity of ports
1
Side 1 Connector Type
R-SMA connector
Side 1 Connector Gender
Male
Side 2 Connector Type
Solder / Crimp termination
Connection direction
angled
Characteristic impedance
50 Ohm
Height
21 mm
Width
9 mm
Depth
16.8 mm
Weight
8.2 g
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
70 mm
Depth of packaging (single piece)
120 mm
Package weight (single piece)
0.006 kg
