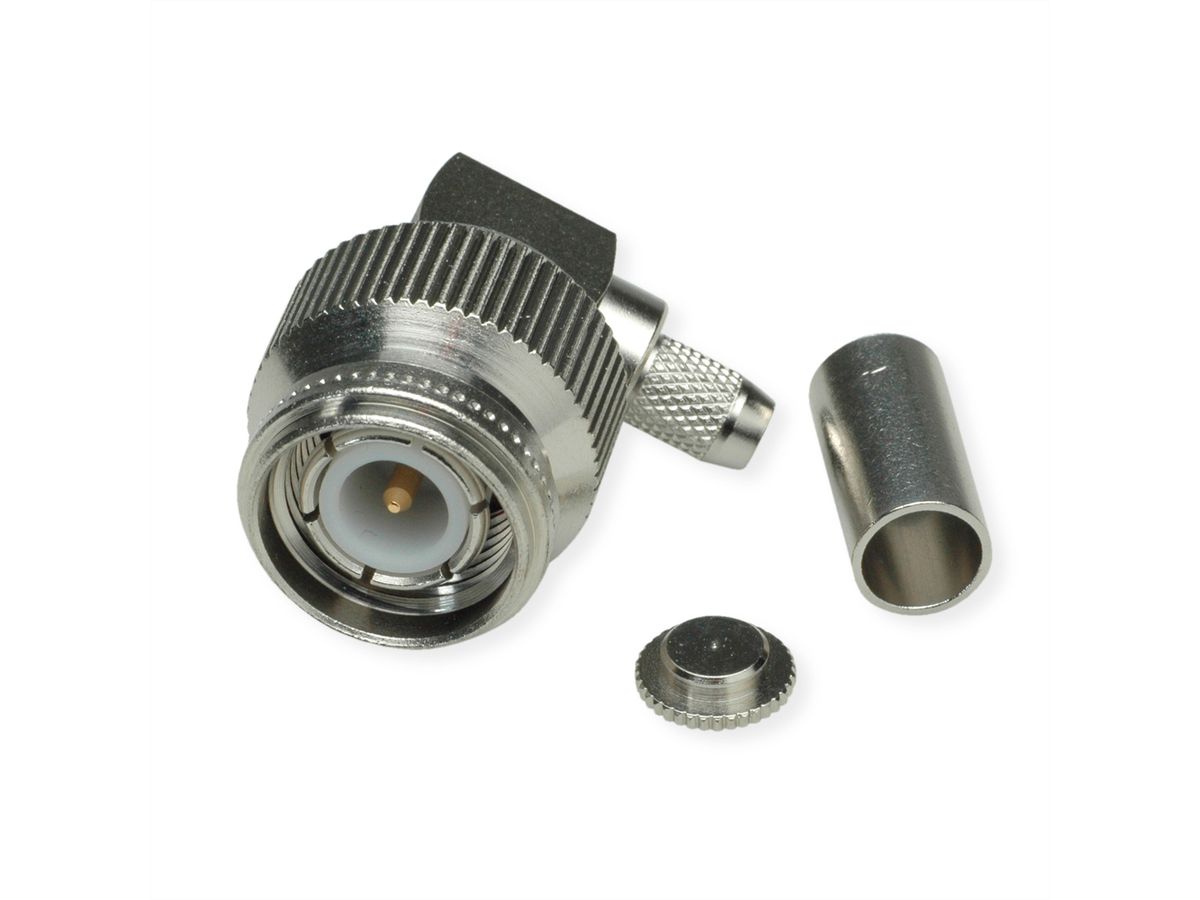

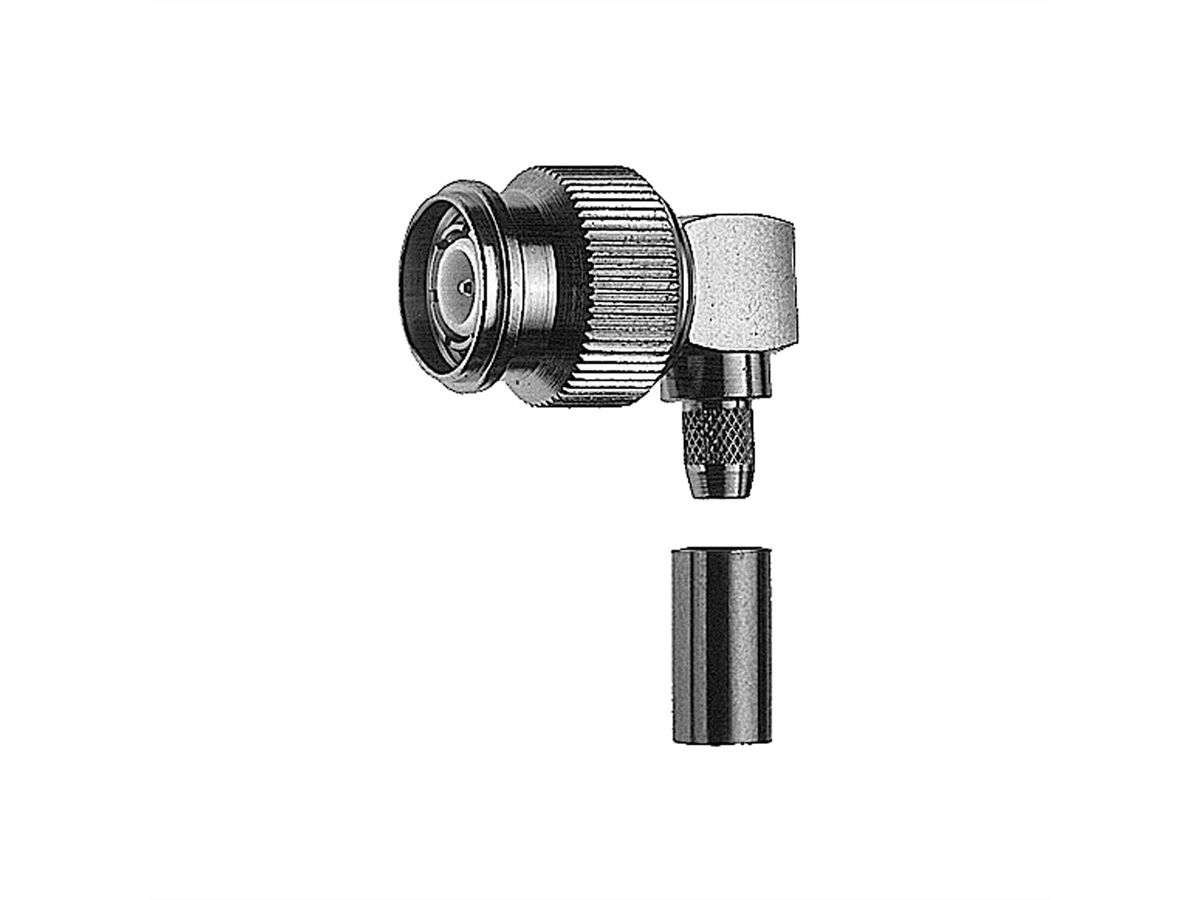

TELEGÄRTNER TNC Angle Plug, Crimp G1 (RG-58C/U) solder/crimp

Item no. 21170497 Brand / Manufacturer TELEGÄRTNER Manuf. item no. 100023696 EAN 4018359107918 Item weight 0.02 kg
TELEGÄRTNER

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The TNC series is a commonly used coax connector. The same size as BNC connectors, but with a threaded coupling mechanism, this connector can be used up to 11 GHz. Applications for these connectors range from signal and data to video transmission where vibration resistance is required. TNC’s are a low-cost high-frequency solution for coax connections.

  • Article name: TNC Plg 90 sd/cr G1 RG-141A/U (Old item number J01010A0005)
  • Impedance: 50 Ω
  • Cable group; cable: G1 (RG-58C/U); RG-141A/U, RG-58C/U, 7806A, 9907, CNT-195, HPF 195, KX 15, LMR-195, WCX195, 1.0/2.95 AF, RG-141A/U
  • Remarks: solder/crimp

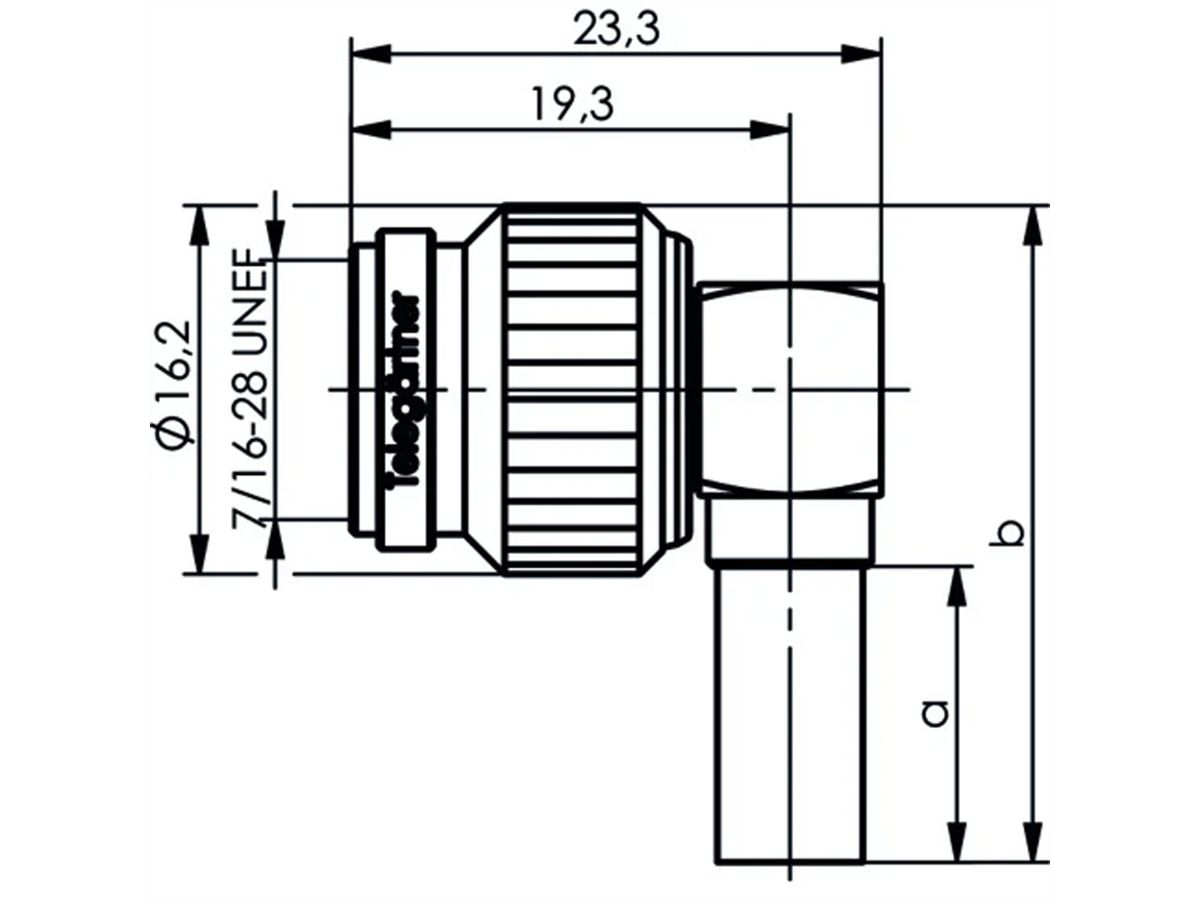

  • Dimensions: a=13, b=29
  • Assembly: A0505

Specifications

Manufacturer
TELEGÄRTNER
Product group
Coaxial Connectors
Product type
TNC Angle Plug Crimp
Colour
silver
Quantity of ports
1
Side 1 Connector Type
TNC connector
Side 1 Connector Gender
Male
Side 2 Connector Type
Solder / Crimp termination
Protection class (IP Code)
IP68
Connection direction
angled
Characteristic impedance
50 Ohm
Height
29 mm
Width
16.2 mm
Depth
23.3 mm
Weight
19 g
Height of packaging (single piece)
10 mm
Width of packaging (single piece)
40 mm
Depth of packaging (single piece)
30 mm
Package weight (single piece)
0.02 kg
