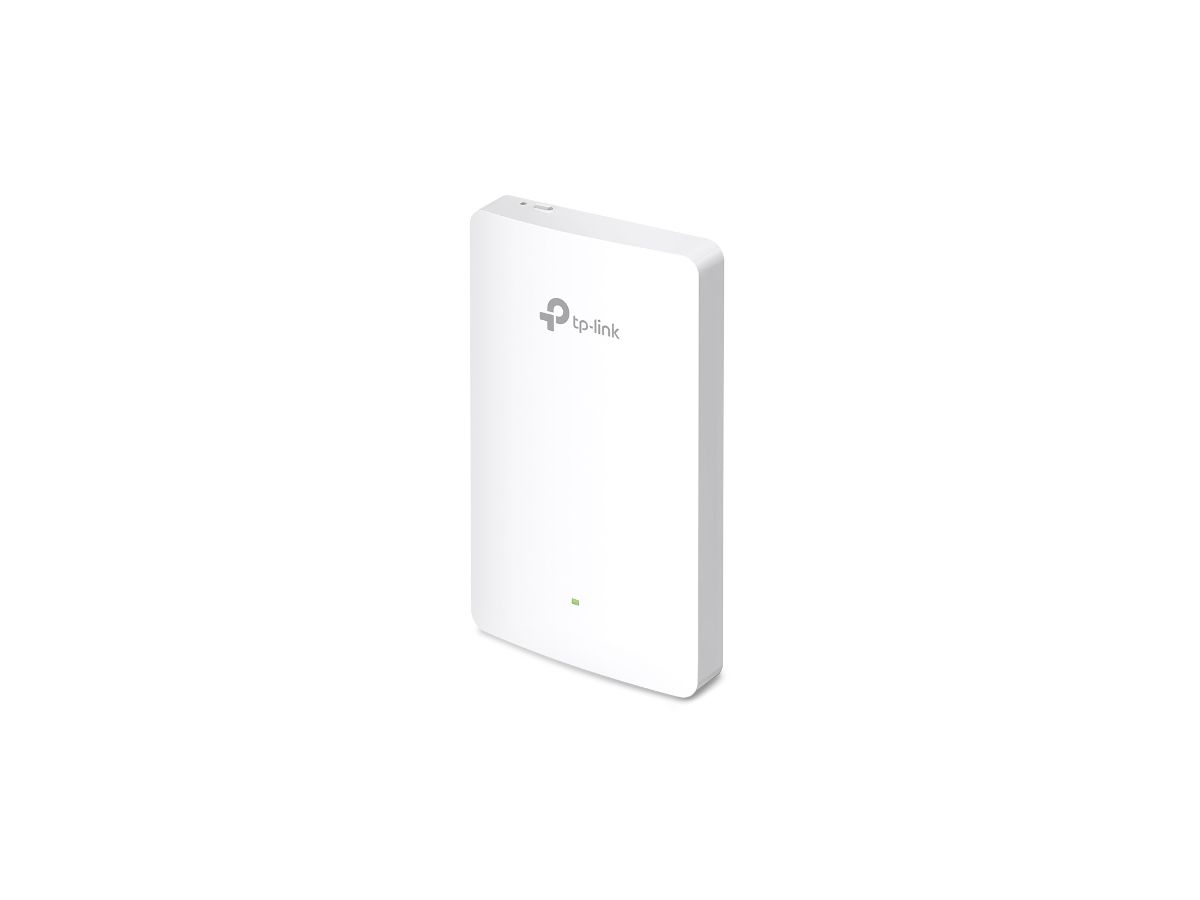

TP-Link AX1800 Wall Plate WiFi 6 Access Point

Item no. 525810764 Brand / Manufacturer TP-LINK TECHNOLOGIES Manuf. item no. EAP615-Wall EAN 4897098683606 Item weight 0.339 kg
TP-LINK TECHNOLOGIES

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Download PDF

Description

TP-Link AX1800 Wall Plate WiFi 6 Access Point. Maximum data transfer rate: 1774 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1201 Mbit/s. Security algorithms: WPA, WPA2, WPA3, Service Set Identifier (SSID) features: Multiple SSIDs. Placement: Wall, Product colour: White, LED indicators: Power. Antenna type: Internal. Width: 143 mm, Depth: 86 mm, Height: 20 mm

The Smarter Cloud Solution for Business Networking.AX1800 Wall Plate WiFi 6 Access PointFutureproof Your Network with WiFi 6 ConnectivityConnect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..Corner-to-Corner Indoor WiFi CoverageGuests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.

Specifications

Manufacturer
TP-LINK TECHNOLOGIES
Product type
Wireless Access Points
Ports & interfaces
Ethernet LAN (RJ-45) ports
4
Weight & dimensions
Width
143 mm
Depth
86 mm
Height
20 mm
Power
Power over Ethernet (PoE)
Y
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Protocols
STelnet using SSH v2
Y
Security
Security algorithms
WPA, WPA2, WPA3
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
16
Remote Authentication Dial-In User Service (RADIUS)
Y
Access Control List (ACL)
Y
Management features
Syslog
Y
Antenna
Antenna type
Internal
Design
Placement
Wall
Product colour
White
On/off switch
Y
Reset button
Y
LED indicators
Power
Certification
CE, FCC, RoHS
Features
2.4 GHz
Y
5 GHz
Y
Maximum data transfer rate
1774 Mbit/s
Maximum data transfer rate (2.4 GHz)
574 Mbit/s
Maximum data transfer rate (5 GHz)
1201 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology
10/100/1000Base-T(X)
Automatic channel selection
Y
Automatic channel scanning
Y
MIMO
Y
MIMO type
Multi User MIMO
VLAN support
Y
Rate limiting
Y
Band steering
Y
Airtime Fairness (ATF)
Y
Quality of Service (QoS) support
Y
Transmitting power (CE)
20 dBm
Transmitting power (FCC)
21 dBm
Logistics data
Harmonized System (HS) code
85176990

Downloads

PDF data sheet - TP-Link AX1800 Wall Plate WiFi 6 Access Point - English (12.4 MB)
