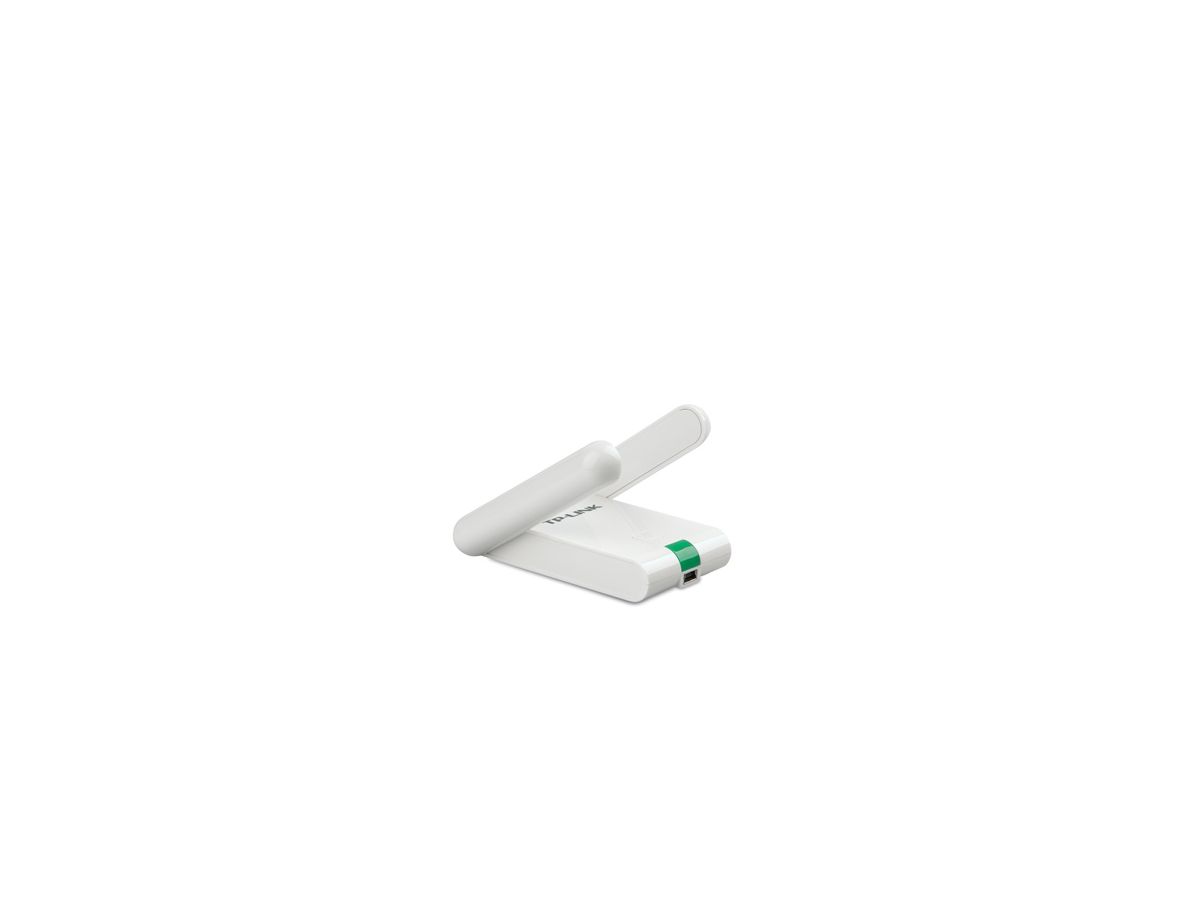

TP-LINK TL-WN822N WLAN 300Mbit/s

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Available - can be delivered within 24 hours

Item no.	517899780
Brand / Manufacturer	TP-LINK TECHNOLOGIES
Manuf. item no.	TL-WN822N V4.0
EAN	6935364050542

Description

TP-LINK TL-WN822N. Connectivity technology: Wireless, Host interface: Mini-USB, Interface: WLAN. Data transfer rate (max): 300 Mbit/s. Top Wi-Fi standard: IEEE 802.11n. Antenna type: External. Colour of product: White

- 11N speed allows for the best HD video streaming and internet calling experience - Dual external antennas deliver enhanced reception and transmission performance - Easy one-touch wireless security encryption with the Quick Security Setup button - 1.5 meter USB cable enables convenient, flexible deployment - Supports Windows XP / Vista / 7 / 8 / 8.1, Mac OS X 10.7~10.10, Linux What This Product Does The TL-WN822N High Gain USB Adapter is a 300Mbps wireless client, which allows users to connect a desktop or notebook computer to a wireless network and access a high-speed Internet connection. It is fully interoperable with IEEE 802.11 b/g/n wireless devices, delivering speedy 11n speeds and reliable signal for lag-free online gaming, Internet calls or even HD video streaming. Desktop-Style Design & 1.5 Meter USB Cable Apart from its fashionable and novel exterior, the TL-WN822N’s desktop-style design is truly beneficial for signal reception in various environments, guaranteeing smooth and stable signals. The TL-WN822N also provides a 1.5 meter USB cable, convenient for installation and flexible deployment. External Antennas Dual 3dBi external antennas for easy alignment to achieve the best signal. WPS Easy wireless security encryption at a push of the WPS button. Easy Setup Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly and easily.

Specifications

Manufacturer	TP-LINK TECHNOLOGIES
Product type	Network Cards

System requirements

Windows operating systems supported	Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Linux operating systems supported	Y

Ports & interfaces

Connectivity technology	Wireless
Internal	N
Host interface	Mini-USB
Interface	WLAN
USB ports quantity	1
USB version	2.0

Weight & dimensions

Width	90 mm
Depth	68 mm
Height	16.8 mm

Bandwidth

Data transfer rate (max)	300 Mbit/s

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Networking

Networking standards	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Modulation	16-QAM,64-QAM,CCK,DBPSK,DQPSK,OFDM
Frequency band	2.400 - 2.4835

Wireless LAN features

Wi-Fi	Y
Top Wi-Fi standard	IEEE 802.11n
Wi-Fi standards	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n

Packaging content

Quantity	1

Antenna

Antenna	Y
Antenna type	External
Gain	3 dBi
Transmit power range	0 - 20 dBmW
Antennas quantity	2

Design

Colour of product	White

Performance

Security algorithms	64-bit WEP,128-bit WEP,WPA-PSK,WPA2-PSK

Downloads

PDF data sheet - TP-LINK TL-WN822N WLAN 300Mbit/s - English (3.5 MB)
