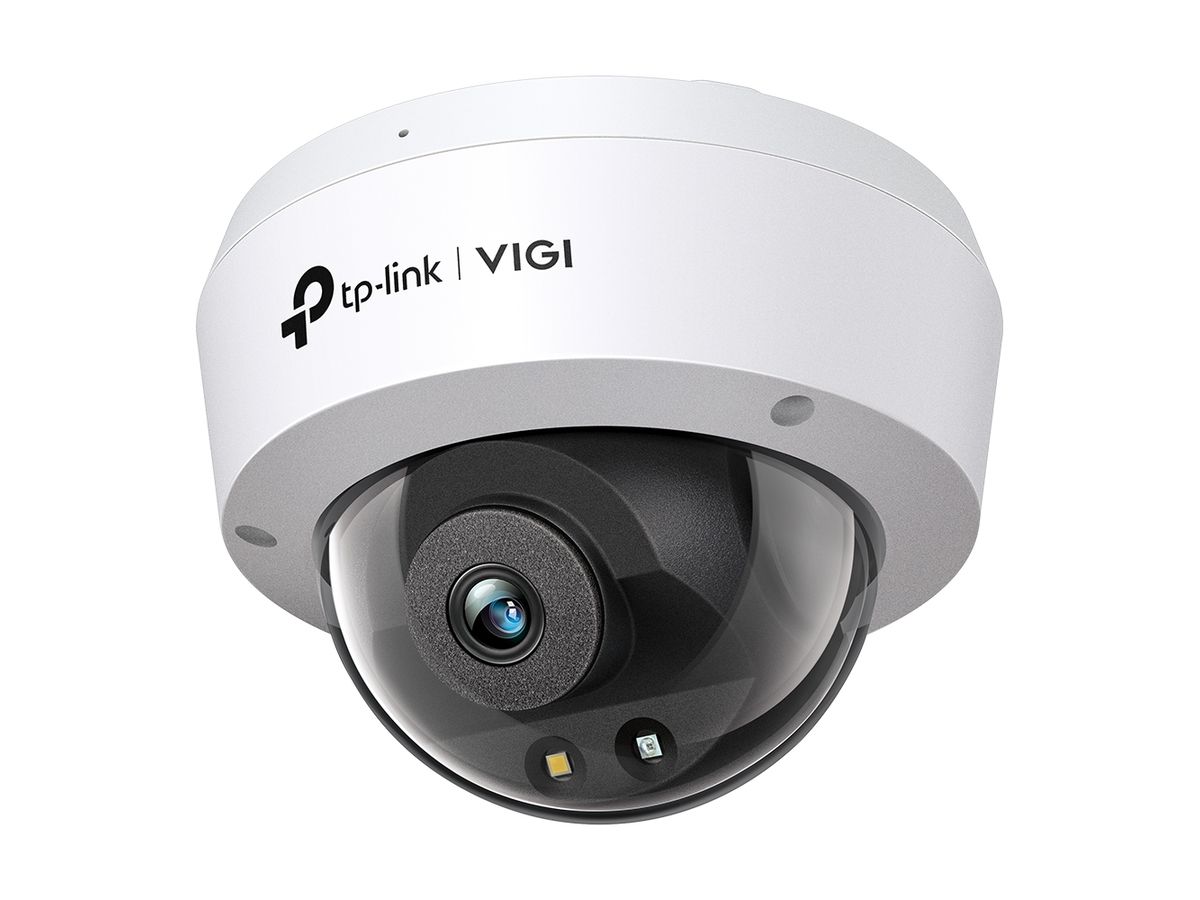

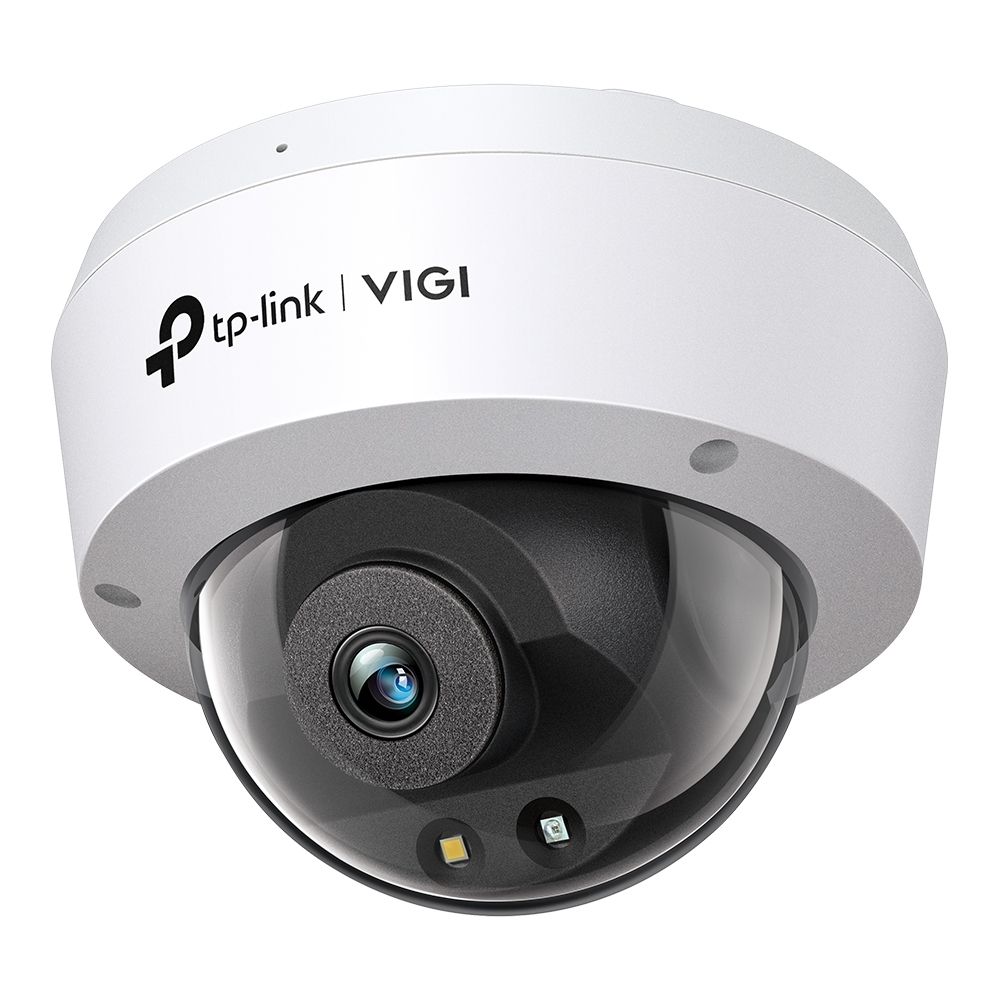

TP-Link VIGI 4MP Full-Color Dome Network Camera

Item no. 527700170 Brand / Manufacturer TP-LINK TECHNOLOGIES Manuf. item no. VIGI C240(2.8mm)
TP-LINK TECHNOLOGIES

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days

Description

TP-Link VIGI 4MP Full-Color Dome Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Lens diameter: 2.8 mm

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each methods, as well as onboard storage with SD card slot.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Specifications

Manufacturer
TP-LINK TECHNOLOGIES
Product type
Security Cameras
Technical details
Sustainability certificates
CE
Compliance certificates
CE
Audio
Built-in microphone
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Lens system
Number of lenses
1
Lens diameter
2.8 mm
Weight & dimensions
Width
115 mm
Depth
115 mm
Height
86 mm
Package width
153 mm
Package depth
193 mm
Package height
120 mm
Package weight
460 g
Power
Power source type
DC, PoE
Power consumption (max)
5.4 W
Operational conditions
Operating temperature (T-T)
-30 - 60 °C
Network
Ethernet LAN
Yes
Wi-Fi
No
Bluetooth
No
Ethernet interface type
Fast Ethernet
Supported network protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Number of simultaneous live view channels
3 channels
Video
Maximum resolution
2560 x 1440 pixels
Total megapixels
4 MP
Video compression formats
H.264, H.264+, H.265, H.265+
Supported graphics resolutions
320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate
30 fps
Video streaming
Yes
Noise reduction technology
3D noise reduction
Image quality adjustment
Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking
Yes
Bit rate
64 Kbps - 4 Mbps
Back Light Compensation (BLC)
Yes
Highlight Compensation (HLC)
Yes
Digital Wide Dynamic Range (DWDR)
Yes
Storage
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
256 GB
Security
Password protection
Yes
Video motion detection
Yes
Active tampering alarm
Yes
IP address filtering
Yes
HTTPS encryption
Yes
Intelligent Video Surveillance (IVS) system features
Abandoned object, Crossing line, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
Mirror
Yes
Digest authentication
Yes
Image sensor
Sensor type
CMOS
Optical sensor size
25.4 / 3 mm (1 / 3")
Management features
Web-based management
Yes
Reset button
Yes
Management software
VIGI App, VIGI Security Manager, VIGI NVR
Camera
Camera pan control
Yes
Camera tilt control
Yes
Minimum illumination
0.005 lx
Angle of rotation
360°
Lens viewing angle, horizontal
95.7°
Lens viewing angle, vertical
51.7°
Lens viewing angle, diagonal
113°
Tilt angle range
0 - 85°
Pan range
0 - 360°
Packaging content
Number of cameras
1
Mounting kit
Yes
Design
Mounting type
Ceiling/wall
Product colour
Black, White
Form factor
Dome
Housing material
Plastic
International Protection (IP) code
IP67
IK code
IK10
Night vision
Night vision
Yes
Night vision distance
30 m
LED type
IR
Number of illumination LEDs
1
Infra-red wavelength
850 nm
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
Day/night mode
Yes
Certification
CE, BSMI, VCCI, ONVIF
Features
Basic event
Motion Detection, Camera Tampering Detection, Exception
