Item no.:21152800Herst.-Art.-Nr.:21.15.2800

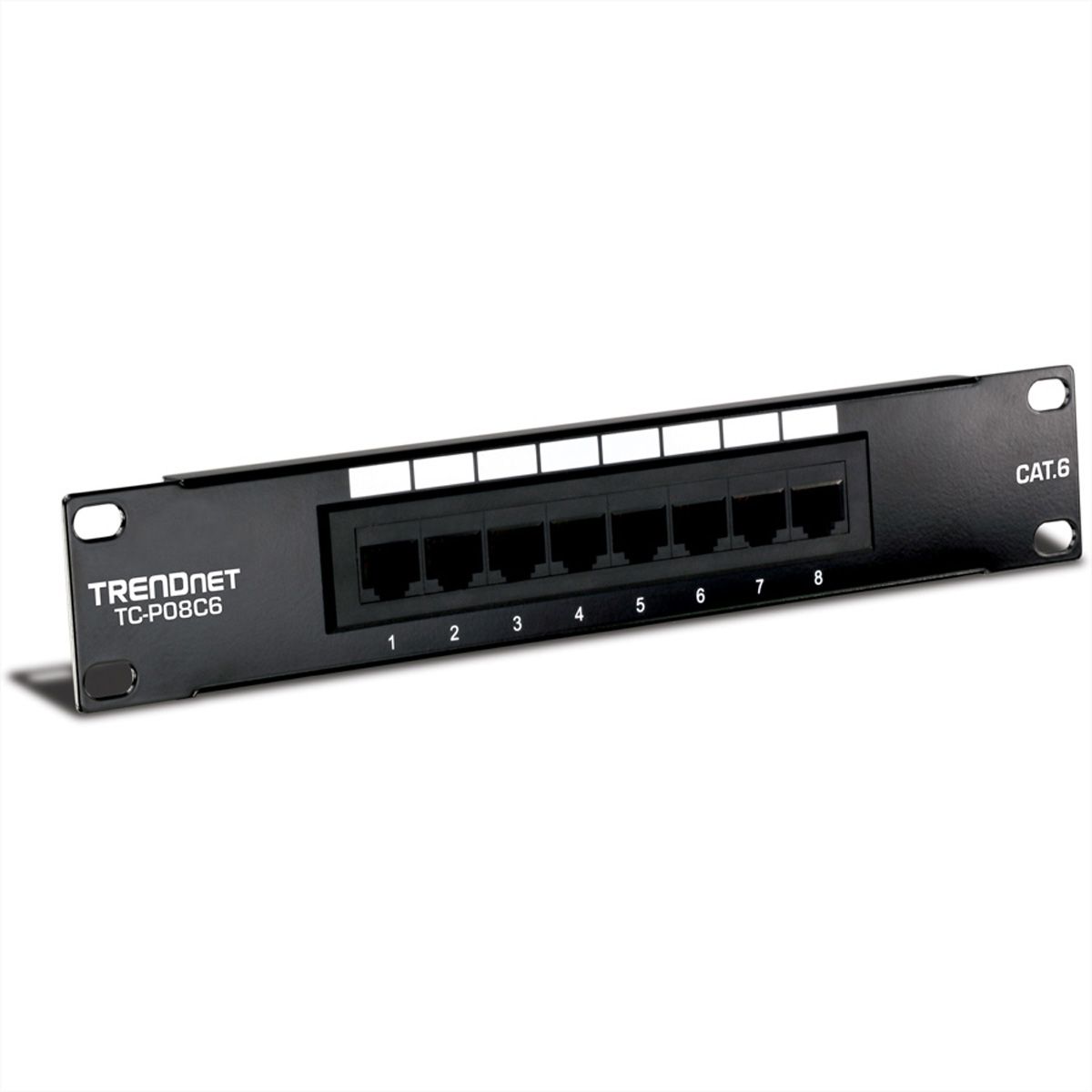

TRENDnet TC-P08C6 10" 8-Port Cat. 6 Unshielded Patch Panel
Item no.
21221260
Brand / Manufacturer
TRENDNET
Manuf. item no.
TC-P08C6
EAN
710931401349
Item weight
0.309 kg
:strip_icc():strip_exif()/logos/trendnet.png "TRENDNET")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
8-Port Cat. 6 Unshielded Patch Panel
The 8-Port Cat. 6 Unshielded Patch Panel, model TC-P08C6, provides a 250 MHz connection to 8 x Gigabit RJ-45 Ethernet ports. This 10 inch wide patch panel is well suited for home and SMB applications. Control cable clutter with included removable cable pass-through holders and cable ties. A writing surface above each port allows users to label respective connections. Use with TRENDnet's Punch Down Tool with 110 and Krone Blade, model TC-PDT, and RJ-11/RJ-45 crimp/cut/strip tool, model TC-CT68.- 8 x 1000Base-T Gigabit RJ-45 ports
- Supports a 250 MHz connection
- 10-inch wide patch panel
- Cat. 6 color-coded labeling for T568A and T568B wiring schemes
- IDC terminal blocks are compatible with 110 and Krone style connectors
- Labels above each port; Cat. 6 transmission performance compliant with ANSI, TIA, and EIA 568 B.2 standards
The 8-Port Cat. 6 Unshielded Patch Panel, model TC-P08C6, provides a 250MHz connection to 8 x Gigabit RJ-45 Ethernet ports. This 10 inch wide patch panel is well suited for home and SMB applications. Control cable clutter with included removable cable pass-through holders and cable ties. A writing surface above each port allows users to label respective connections. Use with TRENDnet’s Punch Down Tool with 110 and Krone Blade, model TC-PDT, and RJ-11/RJ-45 Crimp/Cut/Strip Tool, model TC-CT68. Features: -8 x 1000Base-T Gigabit RJ-45 ports; -Supports a 250MHz connection; -10 inch wide patch panel; -Cat. 6 color coded labeling for T568A and T568B wiring schemes; -IDC terminal blocks are compatible with 110 and Krone style connectors ; -Labels above each port; -Cat. 6 transmission performance compliant with ANSI, TIA, and EIA 568 B.2 standards; -Nylon cable ties and holders included.
Specifications
- Manufacturer
- TRENDNET
- Product type
- Patchpanel Cat.6 / Class E
- Colour
- black
- Scope of delivery
- TC-P08C6 Quick Installation Guide Cable holders and ties
- Transfer quality
- Cat6 / Class E
- Quantity of ports
- 8
- Assignment
- EIA/TIA 568A & 568B
- Height
- 30 mm
- Width
- 254 mm
- Depth
- 44 mm
- Weight
- 219.12 g
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 90 mm
- Depth of packaging (single piece)
- 300 mm
- Package weight (single piece)
- 0.309 kg
Weight & dimensions
- Width
- 44 mm
- Height
- 30 mm
- Depth
- 254 mm
- Weight
- 205 g
Networking
- Cabling technology
- 1000Base-T
- Ports quantity
- 8
- Connector(s)
- RJ-45
- Cable types supported
- Cat6
Design
- Colour of product
- Black
- Certification
- CE, FCC
Accesories
Item no.:21152801Herst.-Art.-Nr.:21.15.2801
Item no.:21152802Herst.-Art.-Nr.:21.15.2802
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/trendnet.png)
TRENDnet products offer outstanding value for money with a multi award winning product line and proven reliability, outstanding product quality, comprehensive customer service, pre-sales engineering assistance and world class technical support.
