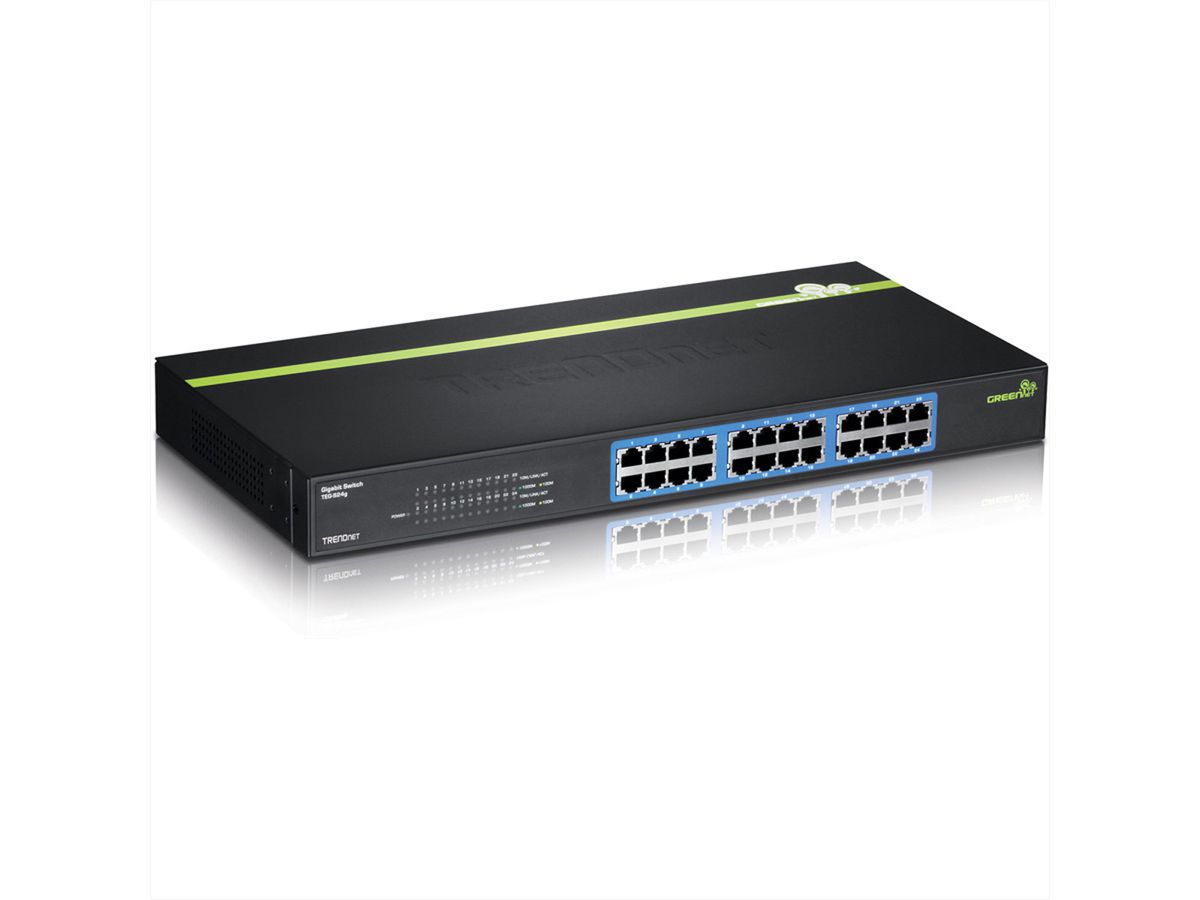

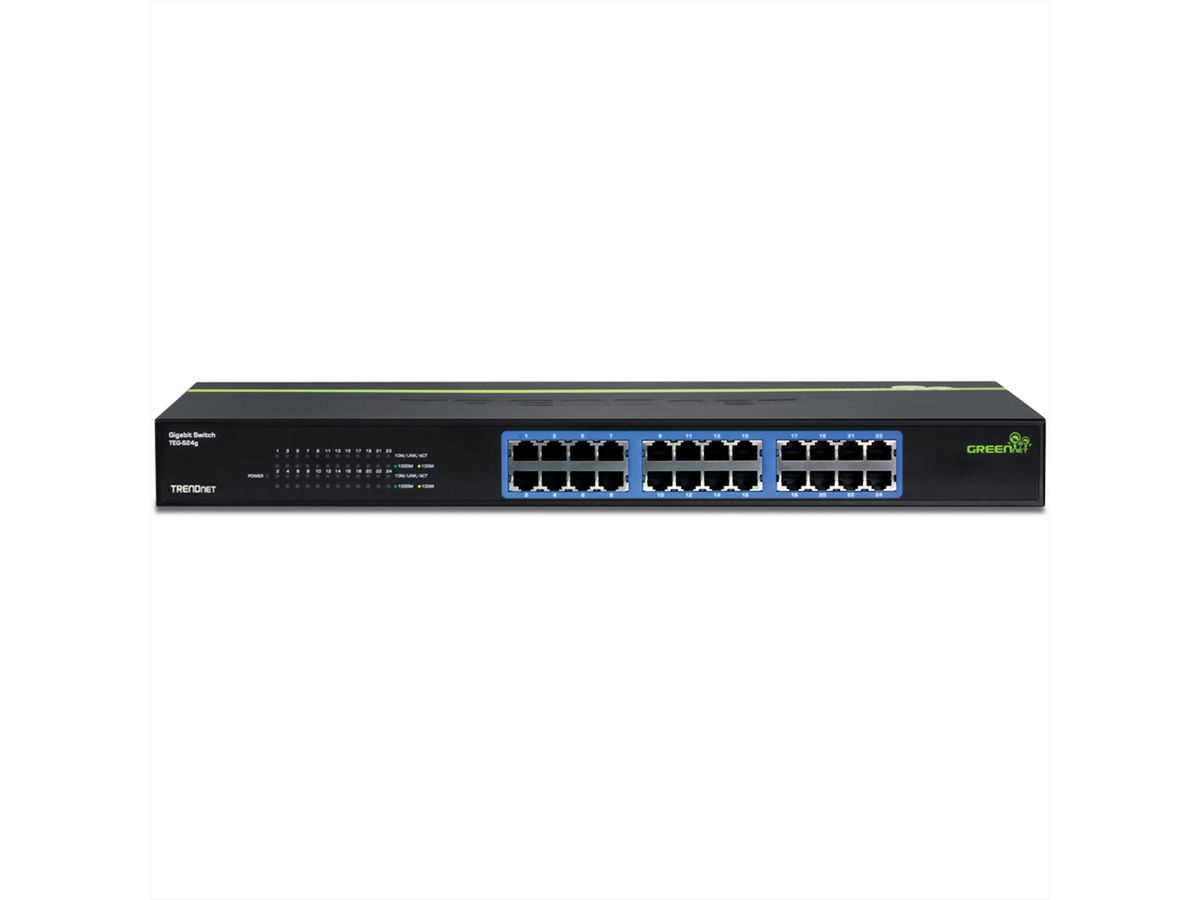

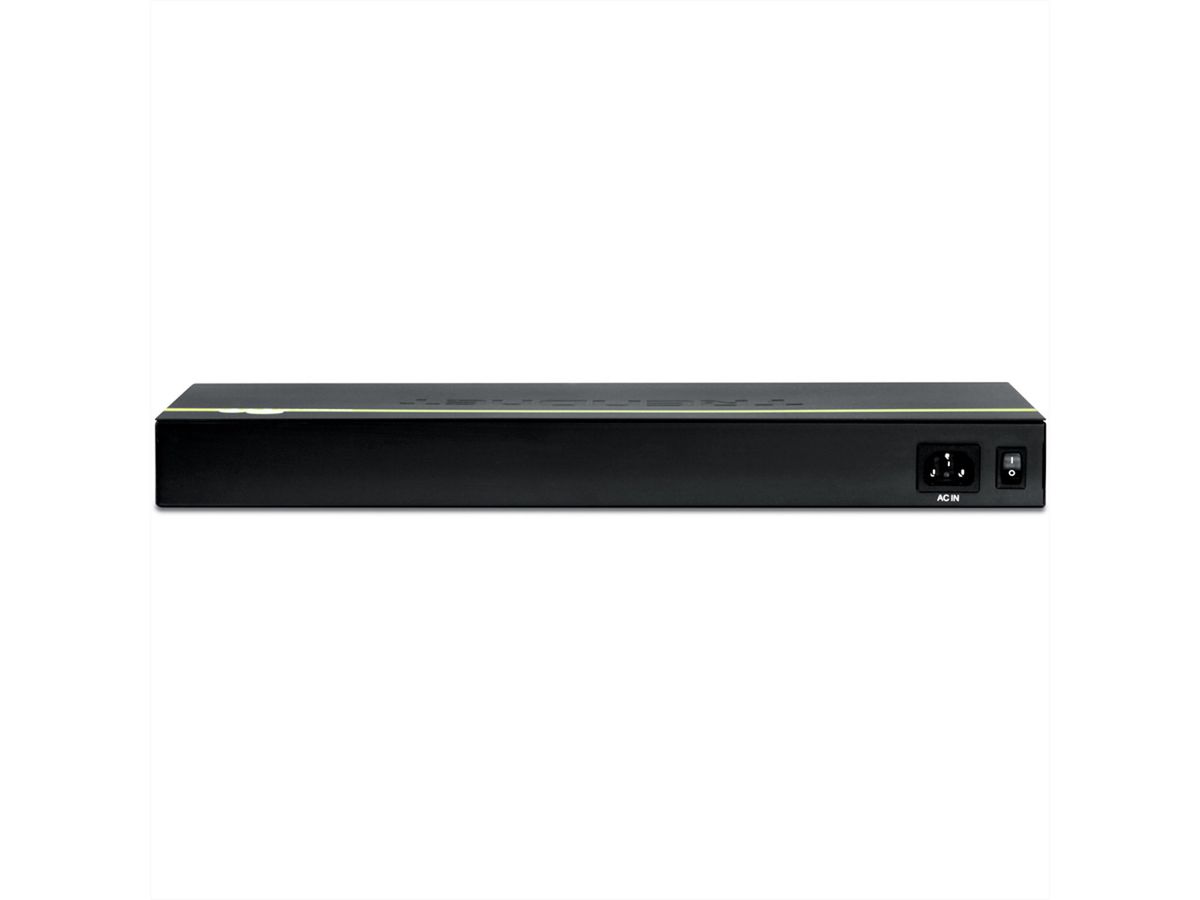

TRENDnet TEG-S24G Netzwerk Switch

TRENDnet TEG-S24G Netzwerk Switch

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Item no. 21221052
Brand / Manufacturer TRENDNET
Manuf. item no. TEG-S24g
EAN 710931610246
Item weight 0.003 kg
TRENDNET

Description

24-Port Gigabit GREENnet Switch

24 Gigabit Ports
48 GBit/s Gesamtschaltkapazität
Design ohne Ventilator
440 x 210 x 45 mm
Unterstützt Jumbo Frame
Der Switch mit einem robusten Metallgehäuse wird eine Rackmontage-Halterung enthälten
Stromersparnisse von bis zu 70% durch GREENnet *
Limited Lifetime Warranty*

Der 24-Port Gigabit GREENnet Switch, Modell TEG-S24g, bietet Leistung, erwiesene Zuverlässigkeit und Stromersparnisse von bis zu70%*. Eingebaute energiesparende GREENnet-Technologie funktioniert sofort und muss nicht eingerichtet oder verwaltet werden. Dieser lüfterlose Metall Switch kommt mit 19" Montagewinkeln und bietet eine Gesamt-Schaltleistung von 48 GBit/s.

- GREENnet technology reduces power consumption by up to 70%*- 24 x Gigabit Auto-MDIX RJ-45 ports- Sturdy metal rackmount switch with built in power supply- 48Gbps forwarding capacityThe 24-Port Gigabit GREENnet Switch, model TEG-S24g, provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%.GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 48Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

Specifications

Manufacturer TRENDNET
Product group Netzwerk-Switches
Product type Gigabit Ethernet Switch
Colour black
Scope of delivery TEG-S24g, beknopte installatiegids, netsnoer, rackmontagekit
Network standard Gigabit Ethernet
LAN (Mbps) 10/100/1000
Quantity of ports 24
Fast Ethernet Ports RJ-45 24
Gigabit Ethernet Ports RJ-45 24
Dimensions (HxWxD) 440 x 210 x 45 mm
Mains connection Kaltgeräte-Anschluss
Height 440 mm
Width 210 mm
Depth 45 mm
Weight 2867.37 g
Height of packaging (single piece) 100 mm
Width of packaging (single piece) 310 mm
Depth of packaging (single piece) 570 mm
Package weight (single piece) 0.003 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Weight & dimensions
Weight 1.7 kg
Power
Input voltage 100-240 V
Power consumption (typical) 13 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -10 - 70 °C
Protocols
Supported network protocols CSMA /CD, Star
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support N
Full duplex Y
Flow control support Y
Auto MDI/MDI-X Y
Data transmission
MAC address table 8000 entries
Switching capacity 48 Gbit/s
Supported data transfer rates 10, 20, 100, 200, 2000
Maximum data transfer rate 2 Gbit/s
Jumbo frames support Y
Management features
Switch type Unmanaged
Other features
Dimensions (WxDxH) 280 x 180 x 44 mm
Connectivity technology Wired
Wi-Fi Y
Input frequency 50-60 Hz
Design
Rack mounting Y
Stackable N
Product colour Black
Housing material Metal
LED indicators Y
Power over Ethernet (PoE)
Power over Ethernet (PoE) N
Performance
Harmonized System (HS) code 85176990
