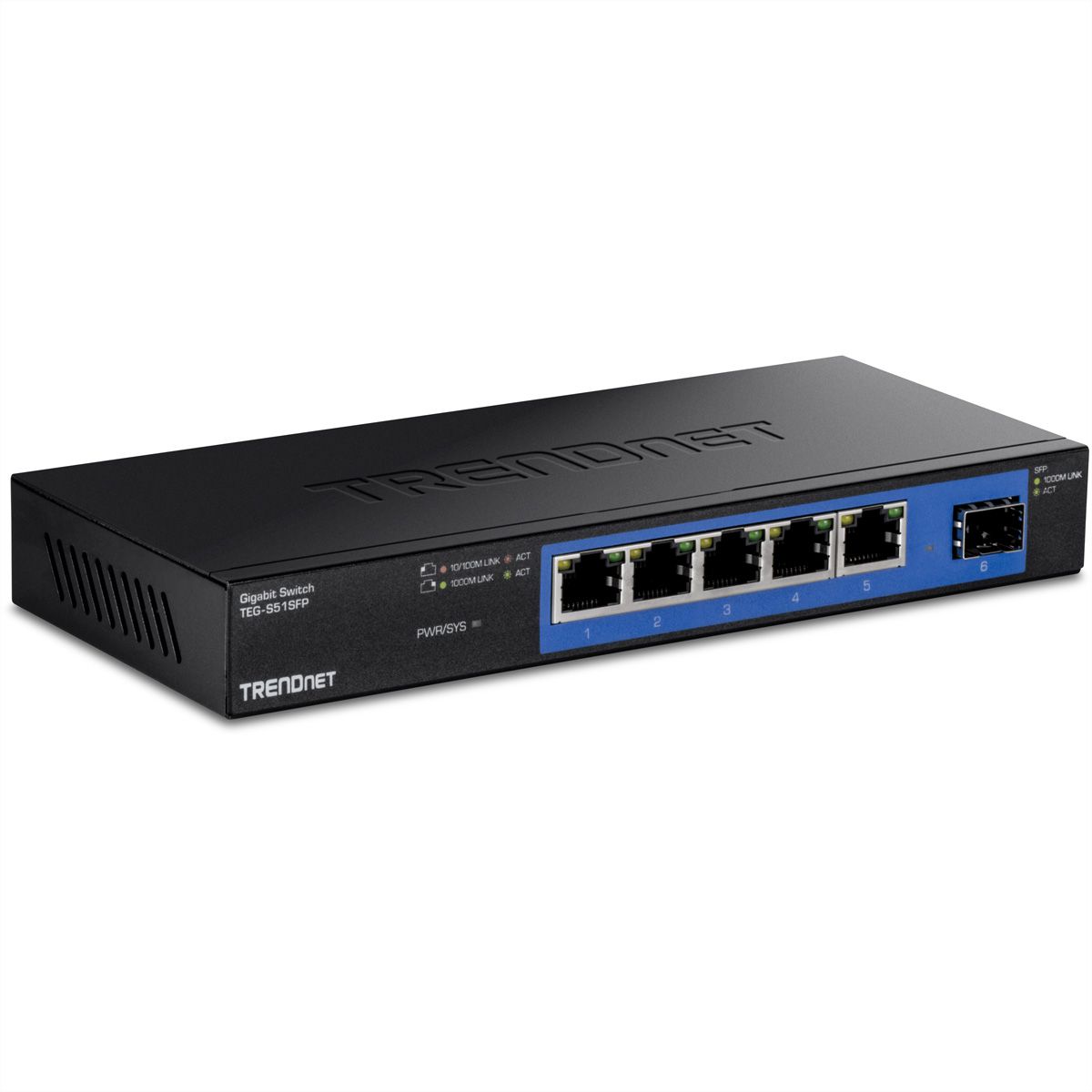

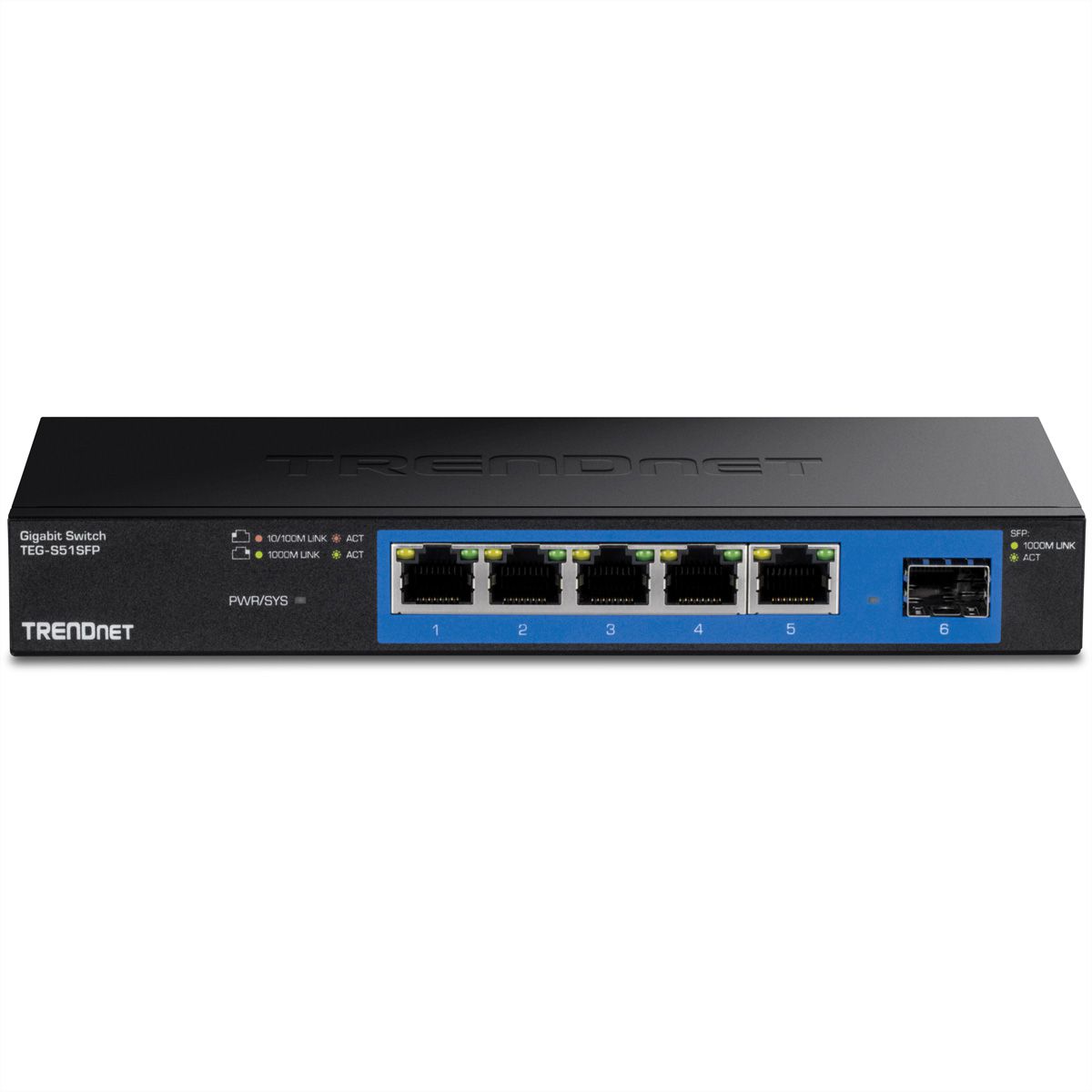

TRENDnet TEG-S51SFP 5-Port Switch Gigabit with SFP Slot

Item no. 21221042 Brand / Manufacturer TRENDNET Manuf. item no. TEG-S51SFP EAN 710931140309 Item weight 0.615 kg
TRENDNET

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The TRENDnet 5-port Gigabit switch with a metal casing and SFP slot, model TEG-S51SFP, offers performance, proven reliability and flexible expansion of your Gigabit network. This fanless, unmanaged desktop switch features a total switching capacity of 10 Gbit/s combined with the flexibility of fibre-optic networking. QoS ensures that your voice and video priorities are maintained throughout the network. Installation is simple and flexible thanks to the magnetic mounting kit.

Trendnet TEG-S51SFP. Basic switching RJ-45 Ethernet ports: Gigabit Ethernet (10/100/1000). Network standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Routing/switching capacity: 10 Gbit/s. Product colour: Black, Housing material: Metal, Mean time between failures (MTBF): 1,033,343 h

  • Plug and Play: Simply switch on the switch and connect your devices
  • 5 Gigabit Ethernet ports and 1 SFP slot
  • Switching capacity: 12 Gbit/s
  • Jumbo frames: Send larger packets or jumbo frames (up to 9 KB) for improved performance
  • LED indicators: LED indicators show the port status
  • Fanless: Fanless design reduces power consumption and eliminates operating noise
  • Housing: Sturdy metal housing with magnetic fastening

- 4 x Gigabit ports - 1 x SFP slot - 10 Gbps switching fabric - Quality of Service traffic prioritization (802.1p QoS) - Jumbo Frame support - Fanless design - Metal housing - Magnet Mount - Limited Lifetime Warranty TRENDnet’s metal housing 4-Port Gigabit Switch with SFP Slot, model TEG-S51SFP, provides performance, proven reliability, and flexible extension of your Gigabit network. This fanless unmanaged desktop switch offers a total switching capacity of 10 Gbps combined with the flexibility of fiber networking. 802.1p QoS maintains your voice and video priority throughout the network. Magnetic mounting kit for easy and flexible setups. Plug and Play Simply power up the switch and plug in connected devices Rear Facing Ports 4 x Gigabit Ethernet ports and 1 x SFP slot Switching Capacity 10 Gbps switching capacity Jumbo Frame Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance LED Indicators LED indicators convey port status Fanless Fanless design lowers energy consumption and eliminates operating noise Housing Rugged metal enclosure with magnet mount

Specifications

Manufacturer
TRENDNET
Product group
Network Components
Product type
Network Switch
Colour
black
Scope of delivery
TEG-S51SFP, Quick Installation Guide, Power adapter (12V DC, 1A)
Network standard
Gigabit Ethernet
Quantity of ports
6
Gigabit Ethernet Ports RJ-45
5
Free slots for SFPs
1
Power over Ethernet (PoE)
no
Mains connection
Appliance Europlug, Type-C
Height
28 mm
Width
194 mm
Depth
85 mm
Weight
382 g
Height of packaging (single piece)
120 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
220 mm
Package weight (single piece)
0.615 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
1
SFP module slots quantity
1
Weight & dimensions
Width
147 mm
Depth
105 mm
Height
28 mm
Weight
434 g
Power
Power connector

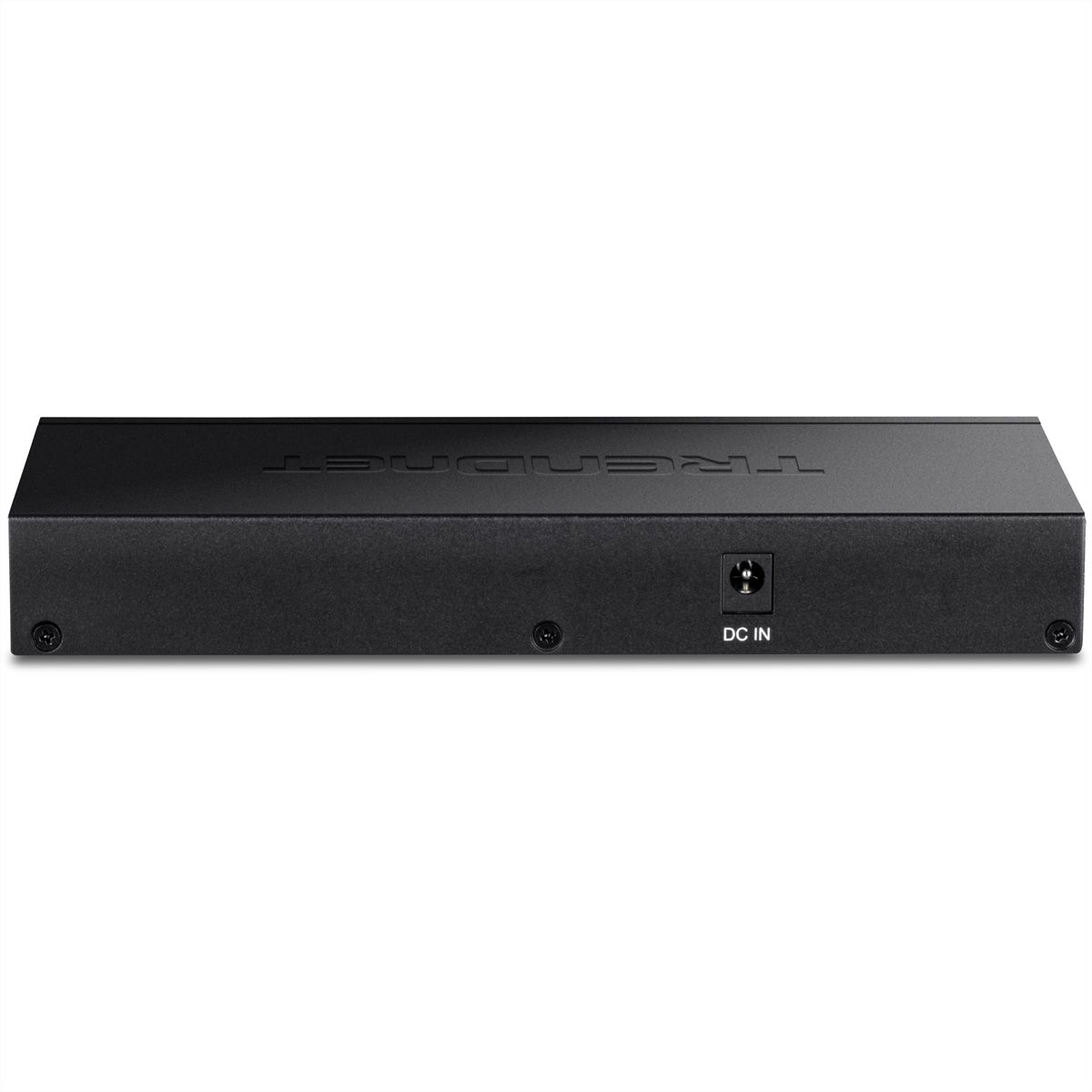

DC-in jack
Power consumption (max)
0.8 W
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Networking
Networking standards
IEEE 802.1p,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
N
Full duplex
Y
Data transmission
Switching capacity
10 Gbit/s
Management features
Quality of Service (QoS) support
Y
Design
Product colour
Black
LED indicators
Y
Housing material
Metal
Wall mountable
Y
On/off switch
N
Certification
CE, FCC
Performance
Plug and Play
Y
Mean time between failures (MTBF)
1033343 h

Downloads

Manufacturer data sheet - Deutsch (604.4 KB) Manufacturer data sheet - English (615.5 KB) Manufacturer data sheet - Français (622.2 KB)
