Item no.:21152800Herst.-Art.-Nr.:21.15.2800

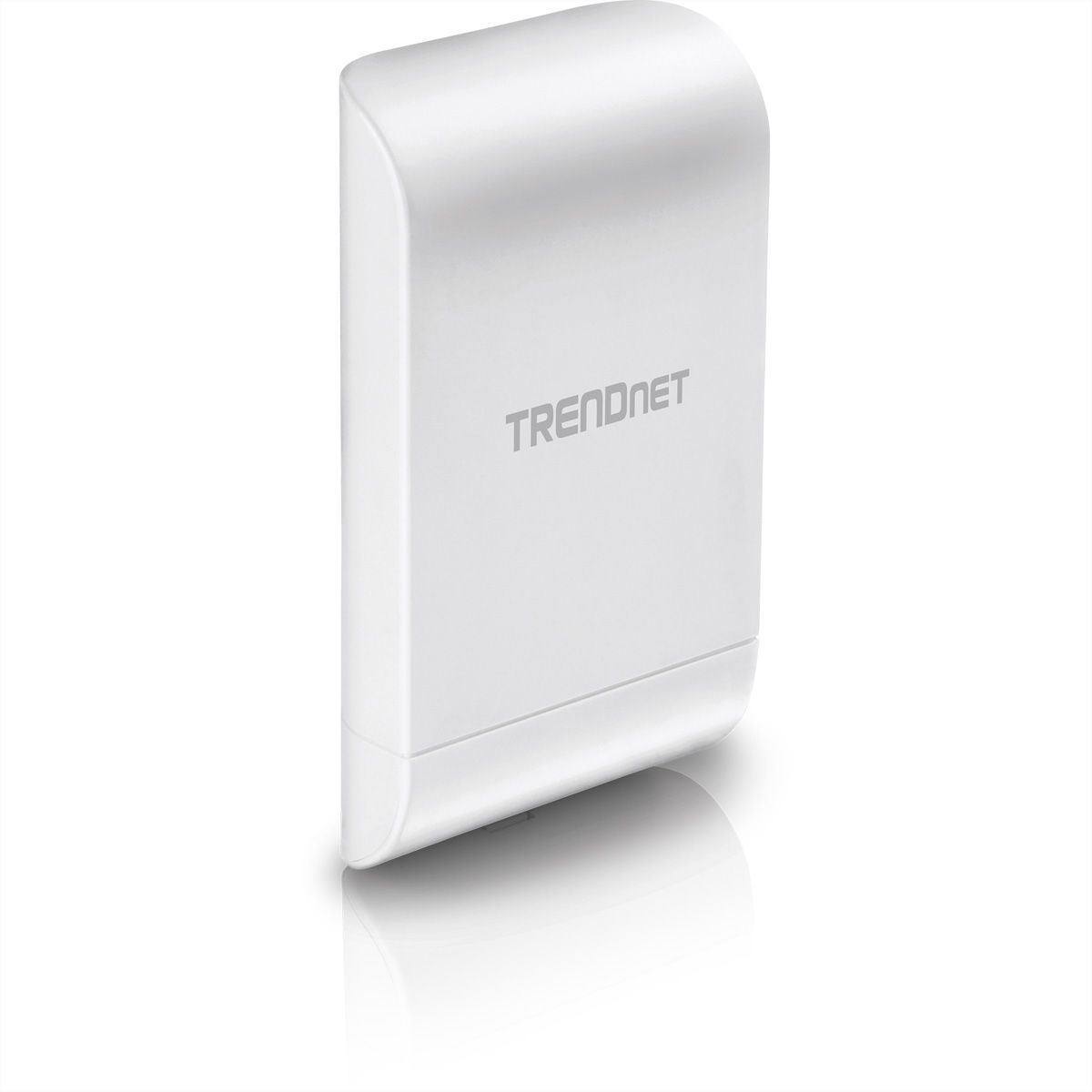

Trendnet TEW-740APBO Built-in 300 Mbit/s Power over Ethernet (PoE) Supported Wi-Fi Access Point
Item no.
21221014
Brand / Manufacturer
TRENDNET
Manuf. item no.
TEW-740APBO
EAN
710931160819
Item weight
0.81 kg
:strip_icc():strip_exif()/logos/trendnet.png "TRENDNET")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
Deliverable approx. 08/05/2026
Description
Trendnet TEW-740APBO Built-in 300 Mbit/s Power over Ethernet (PoE) Supported Wi-Fi Access Point
Trendnet TEW-740APBO. Data transfer rate (maximum): 300 Mbit/s, frequency band: 2.4 GHz, Ethernet LAN data transfer rates: 10, 100 Mbit/s. Supported security algorithms: HTTPS, SSID, WDS, WPA-PSK, WPA2, WPA2-PSK, WPA2-RADIUS. Antenna gain (max): 10 dBi. Power consumption (max): 22 W, input voltage: 100–220, input frequency: 50–60. Protection rating (IP code): IP67, mounting: pole, wall
- Wireless N300 building-to-building networking (2.4 GHz) - Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes - IP67 rated housing - Built in 10 dBi directional sector antenna TRENDnet’s 10 dBi Outdoor PoE Access Point, model TEW-740APBO, provides Wireless N300 building-to-building connectivity. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Repeater, and CPE + AP modes. The IP67 rated housing comes with wall and pole mounting hardware. Point-to-Point Wireless N300 building-to-building networking (2.4 GHz) Installation Flexibility Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes Outdoor Ready IP67 rated housing Multi-Mode Support Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes Wireless N300 (2.4 GHz) Compliant with 802.11n/g/b technology (2.4 GHz) with data rates up to 300 Mbps* Outdoor Rated Durable enclosure with an IP67 outdoor weather rating Directional Antenna Built in 10 dBi directional antenna Power over Ethernet (PoE) Comes with a proprietary PoE injector, so that it can connect a regular non-PoE switch Logs Real time logs and statistics help troubleshooting Encrypted Wireless Support for wireless encryption of up to WPA2 Multiple SSIDs Create up to eight additional SSIDs Compatibility Compatible with legacy wireless devices Mounting Hardware Pole and wall mount hardware included
Specifications
- Manufacturer
- TRENDNET
- Product group
- Network Components
- Product type
- Wireless Access Points
- Colour
- grey
- IEEE standard
- IEEE 802.11n
- WiFi standard
- WiFi 4 (IEEE 802.11n)
- Maximum data transfer rate
- 300 Mbit/s
- Frequency
- 2.4 GHz up to 300 Mbps
- Height
- 61 mm
- Width
- 195 mm
- Depth
- 118 mm
- Weight
- 304 g
- Height of packaging (single piece)
- 90 mm
- Width of packaging (single piece)
- 140 mm
- Depth of packaging (single piece)
- 280 mm
- Package weight (single piece)
- 0.81 kg
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- DC-in jack
- Y
Weight & dimensions
- Width
- 125 mm
- Depth
- 54 mm
- Height
- 218 mm
- Weight
- 424 g
Power
- Power over Ethernet (PoE)
- Y
- Input voltage
- 100 - 220 V
- Input current
- 0.6 A
- Input frequency
- 50/60 Hz
- Output voltage
- 48 V
- Output current
- 0.5 A
- Power consumption (max)
- 22 W
Operational conditions
- Operating temperature (T-T)
- -30 - 60 °C
Packaging data
- Waterproof cable kit included
- Y
Security
- Security algorithms
- HTTPS,SSID,WDS,WPA-PSK,WPA2,WPA2-PSK,WPA2-RADIUS
- MAC address filtering
- Y
- IP address filtering
- Y
- SSID Broadcast on/off
- Y
- Number of SSID support
- 8
Antenna
- Antenna features
- Integrated antenna
- Antennas quantity
- 1
- Antenna gain level (max)
- 10 dBi
Design
- Placement
- Pole,Wall
- Internal
- Y
- LED indicators
- Y
- International Protection (IP) code
- IP67
Performance
- Maximum data transfer rate
- 300 Mbit/s
- 2.4 GHz
- Y
- 5 GHz
- N
- Networking standards
- IEEE 802.11b,IEEE 802.11d,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3u
- Bandwidth
- 2.4 GHz
- Ethernet LAN data rates
- 10,100 Mbit/s
- Spread spectrum method
- DSSS
- Modulation
- 16-QAM,64-QAM,BPSK,CCK,DQPSK,DSSS,OFDM,QPSK
- Quality of Service (QoS) support
- Y
- Reset button
- Y
- Certification
- CE, FCC
