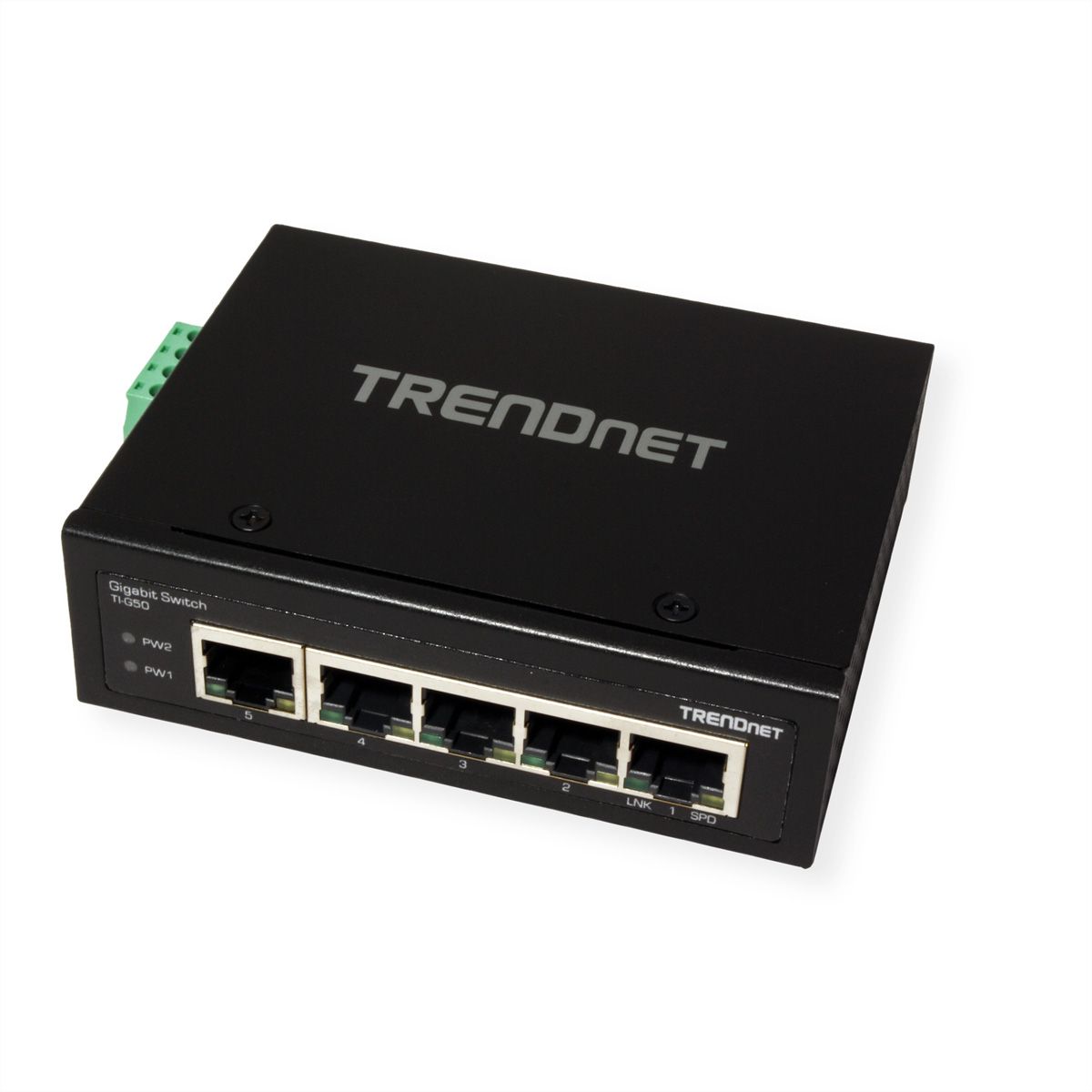

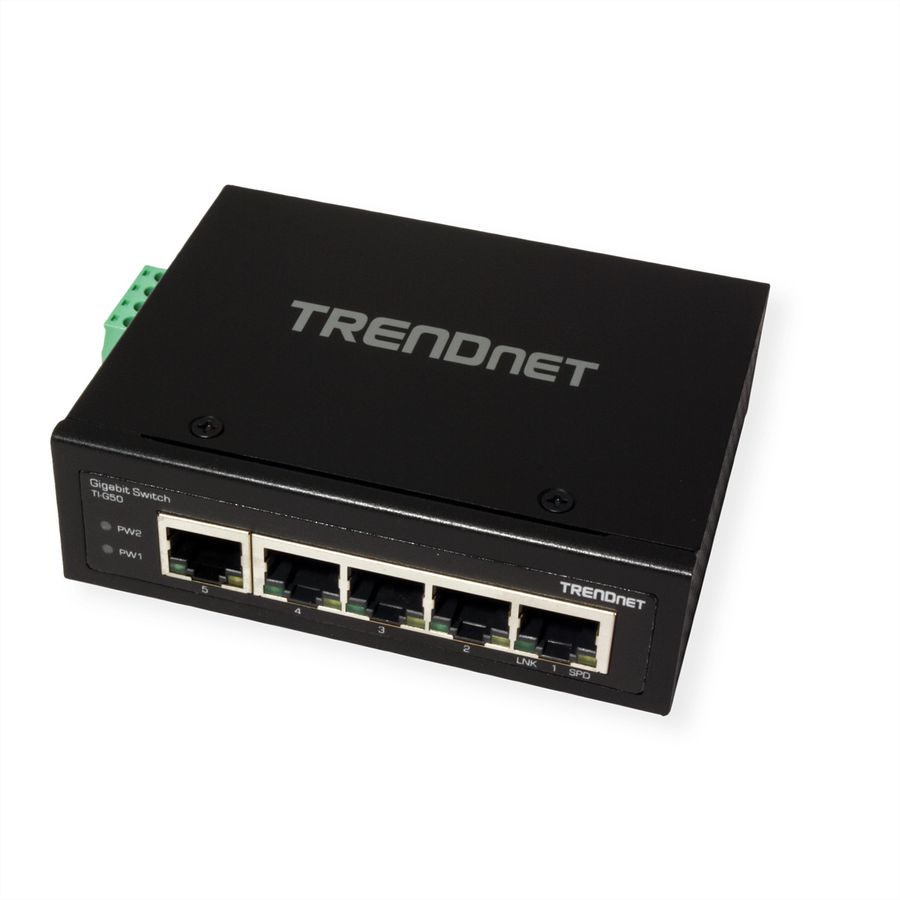

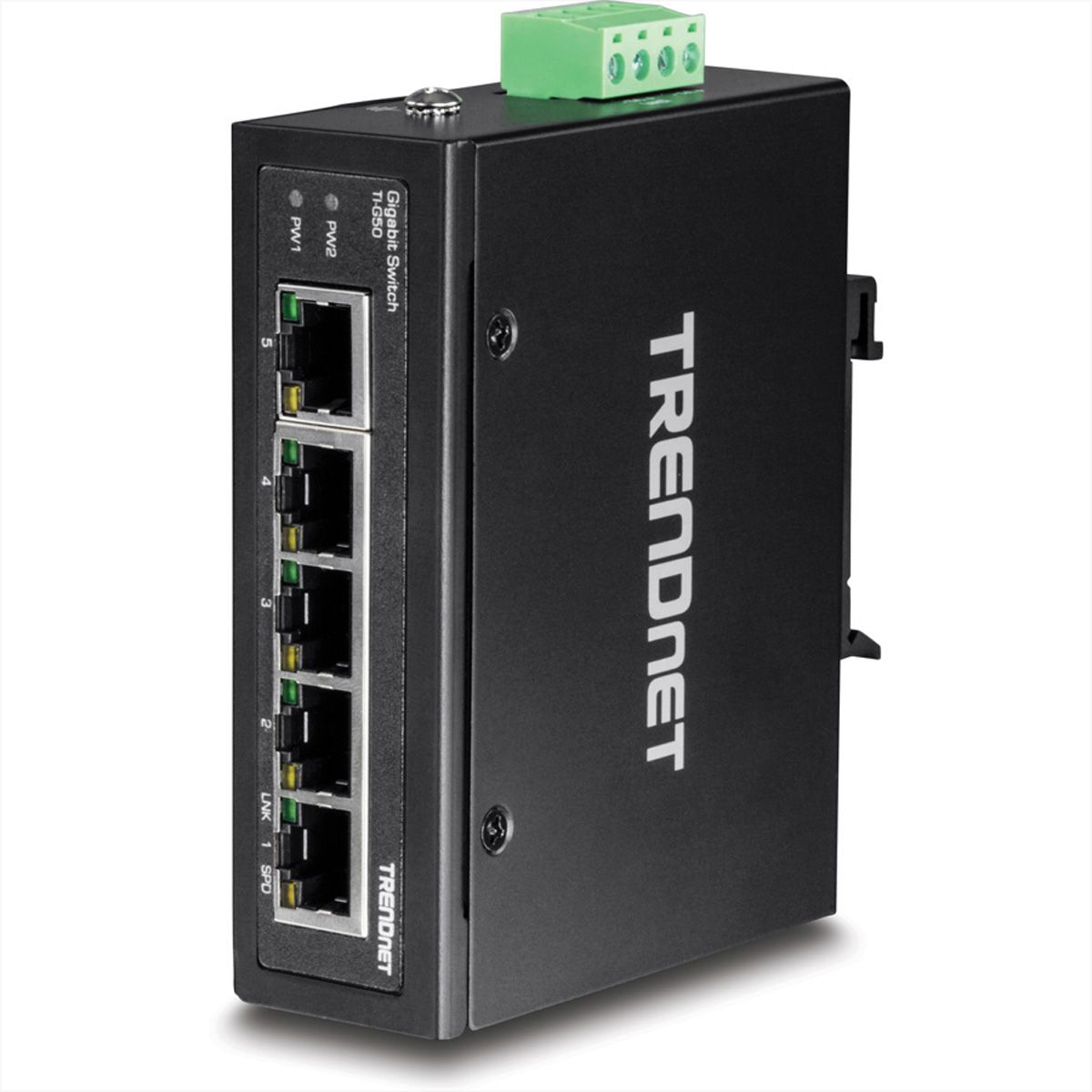

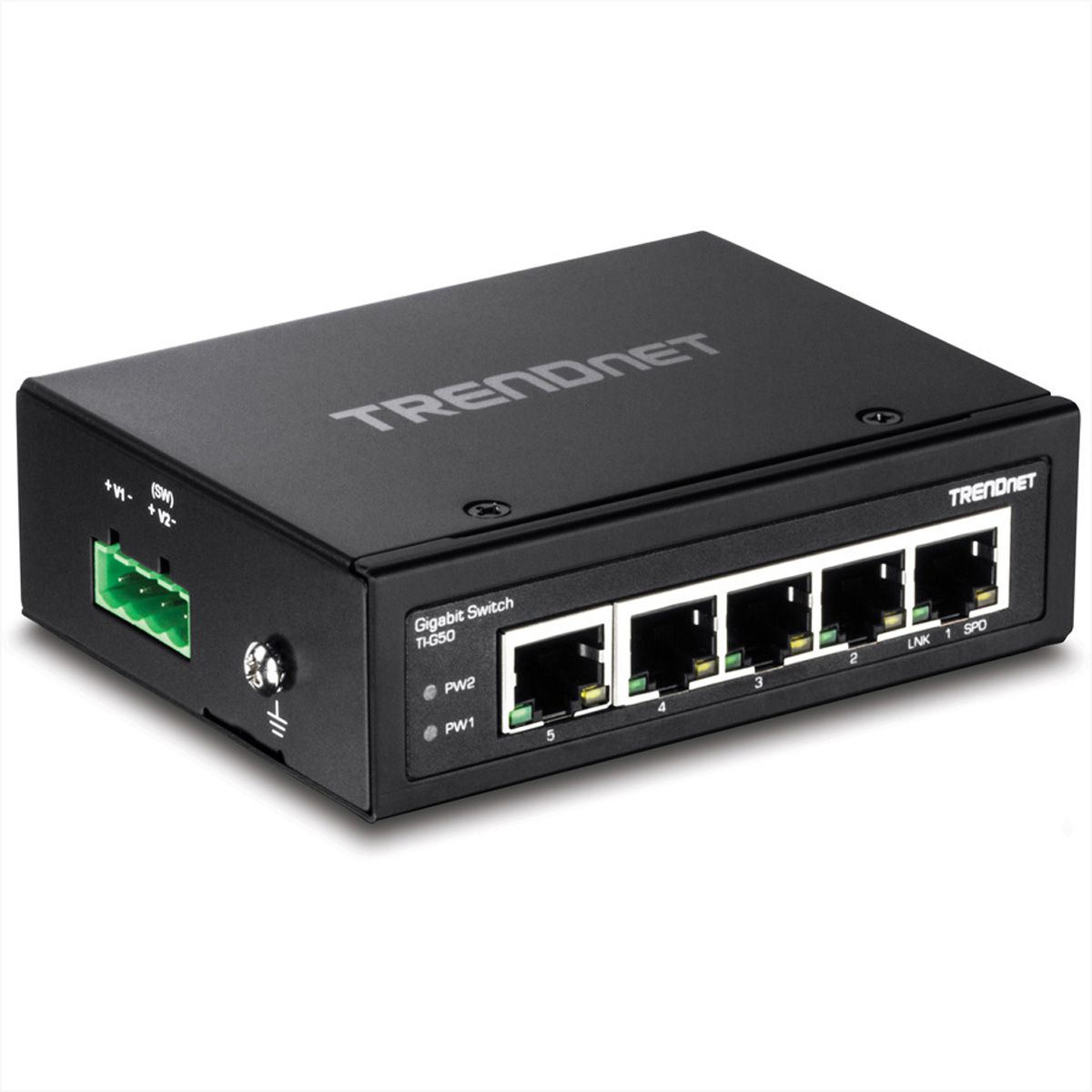

TRENDnet TI-G50 5-Port Industrial Gigabit Ethernet DIN-Rail Switch

Item no. 21221185 Brand / Manufacturer TRENDNET Manuf. item no. TI-G50 EAN 710931160321 Item weight 0.355 kg
TRENDNET
Product recommendations
TRENDnet Q3 Promo

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

5-Port Industrial Gigabit Ethernet DIN-Rail Switch

he TRENDnet TI-G50 is a reliable unmanaged IP30 DIN-rail switch with hardened components, designed for extreme industrial environments. It features 5 Gigabit ports and a 10 Gbps switching capacity. Dual redundant power inputs (power supply sold separately: TI-M6024) with overload current protection support applications requiring continuous operation without interruption.

  • 5 Gigabit Ethernet ports
  • 10 Gbps switching capacity
  • Hardened IP30-rated metal switch

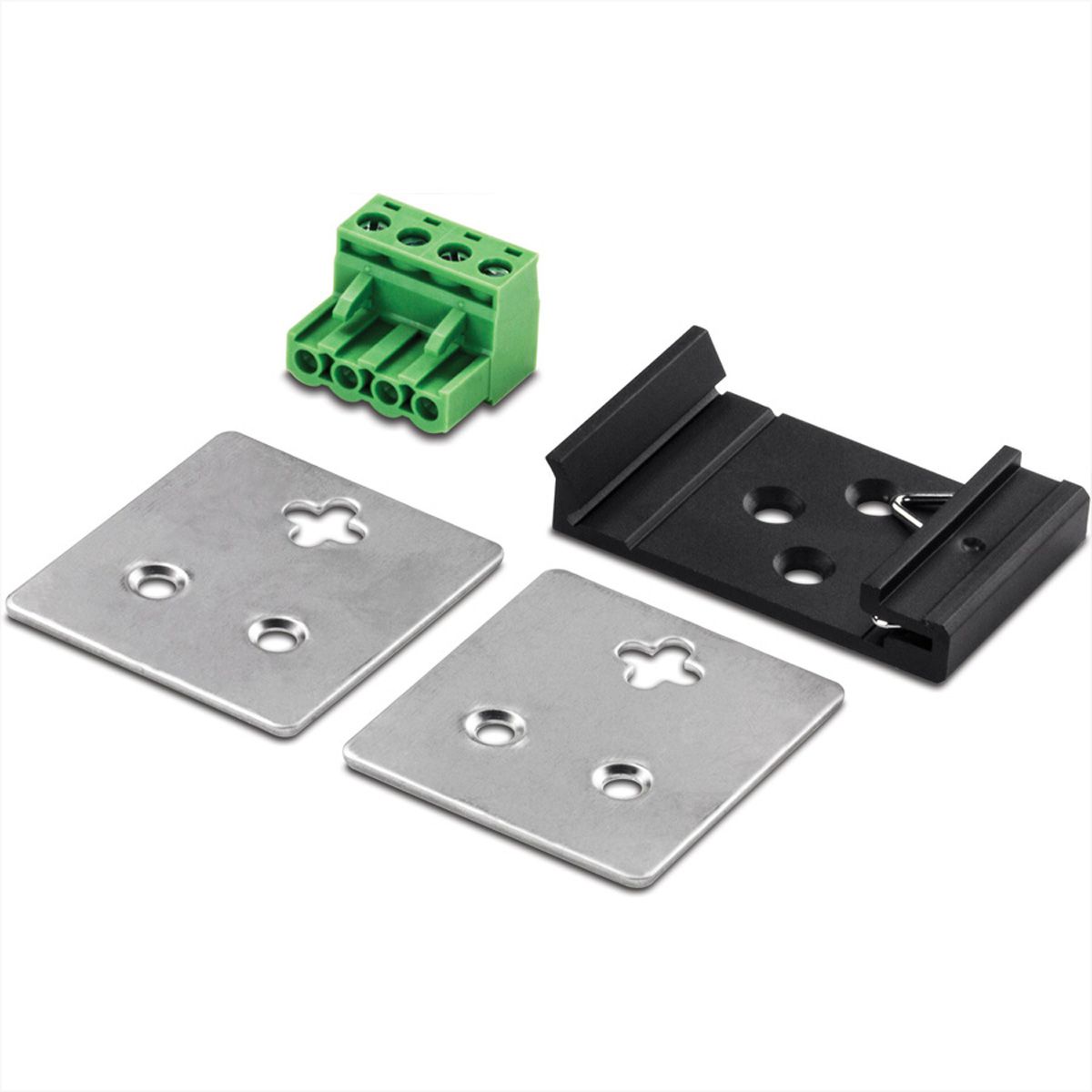

  • Includes DIN-rail and wall mount kits
  • Extreme operating temperature range from -40 to 75 °C
  • Dual redundant power inputs with overload current protection
  • Power supply sold separately (model TI-M6024)

TRENDnet’s TI-G50 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit ports and a 10 Gbps switching capacity. Dual redundant power inputs (power adapter sold separately: TI-M6024) with overload current protection support zero downtime applications.

Specifications

Manufacturer
TRENDNET
Product group
Industrial Networking
Product type
Network Switch
Colour
black
Scope of delivery
TI-G50, Quick Installation Guide, Removable terminal block
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Quantity of ports
5
Gigabit Ethernet Ports RJ-45
5
Other connectors
4-pin terminal block (removable)
Power over Ethernet (PoE)
no
Mounting form
DIN Rail
Protection class (IP Code)
IP30
Dimensions (HxWxD)
113 x 82 x 31 mm
Power supply
External power supply unit
Operating temperature min.
-40 °C
Operating temperature max.
75 °C
Height
113 mm
Width
82 mm
Depth
31 mm
Weight
0.17 kg
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
180 mm
Depth of packaging (single piece)
200 mm
Package weight (single piece)
0.355 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T
Gigabit Ethernet (copper) ports quantity
5
Weight & dimensions
Width
113 mm
Depth
82 mm
Height
31 mm
Weight
168 g
Power
Power consumption (max)
2.76 W
Redundant power supply (RPS) support
Y
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Networking
Networking standards
IEEE 802.3u,IEEE 802.3x,IEEE 802.3,IEEE 802.3ab
10G support
N
Full duplex
Y
Flow control support
Y
Data transmission
MAC address table
8000 entries
Switching capacity
10 Gbit/s
Store-and-forward
Y
Packaging content
User guide
Y
Wall mounting kit
Y
Terminal block included
Y
Other features
Power requirements
12 - 56 VDC / 18 - 36 VAC
Design
Rack mounting
N
Housing material
Metal
International Protection (IP) code
IP30
Certification
FCC\nCE
Performance
Buffer size
1024 KB
Mean time between failures (MTBF)
510304 h
