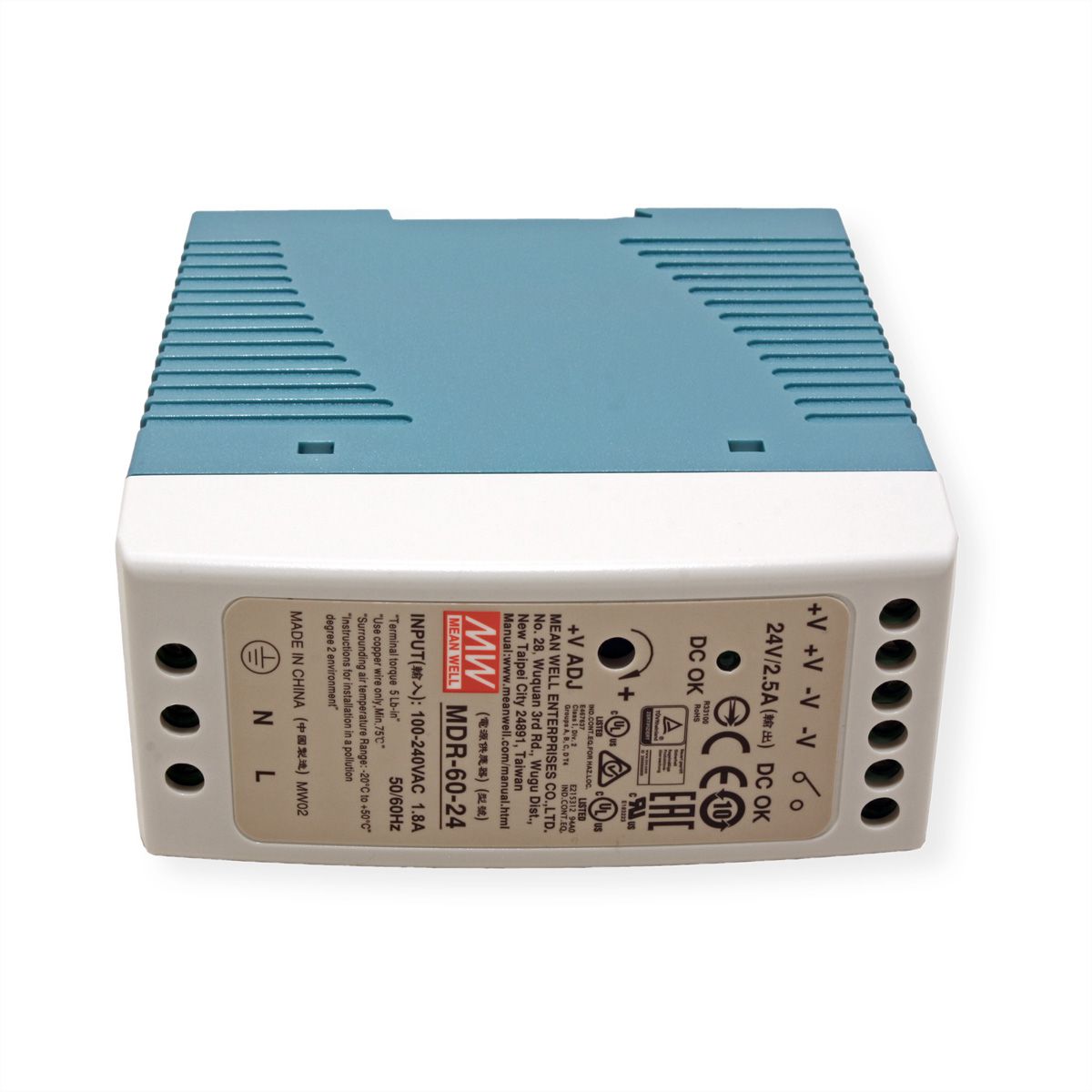

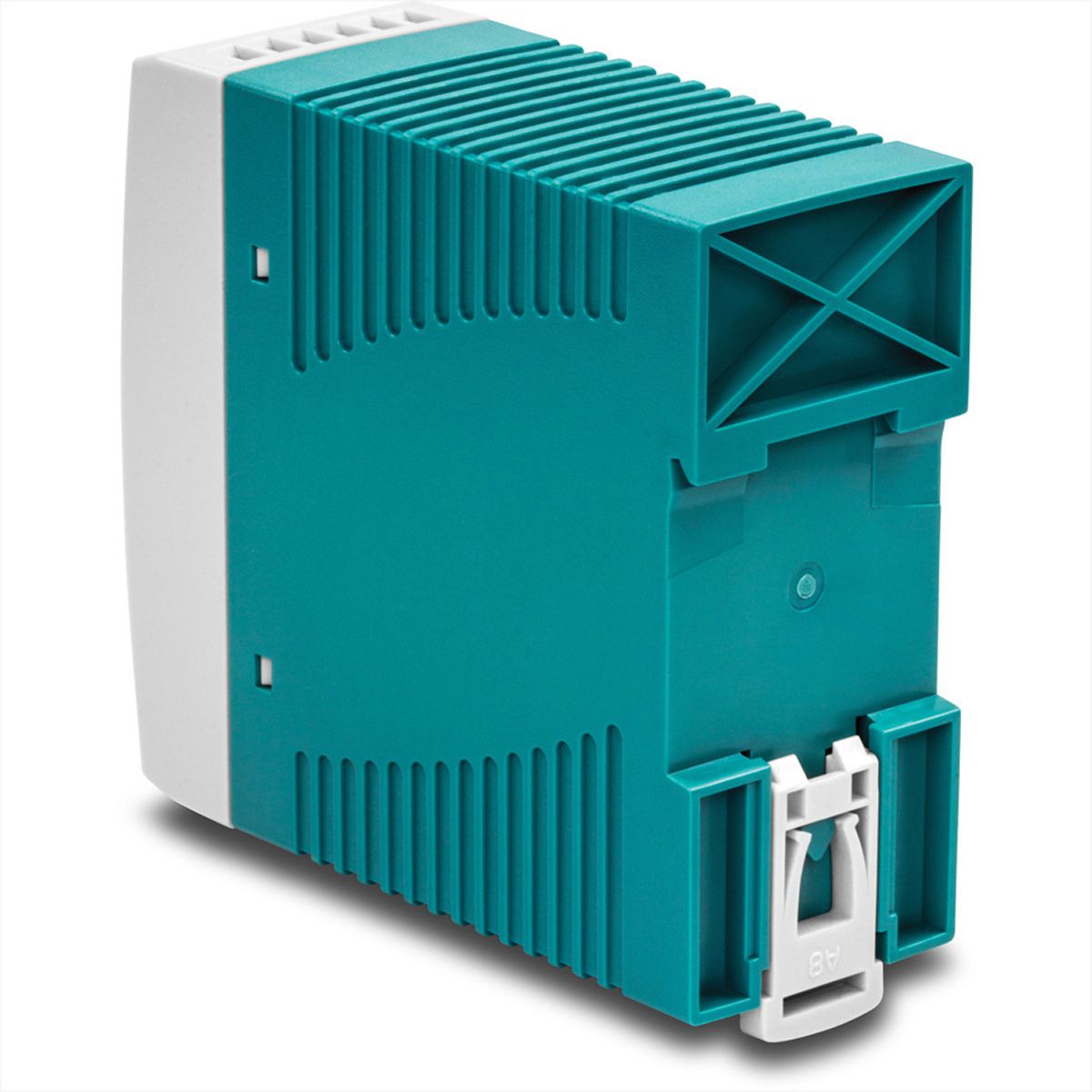

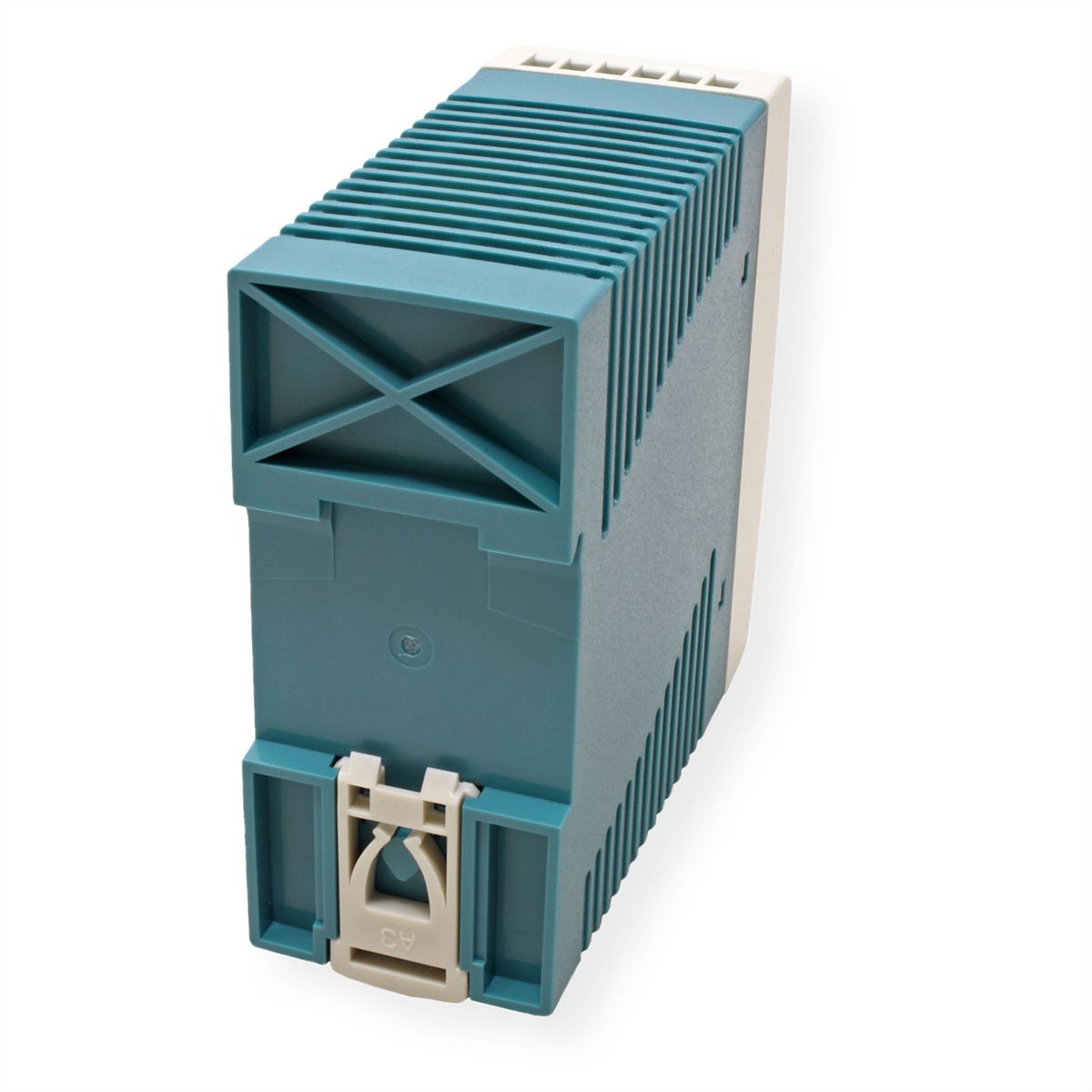

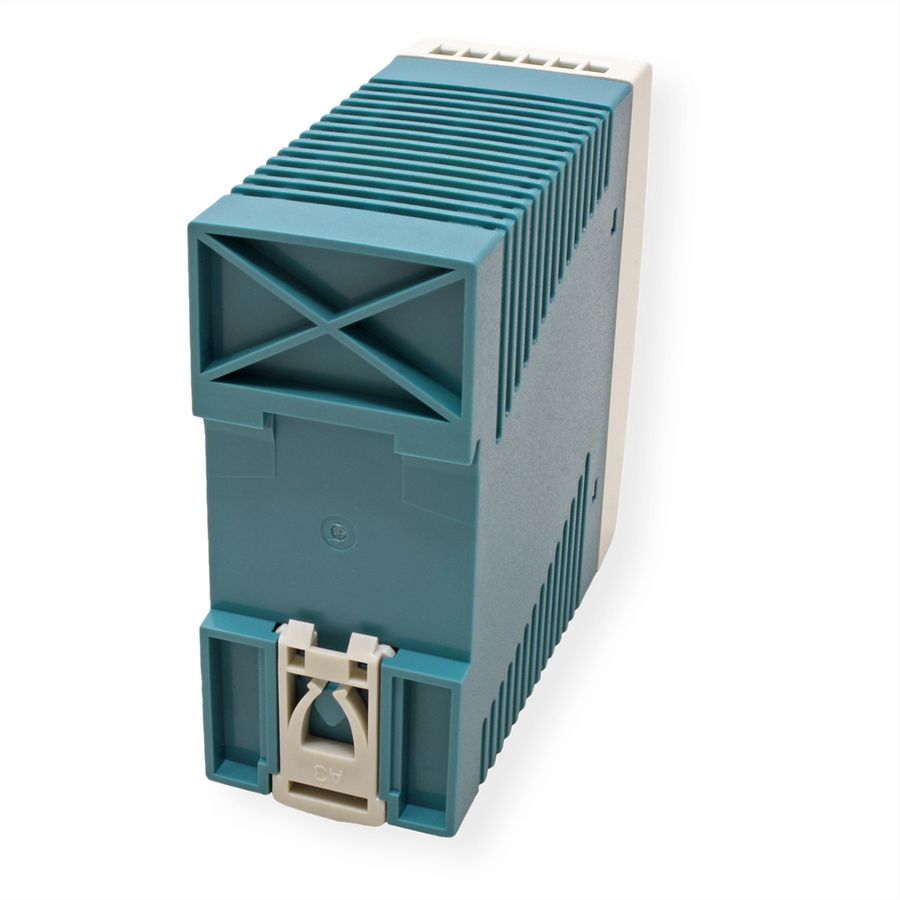

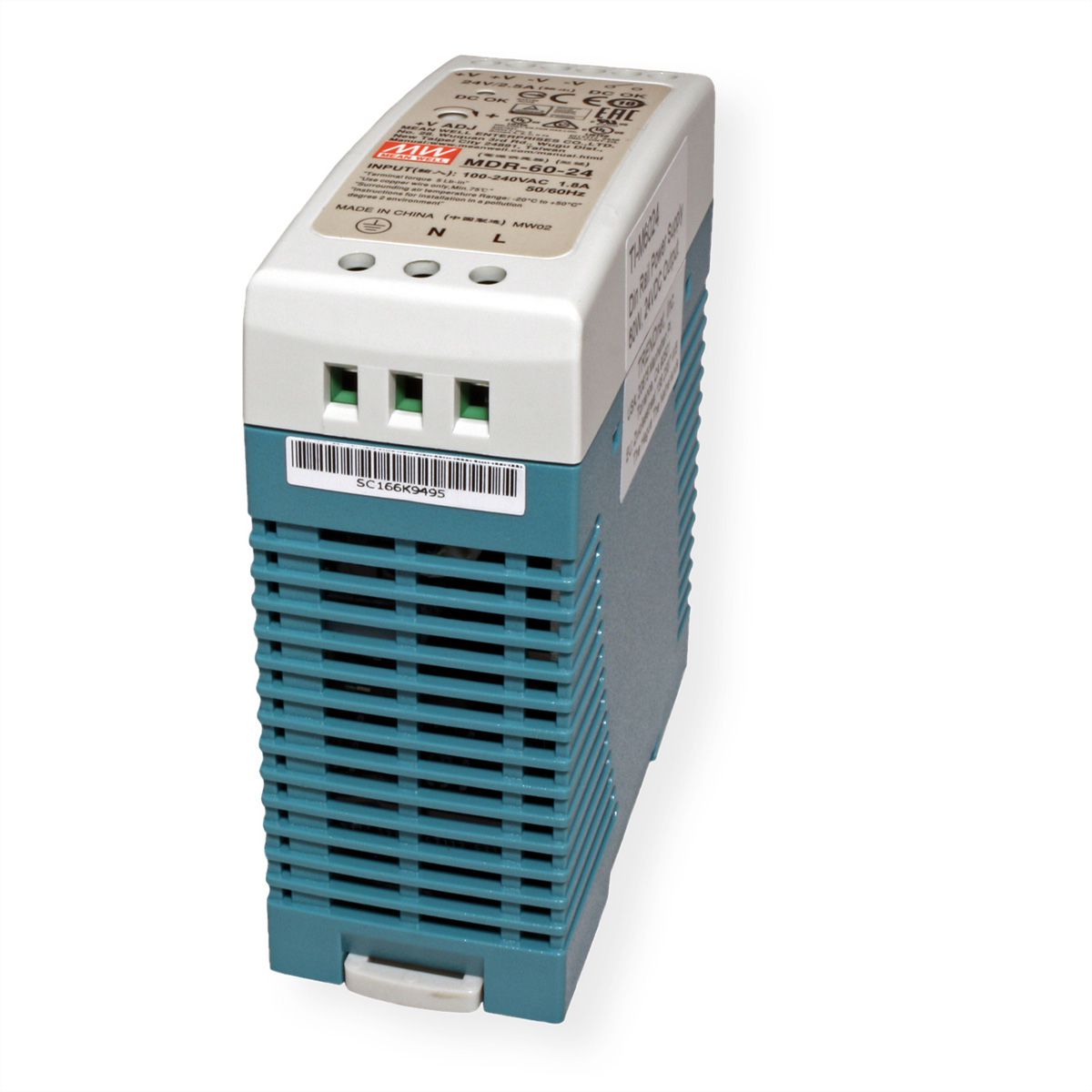

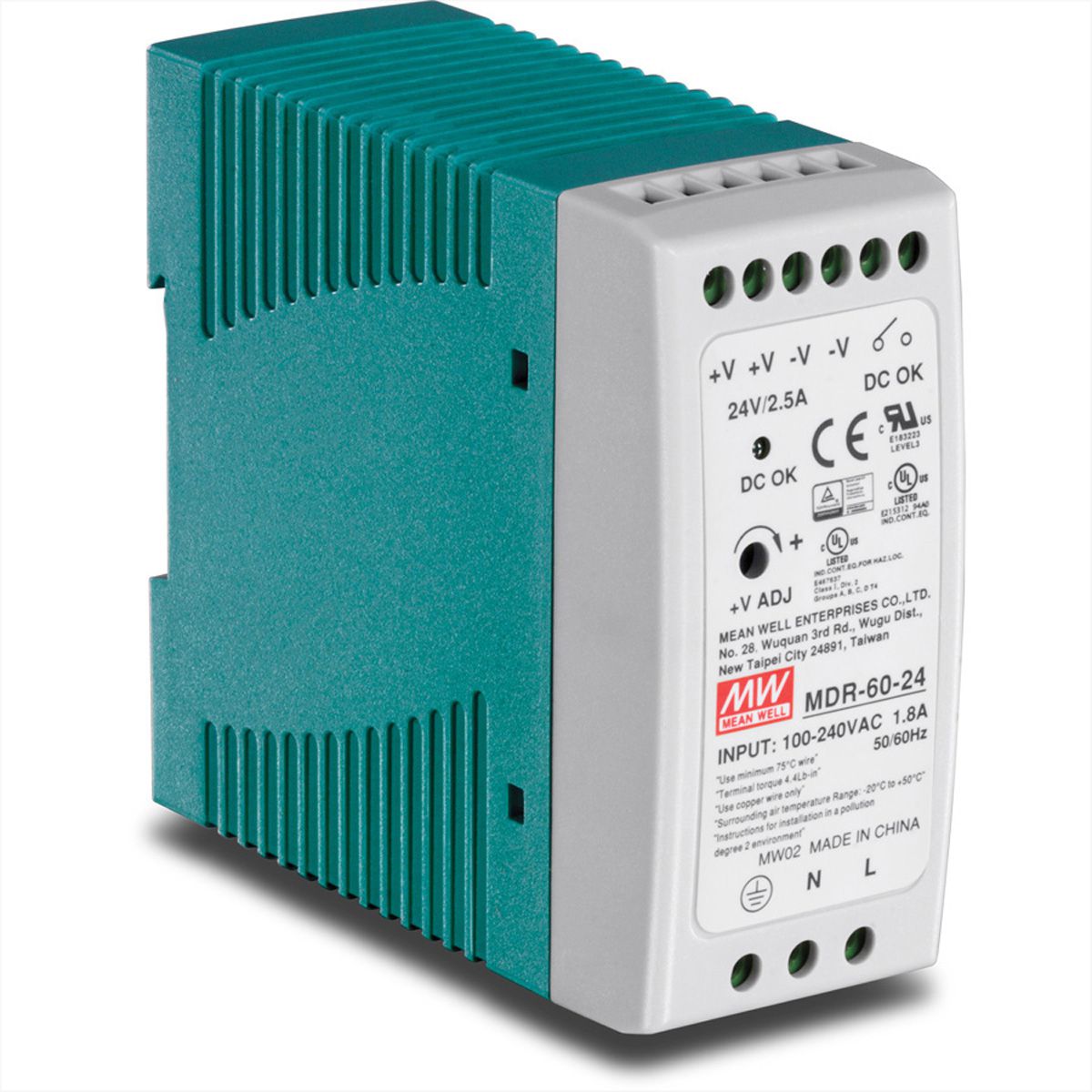

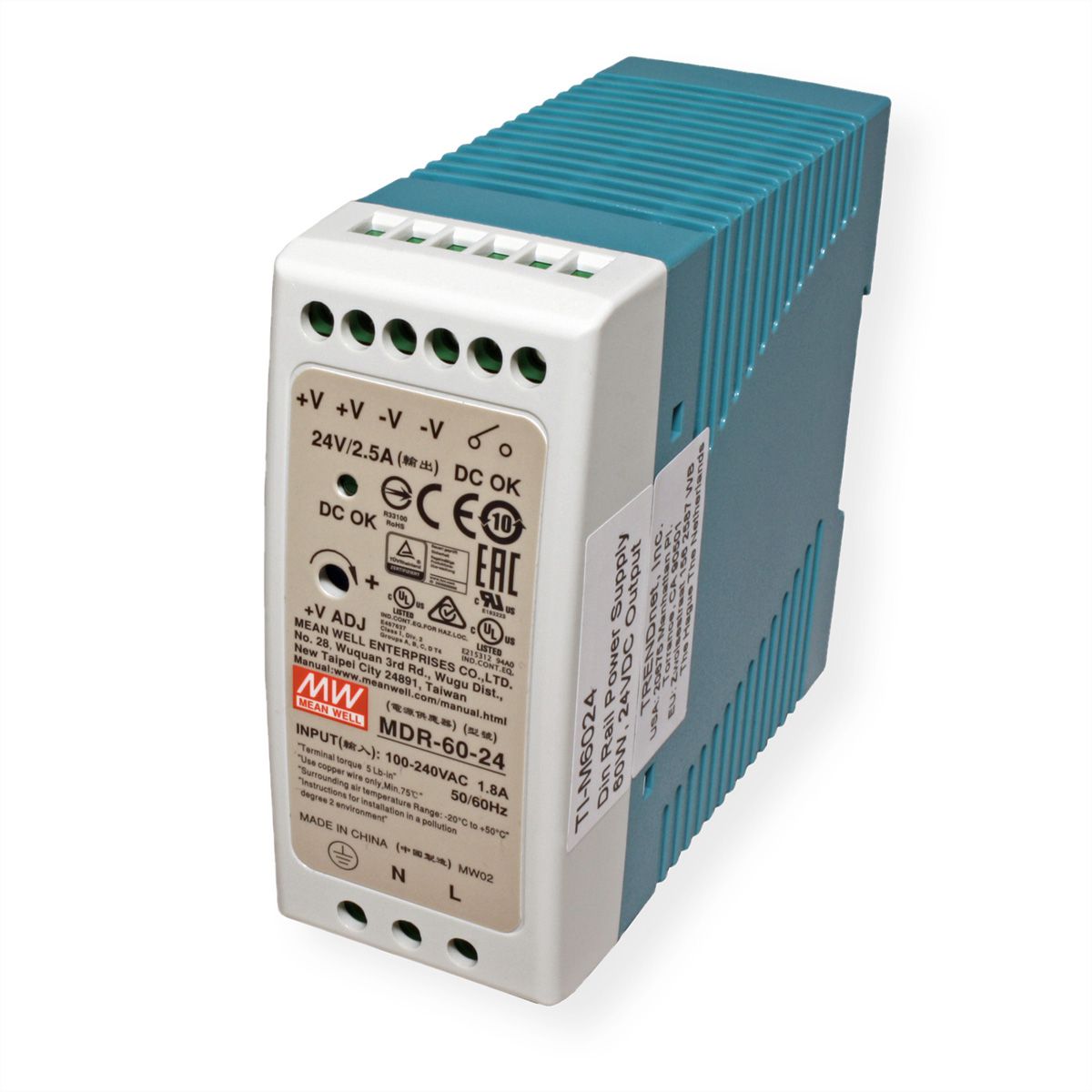

TRENDnet TI-M6024 industrial DIN-rail power supply

Item no. 21221194 Brand / Manufacturer TRENDNET Manuf. item no. TI-M6024 EAN 710931160376 Item weight 0.382 kg
TRENDNET

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Industrial DIN-rail power supply - Provides up to 60 watts of power (24V, 2.5A) - Universal AC input - Metal housing

The TRENDnet 60W industrial DIN-rail power supply with single output, model TI-M6024, delivers up to 60 watts of power to industrial PoE equipment such as switches, network cameras, and Wi-Fi access points. This power supply features an integrated DIN-rail mount and overload protection.

  • Industrial power supply with integrated DIN-rail mount
  • Provides up to 60 watts of power (24V, 2.5A)
  • Universal AC input
  • Short-circuit / overload / overvoltage protection
  • UL 508 certified
  • Full-load burn-in test (100%)
  • Extreme operating temperature range from -20 to 70 °C

TI-M6024 (Version v1.0R) - Industrial power supply with integrated DIN-rail mount - Provides up to 60 Watts of power (24 V, 2.5 A) - Universal AC input - Short circuit/overload/over voltage protection - UL 508 approved - 100% full load burn-in test - Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range

Specifications

Manufacturer
TRENDNET
Product group
Industrial Networking
Product type
Power Supply Units
Colour
white
Max. PoE output power (total)
60 W
Mounting form
DIN Rail
Dimensions (HxWxD)
40 x 100 x 90 mm
Operating temperature min.
-20 °C
Operating temperature max.
70 °C
Height
40 mm
Width
100 mm
Depth
90 mm
Weight
0.3 kg
Height of packaging (single piece)
60 mm
Width of packaging (single piece)
180 mm
Depth of packaging (single piece)
160 mm
Package weight (single piece)
0.382 kg
Scope of delivery
TI-M6024
Weight & dimensions
Width
40 mm
Depth
100 mm
Height
90 mm
Weight
300 g
Power
Total power
60 W
AC input voltage
100 - 240
AC input frequency
50 - 60
Input current
1.8
Operational conditions
Operating temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Features
Product type
Power supply
Colour of product
Green, White
LED indicators
Y
Power protection features
Over voltage, Overload, Short circuit
Mean time between failures (MTBF)
2992000 h
Certification
CE, UL 508, UL 60950-1, CB 60950-1, TUV EN60950-1, Class I, Div. 2 hazardous locations T4
