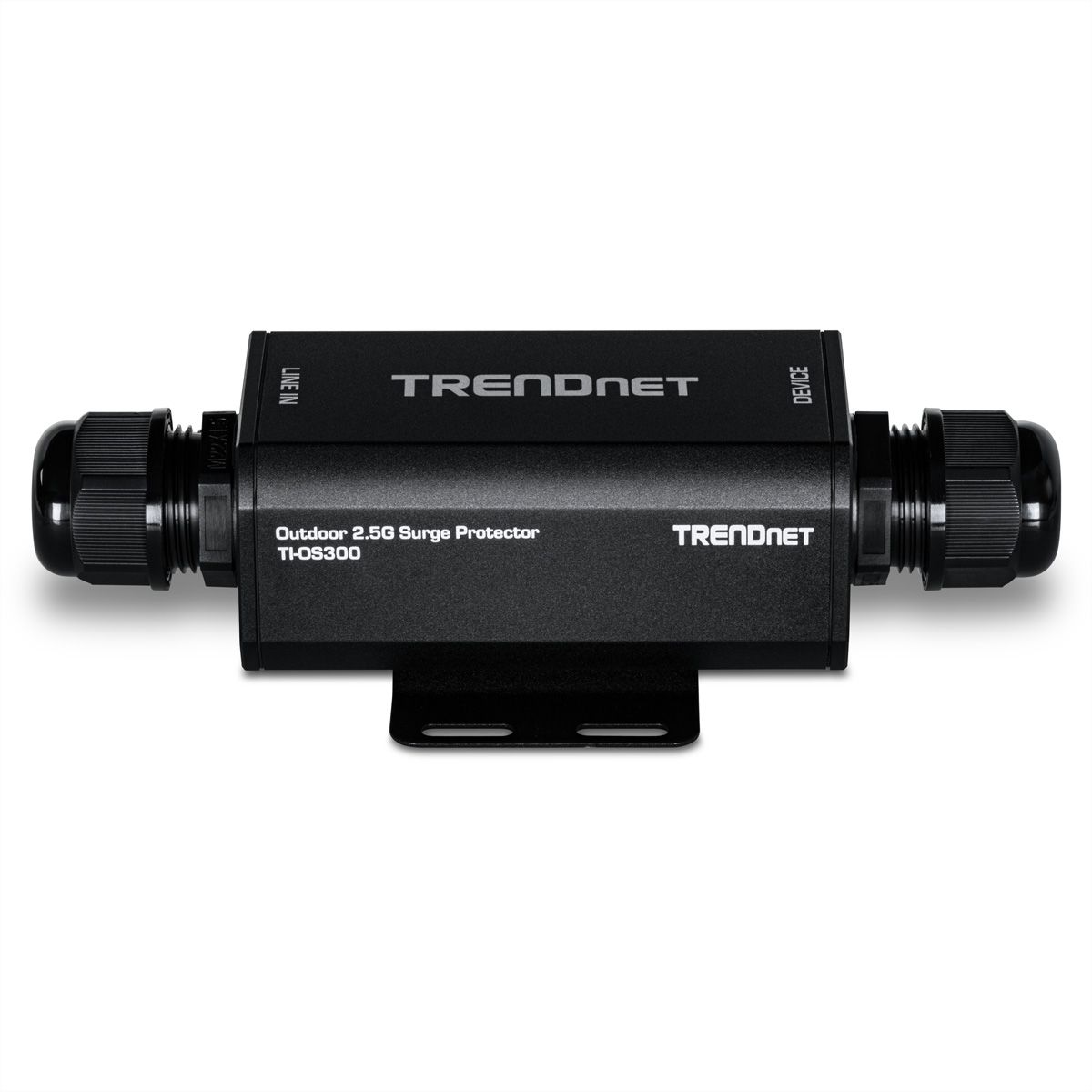

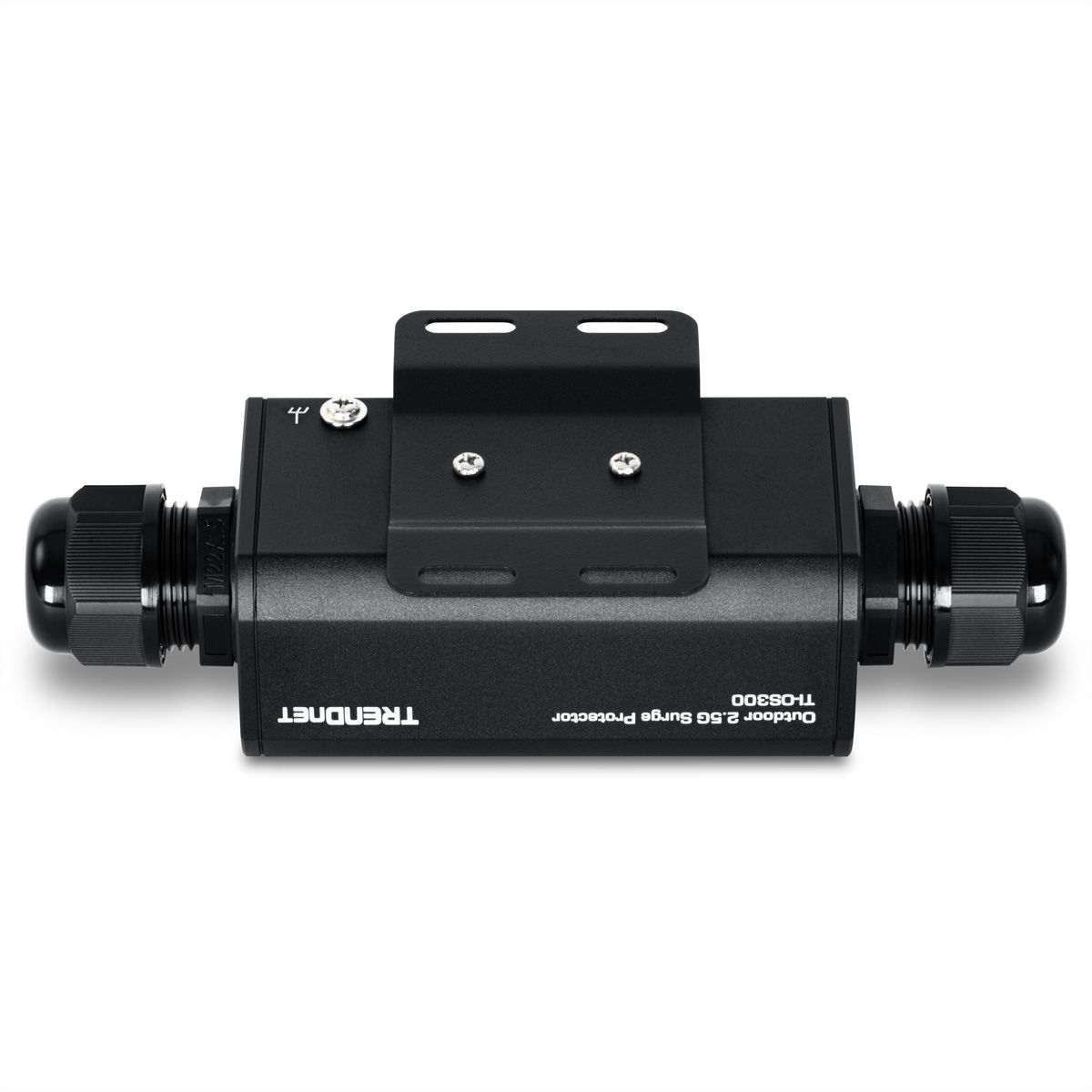

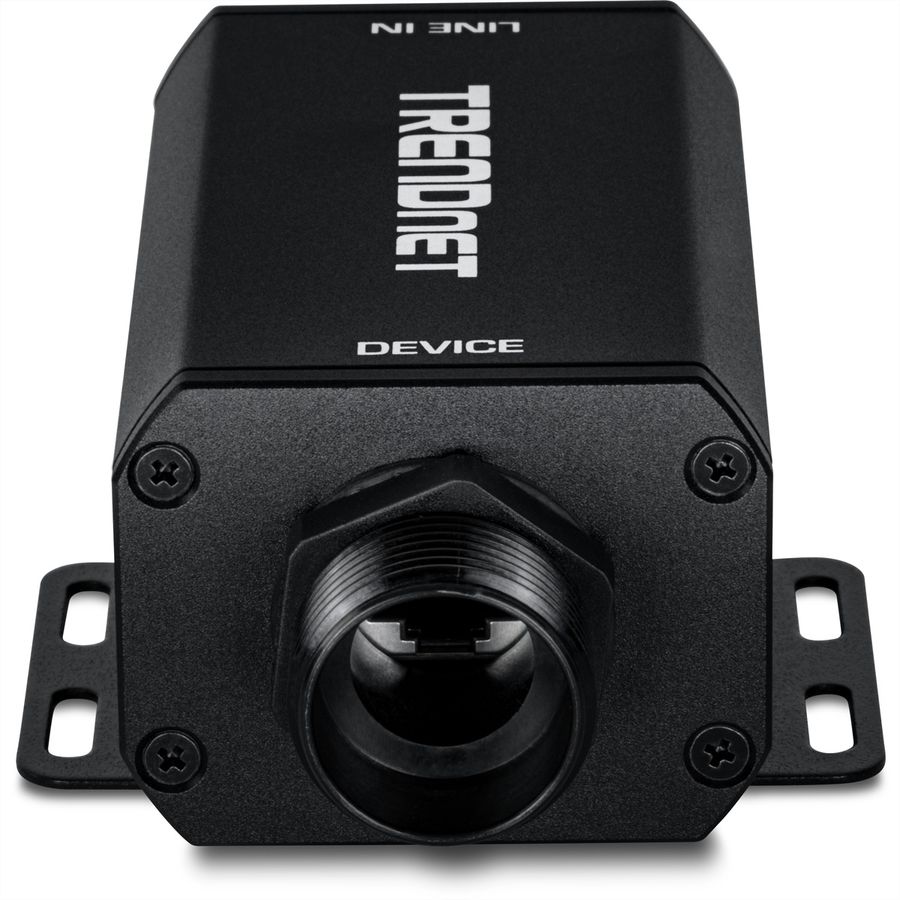

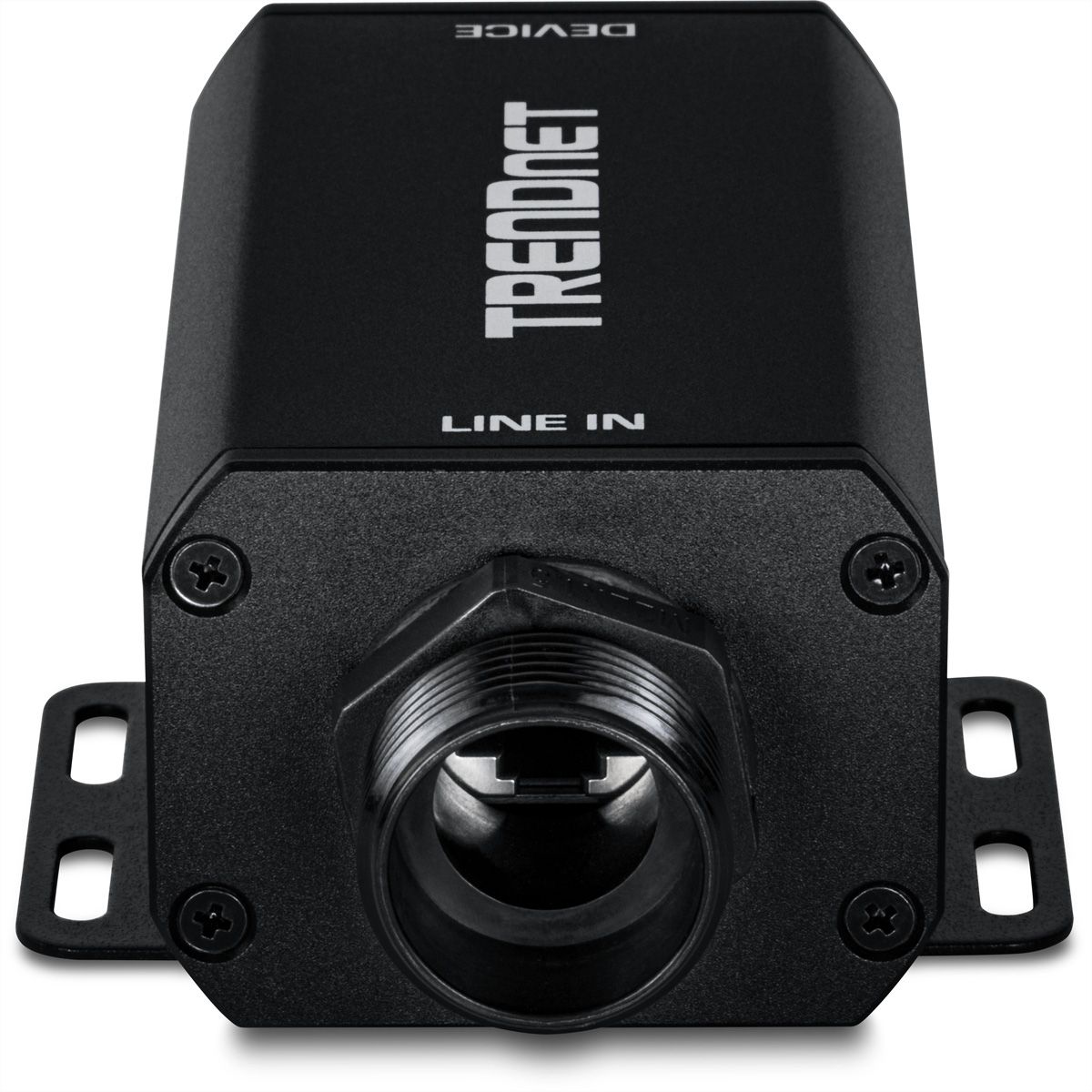

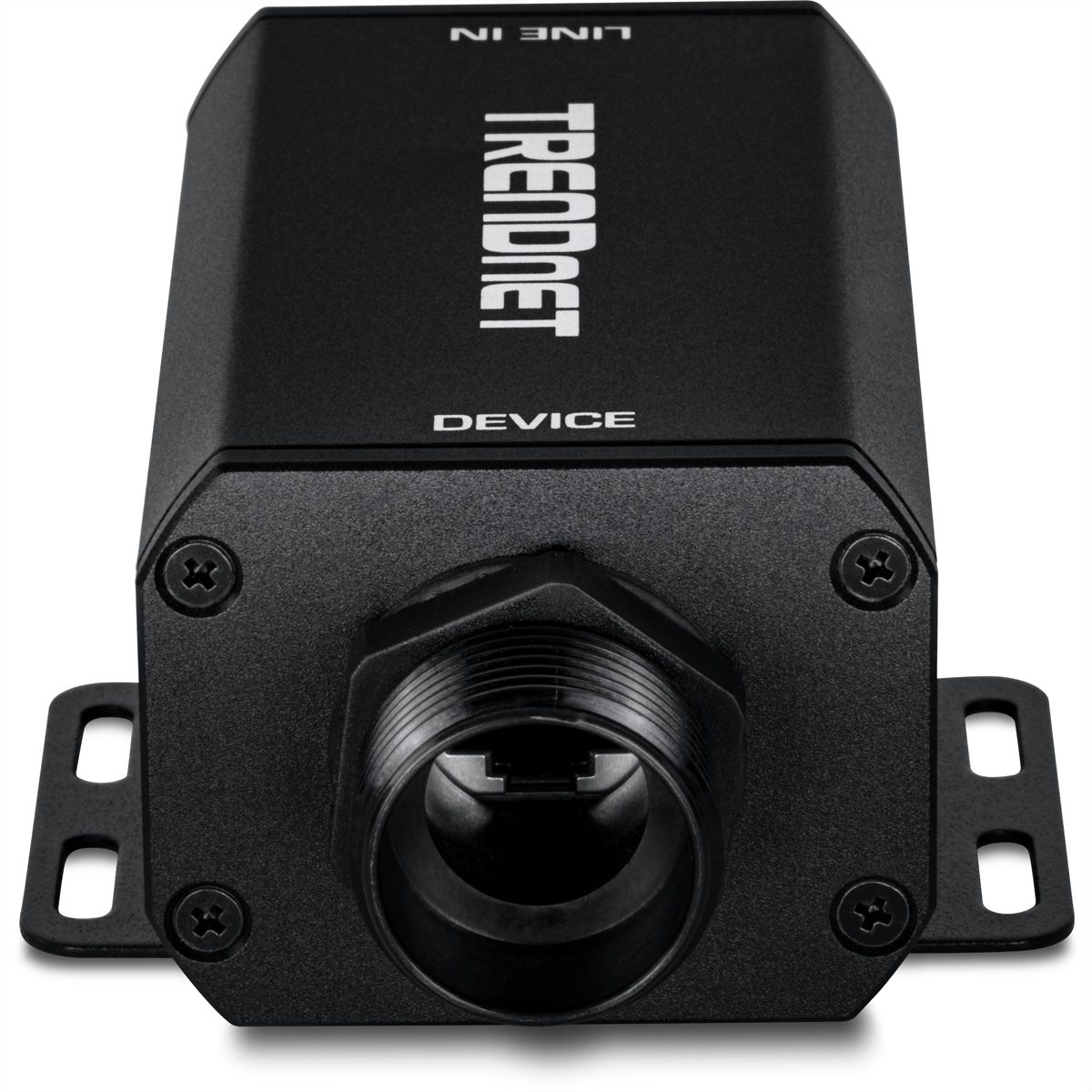

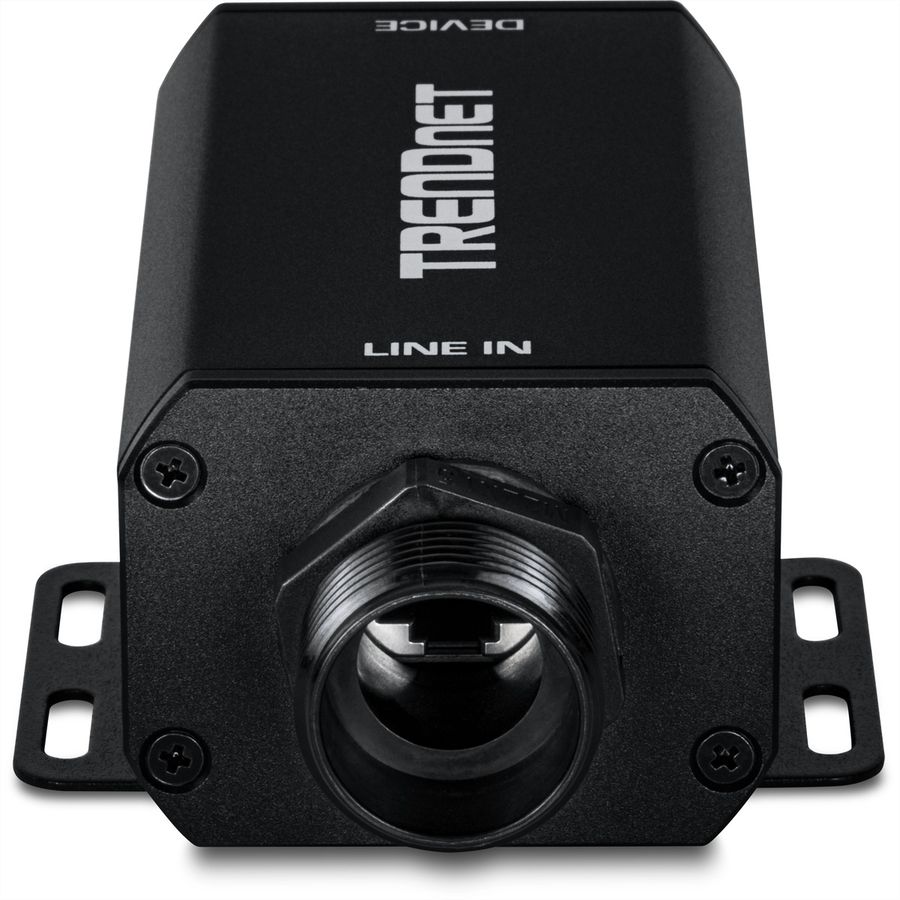

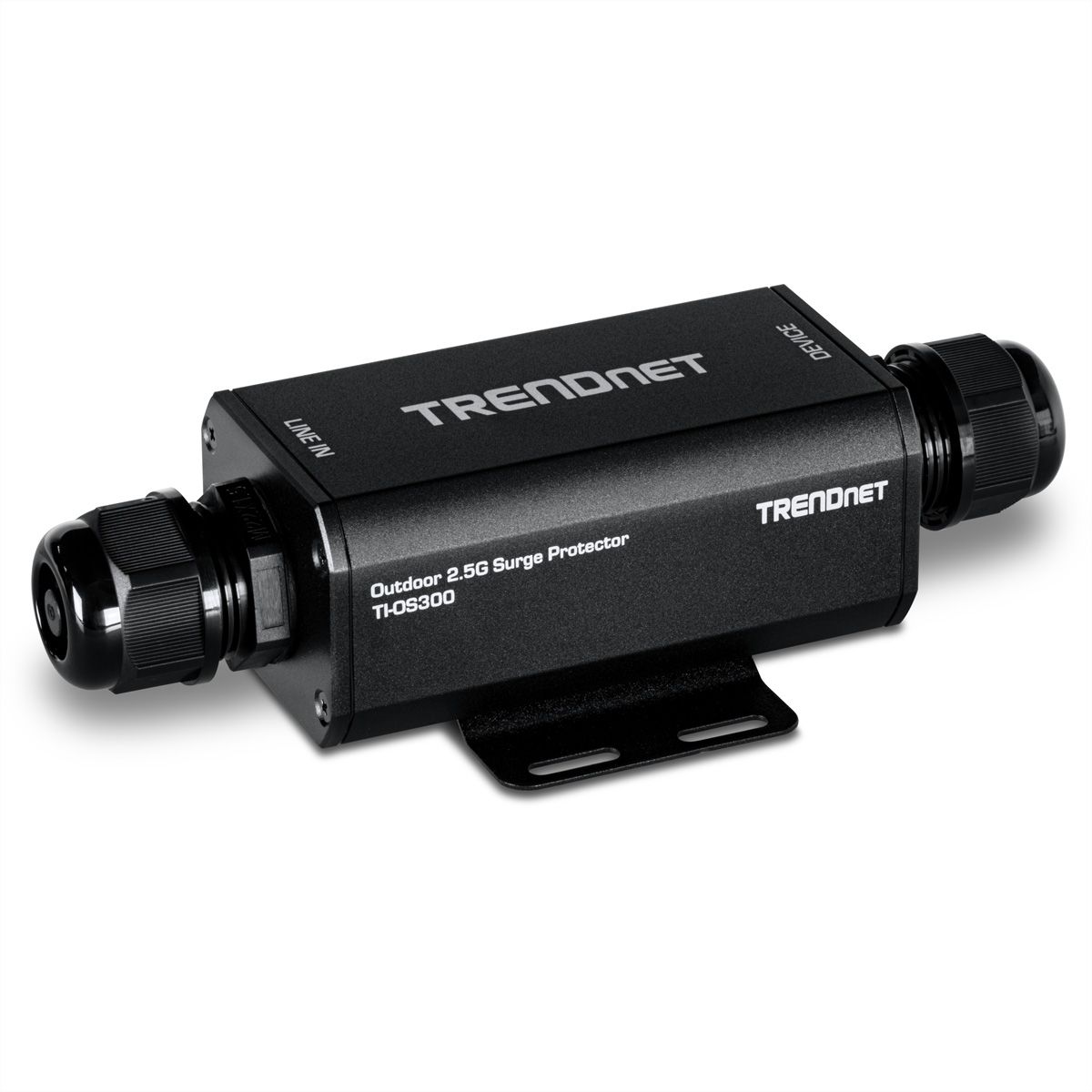

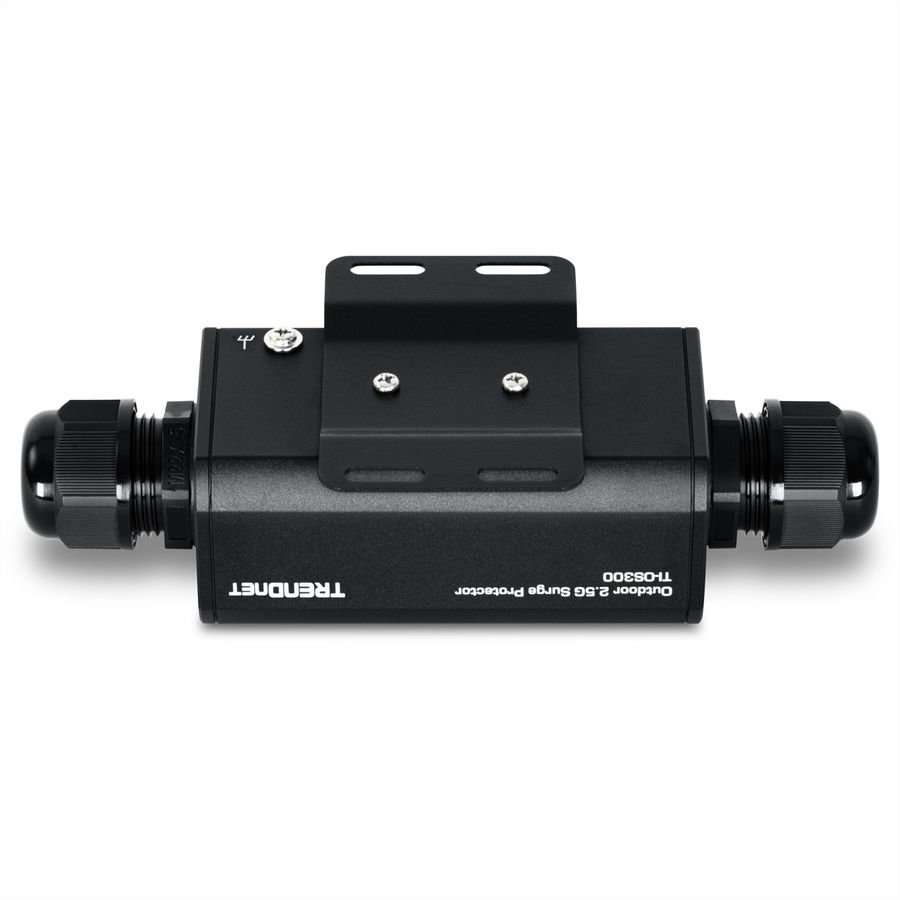

TRENDnet TI-OS300 Outdoor 2.5G PoE++ Ethernet Surge Protector
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 21221635 |
|---|---|
| Brand / Manufacturer | TRENDNET |
| Manuf. item no. | TI-OS300 |
| EAN | 710931163308 |
| Item weight | 0.358 kg |
:strip_icc():strip_exif()/logos/trendnet.png "TRENDNET")
Description
TRENDnet’s Outdoor 2.5G PoE++ Surge Protector, model TI-OS300, is installed inline using Ethernet cabling to protect and prevent damage to internal low voltage network devices from electrical surges caused by lightning strikes, electrical overloads, and faulty or damaged wiring. The surge protector supports up to 2.5Gbps networking speeds and PoE++ (95W) devices. The surge protector also features an IP67-rated metal enclosure, detachable mounting bracket, Ethernet cable glands for water protection, and wide operating temperature range.
- Two 2.5Gbps RJ45 Ethernet ports and ground terminal
- Supports PoE (15.4W), PoE+ (30W), and PoE++ (up to 95W) devices
- Operating temperature range of -40°– 75° C (-40° – 167° F)
- IP67-rated metal enclosure and Ethernet cable glands
- Line to line and line to ground protection modes
- Gas discharge tube (GDT) protection with a nominal discharge current (8/20µs) of 10kA and clamping voltage of 20V@1kA
- Compliant with shock, freefall, vibration, IEC 61643-21, and IEC 61000-4-5 standards
- Compact design with detachable mounting bracket
Specifications
| Manufacturer | TRENDNET |
|---|---|
| Product group | Industrial Networking |
| Product type | Overvoltage protection |
| Colour | black |

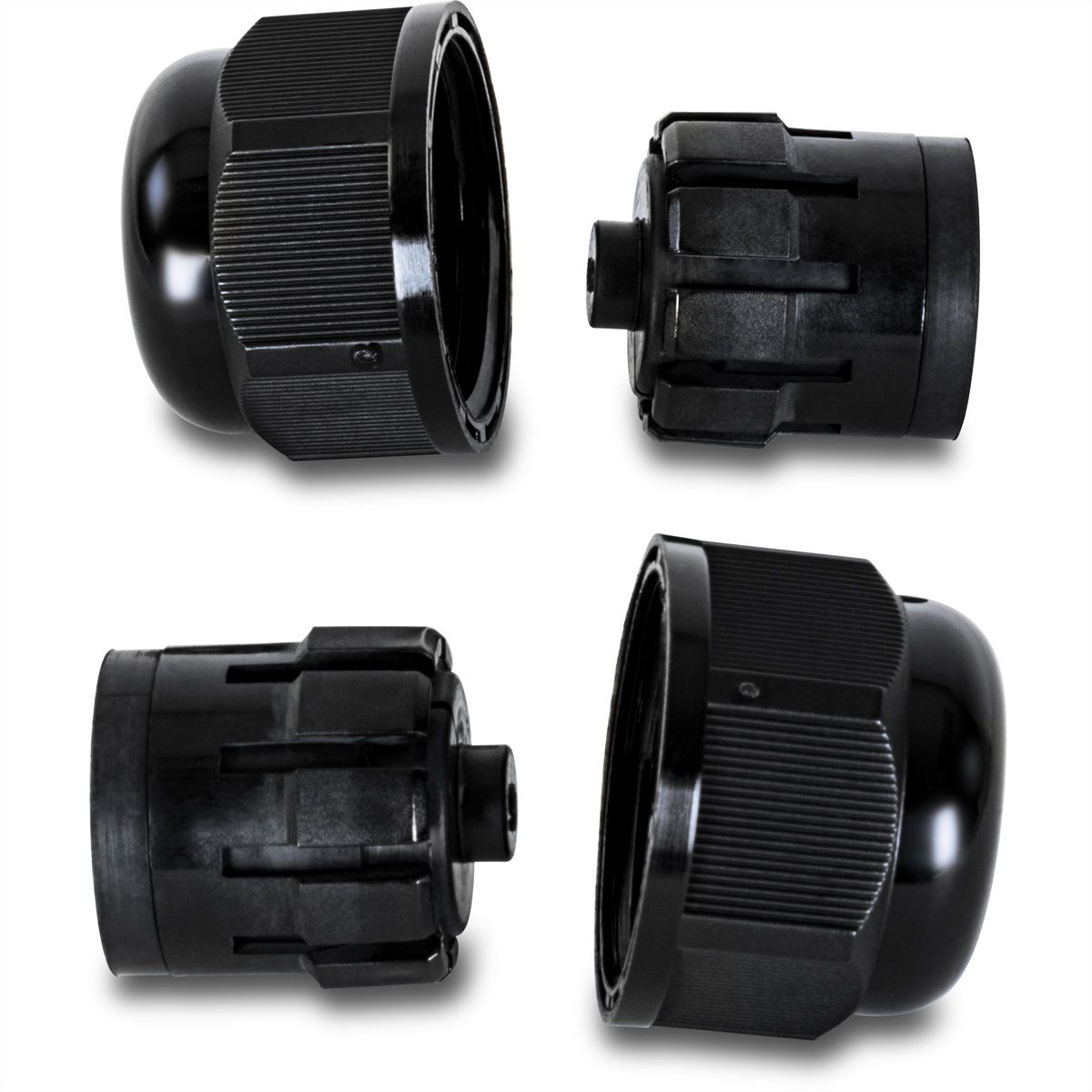

| Scope of delivery | TI-OS300, 2x Detachable cable glands, Mounting bracket |
| Network standard | 2.5 Gigabit Ethernet |
| LAN (Mbps) | 10/100/1000/2500 |
| Quantity of ports | 2 |
| 2.5 Gigabit Ethernet Ports RJ-45 | 2 |
| Power over Ethernet (PoE) | PoE++ (IEEE 802.3bt) |
| Quantity of PoE ports | 2 |
| Max. PoE output power per port | 95 W |
| Max. PoE output power (total) | 95 W |
| Protection class (IP Code) | IP67 |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 75 °C |
| Height | 13.8 mm |
| Width | 42 mm |
| Depth | 170 mm |
| Weight | 298 g |
| Height of packaging (single piece) | 50 mm |
| Width of packaging (single piece) | 190 mm |
| Depth of packaging (single piece) | 80 mm |
| Package weight (single piece) | 0.358 kg |
