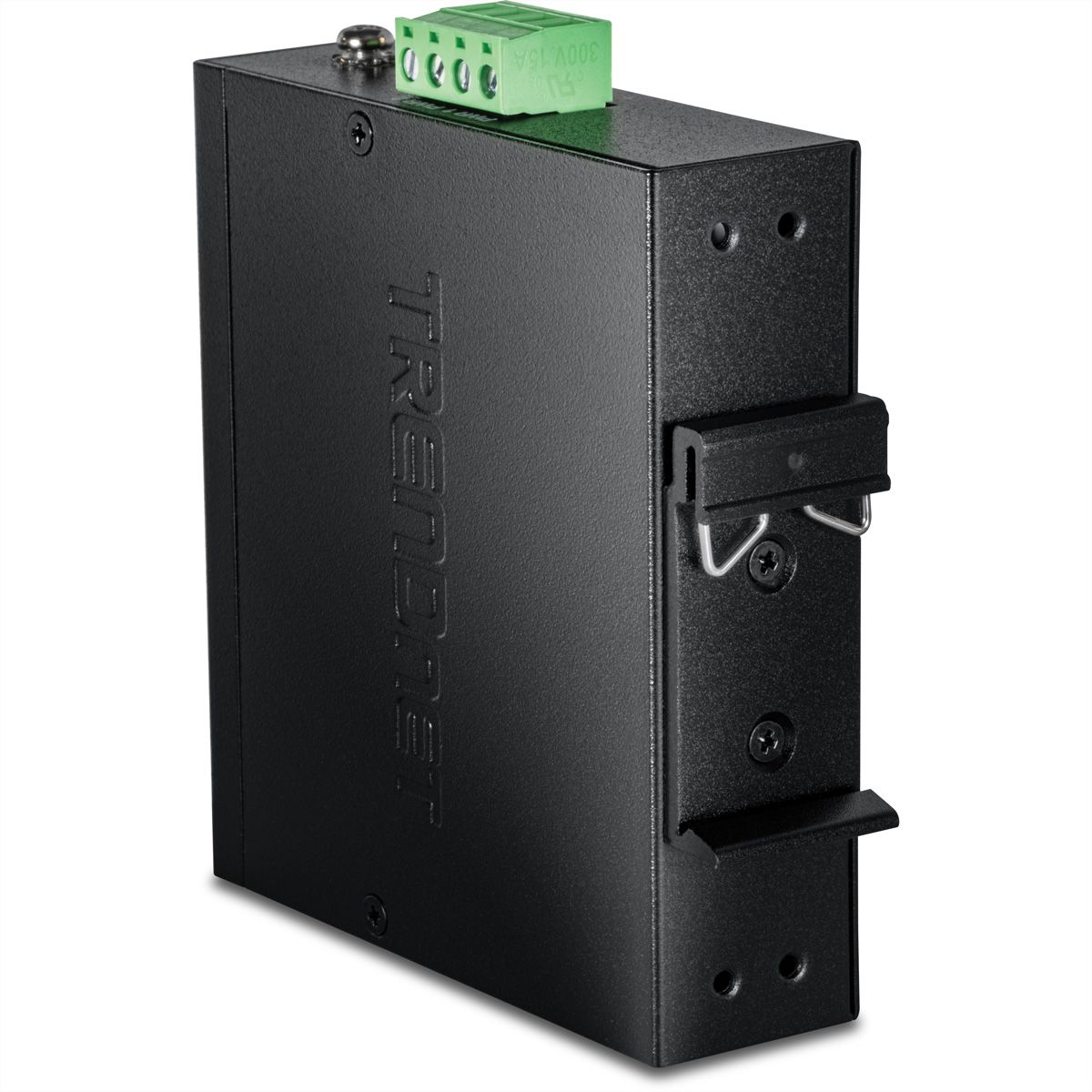

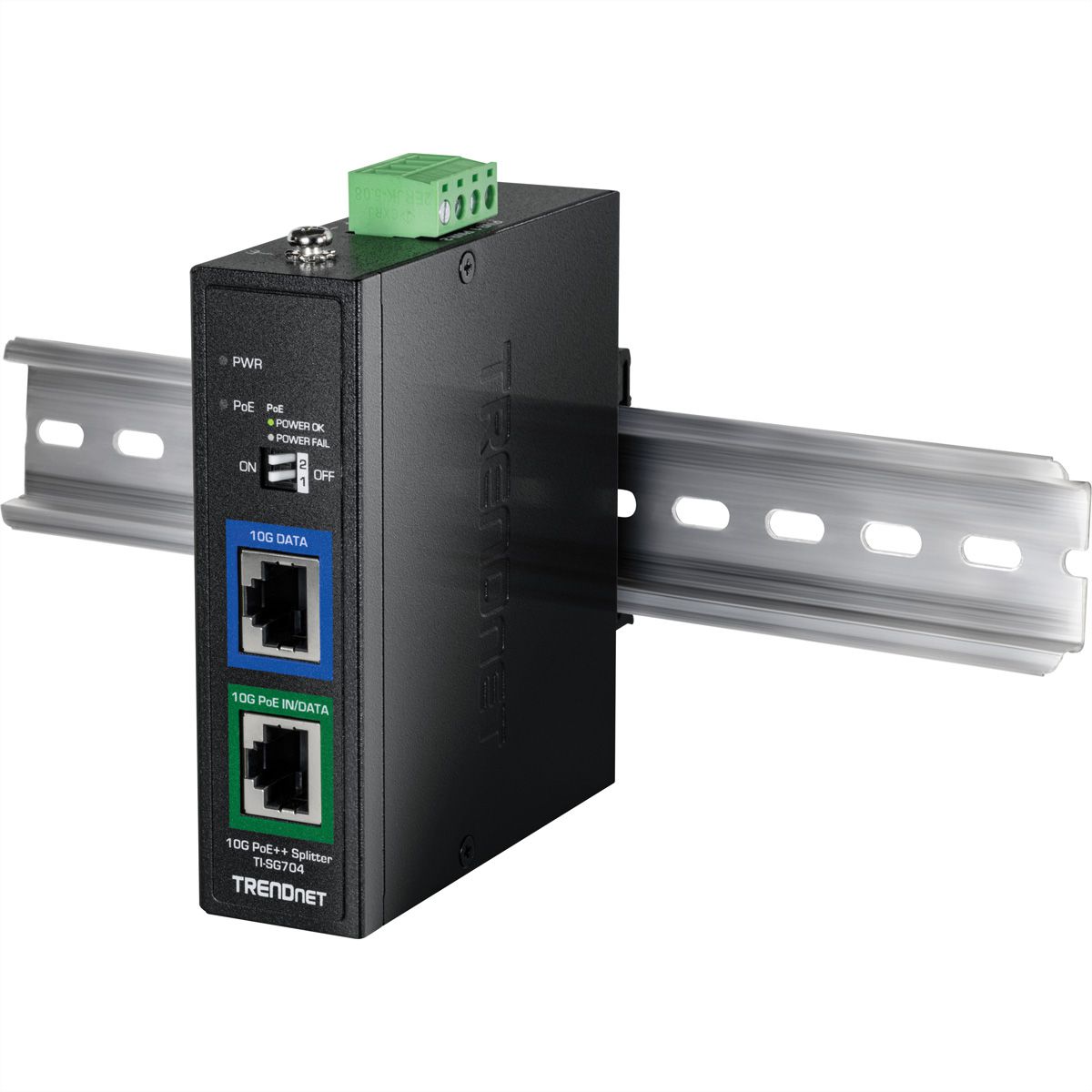

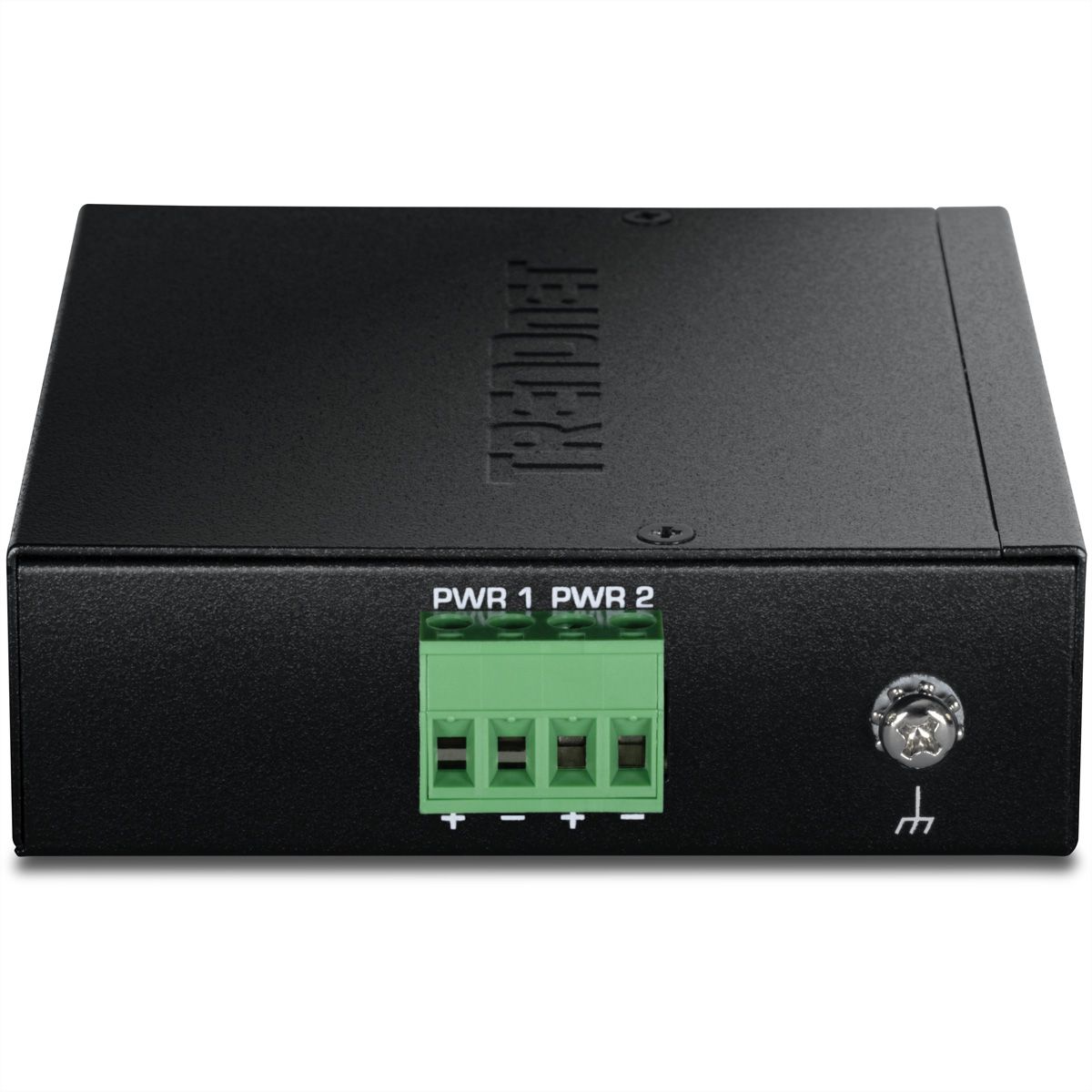

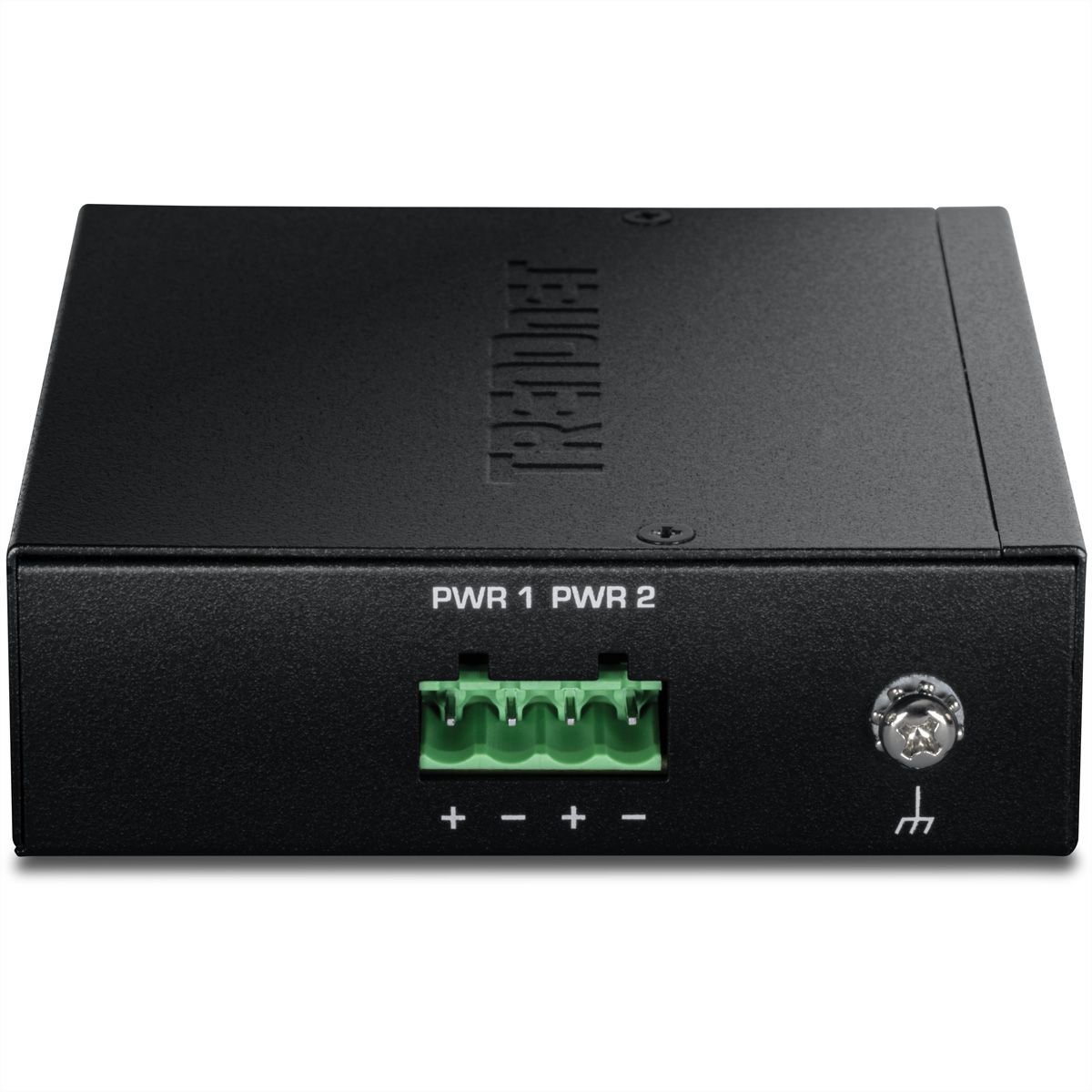

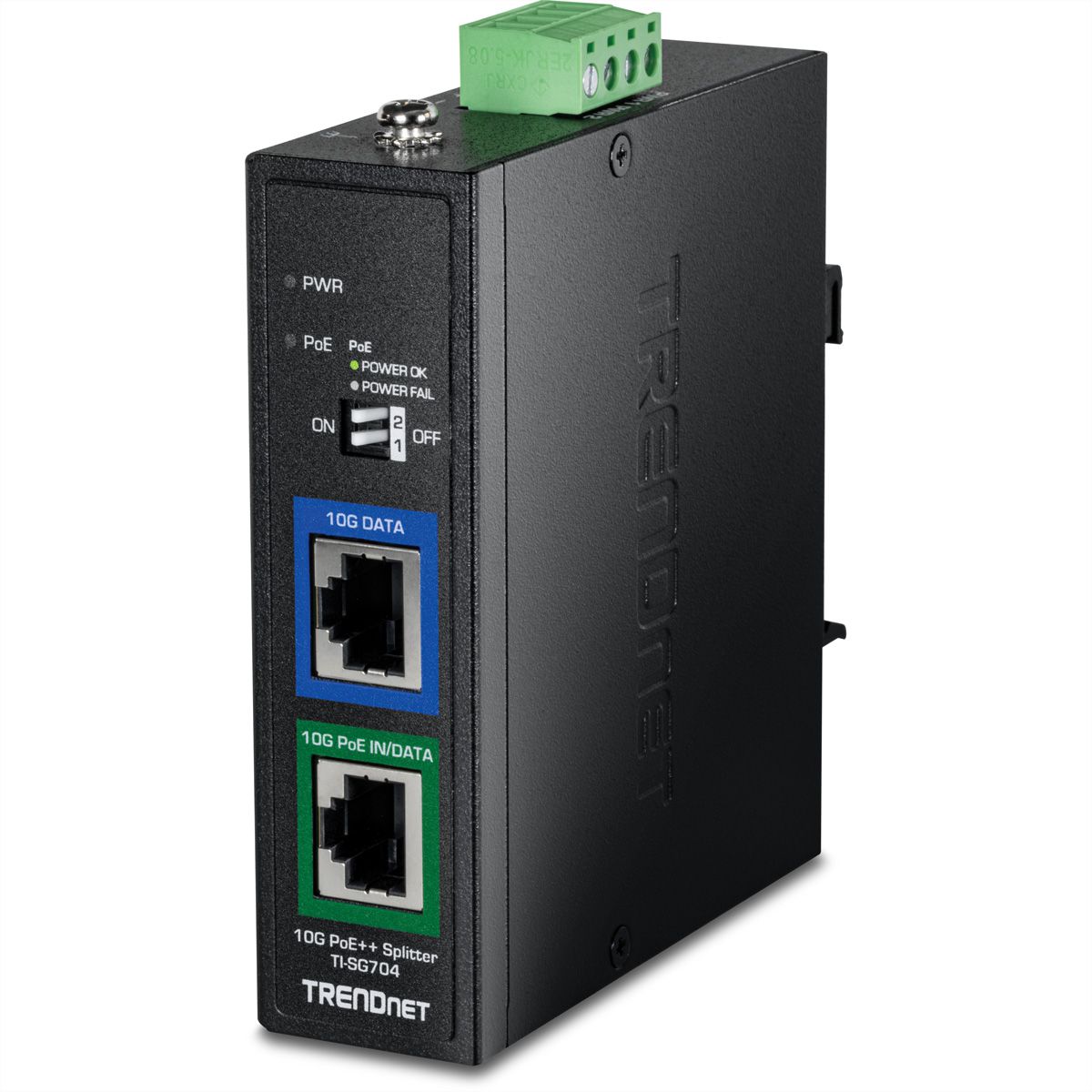

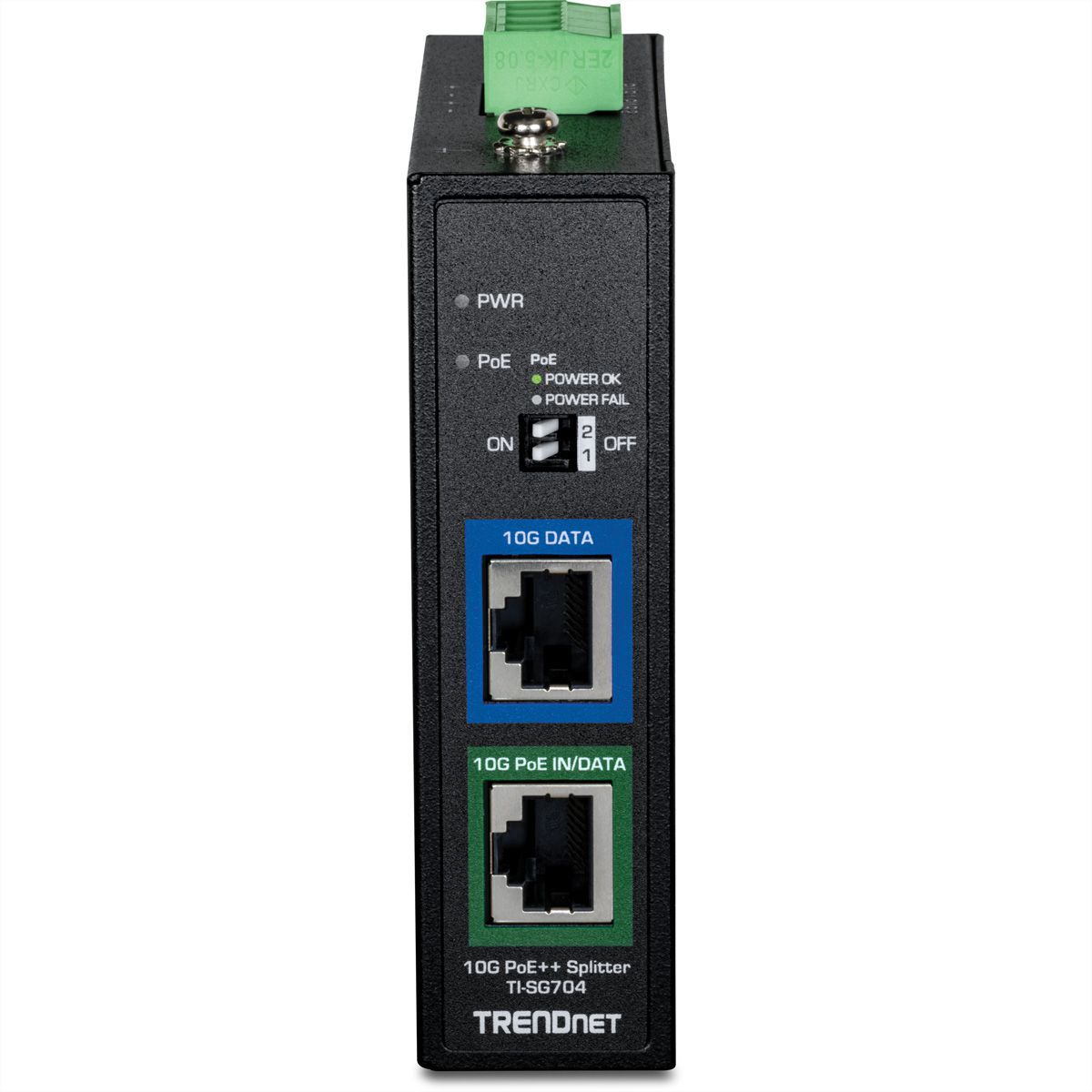

TRENDnet TI-SG704 Industrial 10G PoE++ Splitter

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	21221632
Brand / Manufacturer	TRENDNET
Manuf. item no.	TI-SG704
EAN	710931163322
Item weight	0.488 kg

Description

TRENDnet’s Industrial 10G PoE++ Splitter, model TI-SG704, networks a non-PoE device by using a 10G PoE++ connection and splitting it into separate DC power and data sources. The industrial 10G PoE++ splitter can power up to two devices from a single PoE source. A convenient DIP switch on the industrial PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power requirements for non-PoE devices. The industrial 10G PoE++ splitter’s multiple power outputs provide greater device compatibility.

Power a non-PoE device up to 100m (328 ft.) away from PSE
Splits a 10G 90W PoE++ signal into separate power and data sources
Adjustable voltage output supports 12V, 16V, 24V, or 48V devices
Extreme operating temperature range -40 to 75° C (-40 to 167° F)
IEEE 802.3bt compliant
For best performance pair with TRENDnet PoE++ switches or injectors

Specifications

Manufacturer	TRENDNET
Product group	Industrial Networking
Product type	PoE-Splitter
Colour	black
Scope of delivery	TI-SG704, Removable terminal block, DIN-Rail and wall-mount kit
Network standard	10 Gigabit Ethernet
LAN (Mbps)	10/100/1000/2500/10000
Quantity of ports	2
10 Gigabit Ethernet Ports RJ-45	1
Power over Ethernet (PoE)	PoE++ (IEEE 802.3bt)
Quantity of PoE ports	1
Mounting form	DIN Rail
Protection class (IP Code)	IP50
Power supply	Power over Ethernet (PoE)
Operating temperature min.	-40 °C
Operating temperature max.	75 °C
Height	28 mm
Width	99 mm
Depth	90 mm
Weight	432 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	140 mm
Depth of packaging (single piece)	160 mm
Package weight (single piece)	0.488 kg

Downloads

Manufacturer data sheet - Deutsch (3.3 MB)

Download

Manufacturer data sheet - English (4.2 MB)

Download

Manufacturer data sheet - Français (3.3 MB)

Download

Quick Installation Guide - English (3.3 MB)

Download

TRENDnet products offer outstanding value for money with a multi award winning product line and proven reliability, outstanding product quality, comprehensive customer service, pre-sales engineering assistance and world class technical support.
