TRENDnet TPE-BG380 Switch 8-Port 2.5G PoE++
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

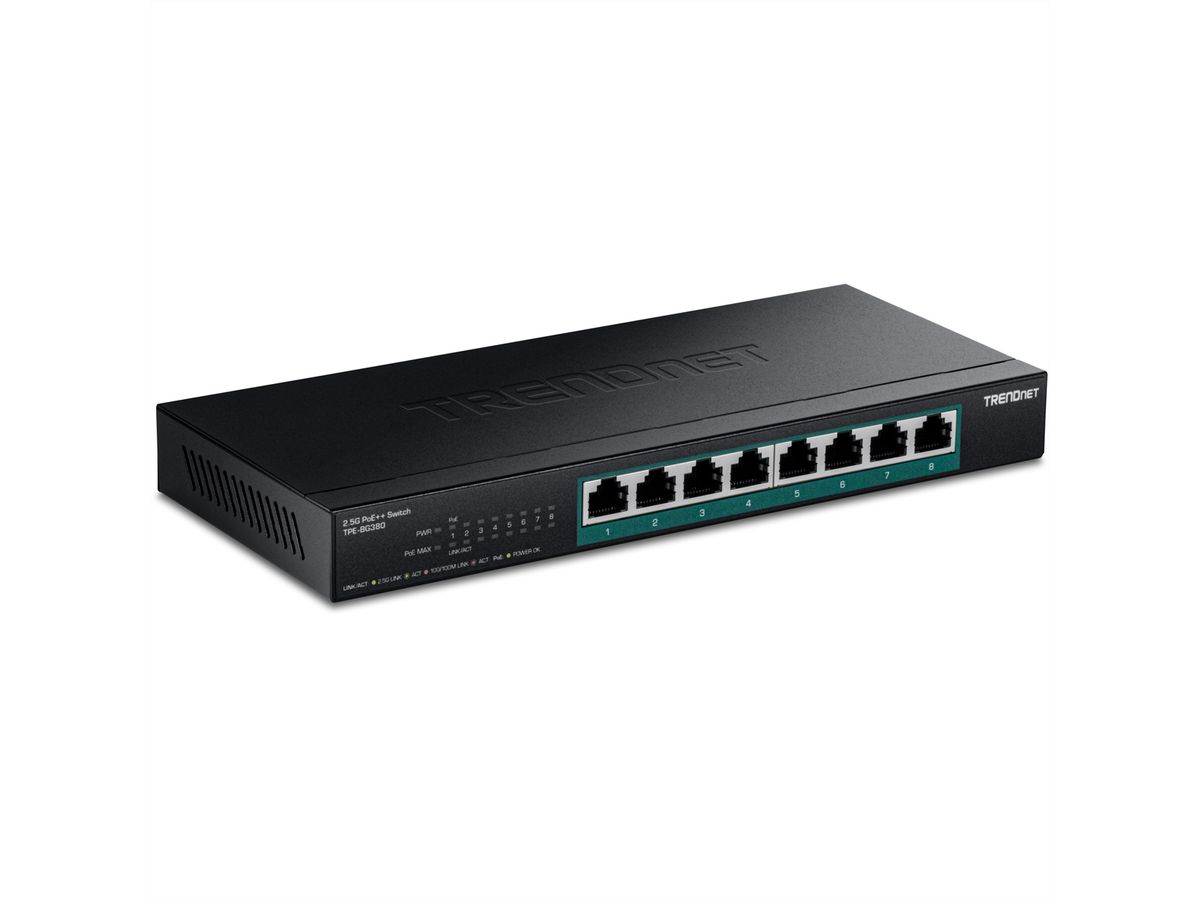

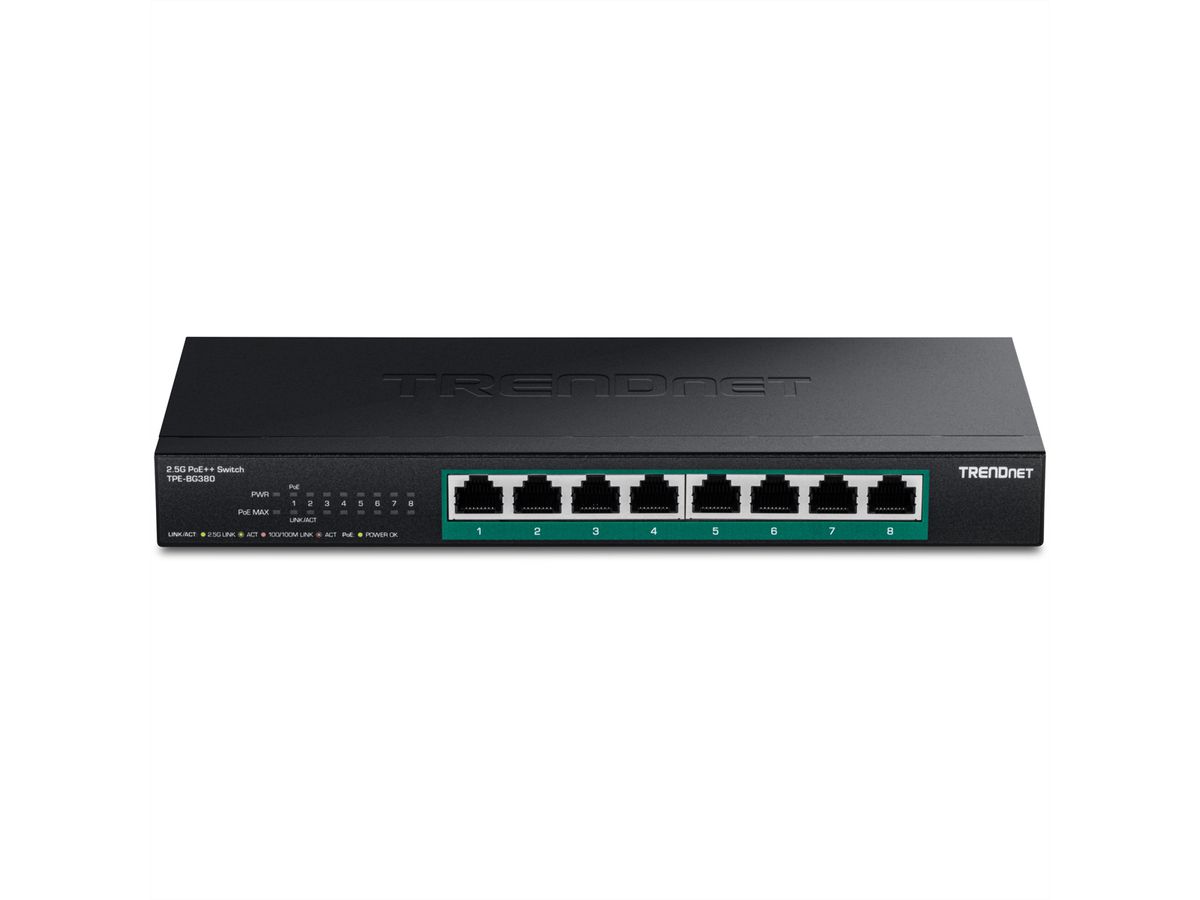

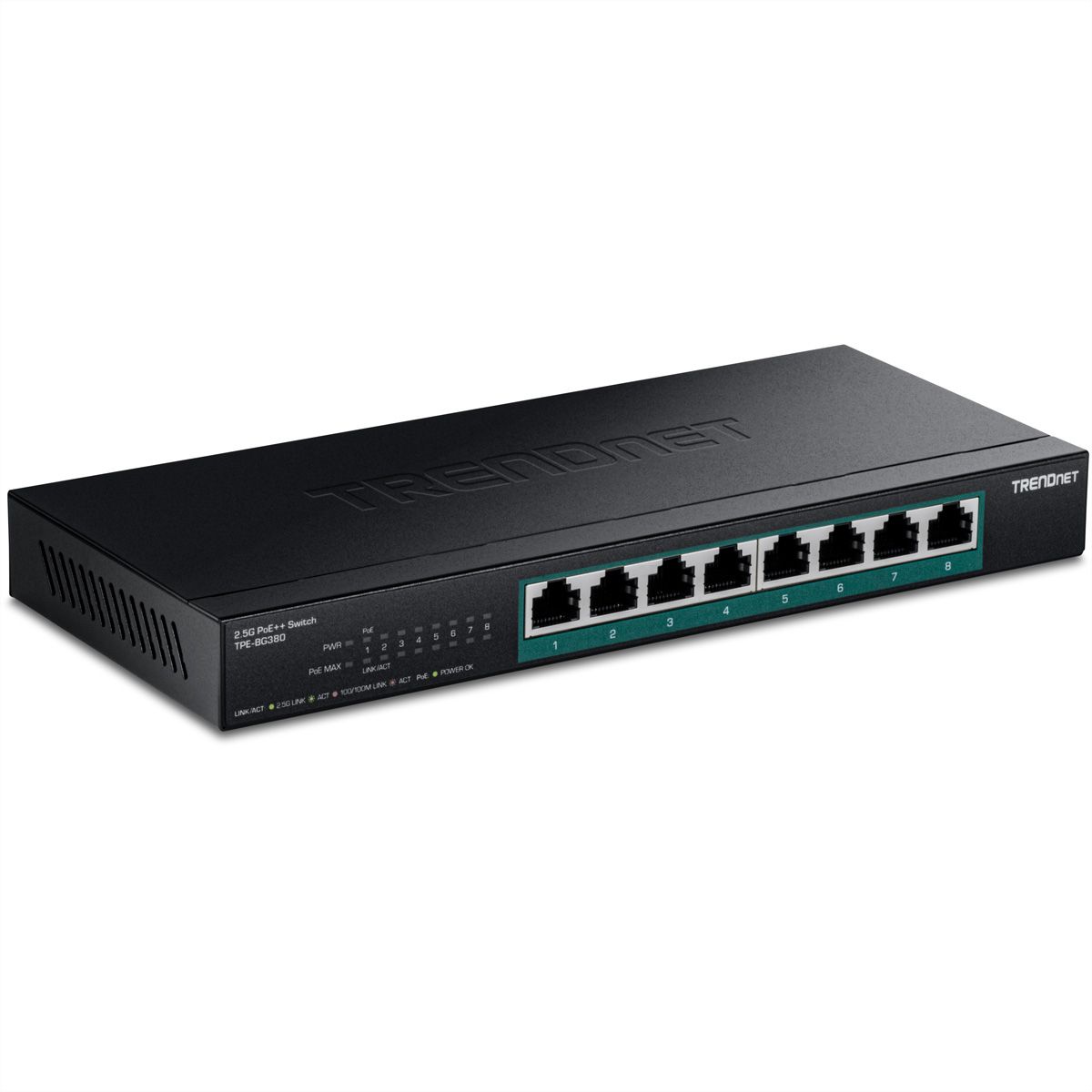

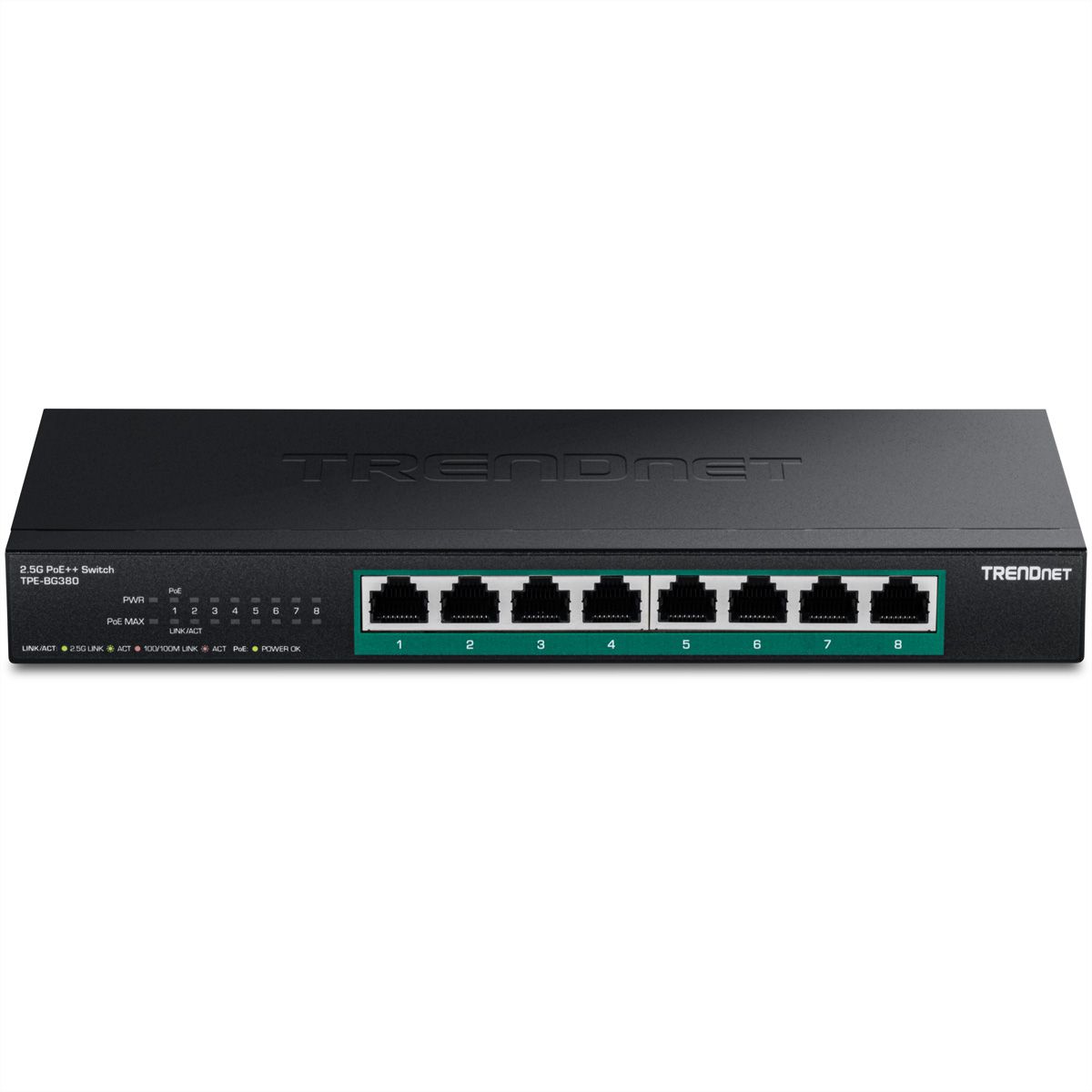

Expand your network’s bandwidth and reduce traffic bottlenecks with TRENDnet’s 8-Port 2.5G PoE++ Switch, model TPE-BG380. This 2.5G PoE++ switch is equipped with 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. This multi-gigabit PoE++ switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise.
- 8x 2.5G PoE++ ports
- 230W PoE power budget
- Backwards compatible with 10/100/1000Mbps devices
- Compatible with existing Cat5e or better cabling
- Fanless design eliminates noise

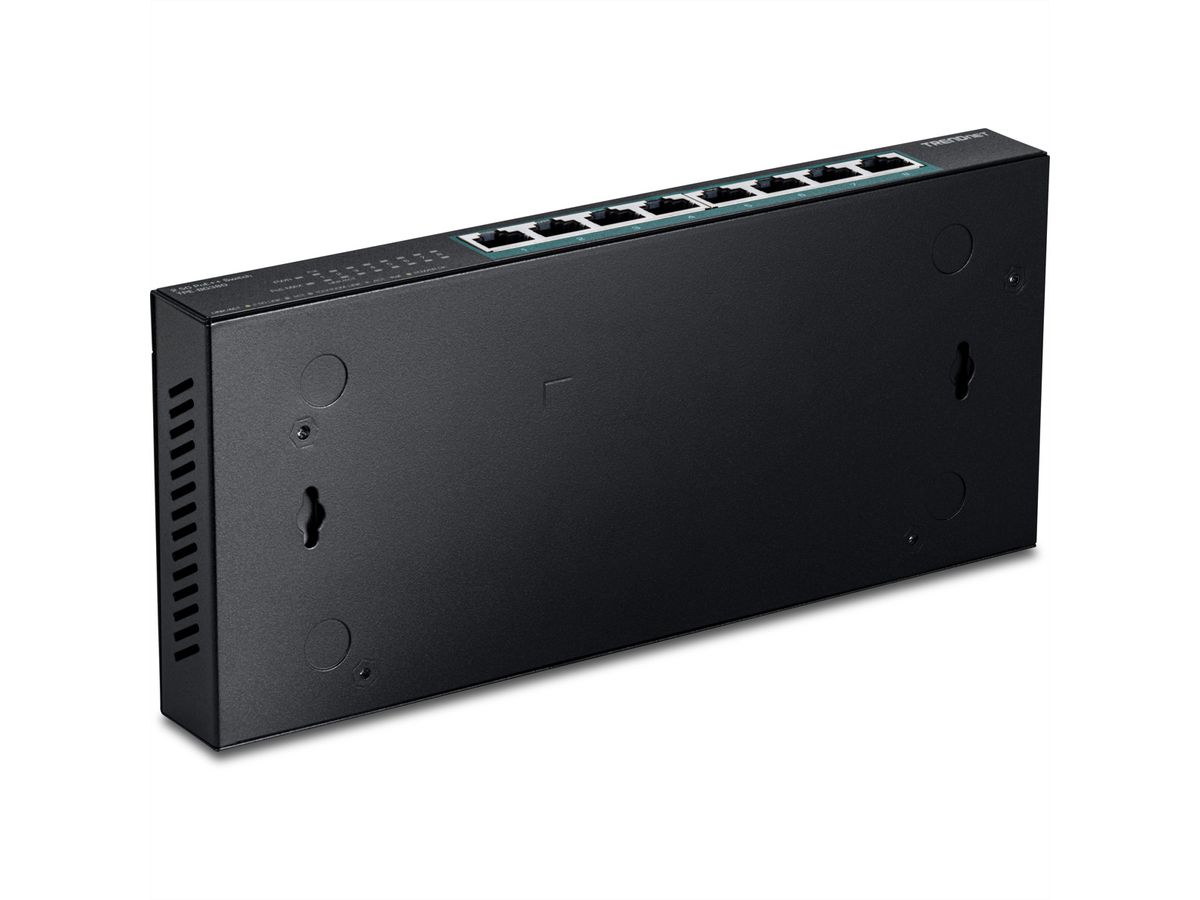

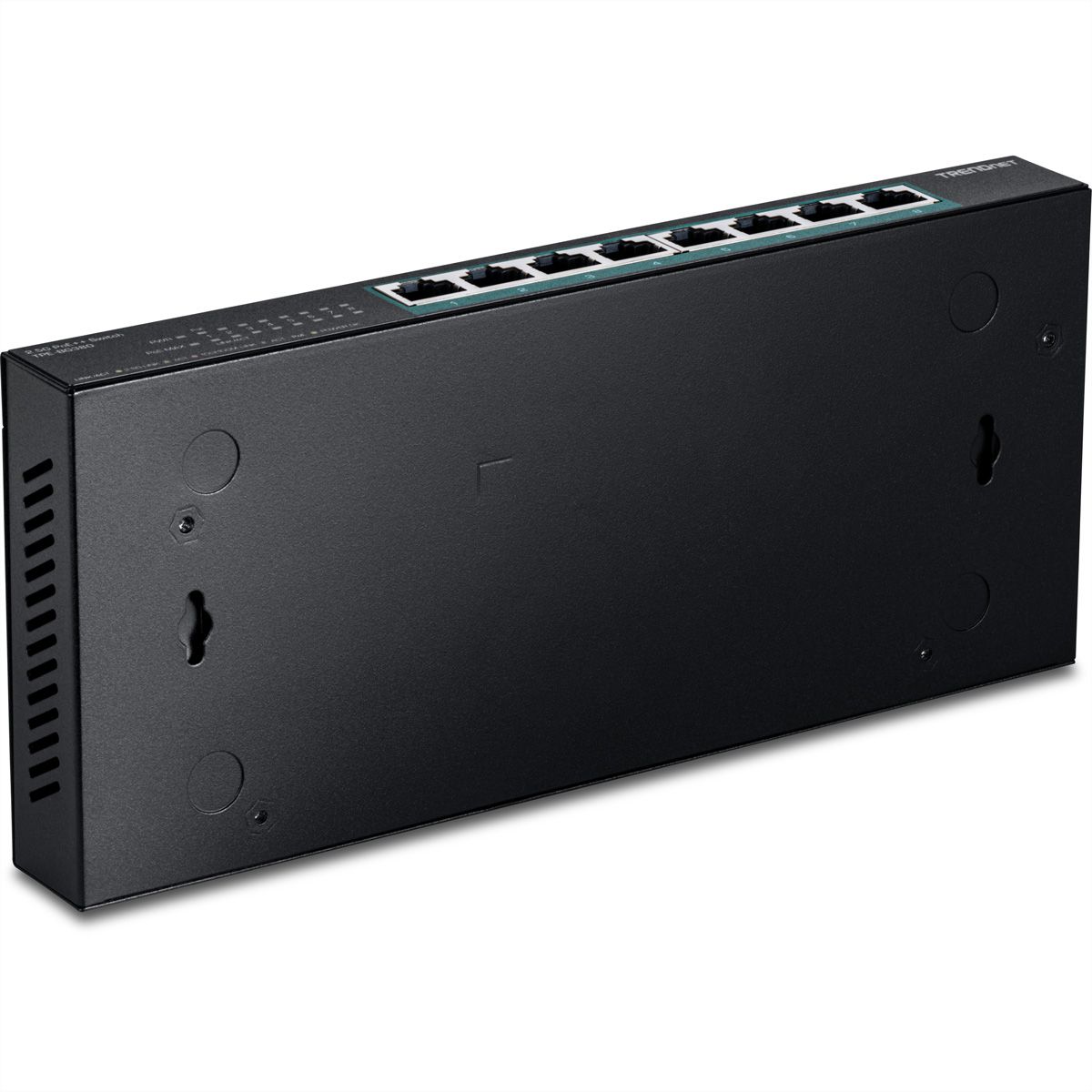

- Wall mountable for installation flexibility
- 40Gbps switching capacity
- IEEE 802.3bz (2.5G) compliant
- Supports IEEE 802.3af/at/bt
TRENDnet’s reliable 2.5G PoE++ switches are cost-effective solutions to increase your network’s throughput. A 230W total PoE power budget on this multi-gig PoE++ switch supplies up to eight PoE devices with up to 95W per port. Easily network PoE devices such as high-power wireless access points, cameras, digital signage, IPTV decoders, access controls, and more with this high-power 2.5 gigabit PoE++ switch.
Specifications
- Manufacturer
- TRENDNET
- Product group
- Network Switches
- Product type
- Network Switch
- Colour
- black
- Scope of delivery

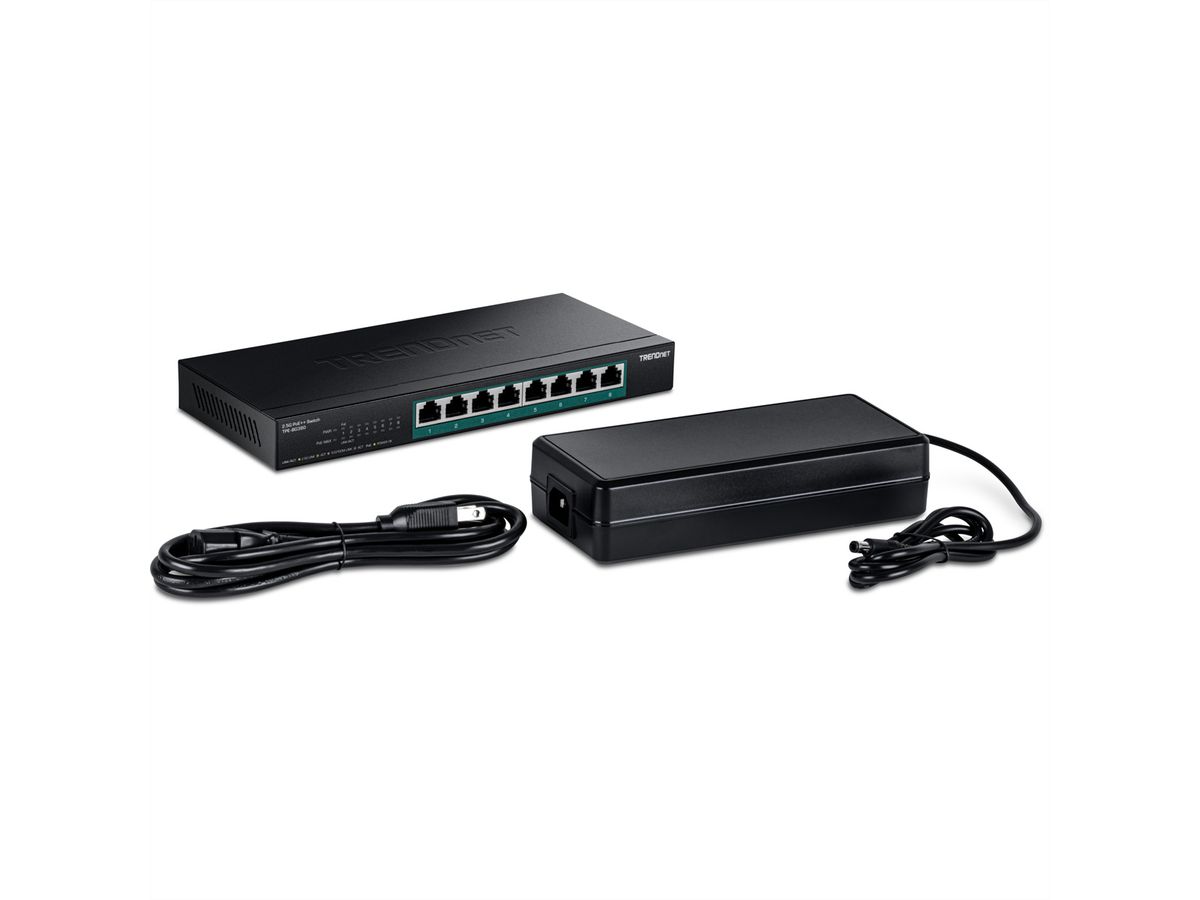

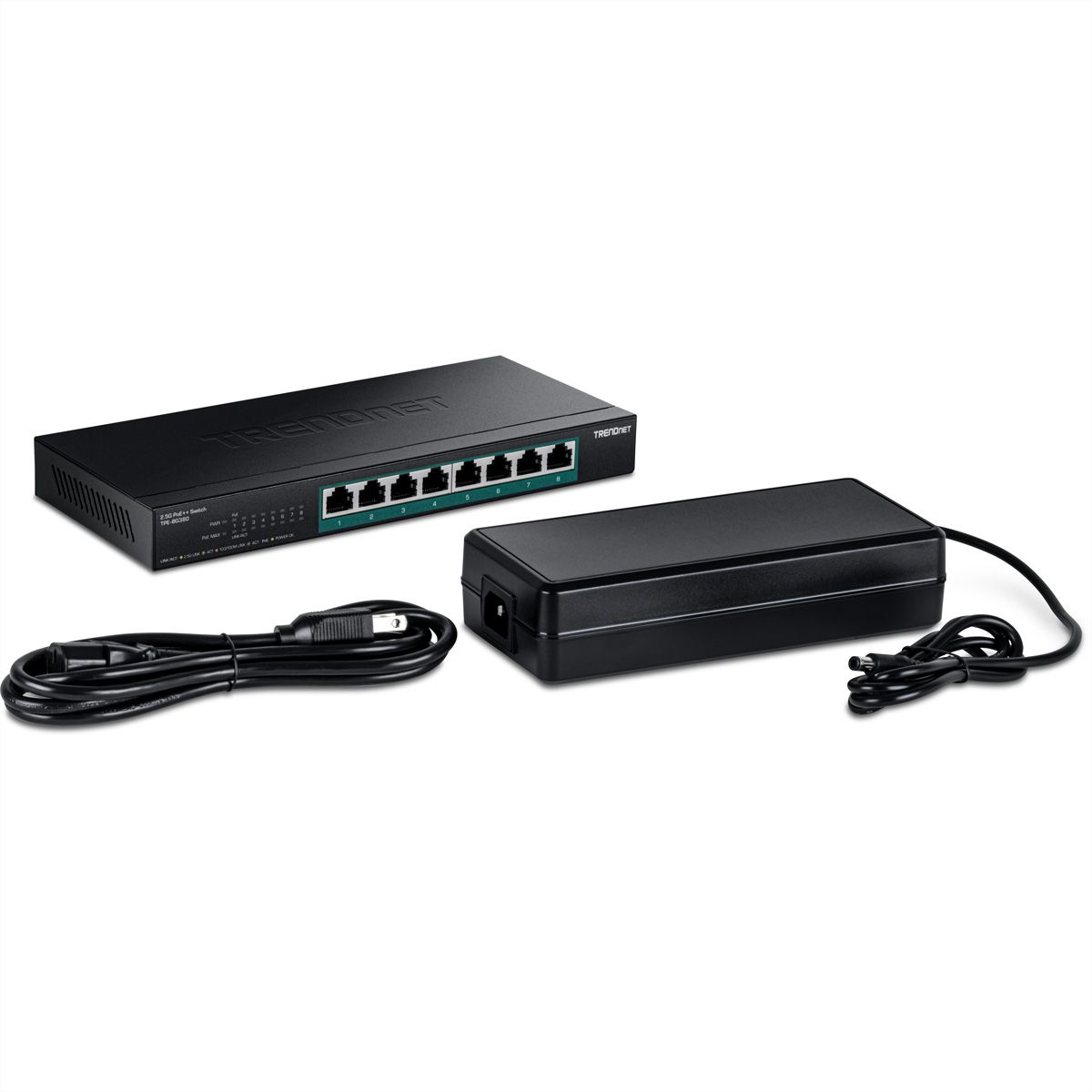

- TPE-BG380, Quick Installation Guide, Power brick (54V, 4.7A), Power cord (1.5m)
- Network standard
- 2.5 Gigabit Ethernet
- LAN (Mbps)
- 10/100/1000/2500
- Quantity of ports
- 8
- 10 Gigabit Ethernet Ports RJ-45
- 8
- Power over Ethernet (PoE)
- PoE++ (IEEE 802.3bt)
- Quantity of PoE ports
- 8
- Max. PoE output power per port
- 95 W
- Max. PoE output power (total)
- 220 W
- Mounting form
- Desktop
- Power supply
- External power supply unit
- Mains connection
- Cold appliance connection
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 40 °C
- Height
- 27 mm
- Width
- 240 mm
- Depth
- 105 mm
- Weight
- 1.81 kg
- Height of packaging (single piece)
- 80 mm
- Width of packaging (single piece)
- 260 mm
- Depth of packaging (single piece)
- 190 mm
- Package weight (single piece)
- 2.029 kg
