USB 3.2 Gen 2 Type C Multiport Docking Station, 4K HDMI/DP, VGA, 2x USB 3.2 Gen 1, 1x USB 2.0, 1x SD/Micro SD Card Reader, 1x USB Type C PD (Power Delivery), 1x Gigabit Ethernet, 1x 3.5mm Audio

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Available - can be delivered within 24 hours

Ordered by 2 p.m. - usually shipped the same day

Item no.	12991117
Brand / Manufacturer	VALUE
Manuf. item no.	12.99.1117
EAN	7630049618619
Item weight	0.2 kg

Description

The USB Type C Docking Station with three video ports supplies your MacBook, Ultrabook, Notebook or Laptop with each one 4K capable HDMI/DisplayPort connection, as well as with a VGA port, 3x USB 3.0 / USB 3.2 Gen 1, 1x SD/MicroSD card reader, 1x USB Type C PD (Power Delivery), 1x Gigabit Ethernet and a 3.5mm Audio Port!

Plug & Play

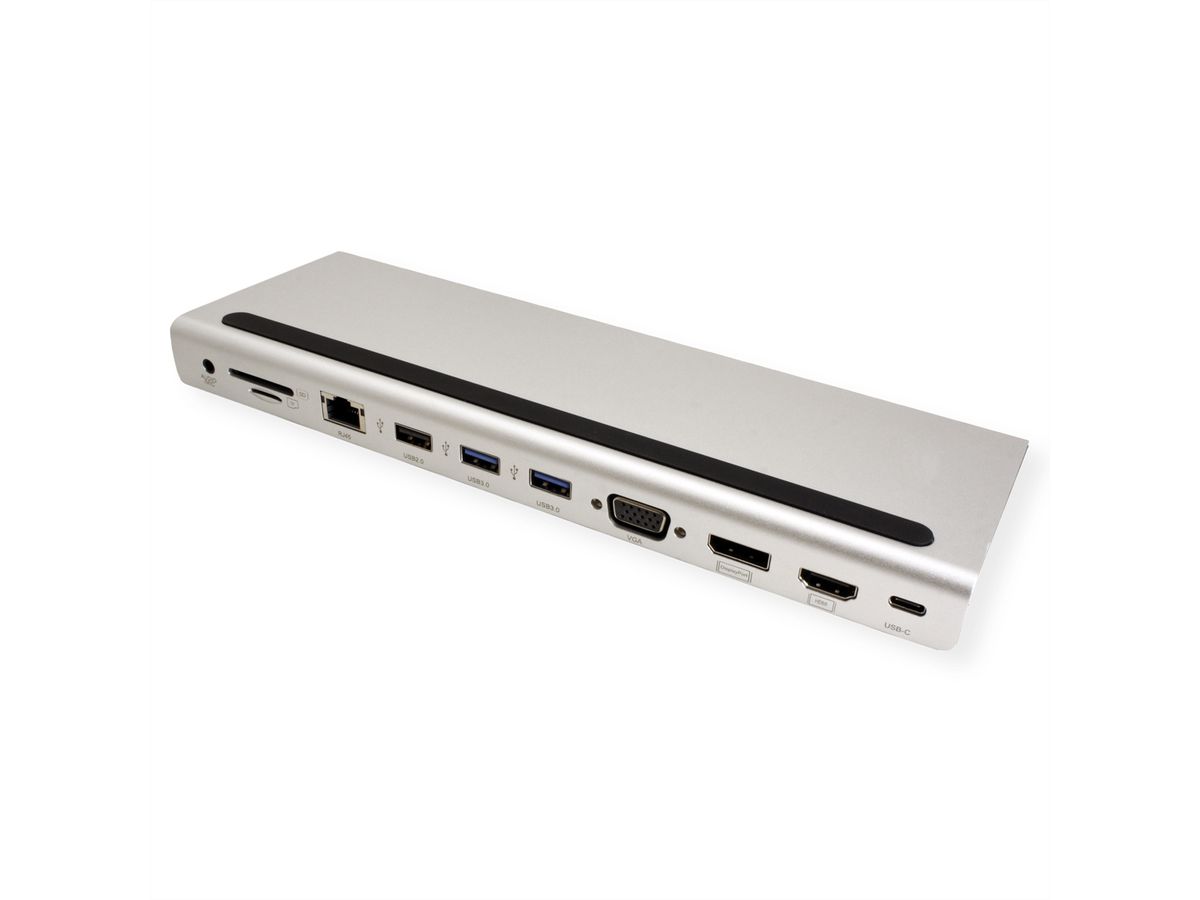

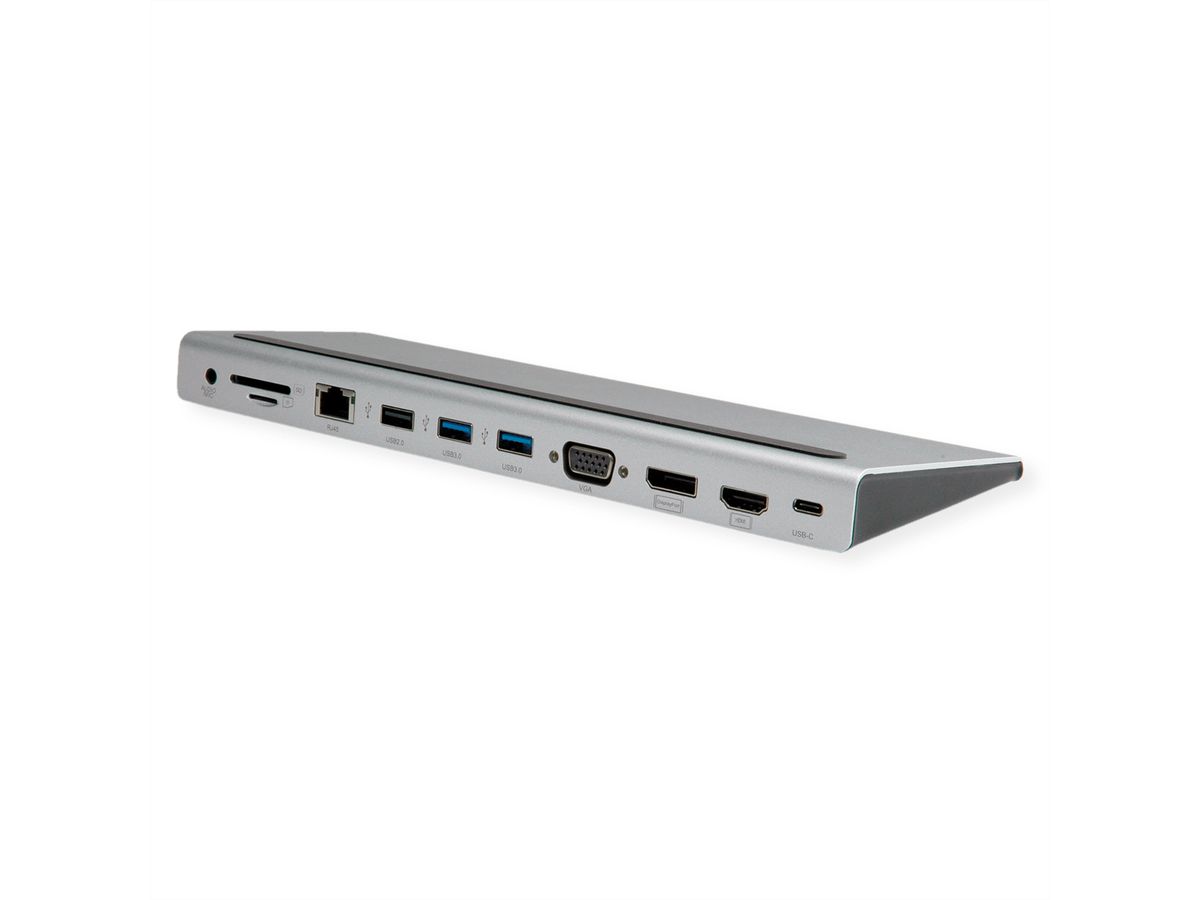

Aluminum enclosure in space grey

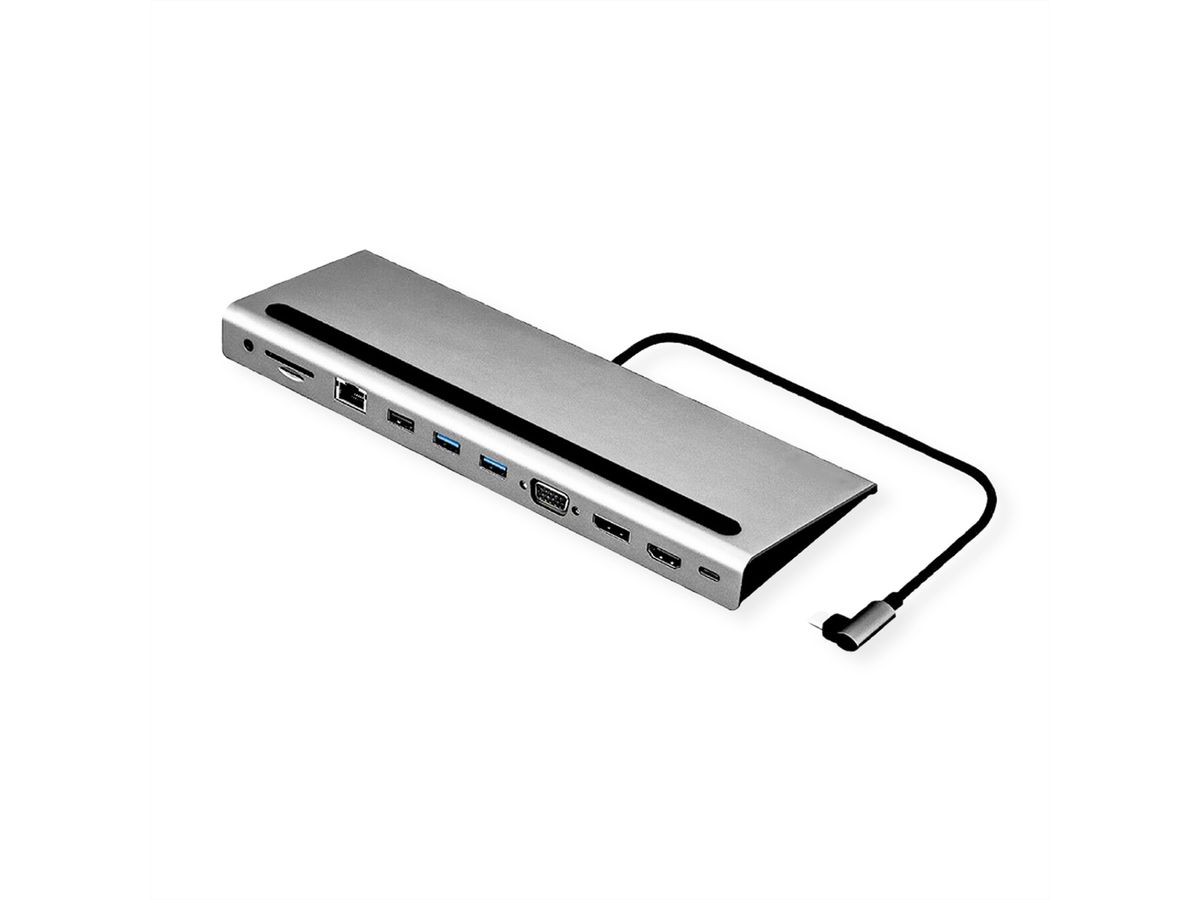

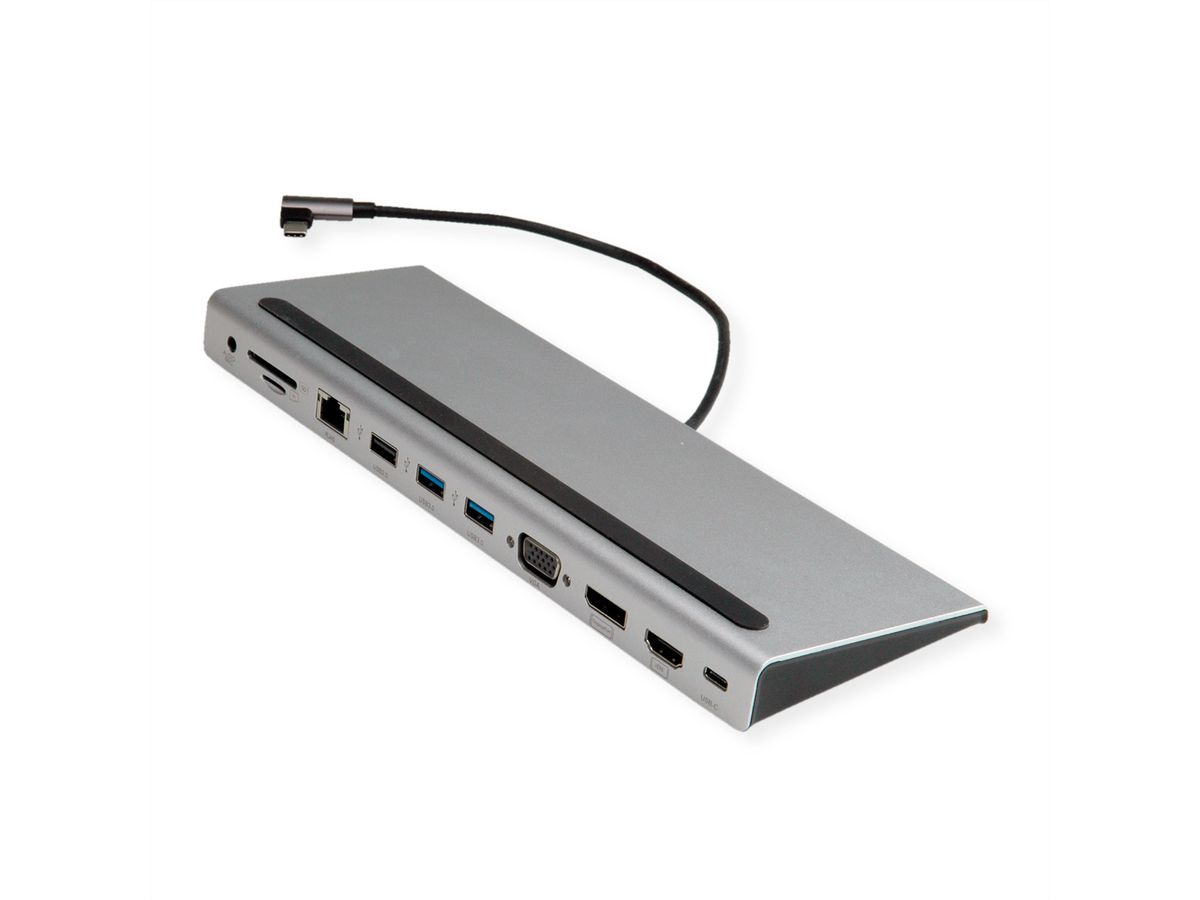

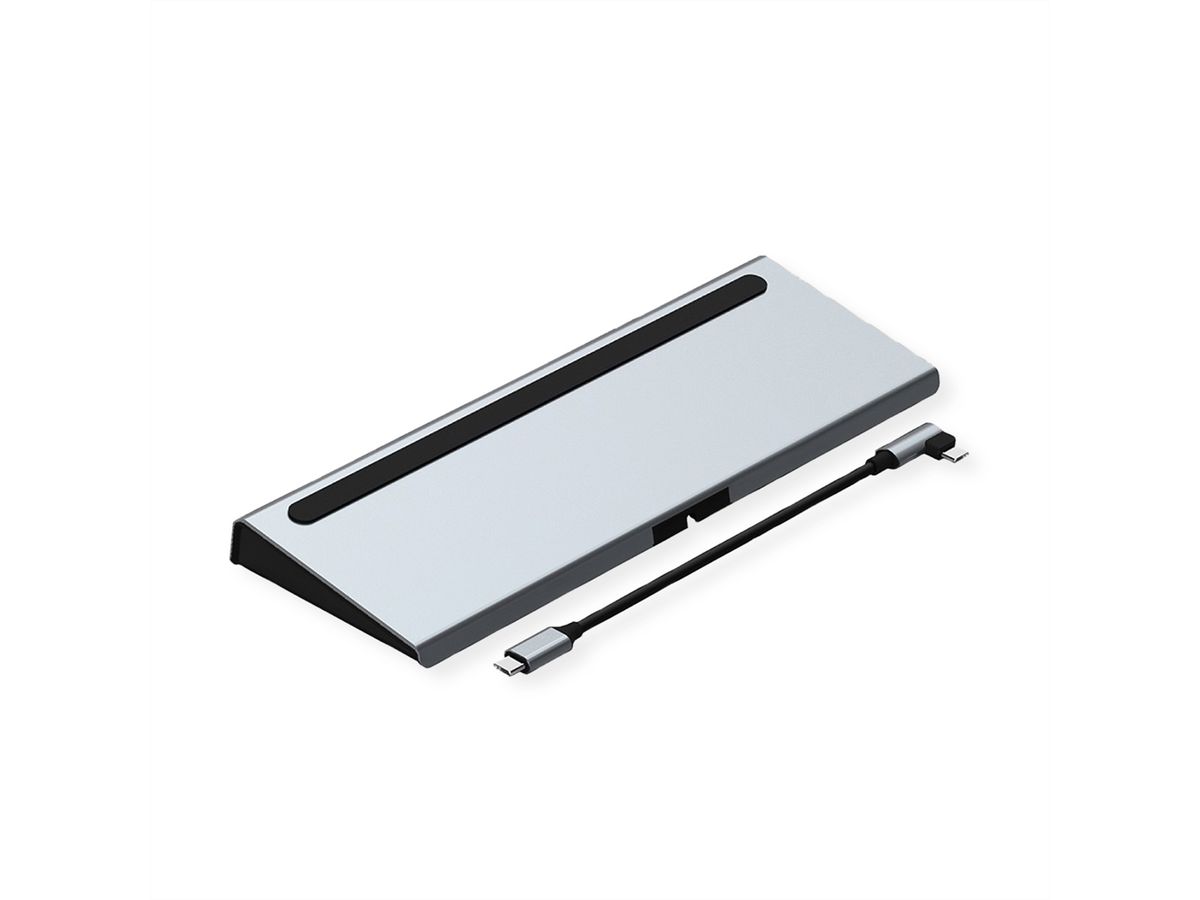

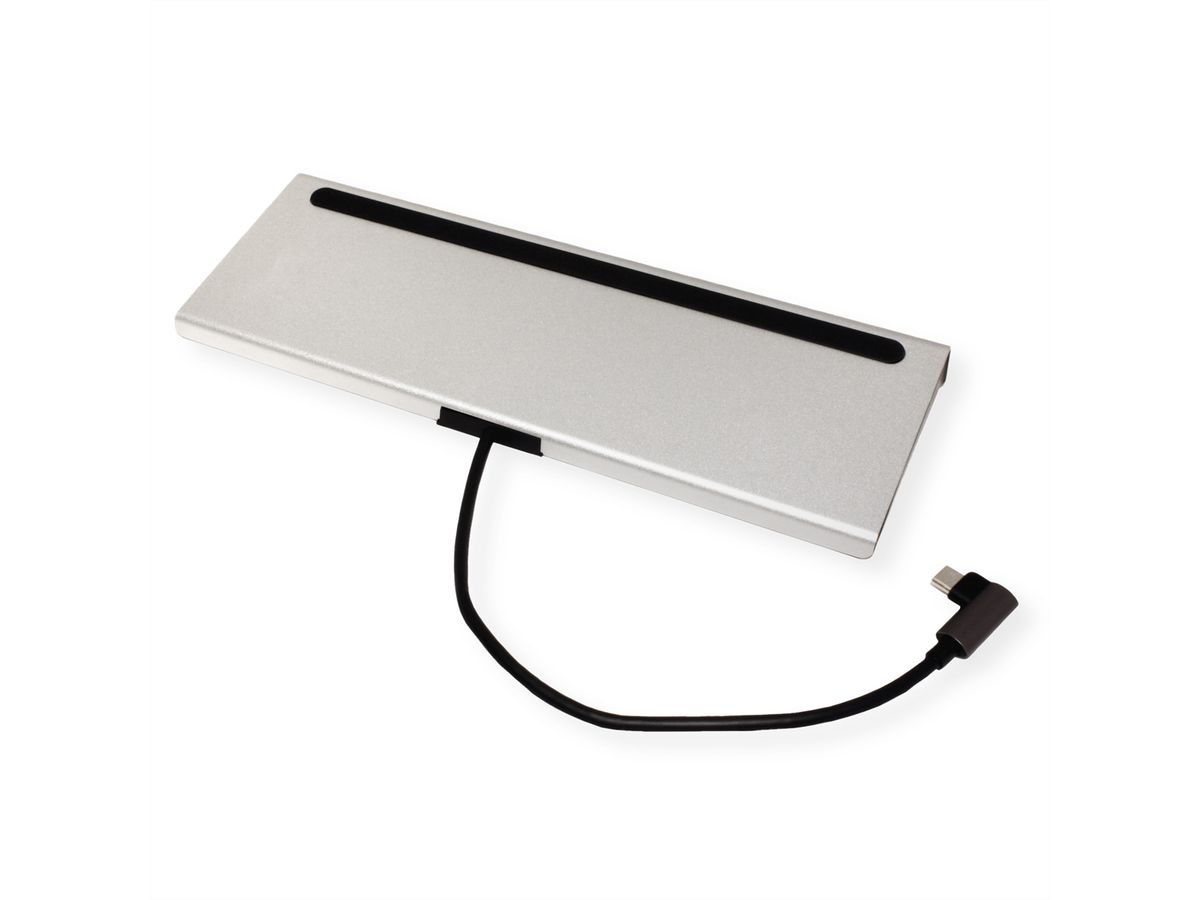

Designed with detachable right-angled USB-C cable to perfectly fit into the USB-C port of your laptop
Multiport Docking Station for maximum connectivity, allows you to expand one display or mirror it to up to two monitors, TVs or beamers at a time.
Max. resolution: 3840x2160 @30Hz
Dual video output (DP+HDMI, HDMI+VGA, DP+VGA) max resolution up to 1920x1080p/60Hz with Multi-Stream Transport (MST) technology
Three video output (DP+HDMI+VGA) max resolution up to 720p/60Hz with Multi-Stream Transport (MST)

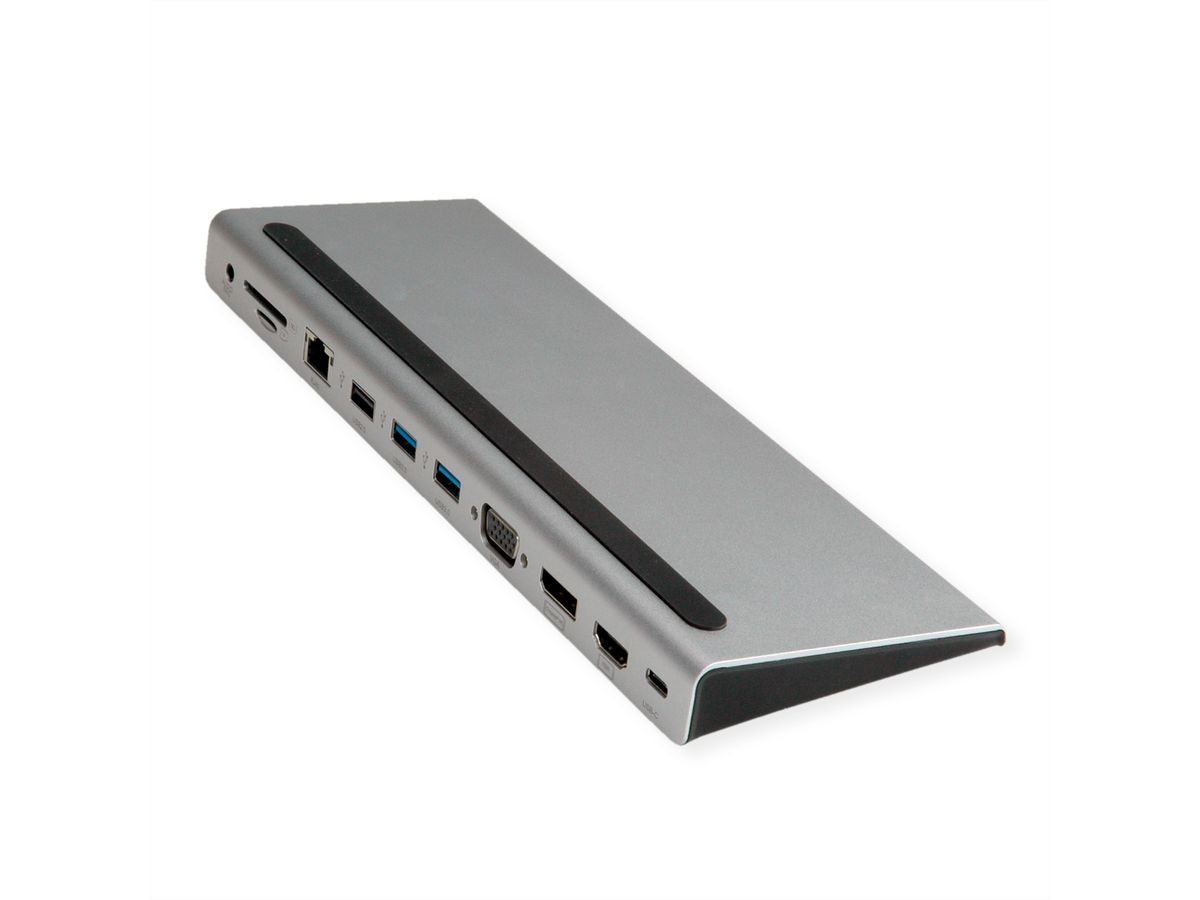

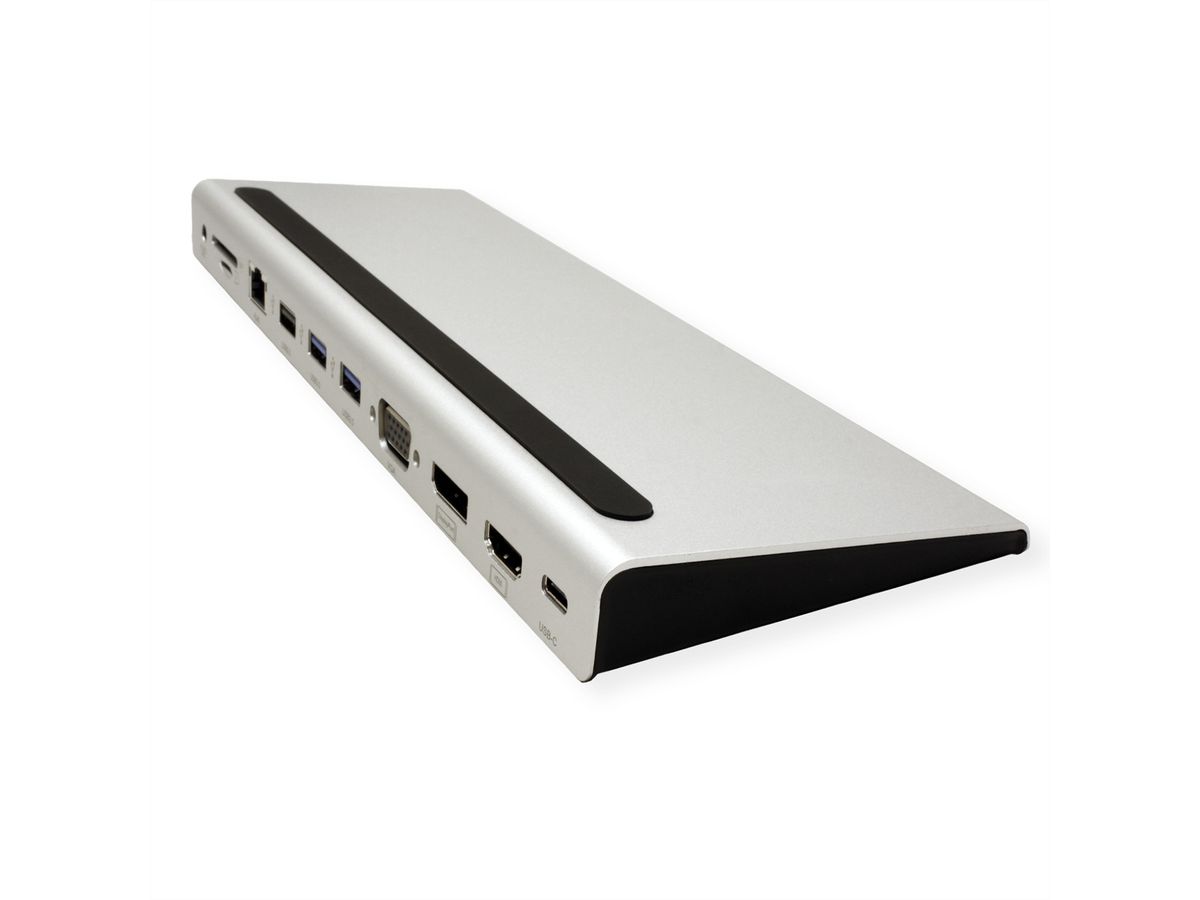

Small, compact and flattened design - Notebooks can be positioned at an angle on the docking station to make typing easier and healthier

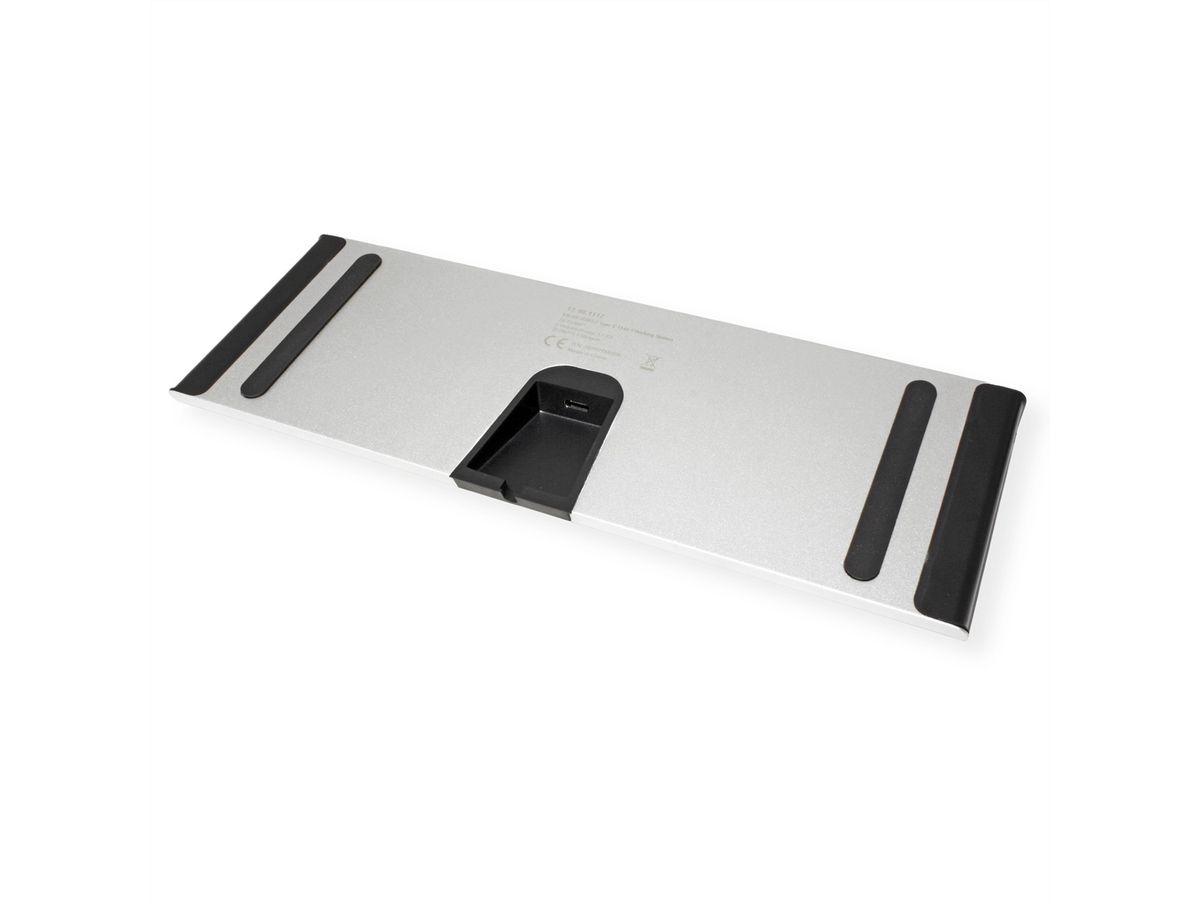

Anti-slip surface on both sides to protect your device
System requirements: Windows 7/8/10 or MacOS X10.2 and higher

Connection to the mobile device:

1x USB 3.1 / USB 3.2 Gen 2 Type C plug

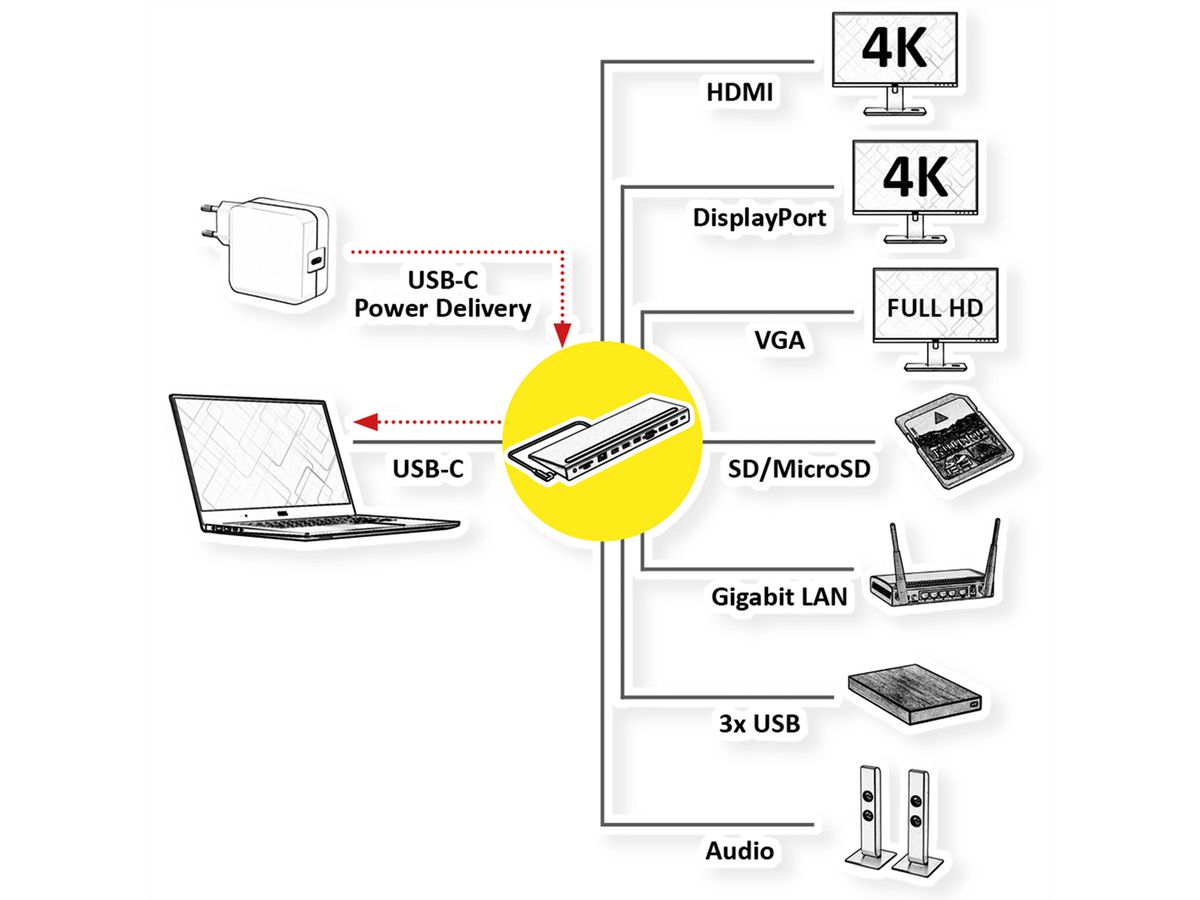

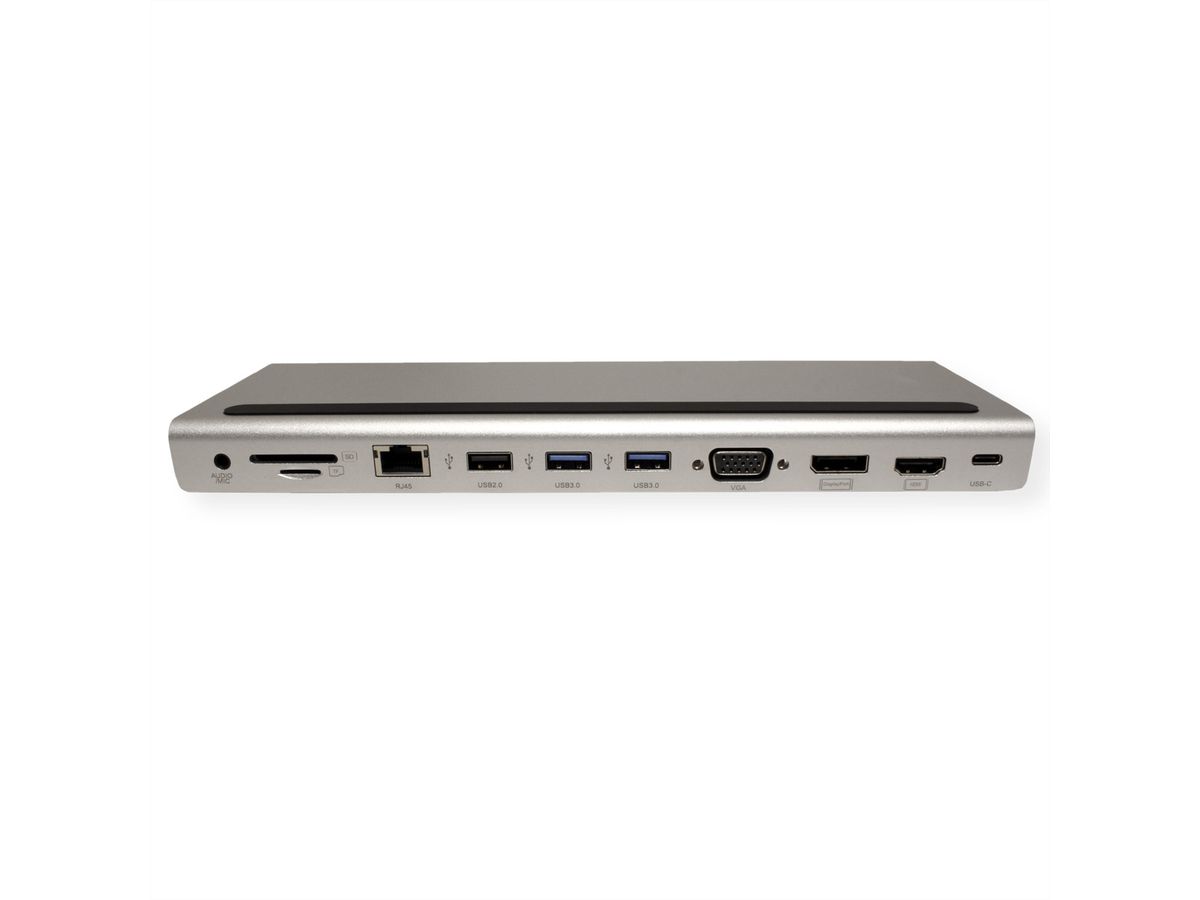

Connections for peripheral devices:

1x HDMI 4K video output: Mirror or expand your screen to a TV, monitor or projector
1x DP F
1x VGA F
2x USB 3.0 / USB 3.2 Gen 1 Type A ports (data transfer rate up to 5Gbit/s) / 1x USB2.0 Type A (max. 480Mbit/s), to connect e.g. keyboard/mouse, USB HDD/SSD, etc.
1x card reader for SD/MicroSD
1x Type C PD (Power Delivery)
1x RJ45 for Gigabit Ethernet
1x 3,5mm audio connector

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	Docking Station
Colour	grey
Scope of delivery	Docking Station
Side 1 connection (PC)	USB Type C
Side 2 connection (Peripherals)	2x USB 3.2 Gen 1 socket, 1x USB 2.0 socket, 1x HDMI socket, 1x DP socket, 1x VGA socket, 1x Gigabit Ethernet socket, 1x Audio 3.5mm, 1x Card Reader, 1x PD
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A DisplayPort HD D-Sub 15-pin (HD-15), VGA RJ-45 USB 3 Type A SD-Card-Slot Mini Phone Stereo 3.5 mm, 3-pin USB Type C PD (Power Delivery)
Side 2 Connector Gender	Female
Material	Aluminum
Weight	204 g
Height of packaging (single piece)	30 mm
Width of packaging (single piece)	180 mm
Depth of packaging (single piece)	300 mm
Package weight (single piece)	0.2 kg

Downloads

Product data sheet - English (62.6 KB)

Download

User manual - Deutsch (511.6 KB)

Download

User manual - English (511.5 KB)

Download
