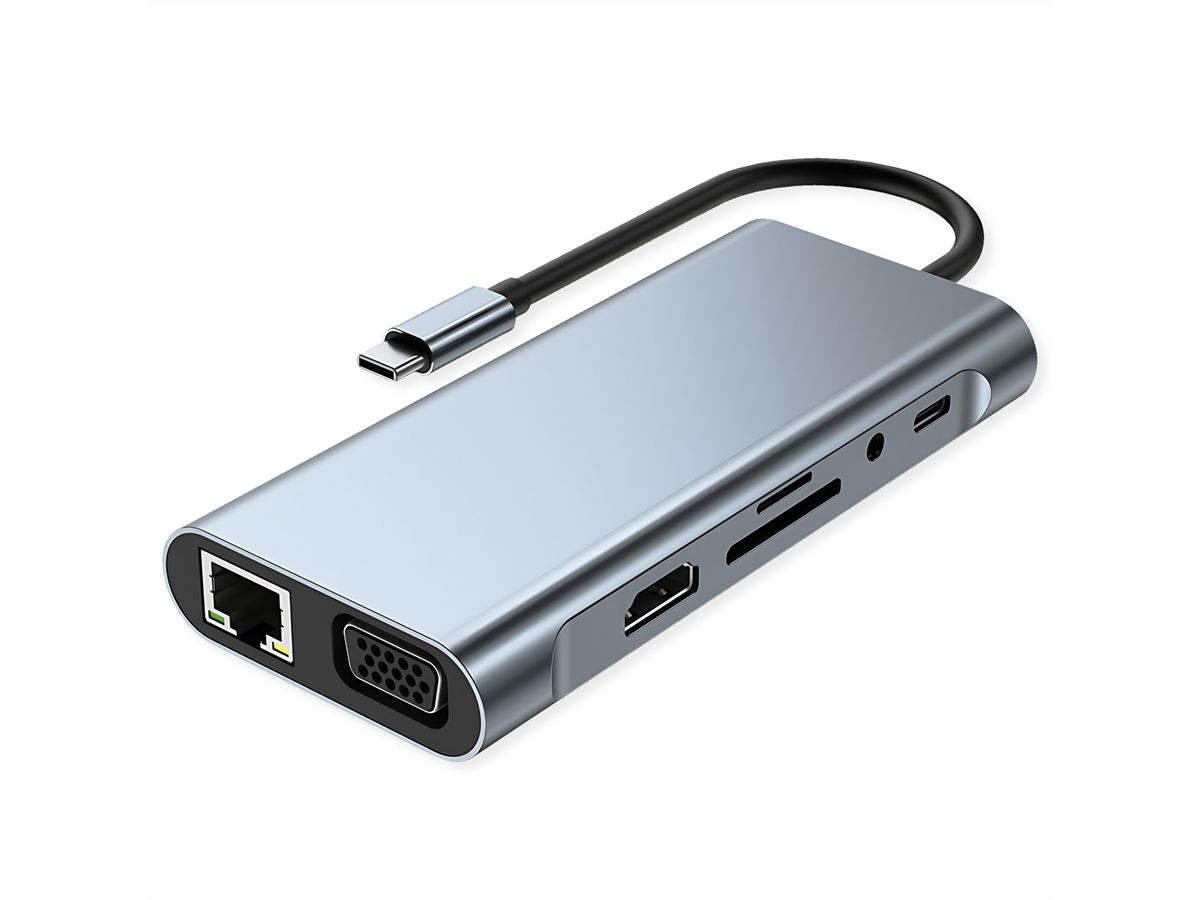

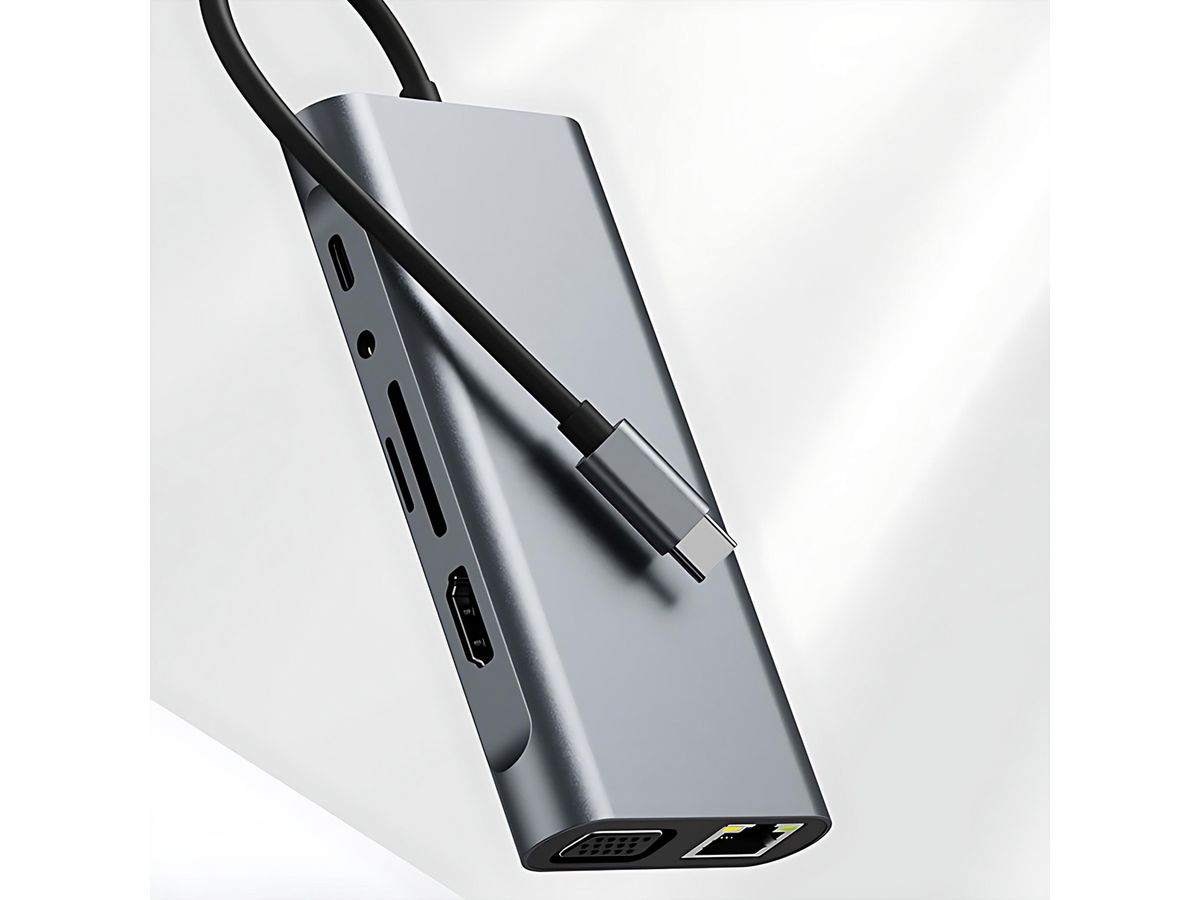

VALUE Dockingstation Type C, 1x HDMI 4K30, 1x VGA 1080p, 1x Gigabit Ethernet, 3x USB 3.2 Gen1 (A), 1x USB 2.0 (C), 1x SD/TF, 1x Audio, 1x Type C PD (Power Delivery)

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	12991143
Brand / Manufacturer	VALUE
Manuf. item no.	12.99.1143
EAN	7630049640771
Item weight	0.1 kg

Description

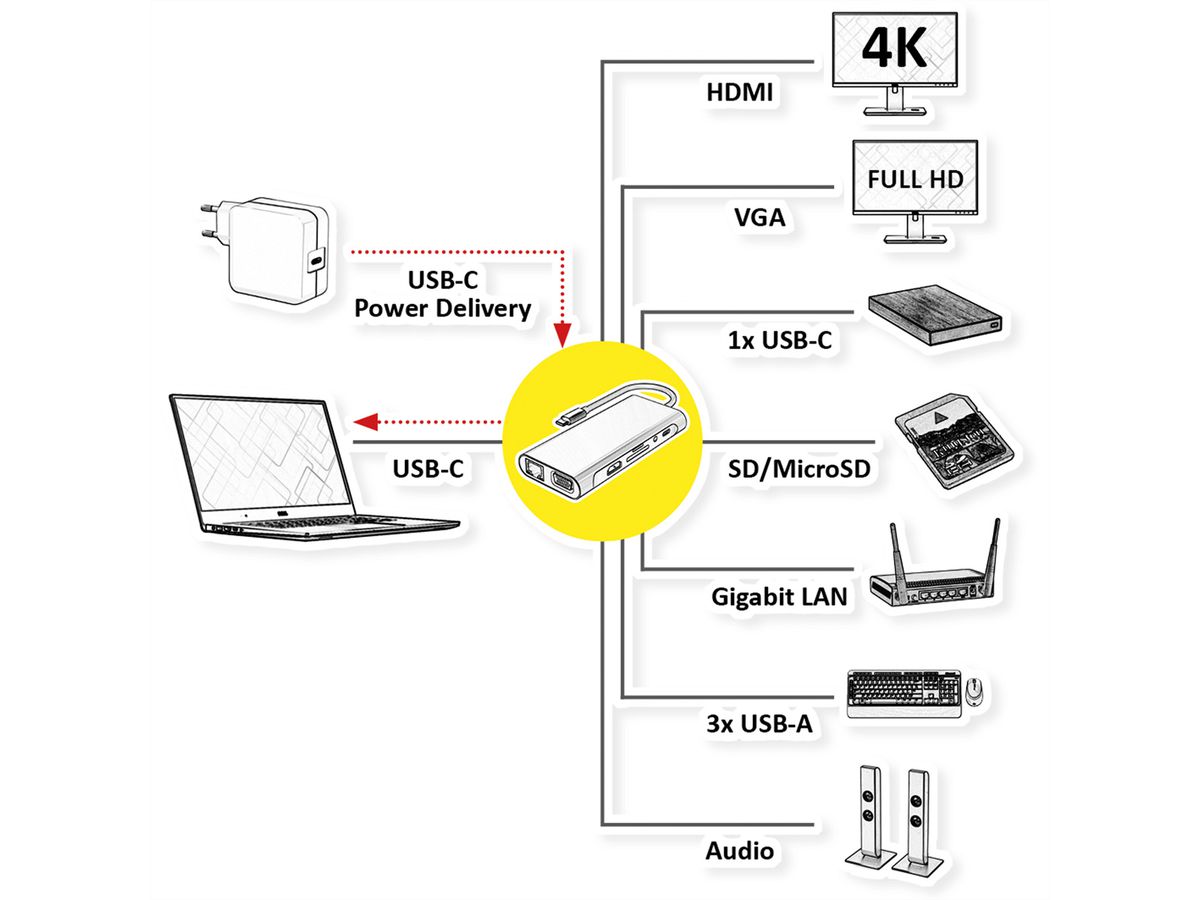

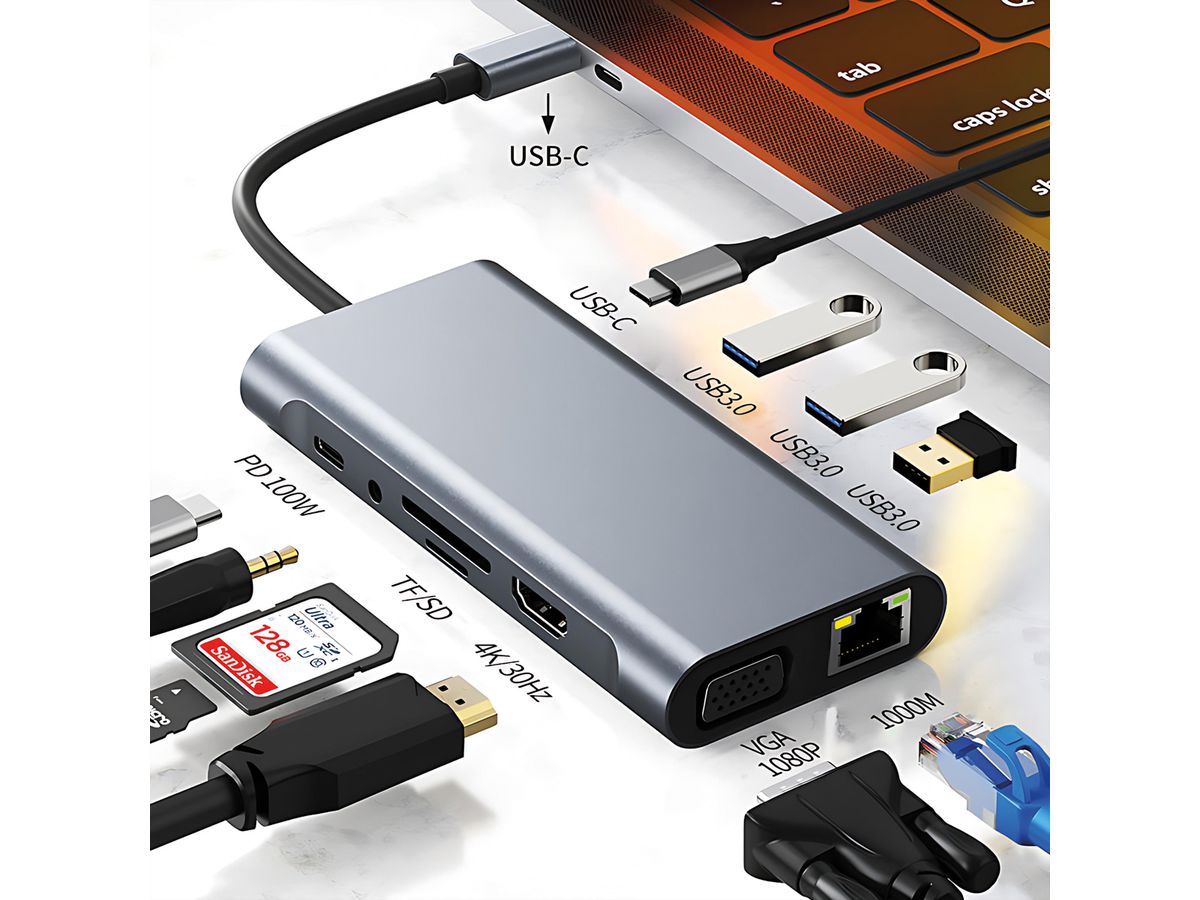

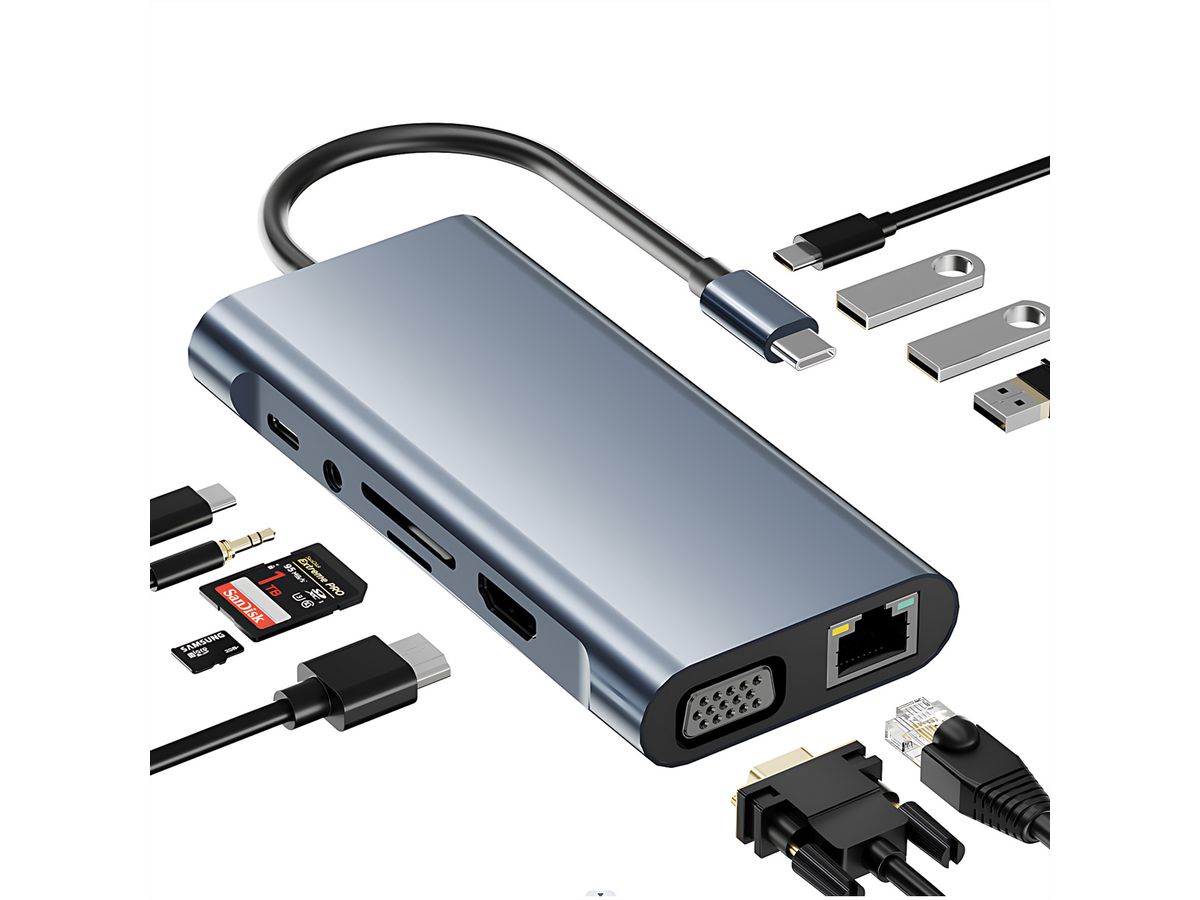

Connect your Macbook, Ultrabook, Notebook/Laptop or PC with USB Type C interface to HDMI (3840x2160@30Hz) or VGA (1080p) displays/monitor or projectors. Also, you can connect USB devices to the additional 4 USB Ports (3x A, 1x C), while charging your device simultaneously over the Type C PD port!

Connect your device with USB Type C port to a HDMI or VGA display/monitor or projector
1x HDMI (3840x2160 @30Hz) and 1x VGA (1920x1080 @60Hz)
1x Gigabit Ethernet (GbE - 1000MBit/s)
3x USB-A 3.2 Gen 1 (5Gbit/s) + 1x USB-C 2.0 (480Mbit/s)
SD/Micro SD (TF) Card Reader (cannot be supported at the same time)
1x 3.5mm Audio Out
USB Type C PD (Power Delivery) up to 100 Watts
No power adapter required

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	Notebook-Docking-Station
Colour	grey
Length	0.1 m
Scope of delivery	Docking Station
Max. resolution	3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC)	USB Type C
Side 2 connection (Peripherals)	1x HDMI 4K30, 1x VGA 1080p, 1x Gigabit Ethernet, 3x USB 3.2 Gen1 (A), 1x USB 2.0 (C), 1x SD/MicroSD (TF), 1x Audio Out, 1x Type C PD (Power Delivery)
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A HD D-Sub 15-pin (HD-15), VGA USB 3 Type A USB Type C (USB-C) USB Type C PD (Power Delivery) RJ-45 SD-Card-Slot MicroSD-Card-Slot
Side 2 Connector Gender	Female
Area of application	External
Dimensions (HxWxD)	17 x 56 x 119 mm
Technical particularity	Power Delivery Function (100W)
Height	17 mm
Width	56 mm
Depth	119 mm
Weight	91 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	120 mm
Depth of packaging (single piece)	170 mm
Package weight (single piece)	0.1 kg

Downloads

Product data sheet - English (65.3 KB)

Download
