VALUE Gigabit PoE Injector

Item no. 21991498 Brand / Manufacturer VALUE Manuf. item no. 21.99.1498 EAN 7611990148486 Item weight 0.35 kg
VALUE
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The VALUE Gigabit PoE Injector is a so-called PSE, a unit to supply power for e.g. surveillance cameras, and LAN devices such as access points, bridges and routers over Ethernet cable.
A PSE supplies the current together with the data in the network cable. It doesn't need no longer an additional own power supply of the device.
  • Supply of data and power into the network cables

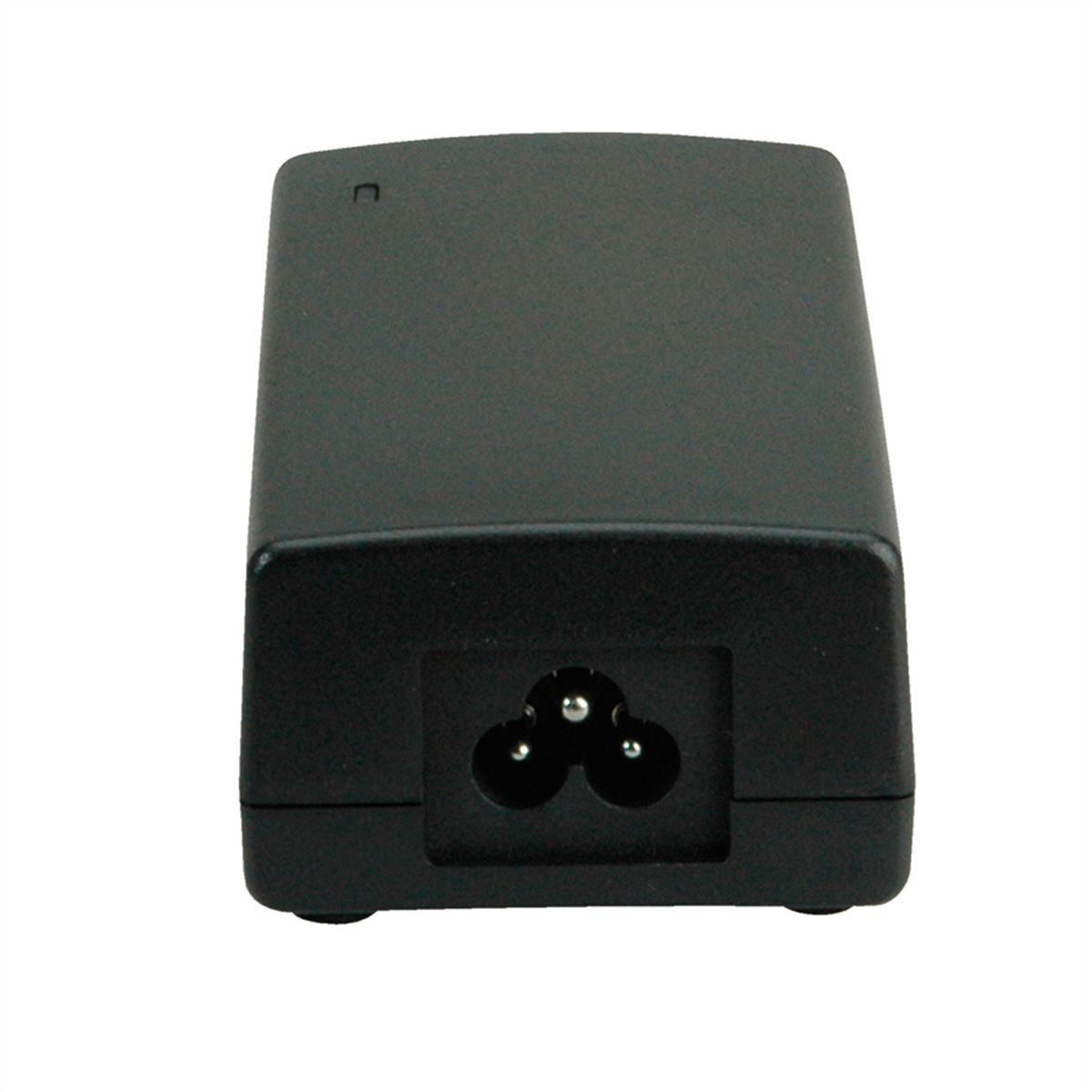

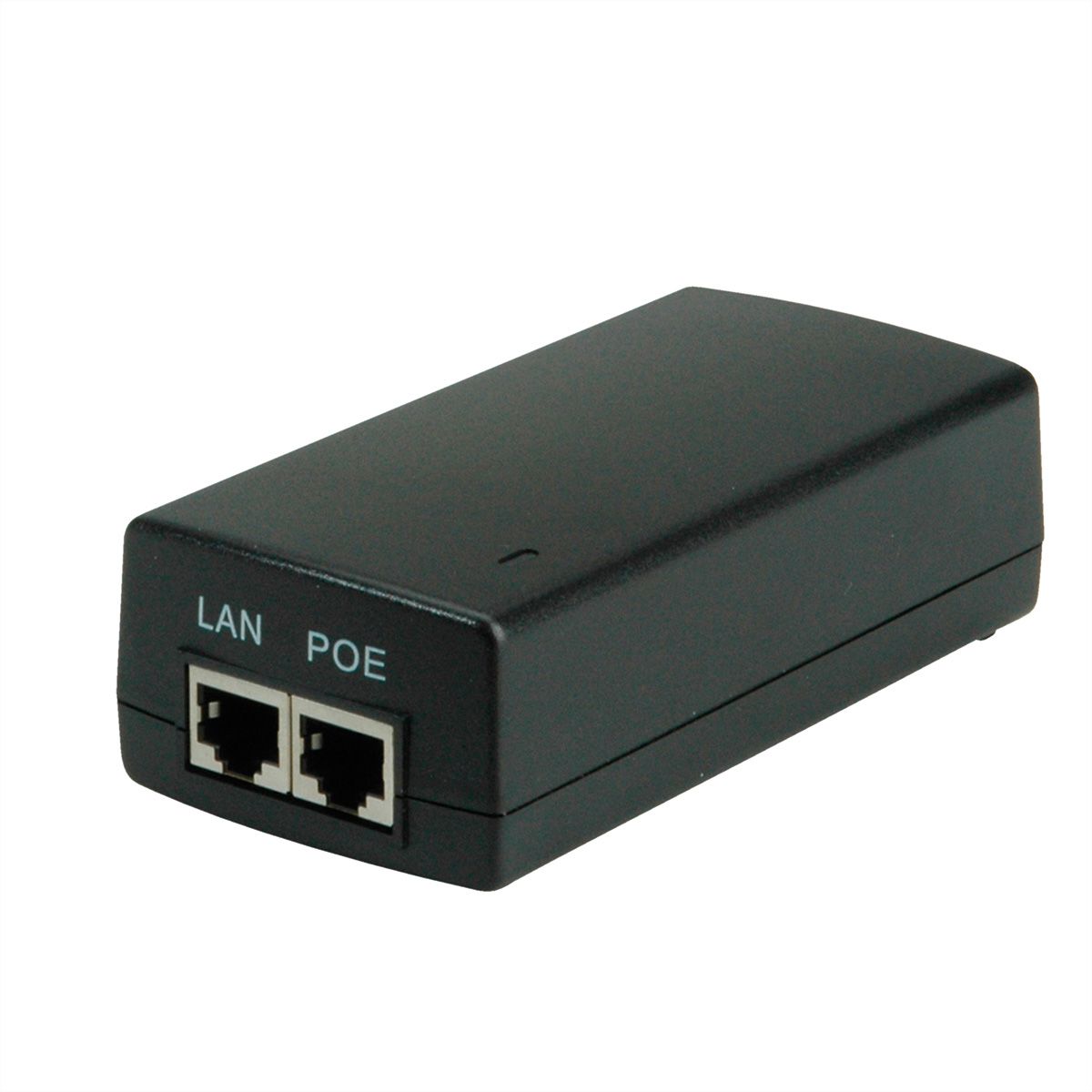

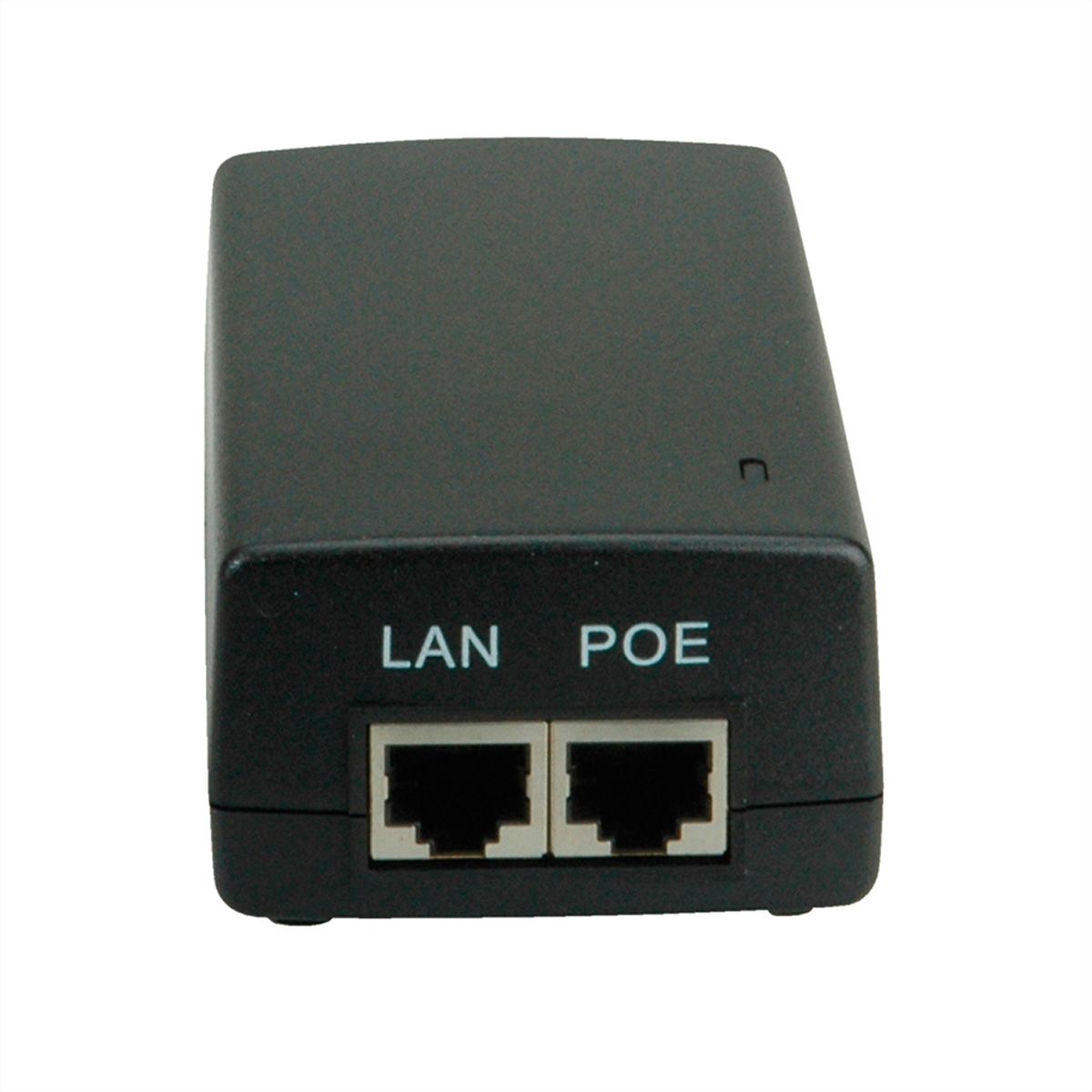

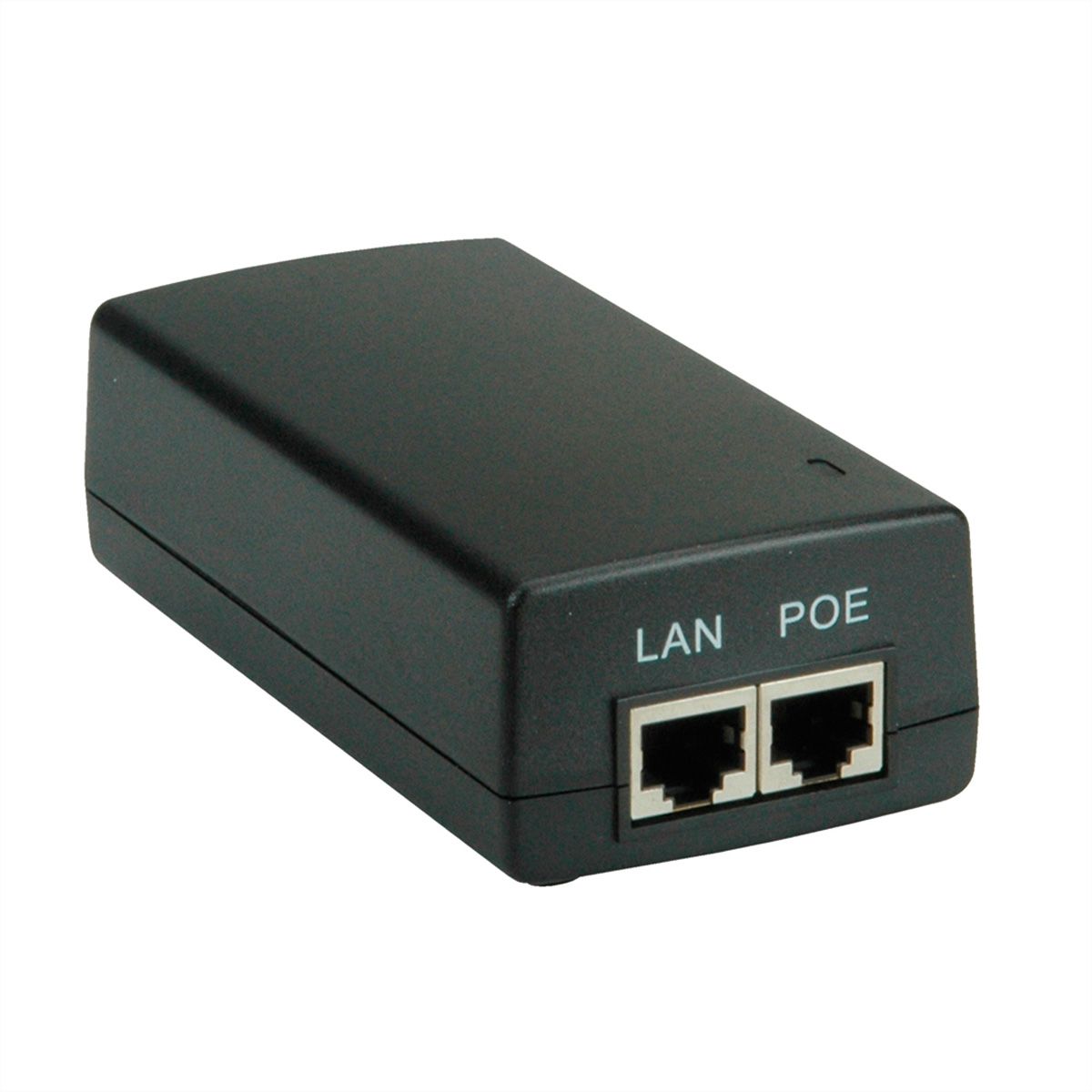

  • Connectors: 1x RJ-45 port (Data In, Data input), 1x IEC power socket (Power In, input power supply), 1x RJ-45 port (Data & Power Out, output data and power)
  • Compatible with 802.3af and 802.3at
  • Power via PoE: up to 30W
  • LED indicators for Power, Link / Act. and PoE
  • Output voltage: 802.3af standard (46V-55V DC)

  • Contents: Injector, manual, power cable (German safety plug to C13 plug)

Specifications

Manufacturer
VALUE
Product group
PoE adapter
Product type
PoE-Injector
Colour
black
Scope of delivery
1x injector, 1x power cable
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Power over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Quantity of PoE ports
1
Max. PoE output power per port
30 W
Max. PoE output power (total)
30 W
Dimensions (HxWxD)
(L x B x H): 165 x 62 x 38,5 mm
Mains connection
Protective contact plug, Type-E/F
Height
38.5 mm
Width
62 mm
Depth
165 mm
Weight
338.6 g
Height of packaging (single piece)
80 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
150 mm
Package weight (single piece)
0.35 kg

Downloads

Product data sheet - English (47.5 KB) Safety instructions - Deutsch (54.2 KB) Safety instructions - English (54.2 KB) Safety instructions - Français (54.2 KB)
