VALUE HDMI Extender over Twisted Pair, 25 m

Item no. 14993460 Brand / Manufacturer VALUE Manuf. item no. 14.99.3460 EAN 7611990179633 Item weight 0.48 kg

VALUE HDMI Extender over Twisted Pair, 25 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

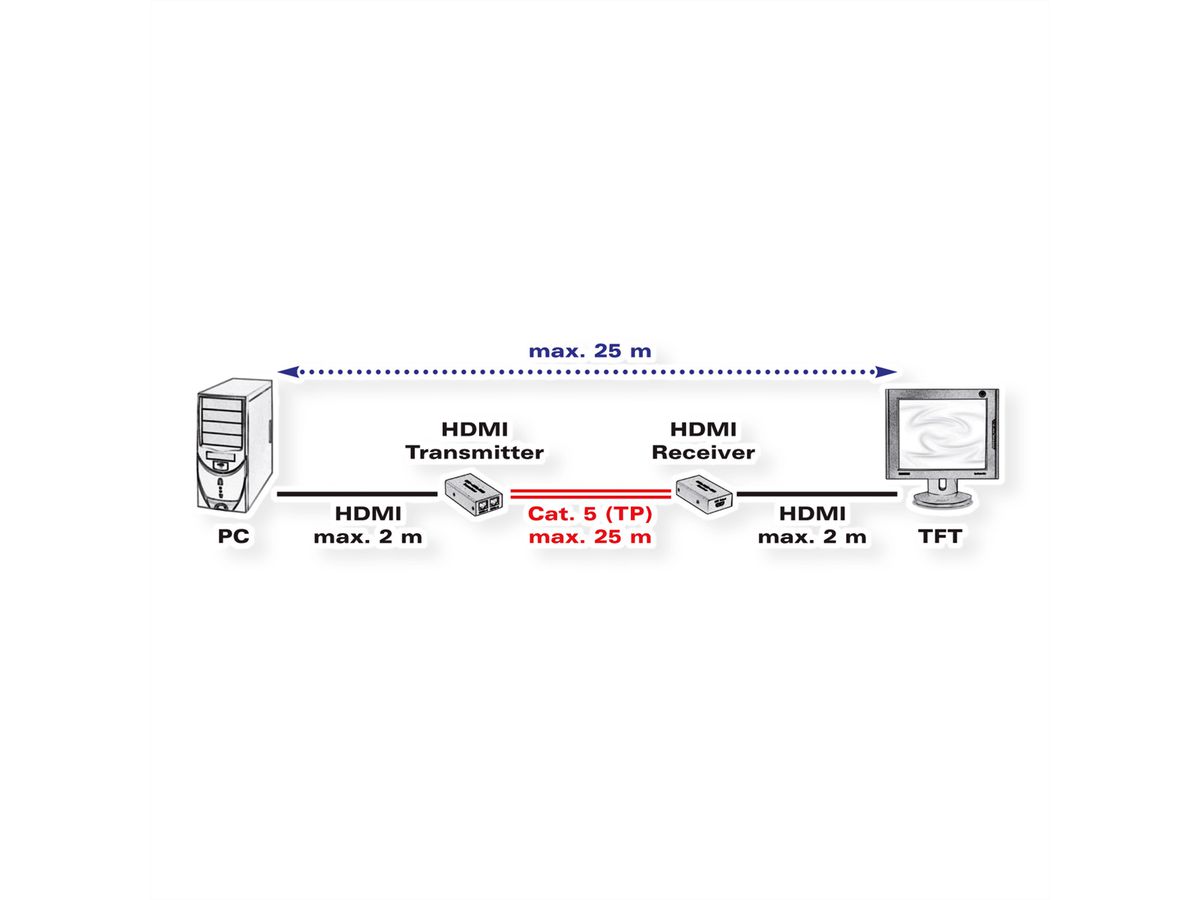

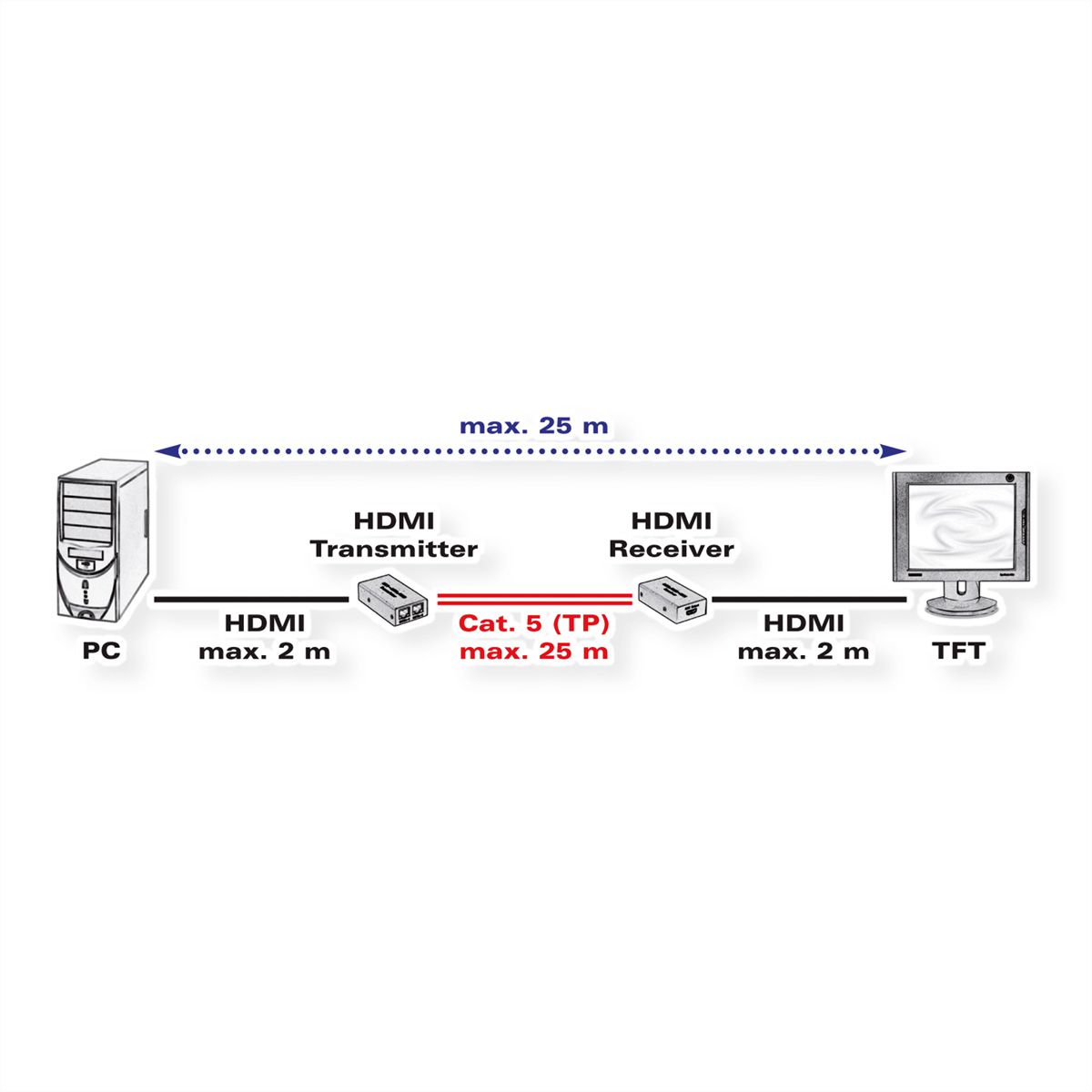

The transmission distance of the HDMI signal can be extended up to 25 meters by using two Cat. 5e/6 cables
Max. resolution (nominal) while using two Cat.5e cables, 25 m: 1080p
HDCP pass-through
Stable metal casing
Power supply included in delivery

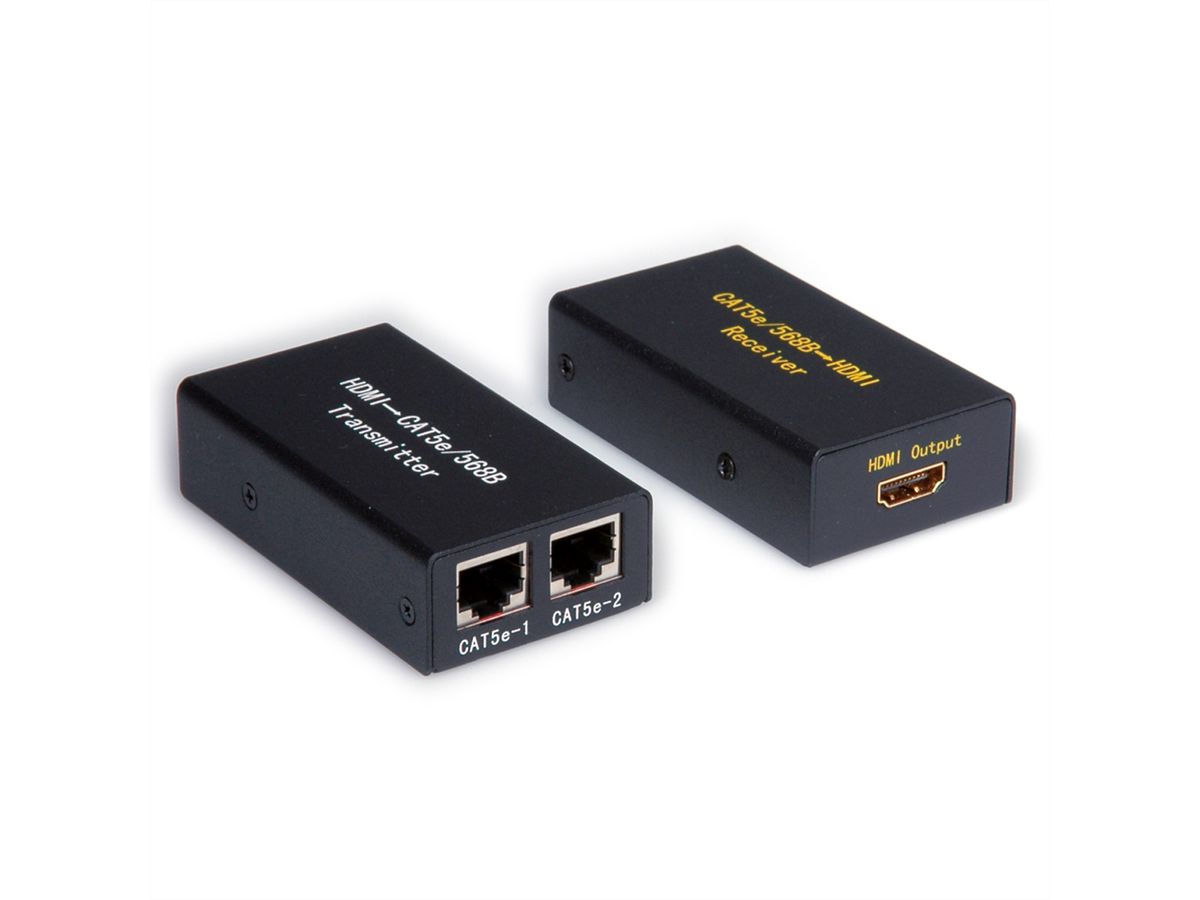

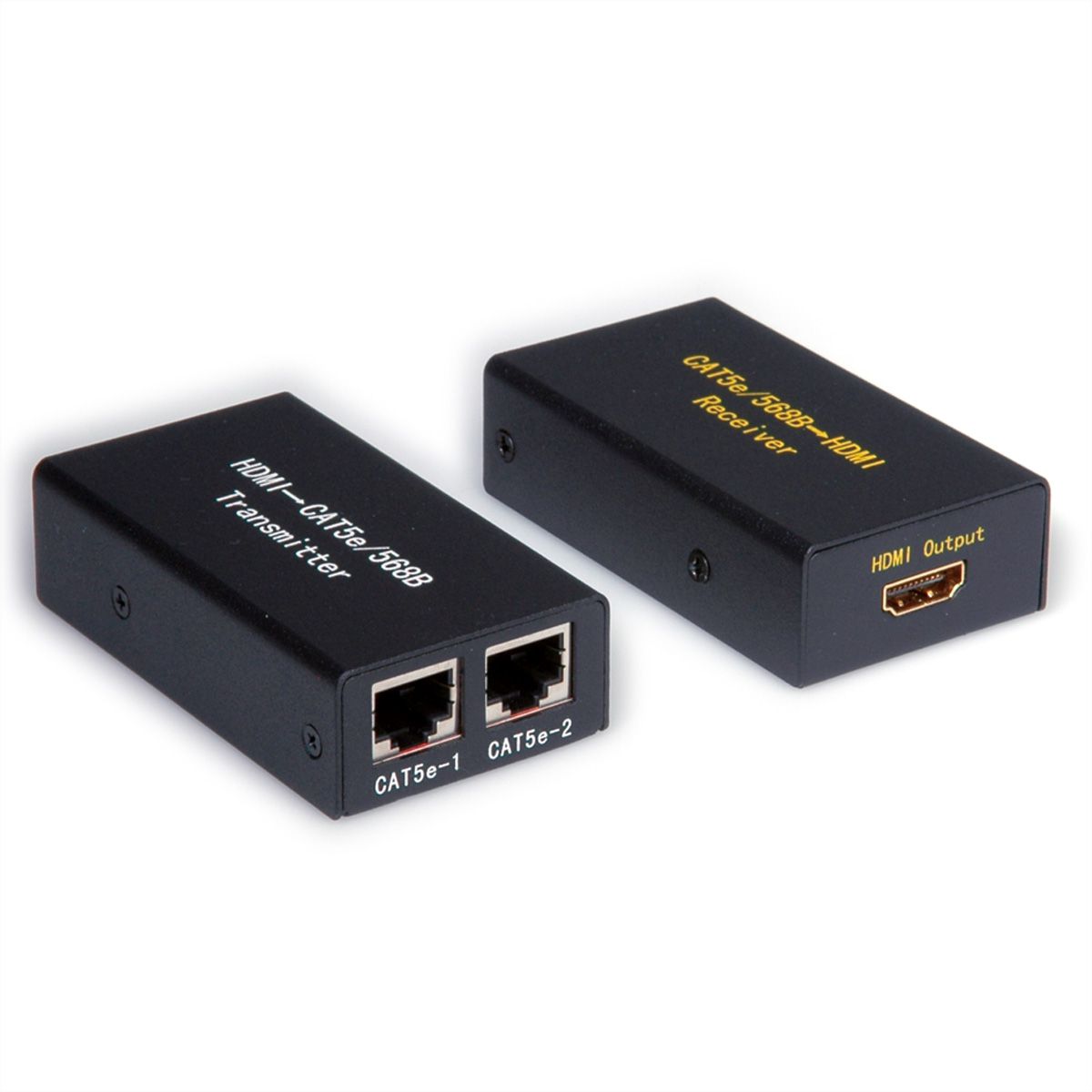

Contents: Transmitter (2x RJ-45 F, HDMI F), Receiver (2x RJ-45, HDMI F), 1x power supply (5V DC, 2A) for receiver, manual

Specifications

Manufacturer: VALUE
Product group: Splitters and selectors
Product type: HDMI Extender
Colour: black
Scope of delivery: Transmitter (2x RJ-45 F, HDMI F), Receiver (2x RJ-45, HDMI F), 1x power supply (5V, 2A) for receiver, manual
Interface: HDMI
Max. distance: 25 m
Video input: HDMI 1.3
Video output: HDMI 1.3
Video band width: up to 2.25 Gbps
Max. resolution (nom.): 1920x1200; 1080p
Max. resolution: 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Dimensions (HxWxD): 20 x 45 x 80 mm
Power supply unit: 1 an Receiver
Power supply output: DC 5V; 2A
Technical particularity: extends the signal up to 30m
Height: 20 mm
Width: 45 mm
Depth: 80 mm
Weight: 246 g
Height of packaging (single piece): 60 mm
Width of packaging (single piece): 110 mm
Depth of packaging (single piece): 180 mm
Package weight (single piece): 0.48 kg
