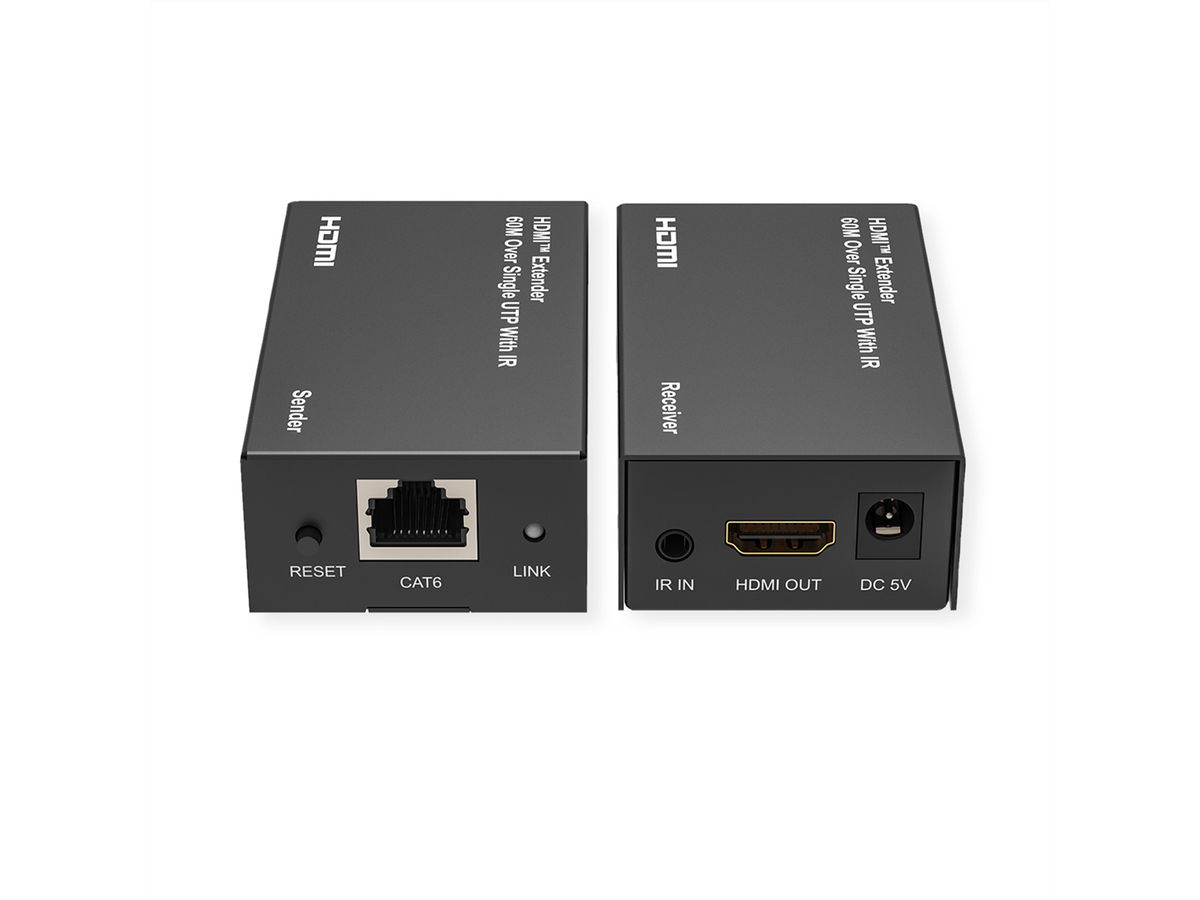

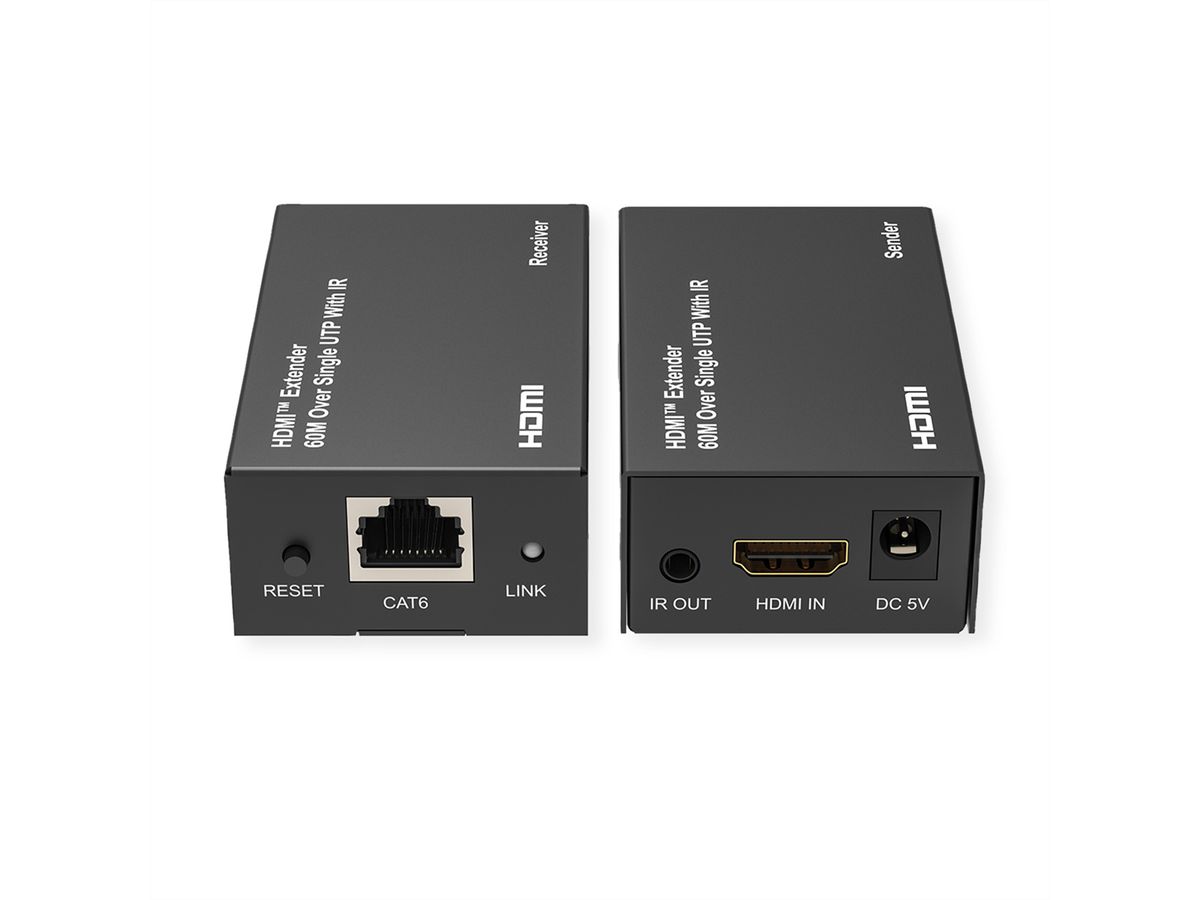

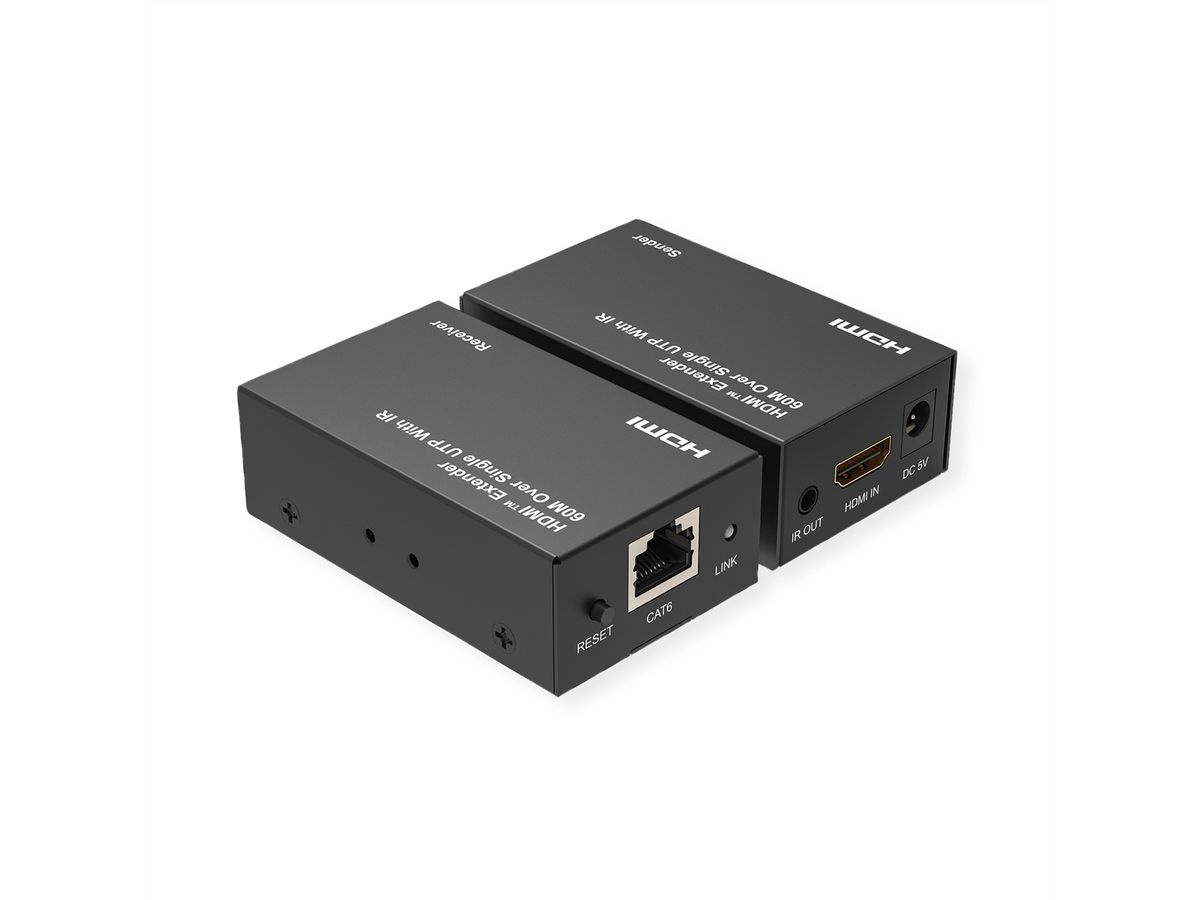

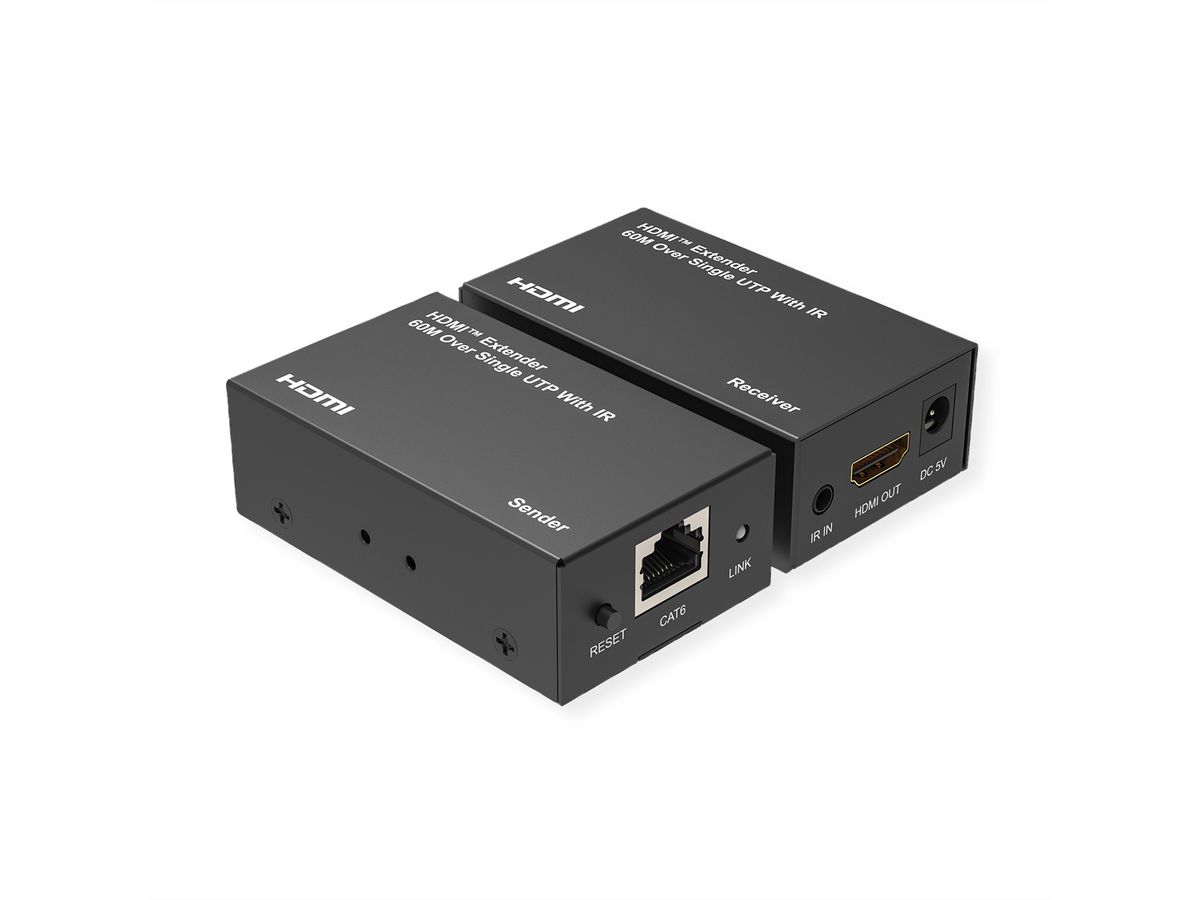

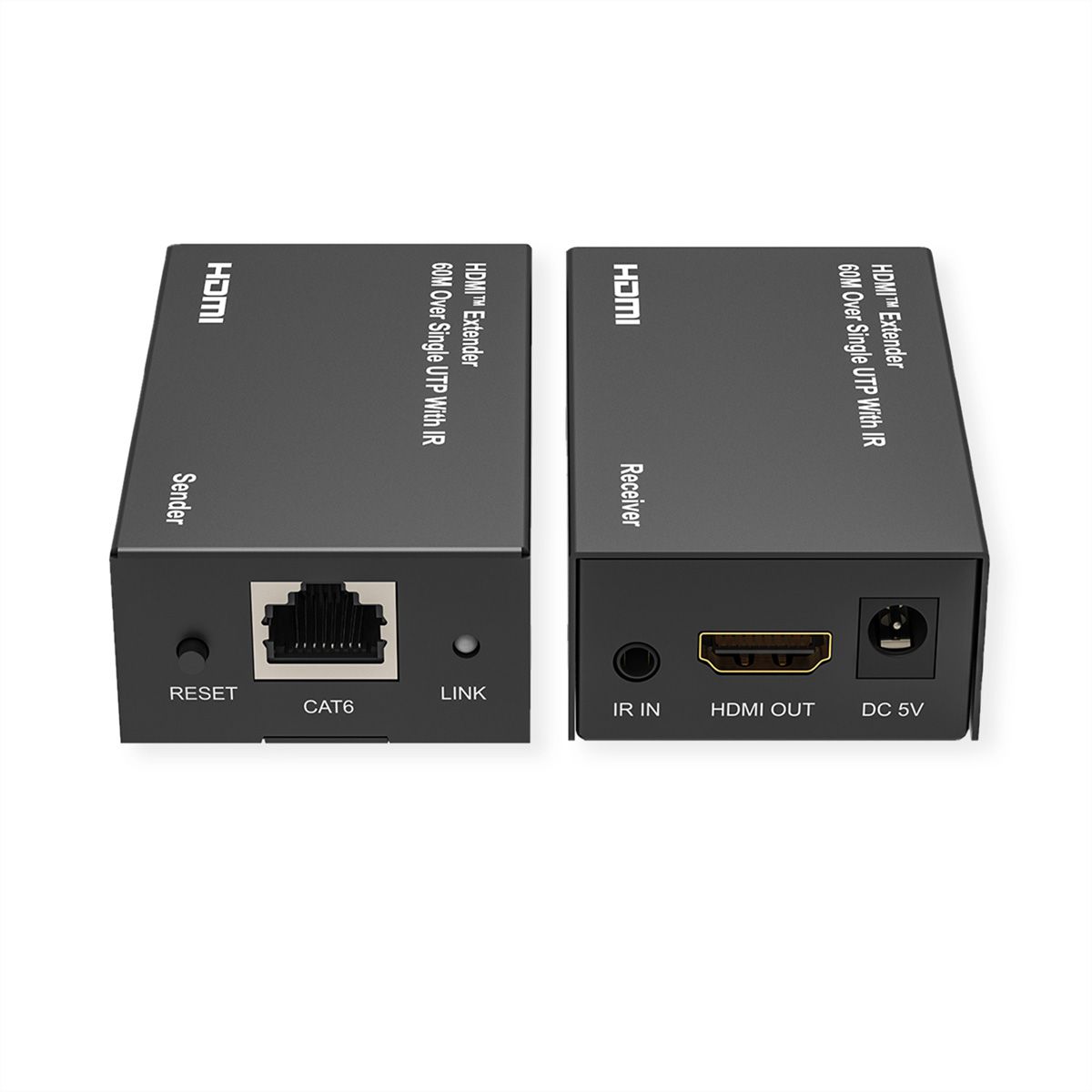

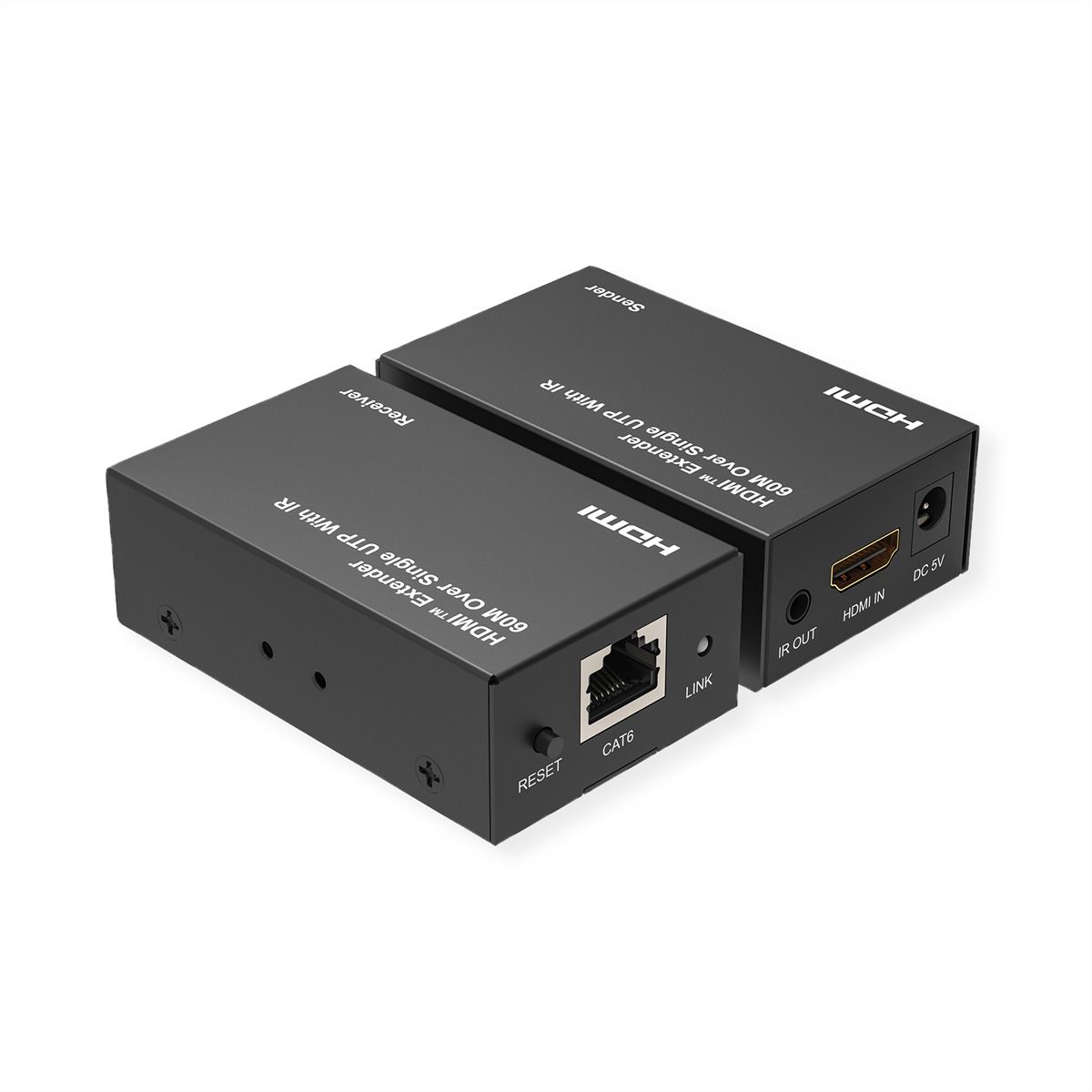

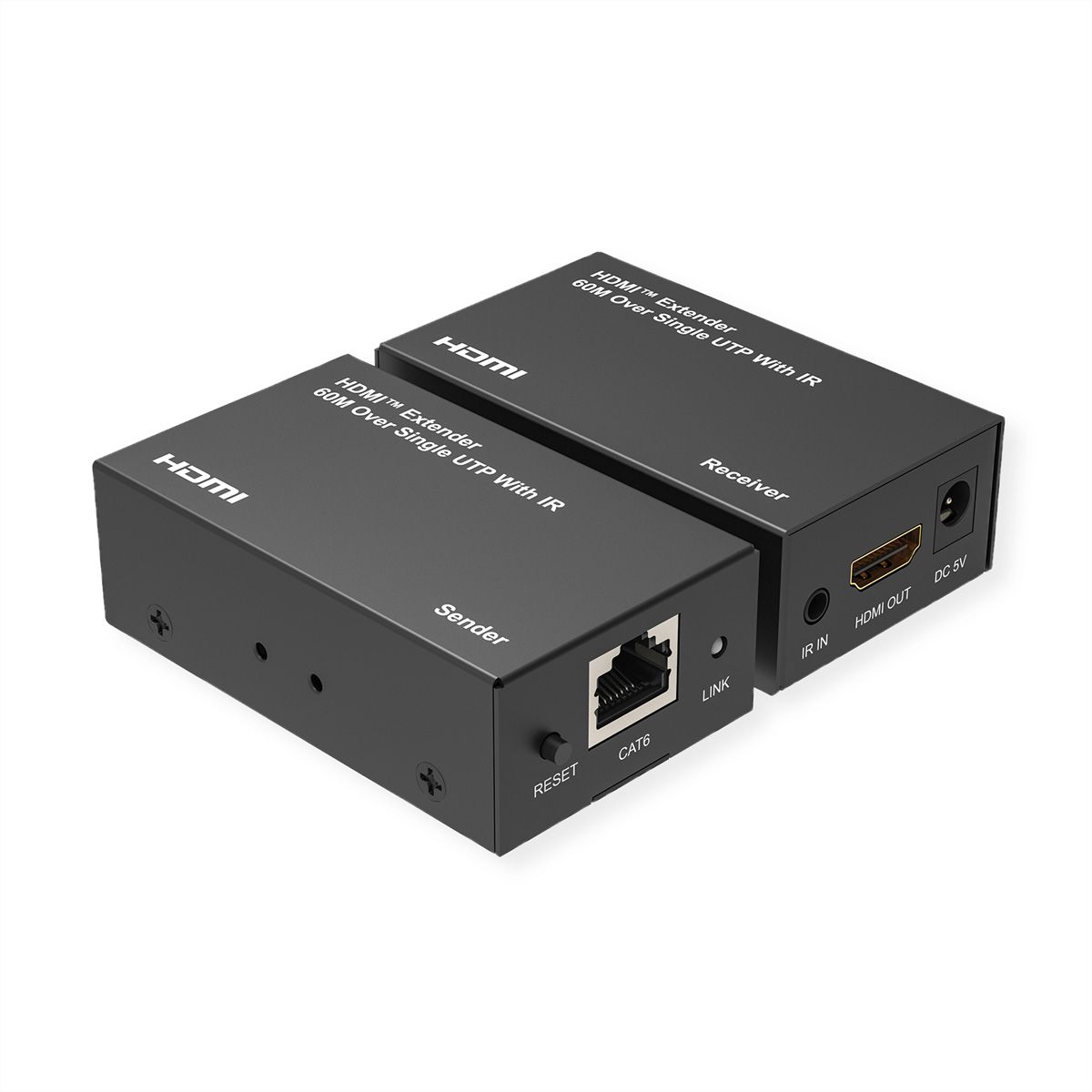

VALUE HDMI Extender over Twisted Pair, 60m
Item no.
14993569
Brand / Manufacturer
VALUE
Manuf. item no.
14.99.3569
EAN
7630049633407
Item weight
0.65 kg
:strip_icc():strip_exif()/logos/value.png "VALUE")
:strip_icc():strip_exif()/bilder/icons/icon_resolution_2k.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_1080p_fhd.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_3d.png){kind=icon}
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

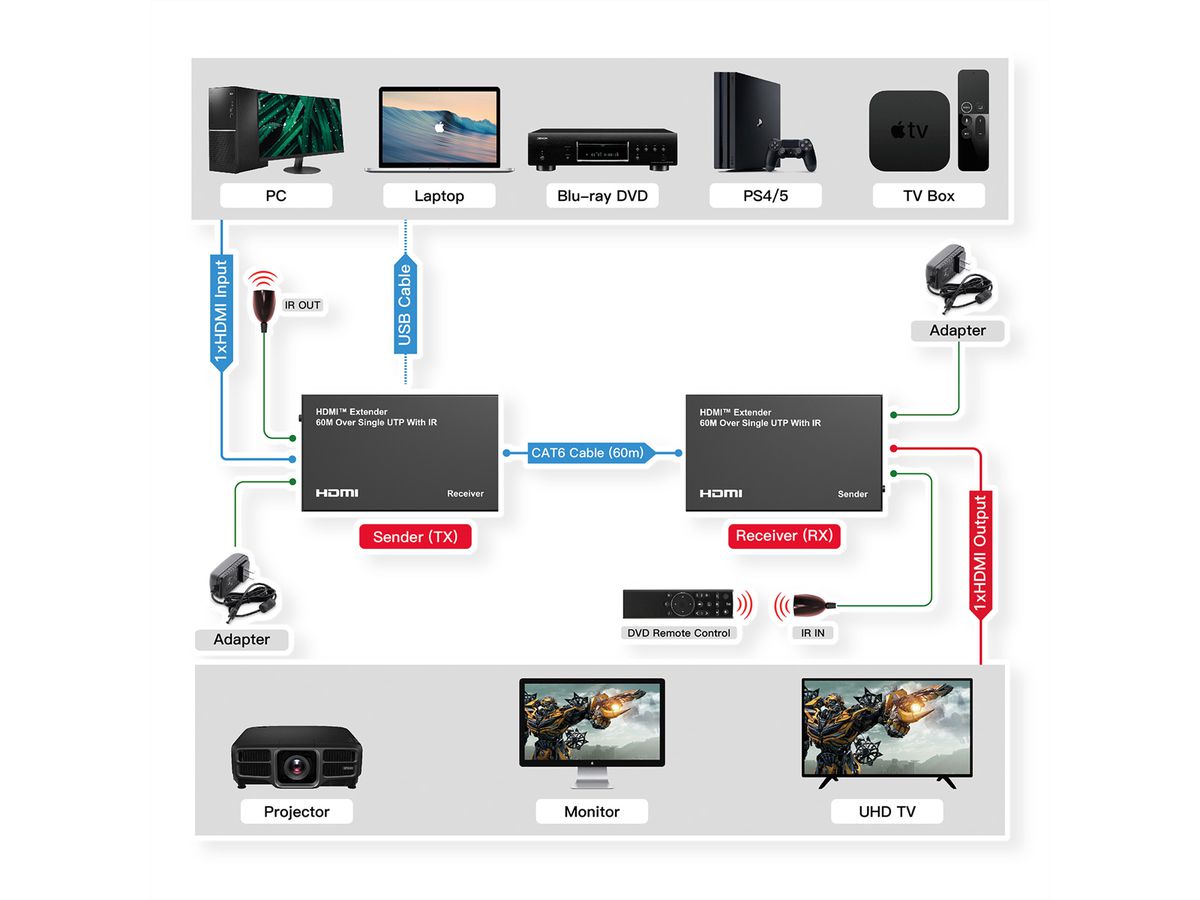

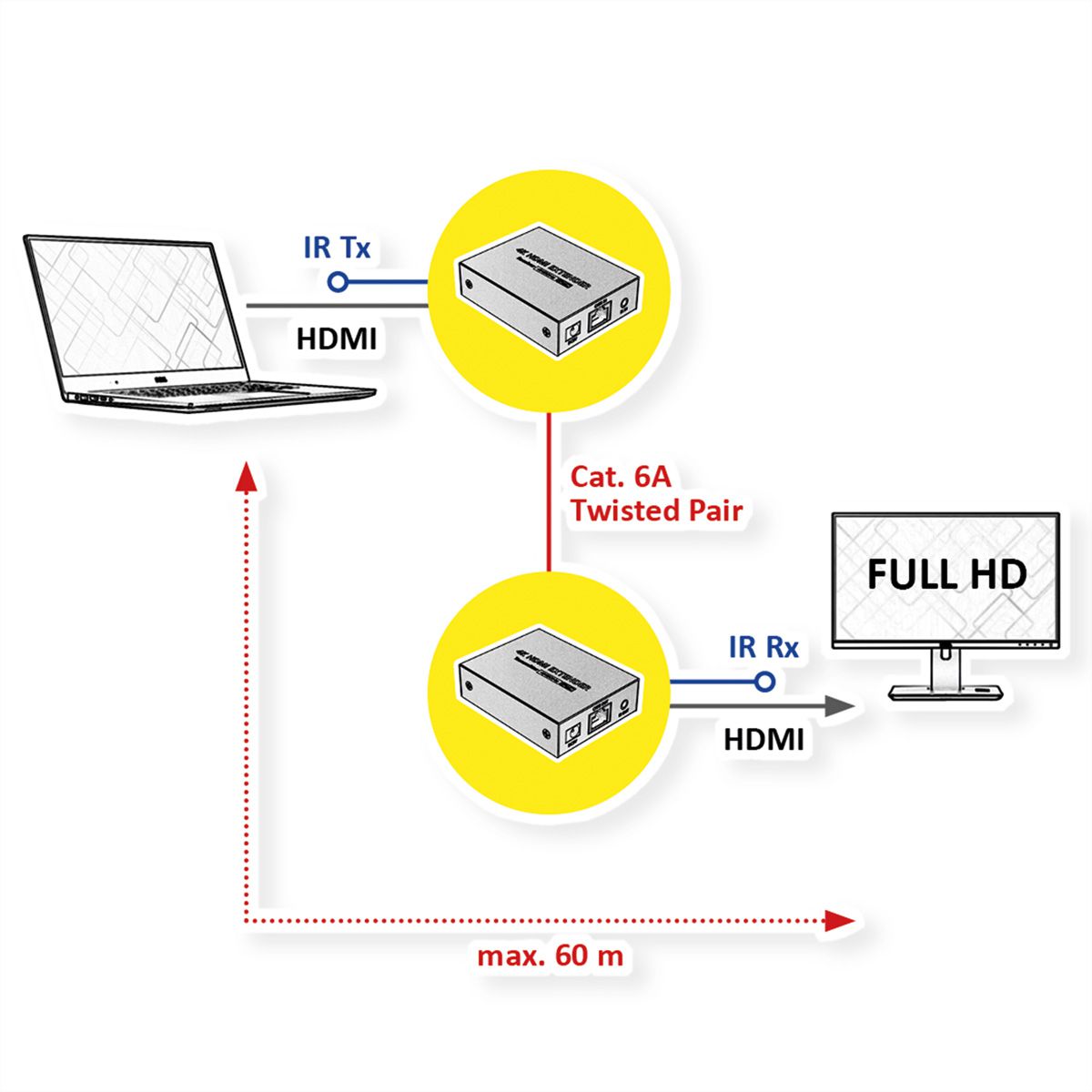

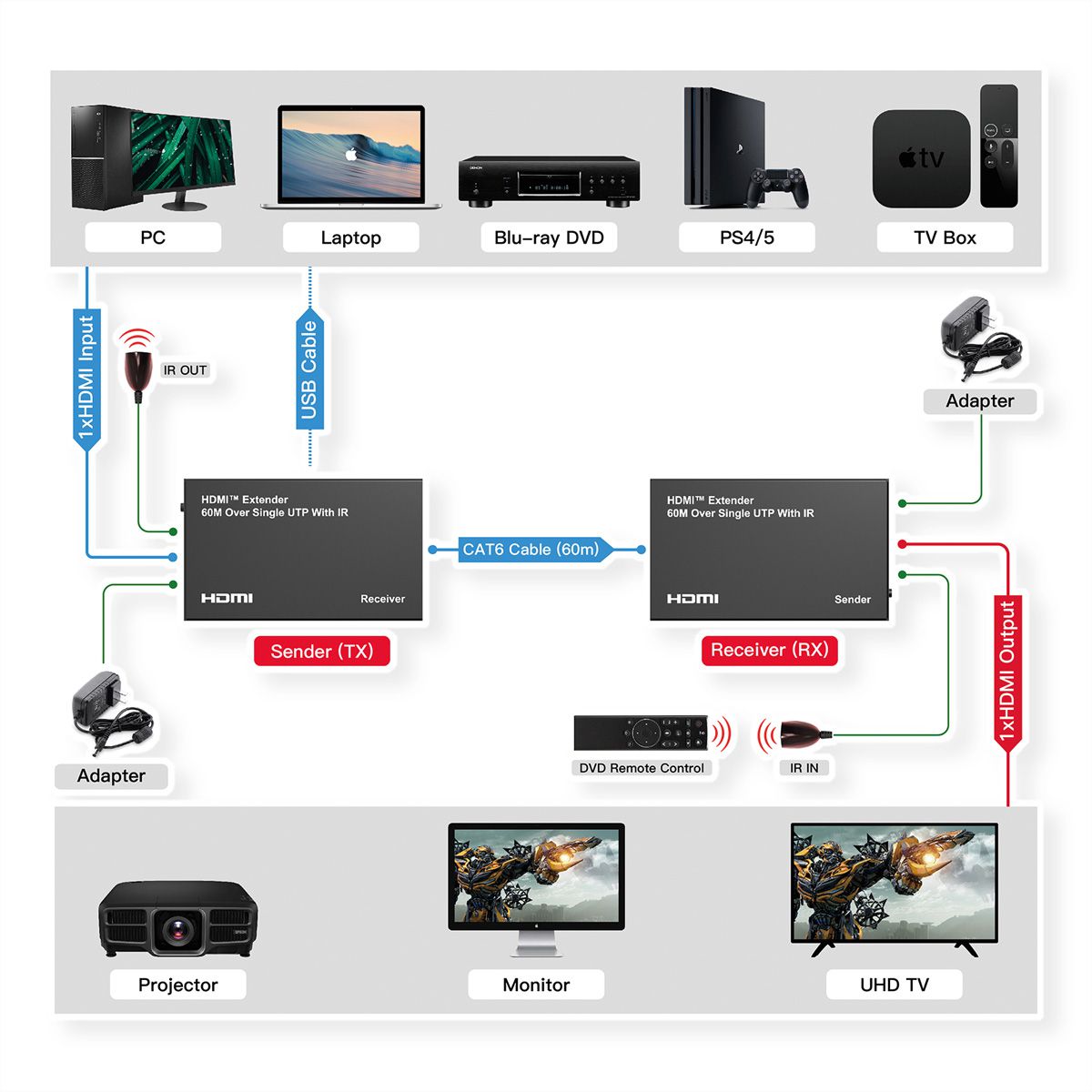

With this VALUE HDMI Extender Kit, you can extend HDMI Audio/Video signals up to 60 meters over a single CAT6 cable with a Full HD 1920 x 1080 @60Hz resolution. The Extender Kit includes both the local transmitter and the remote receiver and is perfect for point-to-point digital signage applications that require high HDMI video quality. The extender can also transmit signals from remote controls - ideal for controlling your video source from your video destination.

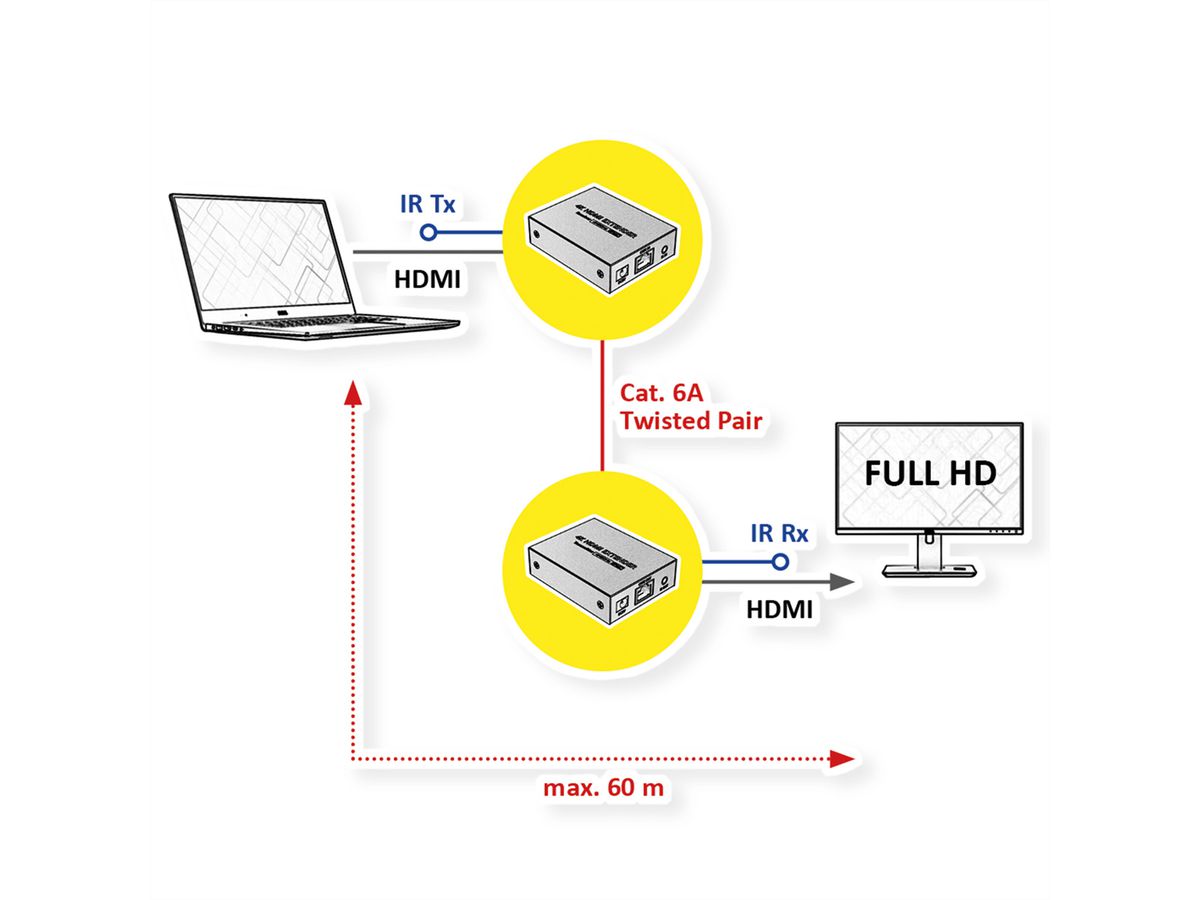

- Transmission distance up to 60 meters by using a Cat 6 cable or higher
- Max. resolution Full HD 1920 x 1080 @60Hz
- Supports transmitting lossless uncompressed A/V signal
- IR signal transmission for convenient remote control of the source device
- Supports 3D video format
- Stable metal casing
- Power supply included in delivery
- Receiver is powered via the transmitter
- Weight: Transmitter / Receiver (each) 117 g

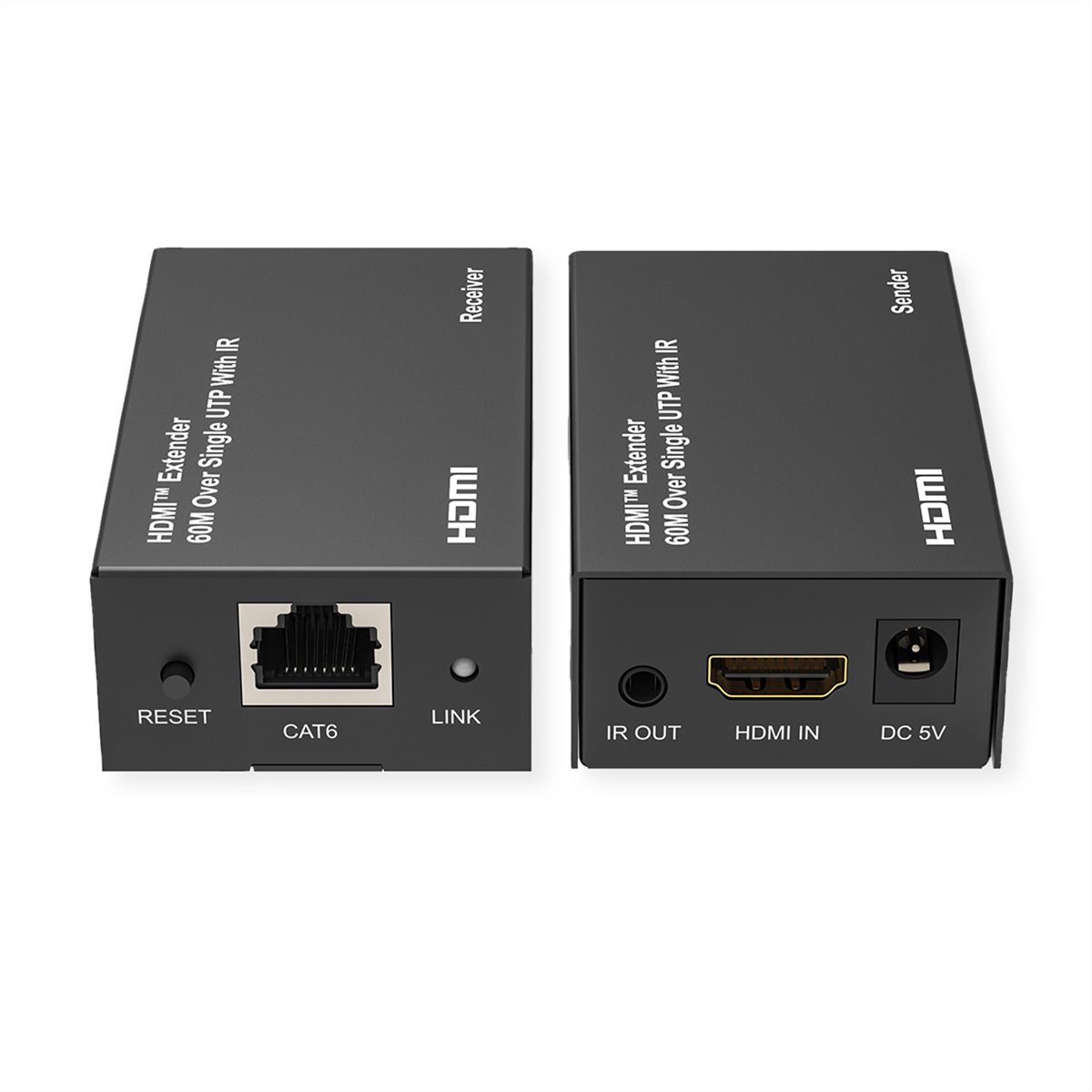

- Contents: 1x Transmitter, 1x Receiver, 1x Power Supply DC 5V 1A, 1x IR TX Cable, 1x IR RX Cable, 4x Mounting Ears, 1x User Manual
Specifications
- Manufacturer
- VALUE
- Product group
- Video Extender
- Product type
- HDMI Extender
- Colour
- black
- Scope of delivery
- 1x Transmitter, 1x Receiver, 1x Power Supply DC 5V 1A, 1x IR TX Cable, 1x IR RX Cable, 4x Mounting Ears, 1x User Manual
- Interface
- HDMI
- Inputs
- 1
- Outputs
- 1
- Max. distance
- 60 m
- Video input
- HDMI
- Video output
- HDMI
- Video band width
- tot 2,25 Gbps
- Max. resolution (nom.)
- Supports 1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
- Max. resolution
- 1920 x 1080 @60Hz (2K, Full HD)
- Dimensions (HxWxD)
- 26 x 48 x 84 mm
- Power supply output
- DC 5V 1A
- Technical particularity
- Extends the signal up to 60m
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 70 °C
- Storage temperature min.
- -10 °C
- Storage temperature max.
- 80 °C
- Height
- 26 mm
- Width
- 48 mm
- Depth
- 84 mm
- Weight
- 234 g
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 190 mm
- Depth of packaging (single piece)
- 210 mm
- Package weight (single piece)
- 0.65 kg
- Power supply unit
- 1x
