Item no.:14013579Herst.-Art.-Nr.:14.01.3579

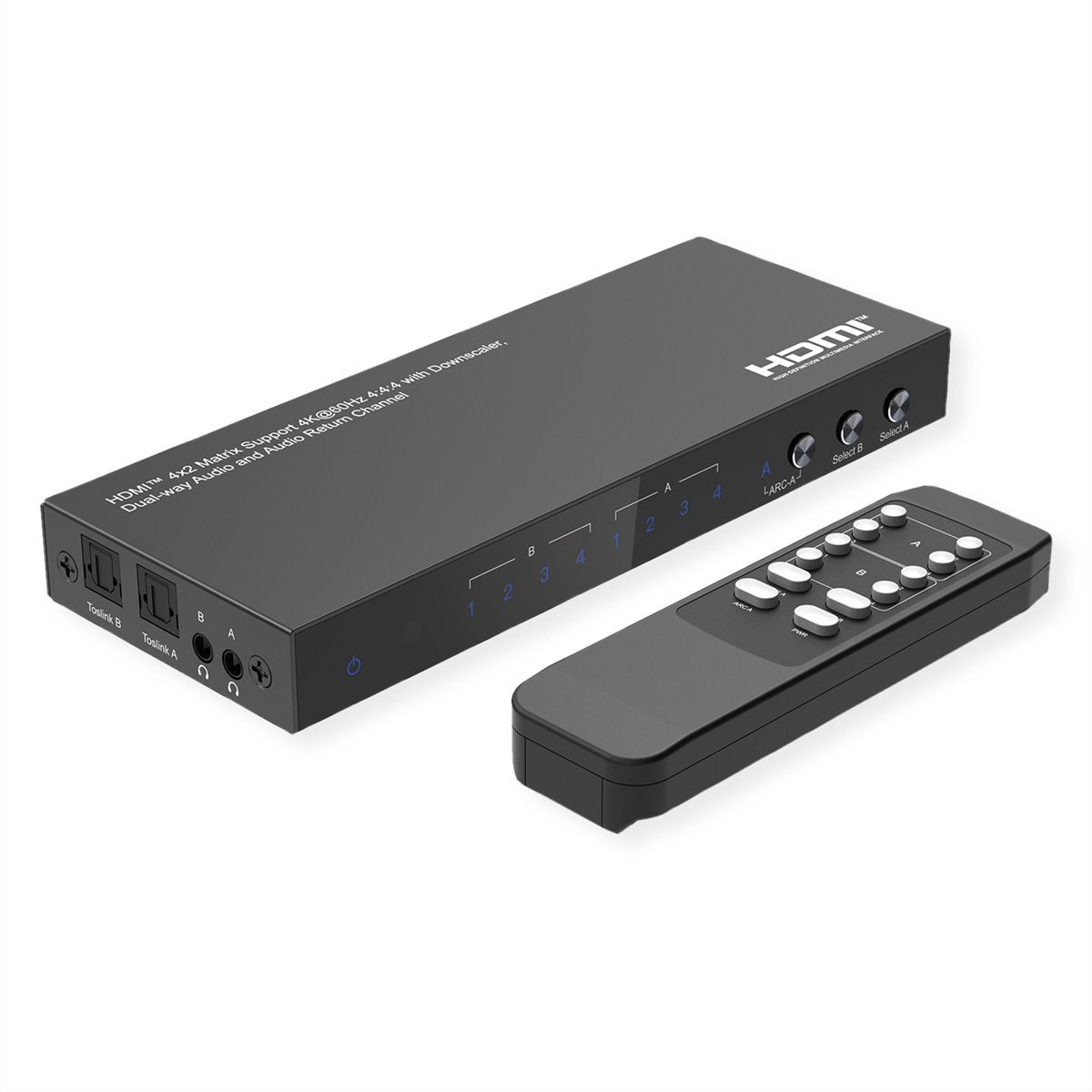

VALUE HDMI Matrix, 4x2, 4K60Hz, with Remote Control
Item no.
14993591
Brand / Manufacturer
VALUE
Manuf. item no.
14.99.3591
EAN
7630049633346
Item weight
0.65 kg
:strip_icc():strip_exif()/logos/value.png "VALUE")
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_2160p_uhd1.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_4k.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_3d.png){kind=icon}
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description

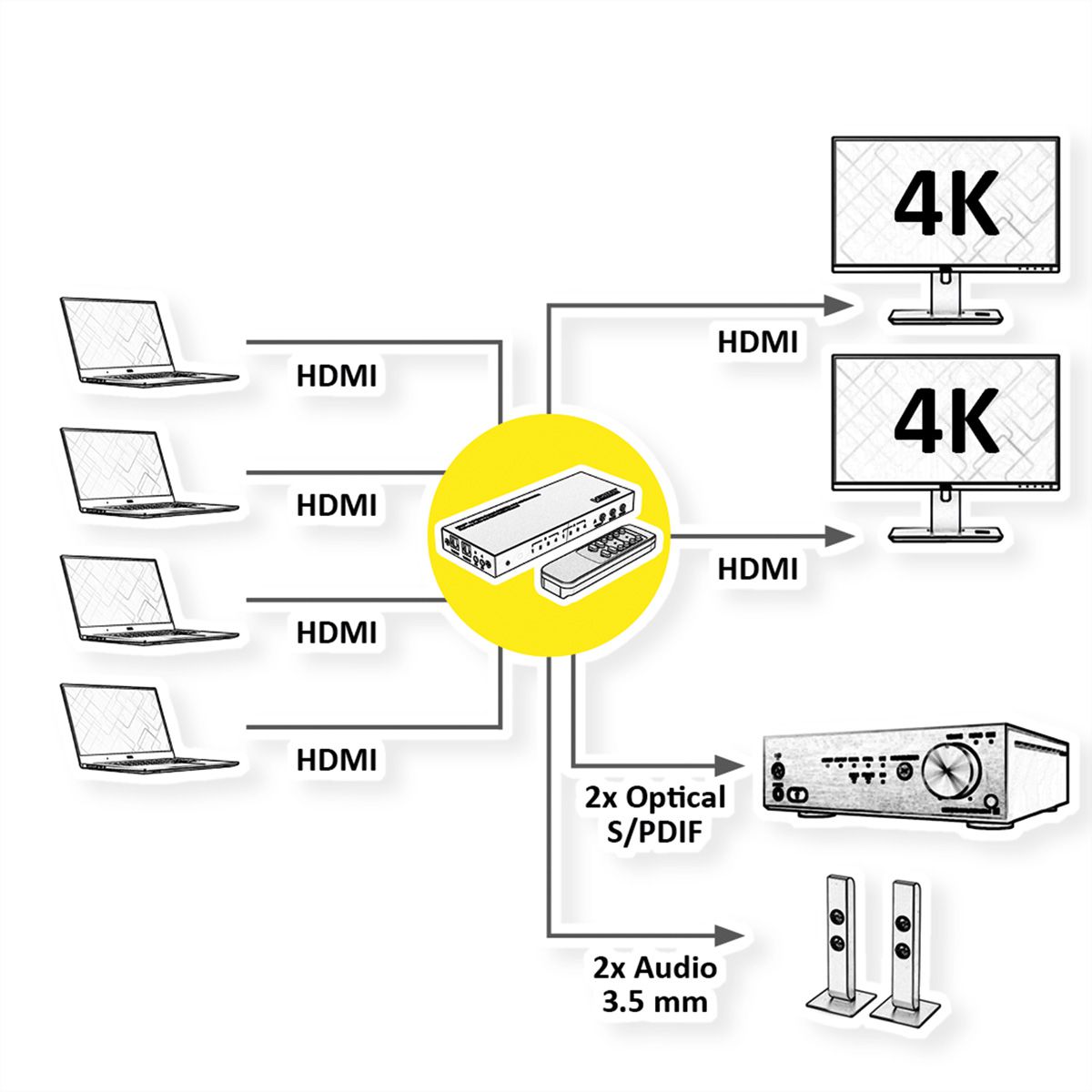

This VALUE Matrix lets you use up to 4 different HDMI inputs (PC, notebook, etc.) on 2 different displays (monitors, projectors, etc.) with a resolution of up to 4K60Hz. The matrix has an LED light on the front for easy status monitoring and wireless IR control for convenient control from a distance. Ideal for connecting and switching multiple sources in data centers, help desks, video broadcast facilities as well as for digital signage applications in retail environments.
- Four HDMI input signals can be switched to two HDMI output devices
- Audio outputs: 2x Toslink/SPDIF, 2x Stereo
- Max. resolution of 4K@60Hz
- HDCP 2.2 and HDCP 1.4
- EDID control (management) function
- Compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio and Dolby TrueHD)
- Input devices can be switched by IR remote control or by push buttons on the switch
- Dual-way audio extraction for both output A and output B
- Audio Return Channel (ARC) for output A
- Downscale function: means the matrix can downscale the input 4K resolution to 1080p for FHD (1080p) displays and 4K resolution for 4K displays in the 1x4 splitter mode simultaneously.
- Contents: HDMI Matrix, USB A Power Adapter, USB Power Cable A - C, Remote Control, User Manual
Specifications
- Manufacturer
- VALUE
- Product group
- Splitters and selectors
- Product type
- HDMI-Matrix-Switch 4K
- Colour
- black
- Scope of delivery
- HDMI Matrix, USB A Power Adapter, USB Power Cable A - C, Remote Control, User Manual
- Interface
- HDMI
- Inputs
- 4
- Outputs
- 2
- Video input
- 4x HDMI Female
- Video output
- 2x HDMI Female
- Audio output
- 2x Toslink/SPDIF, 2x Stereo
- Video band width
- 600 MHz
- Max. resolution (nom.)
- 3840x2160@30Hz (4K2K)
- Max. resolution
- 3840 x 2160 @60Hz (4K, UHD-1)
- Dimensions (HxWxD)
- 20 x 171 x 61 mm
- Power supply output
- 5V DC, 2A
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 70 °C
- Height
- 20 mm
- Width
- 171 mm
- Depth
- 61 mm
- Weight
- 245 g
- Height of packaging (single piece)
- 70 mm
- Width of packaging (single piece)
- 200 mm
- Depth of packaging (single piece)
- 240 mm
- Package weight (single piece)
- 0.65 kg
- Technical particularity
- Switching by push button or by IR remote control
