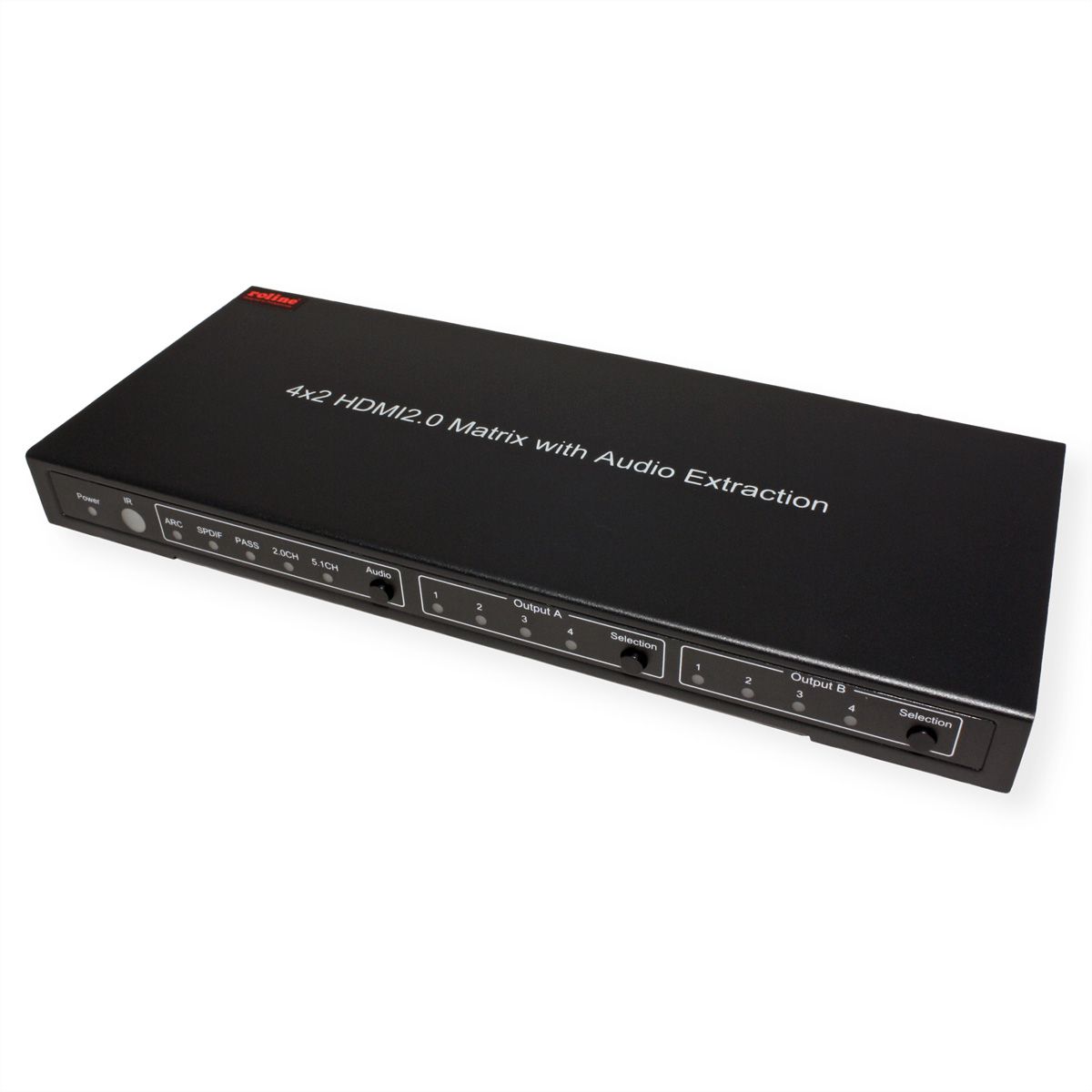

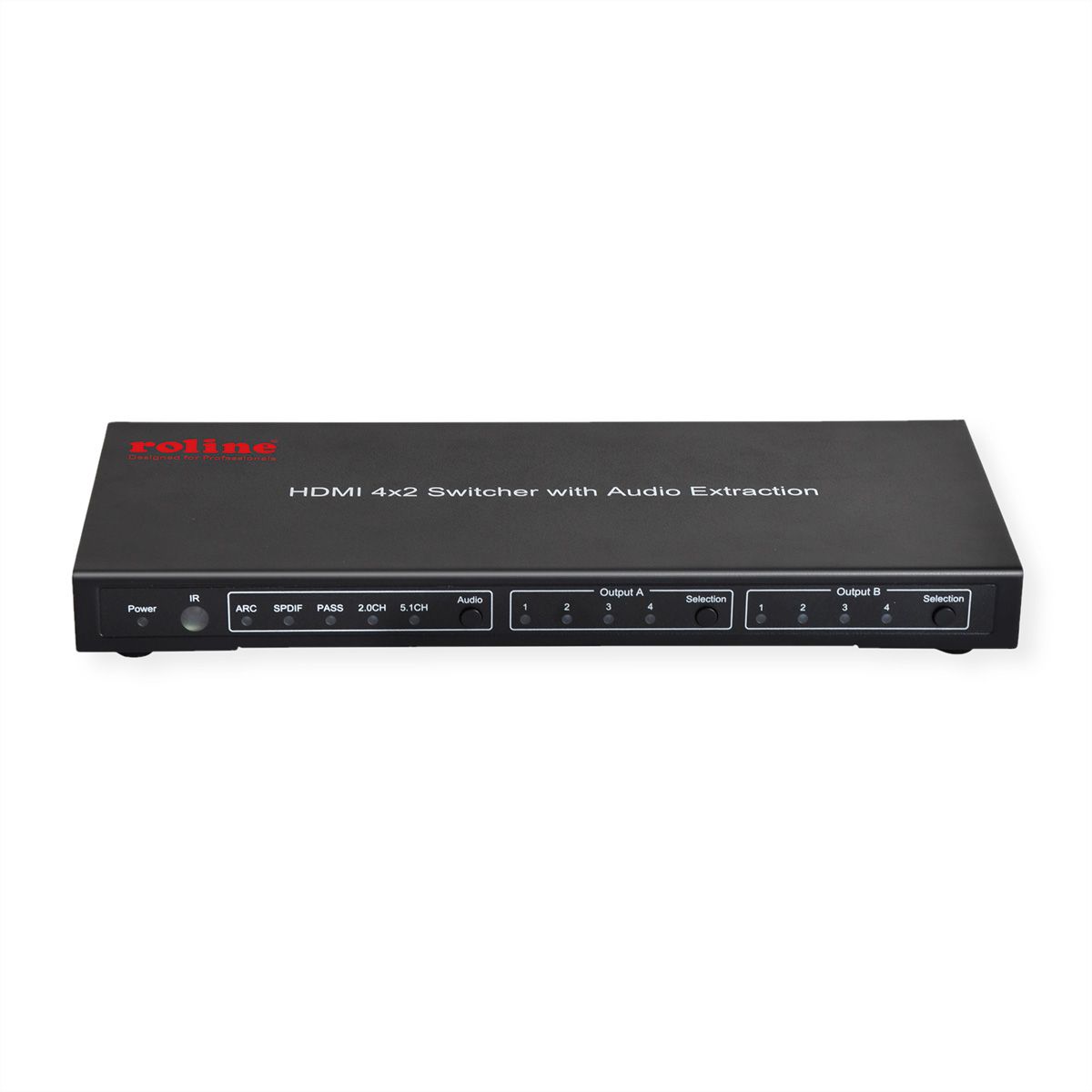

ROLINE 4K HDMI Matrix Switch, 4 x 2, with Remote Control
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 14013579 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 14.01.3579 |
| EAN | 7630049617537 |
| Item weight | 1.011 kg |
:strip_icc():strip_exif()/bilder/icons/icon_hdmi_2160p_uhd1.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_resolution_4k.png){kind=icon}
:strip_icc():strip_exif()/bilder/icons/icon_3d.png){kind=icon}
|
|
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description

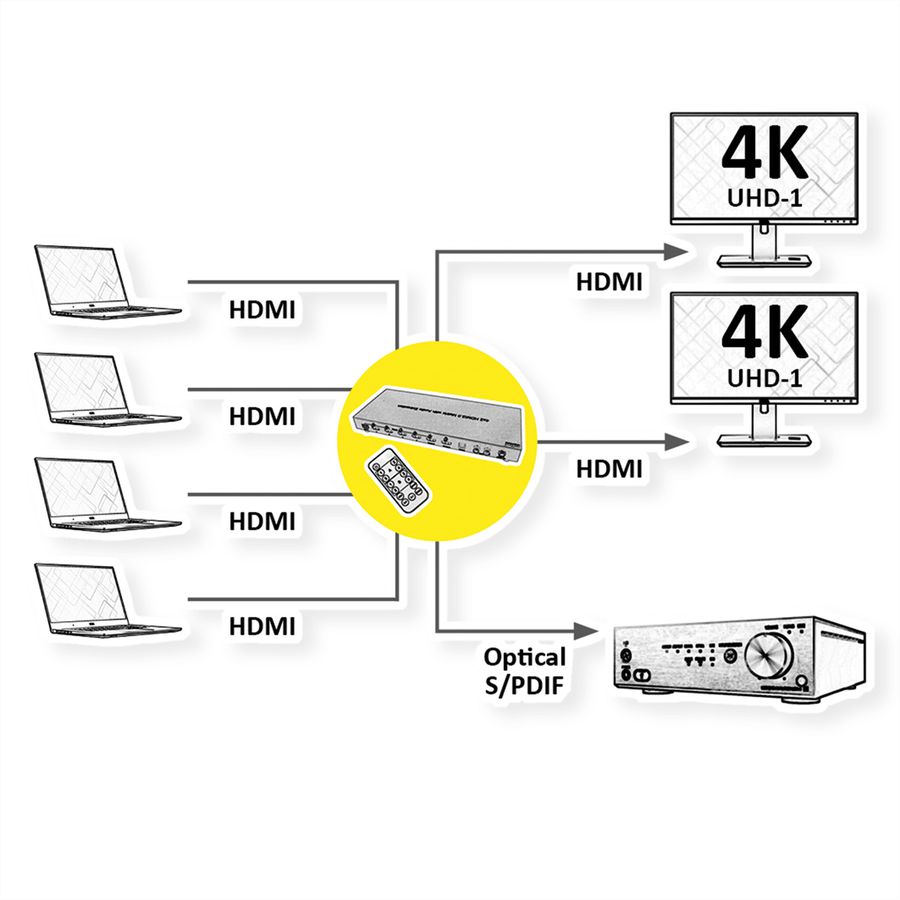

- Four HDMI High Speed input signals can be switched to two HDMI High Speed output devices
- Outputs: 1x Toslink/SPDIF, 1x Stereo RCA
- Supports Ultra HD 4K@60Hz
- Max. resolution (nominal): 3840 x 2160 @60Hz
- Supports 480i, 480p, 720i, 720p,1080i and 1080p
- HDCP compatible
- Supports Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc.
- Supported digital audio formats: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-Digital

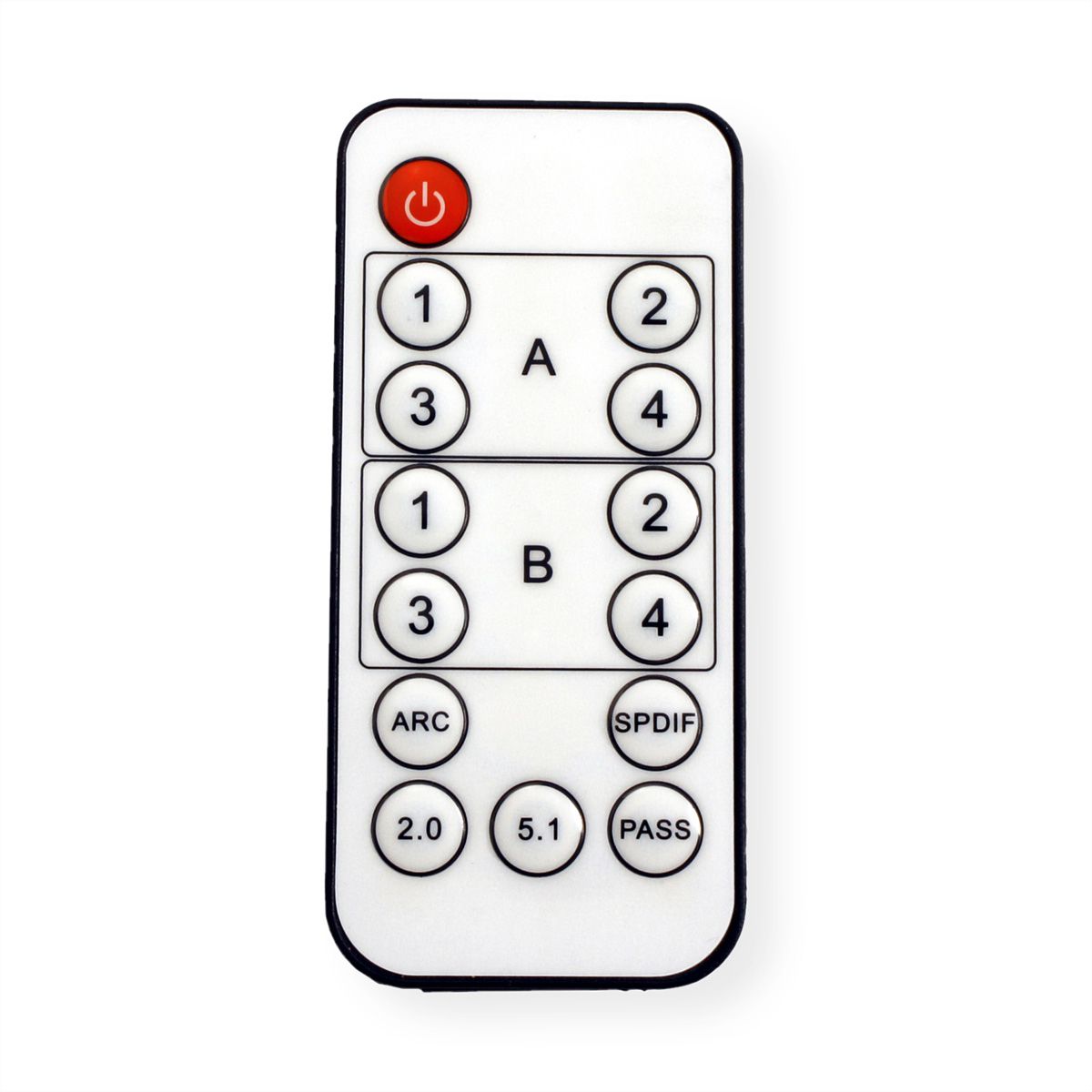

- Input devices can be switched by IR remote control or by push buttons on the switch
- Contents: Switch, power supply, remote control, manual
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Splitters and selectors |
| Product type | HDMI-Matrix-Switch 4K |
| Colour | black |
| Scope of delivery | HDMI Matrix Switch, power supply, remote control, QIG |
| Interface | HDMI |
| Inputs | 4 |
| Outputs | 2 |

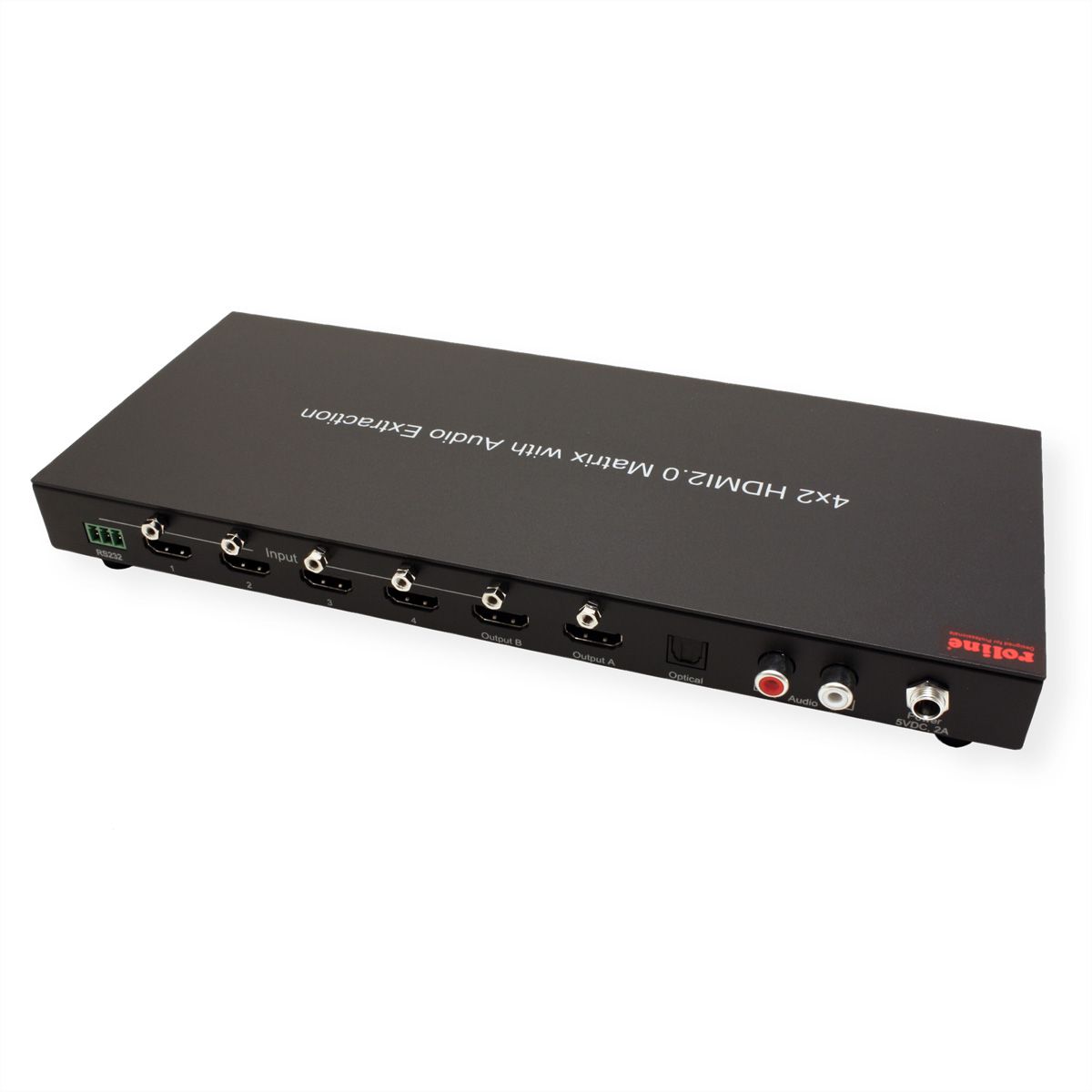

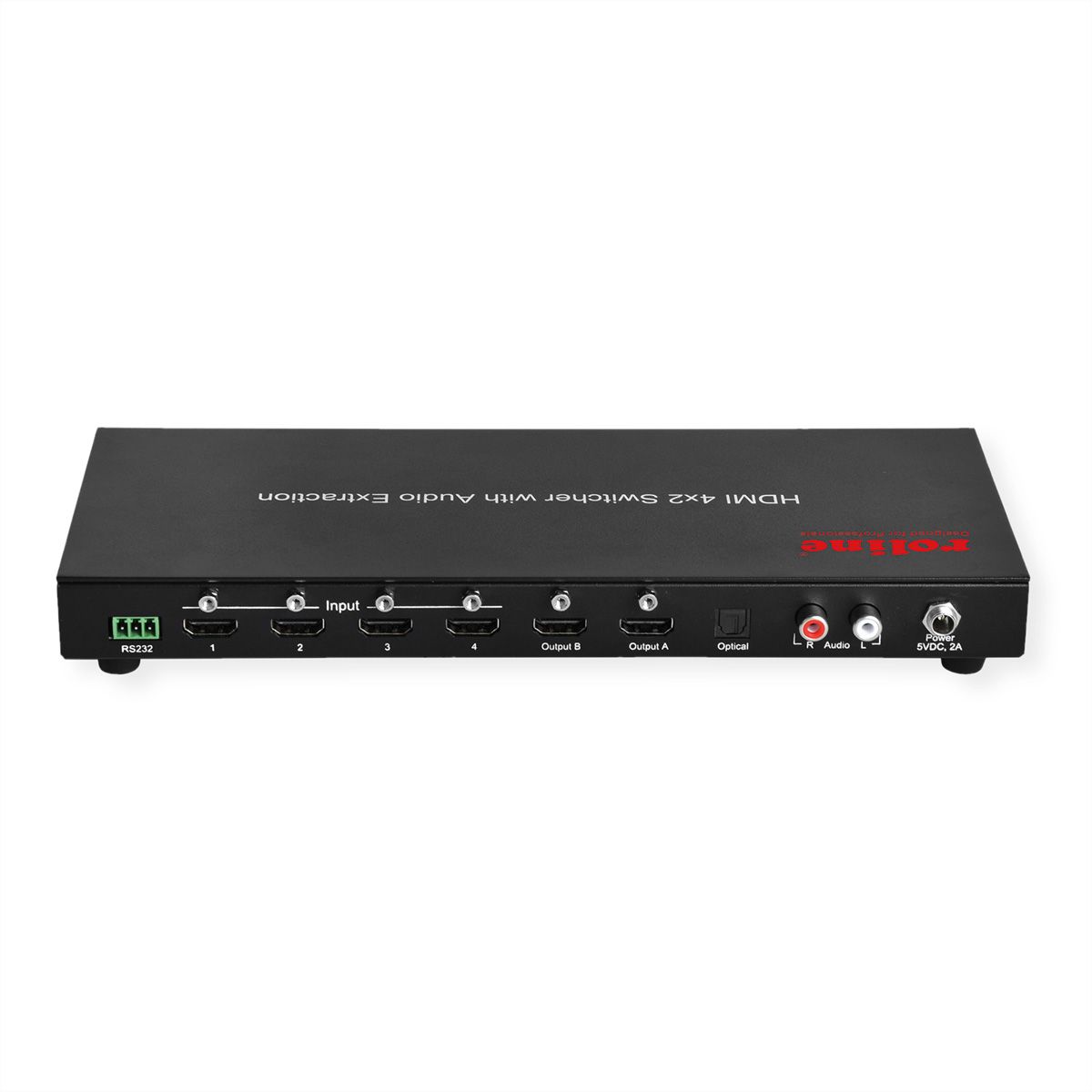

| Video input | 4x HDMI Female |
| Video output | 2x HDMI Female |
| Video band width | 340 MHz |
| Max. resolution (nom.) | 3840x2160@30Hz (4K2K) |
| Max. resolution | 3840 x 2160 @60Hz (4K, UHD-1) |
| Dimensions (HxWxD) | 32x270x111 mm |
| Power supply output | 5V DC, 2A |
| Technical particularity | Switching automatically, by push button or by IR remote control |
| Height | 32 mm |
| Width | 270 mm |
| Depth | 111 mm |
| Weight | 760.6 g |
| Height of packaging (single piece) | 60 mm |
| Width of packaging (single piece) | 220 mm |
| Depth of packaging (single piece) | 310 mm |
| Package weight (single piece) | 1.011 kg |
