Description

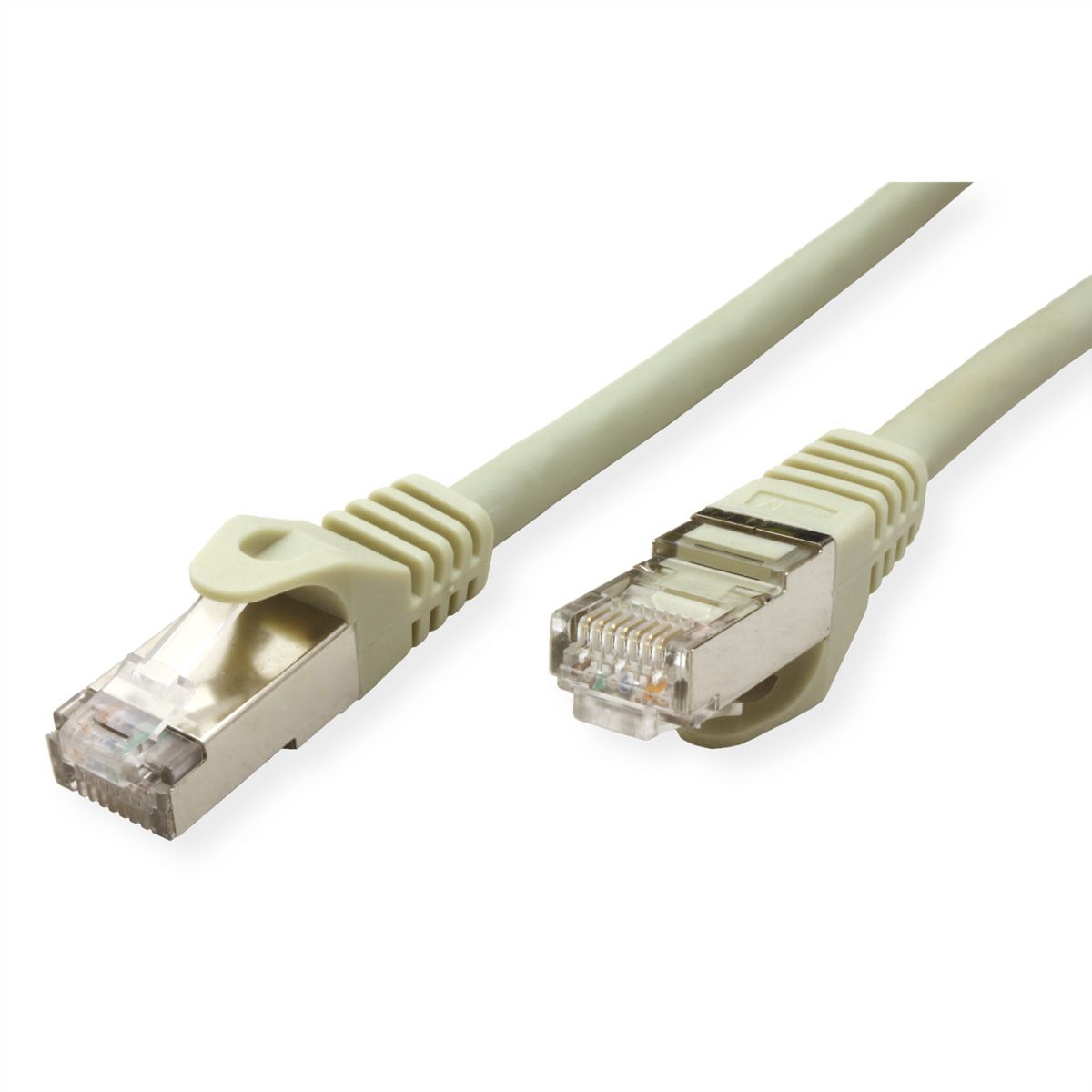

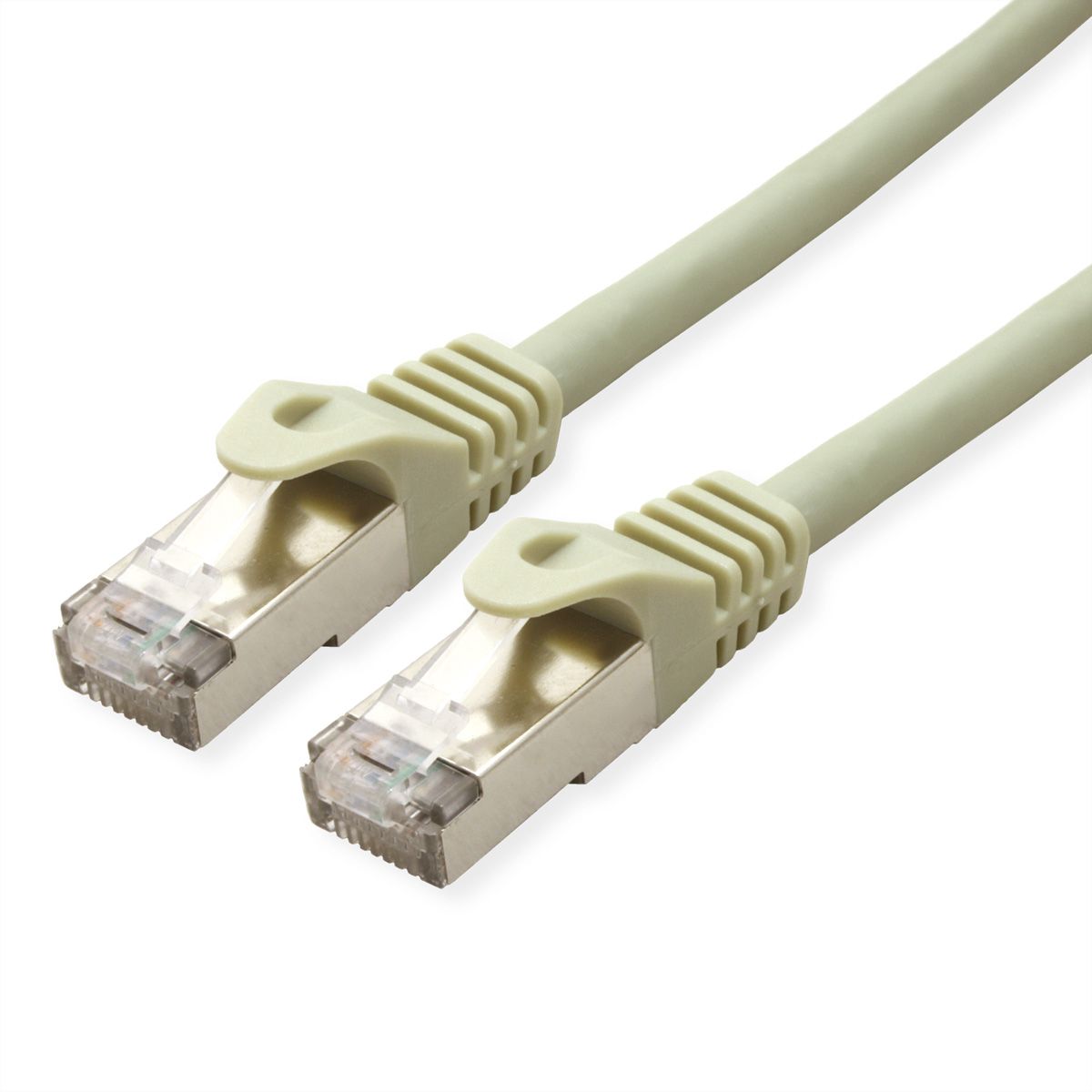

Patch cable for networking connections between devices

• Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends
• Durable due to moulded kink protection
• Suitable for PoE applications and multimedia applications were the extension is working over TP
• High quality plugs with gold plated contacts
• Contact settings 1:1, in accordance with the EIA/TIA 568 standard
• Construction: 4-pair solid copper wire, complete braid shielding, pairs shielded with aluminium clad polyester foil

Specifications

Manufacturer	VALUE
Product group	Twisted Pair Cable
Product type	S/FTP Patchcord
Colour	grey
Length	30 m
Shield type	PiMF
Transfer quality	Cat6A / Class EA
Quantity of wires	8
Conductor type	Solid wire
Crossed	no
Cable LSOH	yes
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Male
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Male
Connector Type RJ45	Standard
Weight	1130.5 g
Height of packaging (single piece)	70 mm
Width of packaging (single piece)	280 mm
Depth of packaging (single piece)	290 mm
Package weight (single piece)	1.316 kg

Downloads

Product data sheet - English (61.3 KB)

Download

Manufacturer data sheet - English (406.8 KB)

Download
