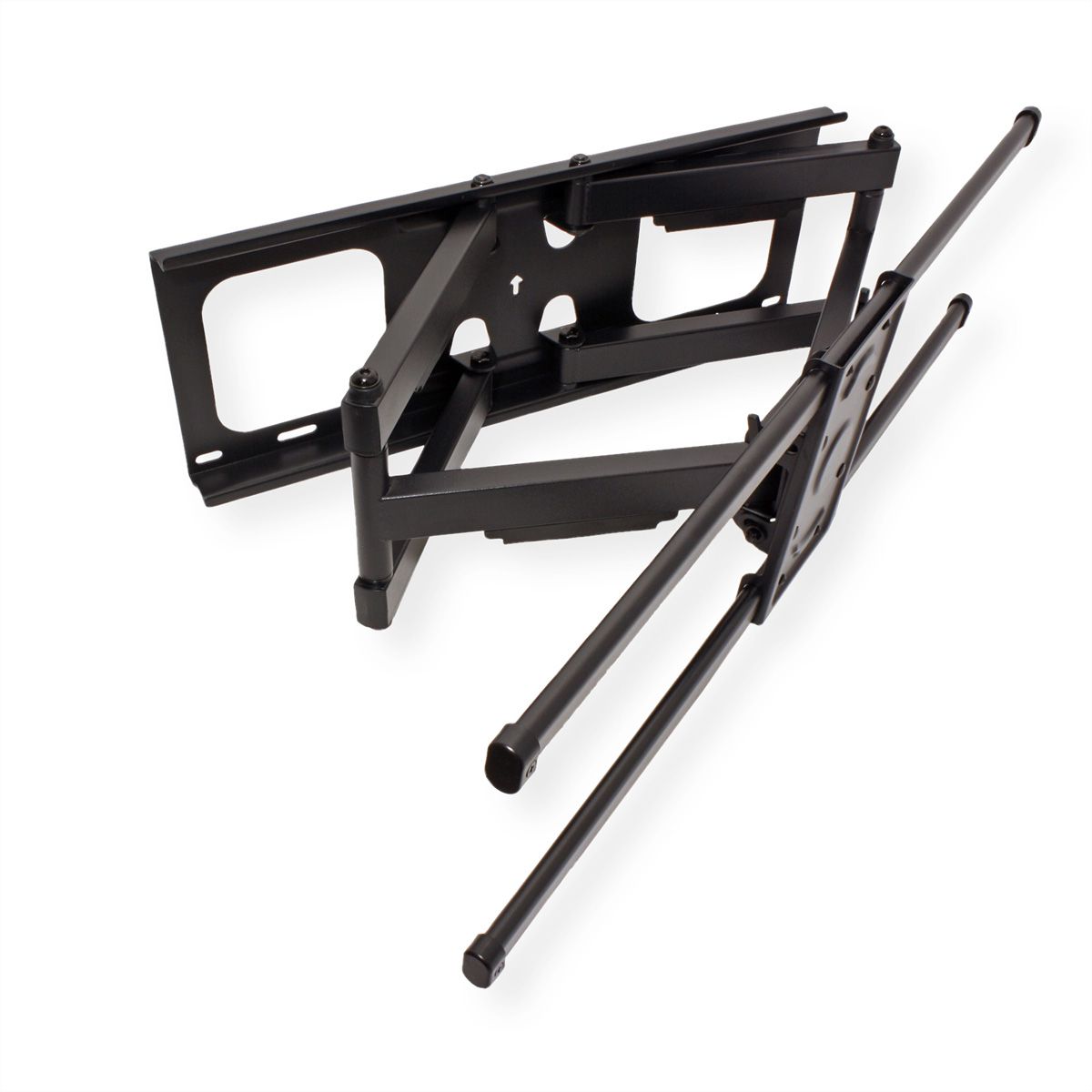

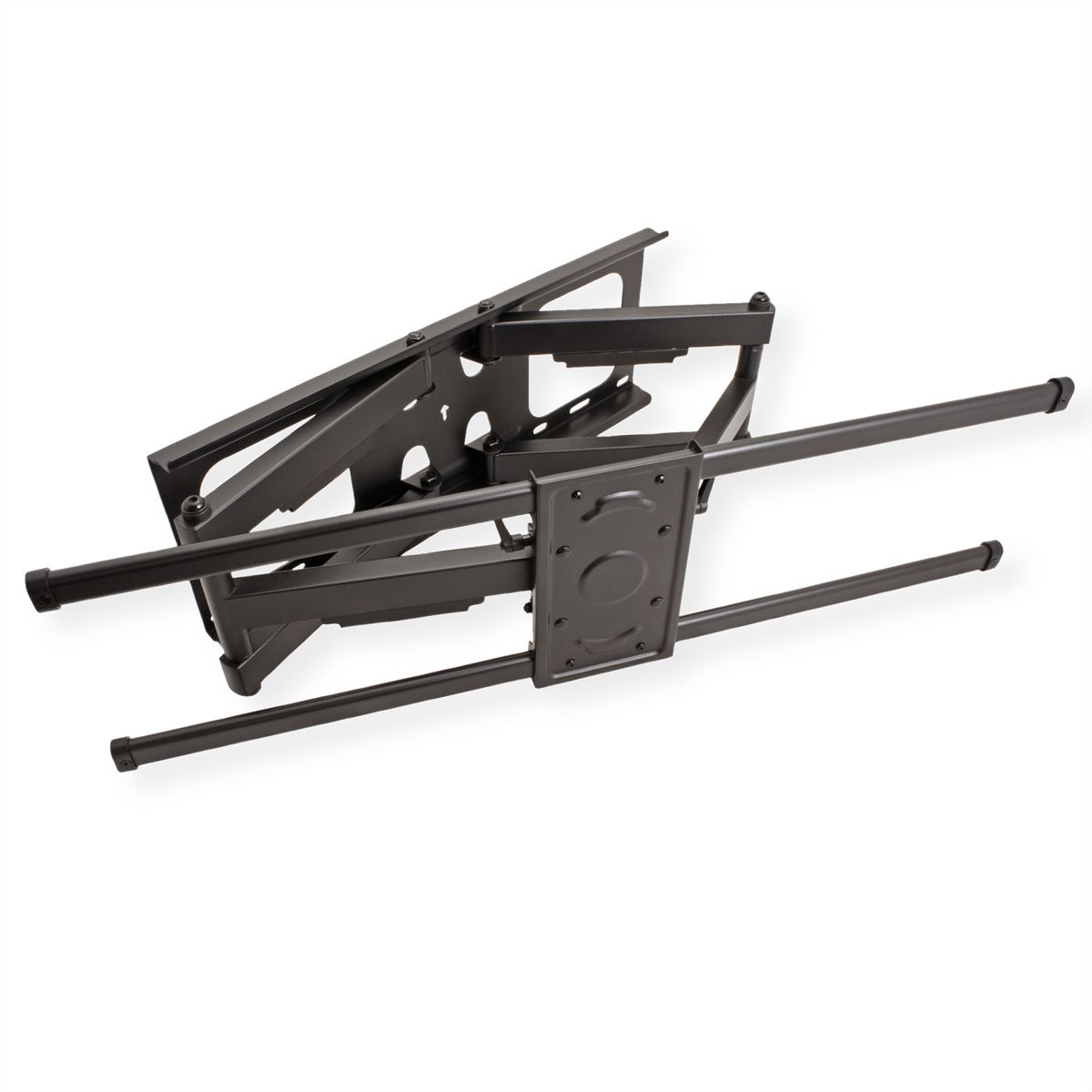

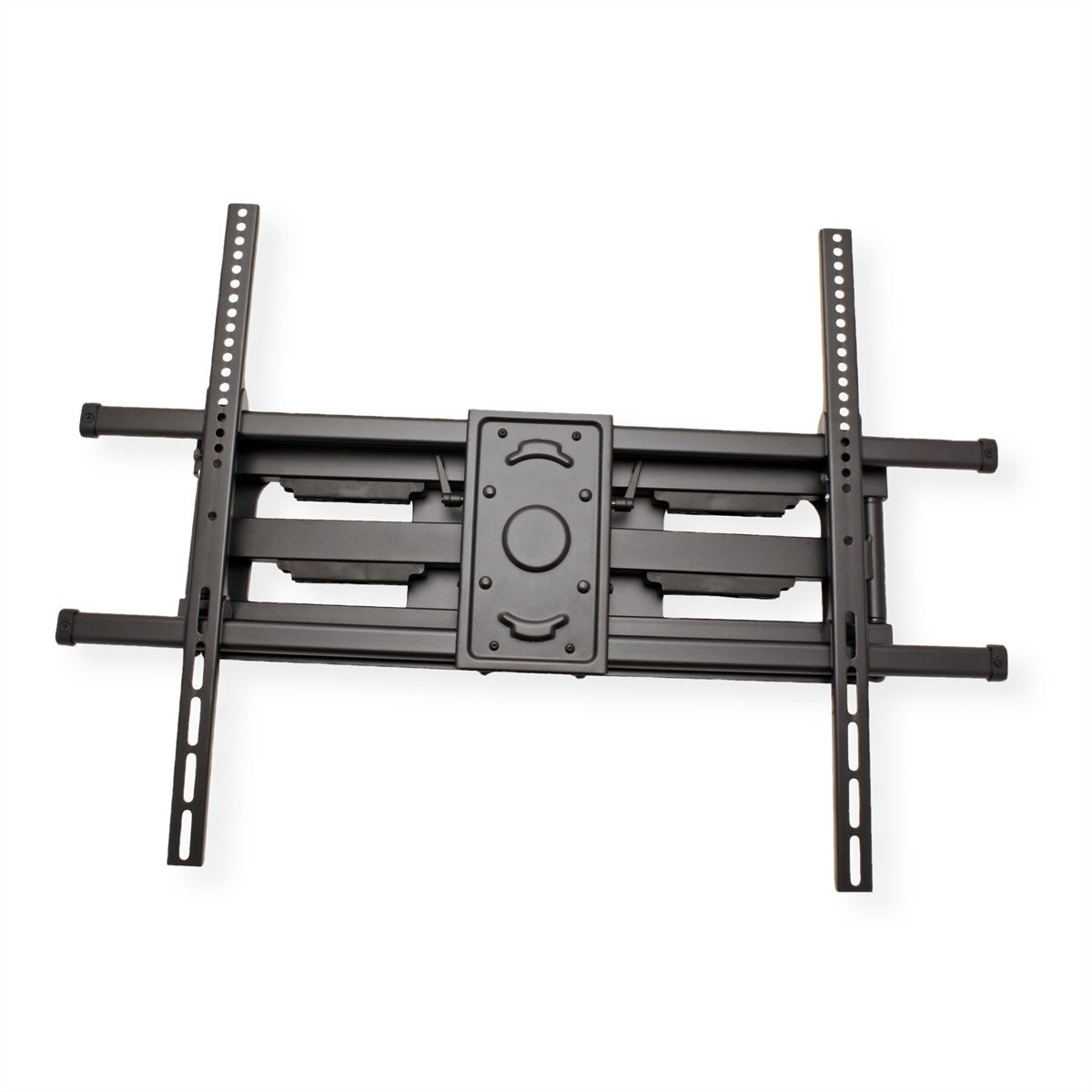

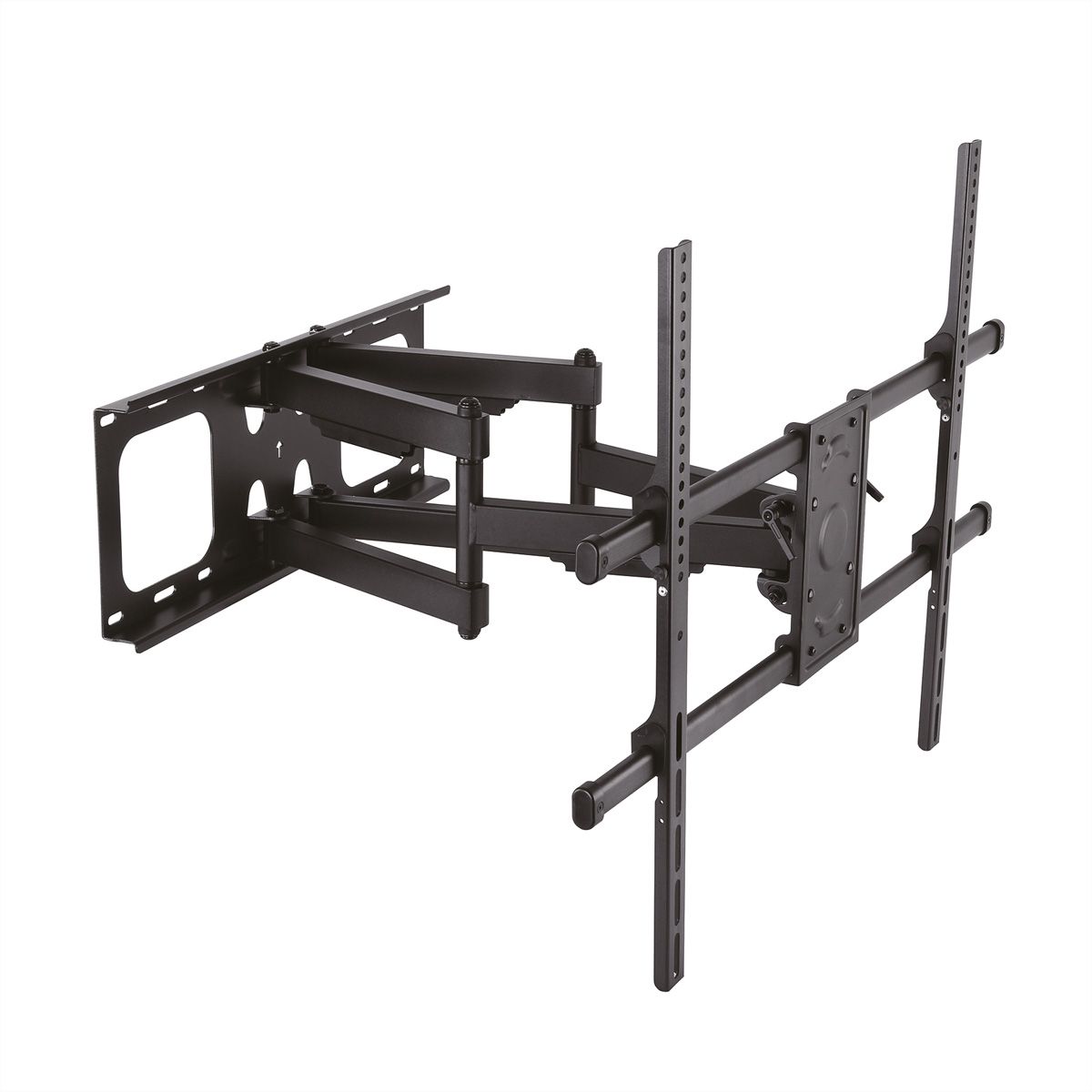

VALUE Solid Articulating Wall Mount TV Holder, up to 228,6 cm (50" - 90")

Item no. 17991207 Brand / Manufacturer VALUE Manuf. item no. 17.99.1207 EAN 7611990142729 Item weight 12.85 kg
VALUE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

  • Dual-arm full-motion wall mount for TVs (LED, LCD flat panel TVs) up to 228,60 cm (50'' - 90'')
  • Max. weight: 75 kg

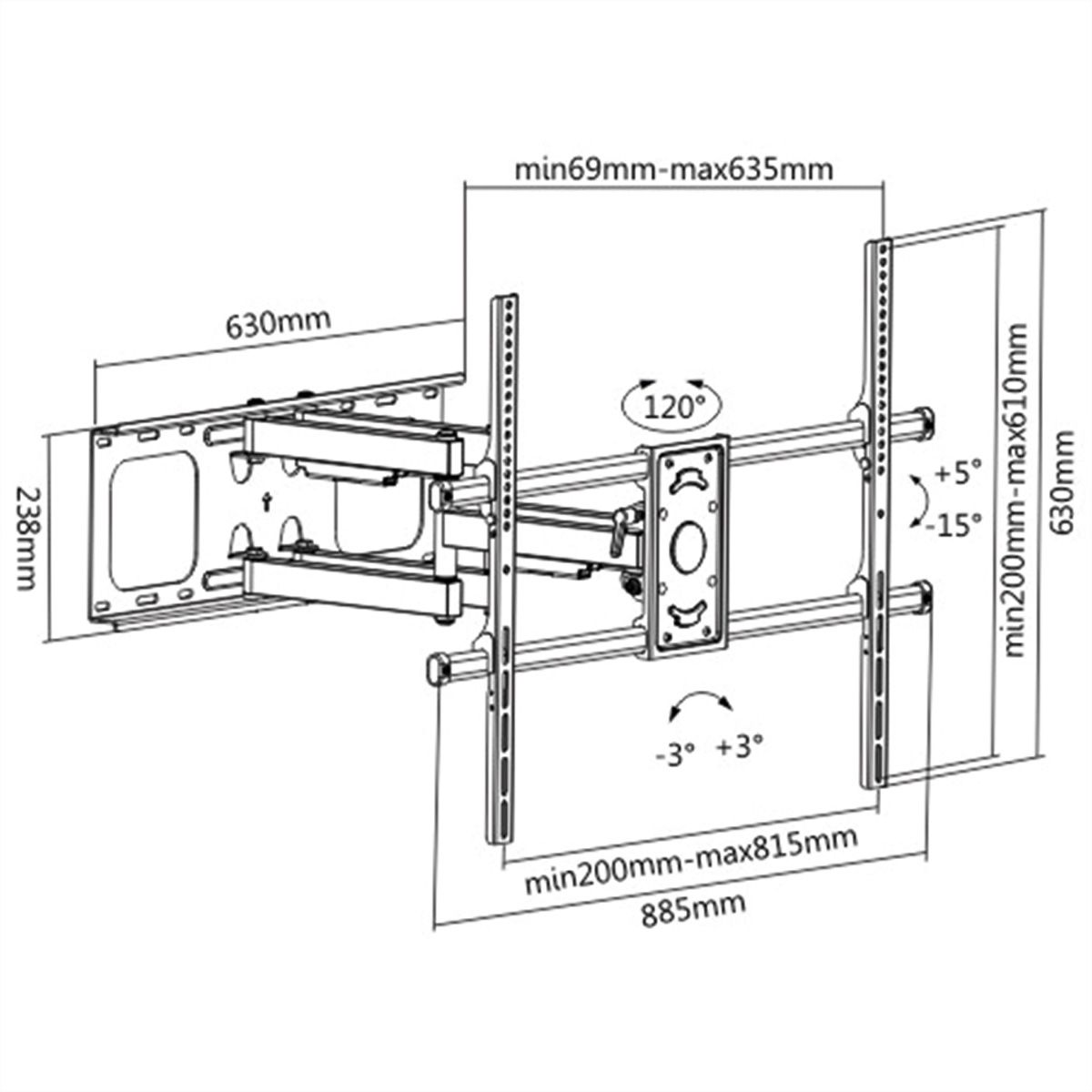

  • This mount extends out 635 mm from wall and allows TVs to turn 60° left or right
  • Full motion allows maximum flexibility - tilts and swivel your TV for easy viewing from any seat in a room
  • Post-installation level adjustment allows the TV to "roll" up to 3° clockwise and counterclockwise to ensure it's perfect level
  • Integrated cable management system keeps cables organized and protected
  • VESA: 200x200mm; 400x200mm ; 300x300mm ; 400x400mm; 600x400mm; 800x400mm; 400x300mm; 300x200mm; 800x600mm

Technical Data:
- Material:Steel
- Product weight:12kg
- Recommended Screen Size: 50"- 90" (127 cm - 228,60 cm)
- Installation:Solid wall, Double Stud
- Max. Load Capacity:75 kg
- VESA Standard: 200x200, 400x200, 300x300, 400x400, 600x400, 800x400, 800x600
- Max.VESA:800x600
- Tilt:-15°~+5°
- Swivel:-60°~+60°

Specifications

Manufacturer
VALUE
Product group
LCD-Monitor arms
Product type
TV Wall Mount
Colour
black
Maximum weight capacity
75 kg
Fixing
Wall mount
Adjustments
Adjustable spring gauge
Number of monitors
1
Max. Screen diagonal (cm)
228.6 cm
Max. Screen diagonal (inch)
90 inch
Min. Screen diagonal (cm)
127 cm
Min. Screen diagonal (inch)
50 inch
VESA 200 x 200 mm
yes
VESA 300 x 200 mm
yes
VESA 300 x 300 mm
yes
VESA 400 x 200 mm
yes
VESA 400 x 300 mm
yes
VESA 400 x 400 mm
yes
VESA 600 x 400 mm
yes
VESA 800 x 400 mm
yes
Material group
metal
Weight
11675.6 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
920 mm
Depth of packaging (single piece)
300 mm
Package weight (single piece)
12.85 kg

Downloads

Product data sheet - English (56.0 KB) Manufacturer data sheet - English (345.9 KB) User manual - English (12.4 MB) Technical drawing - English (679.9 KB)
