Xilence M504D AMD and Intel CPU Cooler, 2x 92mm PWM fans, 180W TDP

Item no. 19104322 Brand / Manufacturer XILENCE Manuf. item no. XC044 EAN 4044953501197 Item weight 0.71 kg
XILENCE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The compact twin tower cooler M504D is the multi socket solution of the Performance C series.

Its 4 extremely efficient heatpipes conduct heat up to 200W to the innumerable cooling fins. Thus, it is predestined for powerful multi-core processors. Due to the direct contact of the heatpipes, the heat transfer between CPU and cooler is highly efficient and very even. With its multi socket, the cooler can be used for all current Intel and AMD sockets. Besides are included the double heat sink and the two 92mm PWM fans, mounting brackets for the sockets LGA LGA 1150/1151/1155/1156/2011/1700/2066/ 1200 and AMD AM5/AM4, illustrated assembly instructions and a tube of thermal paste.

  • Performance C Series
  • Two heatsinks with fin design ensure efficient cooling of the CPU and all surrounding components
  • Two 92mm PWM fans, liquid-bearing
  • Four 6mm copper heatpipes for maximum heat dissipation
  • Hotspots are avoided by slightly overhanging the fans at the top and bottom
  • The fans can be mounted on both sides of the heatsink
  • Suitable for all common AMD & INTEL sockets

Specifications

Manufacturer
XILENCE
Product group
Cooler/Fan
Product type
Processor fan
Colour
Red Black
Scope of delivery

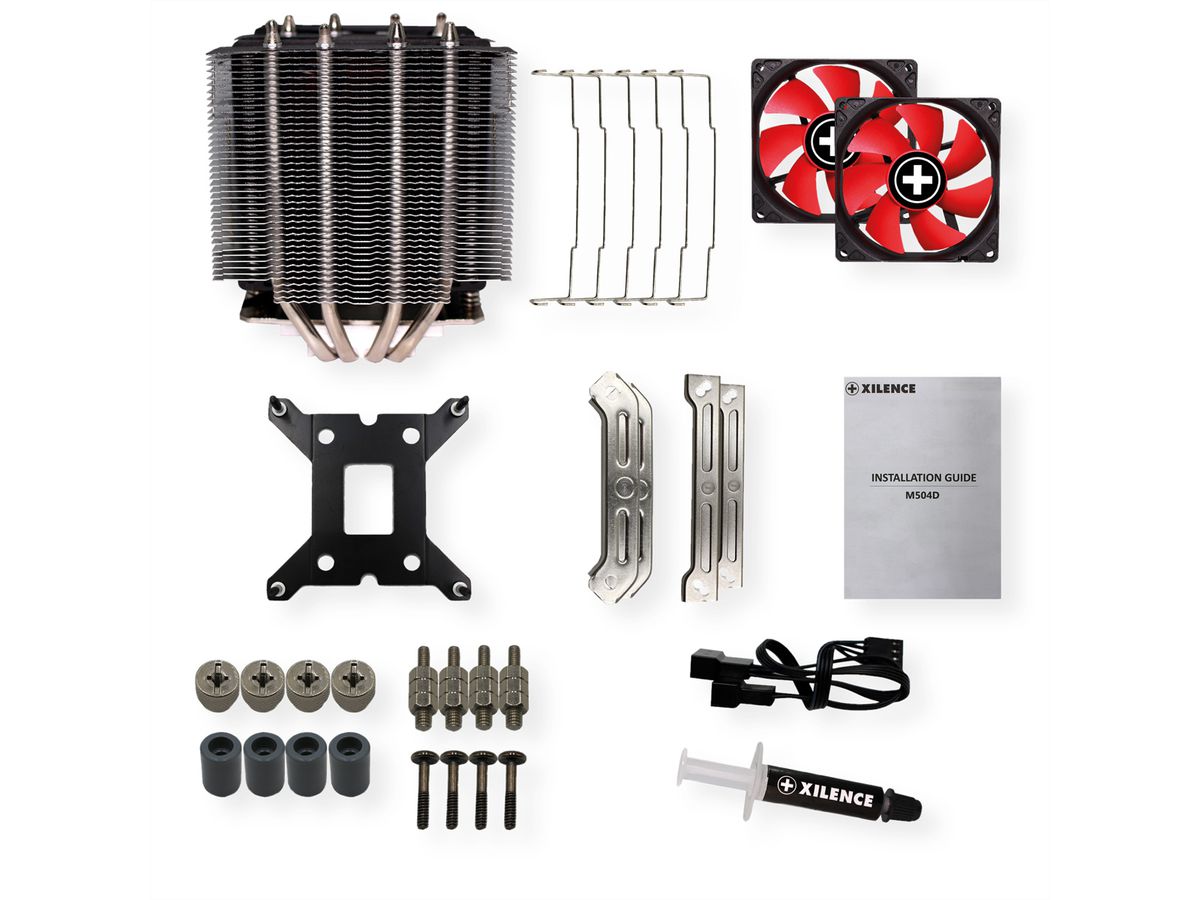

M504D AMD and Intel CPU Cooler, 2x 92mm PWM Fans, Thermal paste, Mounting kit AMD/Intel
Connector Type
Molex 4-pin (SMALL)
Assembly type
On CPU/Chip
Heatpipes
4
CPU max. Watt
180 W
Quantity of fans
2
Dimensions (HxWxD)
123 x 105 x 125 mm
Processor socket
AMD: AM5/AM4, INTEL: LGA 1700/1150/1151/1155/1156/2011/1200/2066/1851
Dimensions (HxWxD) fan
2 x 92 x 92 x 25 mm
Fan rotational speed
600 - 2200 ± 10% RPM
Fan performance
111,2 CFM
Acoustic level
14,0 - 21,8 dB (A)
Noise level spinning (max.)
21.8 dB (A)
Technical particularity
Red fan with black frame
Height
123 mm
Width
105 mm
Depth
125 mm
Weight
685 g
Height of packaging (single piece)
180 mm
Width of packaging (single piece)
110 mm
Depth of packaging (single piece)
150 mm
Package weight (single piece)
0.71 kg

Downloads

Manufacturer data sheet - Nederlands (348.2 KB) Manufacturer data sheet - Deutsch (172.5 KB) Manufacturer data sheet - English (309.9 KB) Manufacturer data sheet - Français (289.1 KB)
