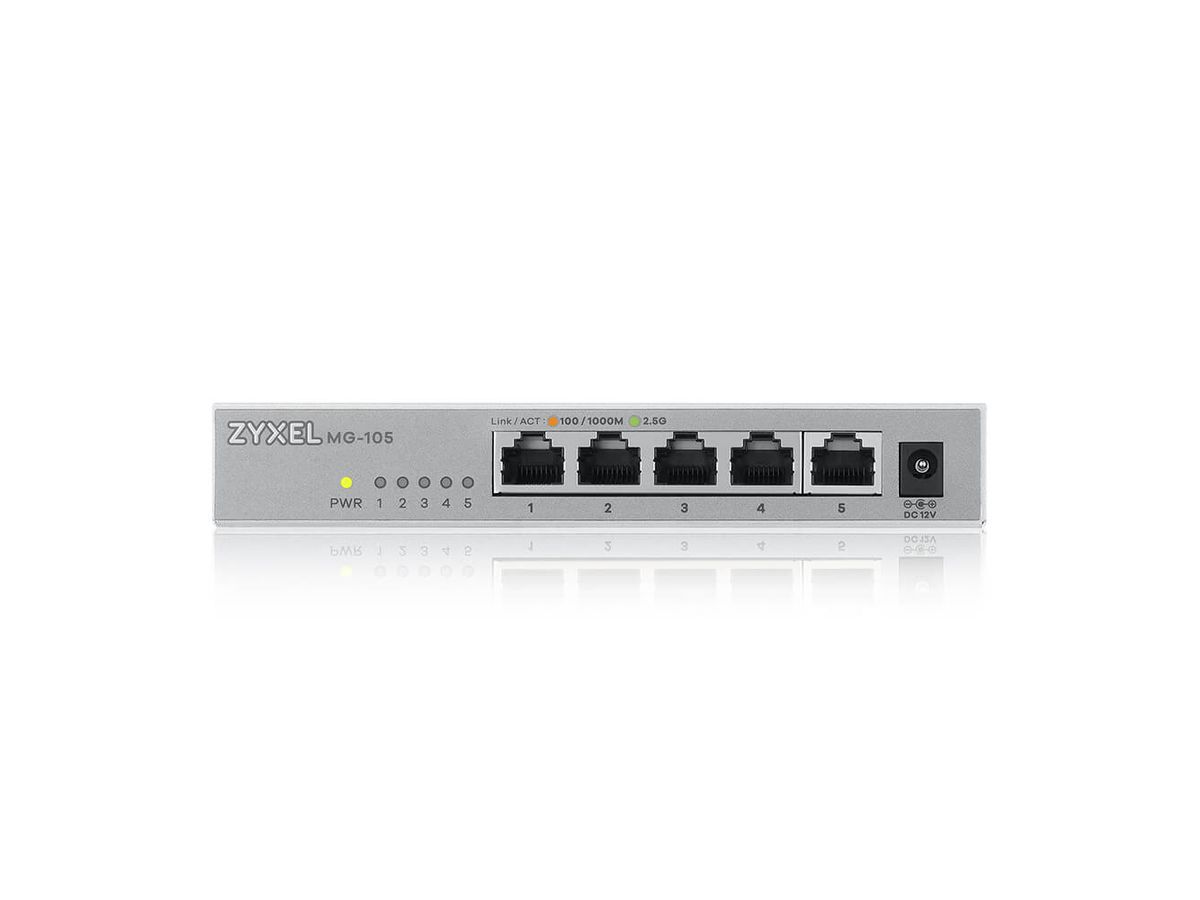

Zyxel MG-105 Unmanaged 2.5G Ethernet (100/1000/2500) Steel

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Item no.	525633089
Brand / Manufacturer	ZYXEL COMMUNICATIONS
Manuf. item no.	MG-105-ZZ0101F
EAN	4718937620203

Description

Zyxel MG-105. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 16000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. Wall mountable

Upgrade Network to Multi-Gig
MG-105 and MG-108 come with five/eight 2.5 Gigabit ports to optimize performance of your Multi-Gig bandwidth and devices, and provide 25/40 Gbps of switching capacity. They are an ideal choice for LAN parties, home entertainment, SoHo and offices.

Plug-n-Play, Enjoy High Speed Network
Easily connect MG-105 or MG-108 to the latest 2.5G-capable network devices such as 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, WiFi 6 AP, 4K video, desktop, and more and more to instantly enjoy high performance networking and smoother home entertainment experience with its simplified plug-and-play technology.

Use your existing cables
The Multi-Gigabit RJ-45 ports not only provide more speed options for your network, but it can increase your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee!

Fanless Design For True Silent Operation
MG-105 and MG-108 are built with fanless and sturdy hardware design to ensure all-time silent and stable operation. They are perfect for every home or business environment.

Flexible Deployment In Your Room
The mounting option gives you the flexibility to place the 2.5G switch on a desktop or mount it to a wall.

Specifications

Manufacturer	ZYXEL COMMUNICATIONS
Product type	Network Switches

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)

Weight & dimensions

Width	160 mm
Depth	110 mm
Height	26 mm
Weight	460 g

Power

Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	9.34 W

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%

Network

Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	2.5GBASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes

Data transmission

MAC address table	16000 entries
Switching capacity	25 Gbit/s
Forwarding rate	18.6 Mpps
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	12 MB

Packaging data

Package width	215 mm
Package depth	133 mm
Package height	79 mm
Package weight	919.6 g

Certificates

Compliance certificates	CE
Certification	CE, EAC, FCC, BSMI

Management features

Switch type	Unmanaged
Quality of Service (QoS) support	Yes

Packaging content

User guide	Yes

Design

Rack mounting	No
Product colour	Steel
LED indicators	Yes
Wall mountable	Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Performance

Fanless	Yes

Logistics data

Harmonized System (HS) code	85176990

Downloads

PDF data sheet - Zyxel MG-105 Unmanaged 2.5G Ethernet (100/1000/2500) Steel - English (1,006.8 KB)

Download
