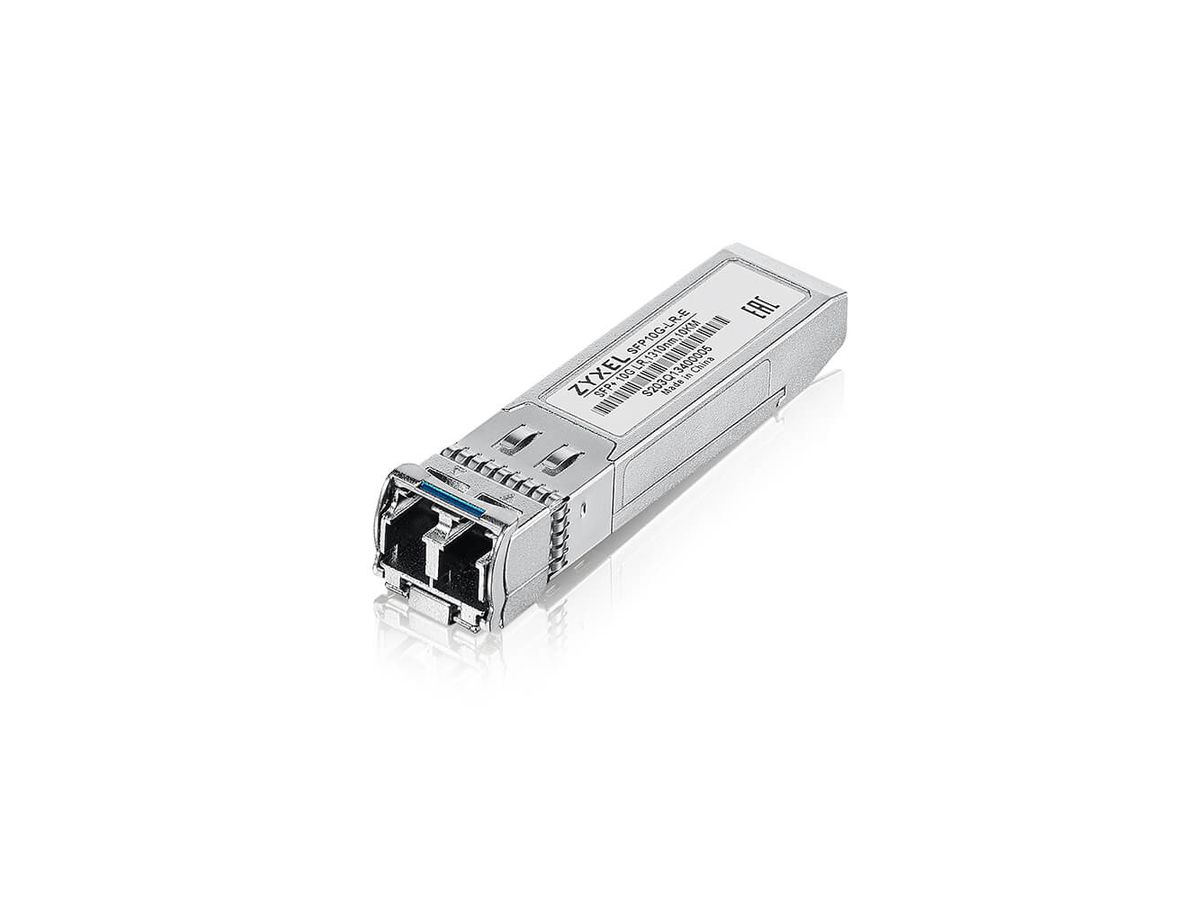

Zyxel SFP10G-LR-E network transceiver module Fiber optic 10000 Mbit/s SFP+ 1310 nm
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 525414342 |
|---|---|
| Brand / Manufacturer | ZYXEL COMMUNICATIONS |
| Manuf. item no. | SFP10G-LR-E-ZZBD01F |
| EAN | 4718937619221 |
:strip_icc():strip_exif()/logos/zyxel-communications.png "ZYXEL COMMUNICATIONS")
Description
Zyxel SFP10G-LR-E. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Steel, Country of origin: China, Brand compatibility: Zyxel. Input voltage: 3.14-3.46 V, Maximum current: 0.3 A. Width: 14.8 mm, Depth: 56.5 mm, Height: 11.8 mm
Hot-pluggable with maximum flexibility
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
No extra cabling cost to upgrade the fiber plant
Traditional fiber optic networking requires two strands of fiber for sending and receiving signals to accomplish communications.
The bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber. Transmission capacity can be expanded immediately without additional cost laying new fiber.
Supports digital diagnostics monitoring interface (DDMI)
DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.
Complete fiber accessory portfolio
We provide multiple options including 1G SFP, 10G SFP+ and 10G DAC cables for different installation requirements.
Specifications
| Manufacturer | ZYXEL COMMUNICATIONS |
|---|---|
| Product type | Network Transceiver Modules |
Weight & dimensions
| Width | 14.8 mm |
|---|---|
| Depth | 56.5 mm |
| Height | 11.8 mm |
| Weight | 20 g |
Power
| Input voltage | 3.14-3.46 V |
|---|---|
| Maximum current | 0.3 A |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Y |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | 0.5 dBmW |
| Tx power (max) | -8 dBmW |
| Rx power (min) | 1 dBmW |
| Rx power (max) | -14.4 dBmW |
Features
| Product colour | Steel |
|---|---|
| Country of origin | China |
| Brand compatibility | Zyxel |
Logistics data
| Harmonized System (HS) code | 85369010 |
|---|
