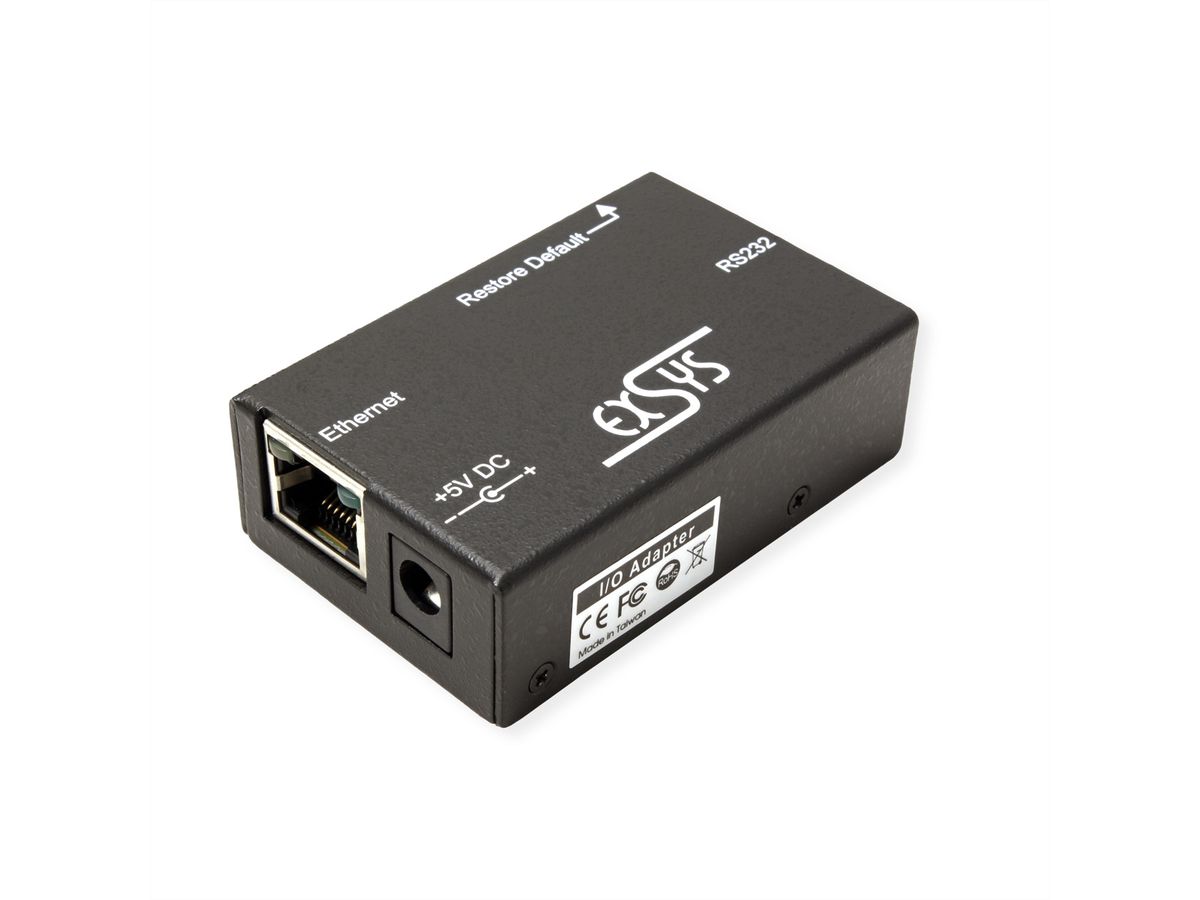

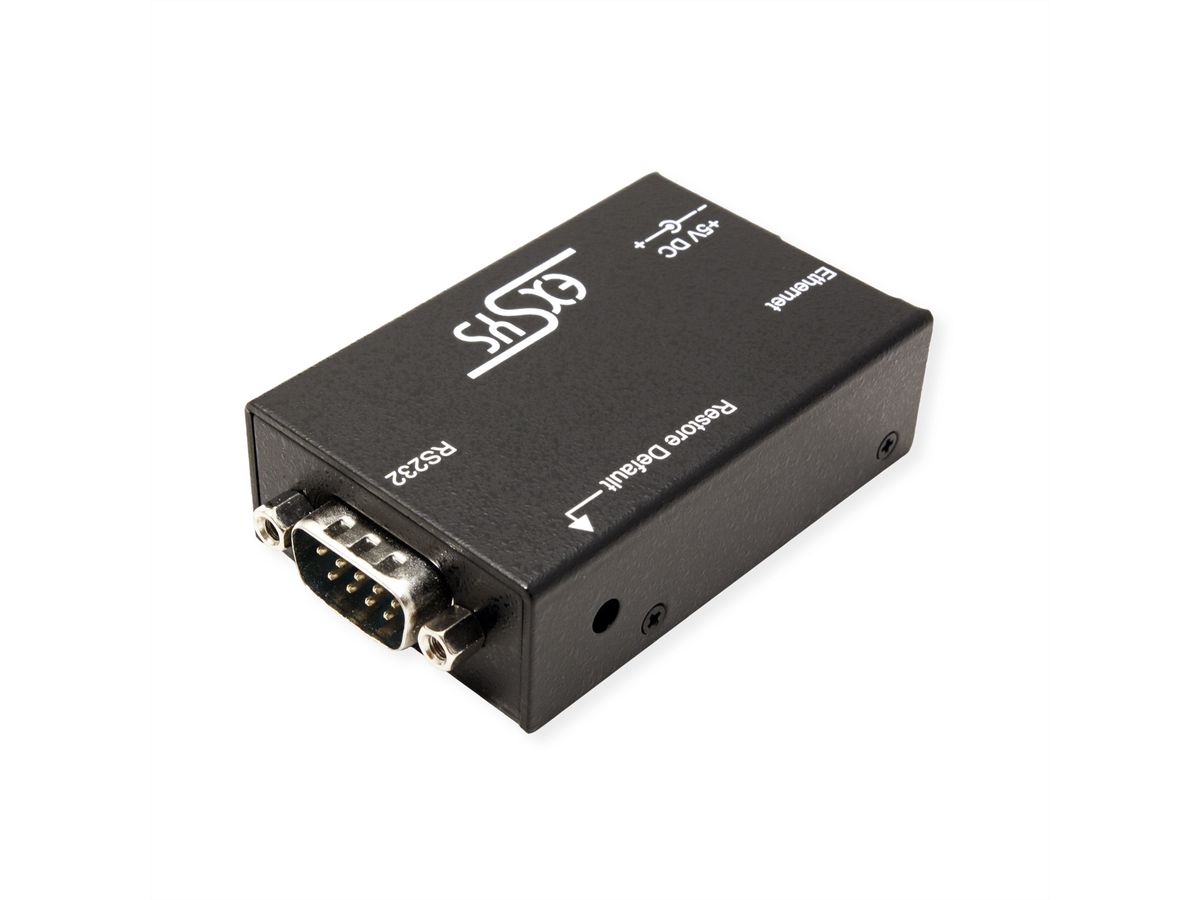

EXSYS EX-6030 1-Port RS232 Ethernet Data Gateway

EXSYS EX-6030 1-Port RS232 Ethernet Data Gateway

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/15/2025
Item no. 15060000
Brand / Manufacturer EXSYS
Manuf. item no. EX-6030
EAN 4718359060304
Item weight 0.364 kg

Description

Der EX-6030 im Metallgehäuse ermöglicht Ihnen, Ihre seriellen Geräte über das Netzwerk (Ethernet) auf einfachste Weise zu verbinden. Sie sind somit nicht mehr auf eine festgelegte Entfernung begrenzt, sondern können jedes RS-232 Peripherie
Gerät über das Netzwerk ansteuern.

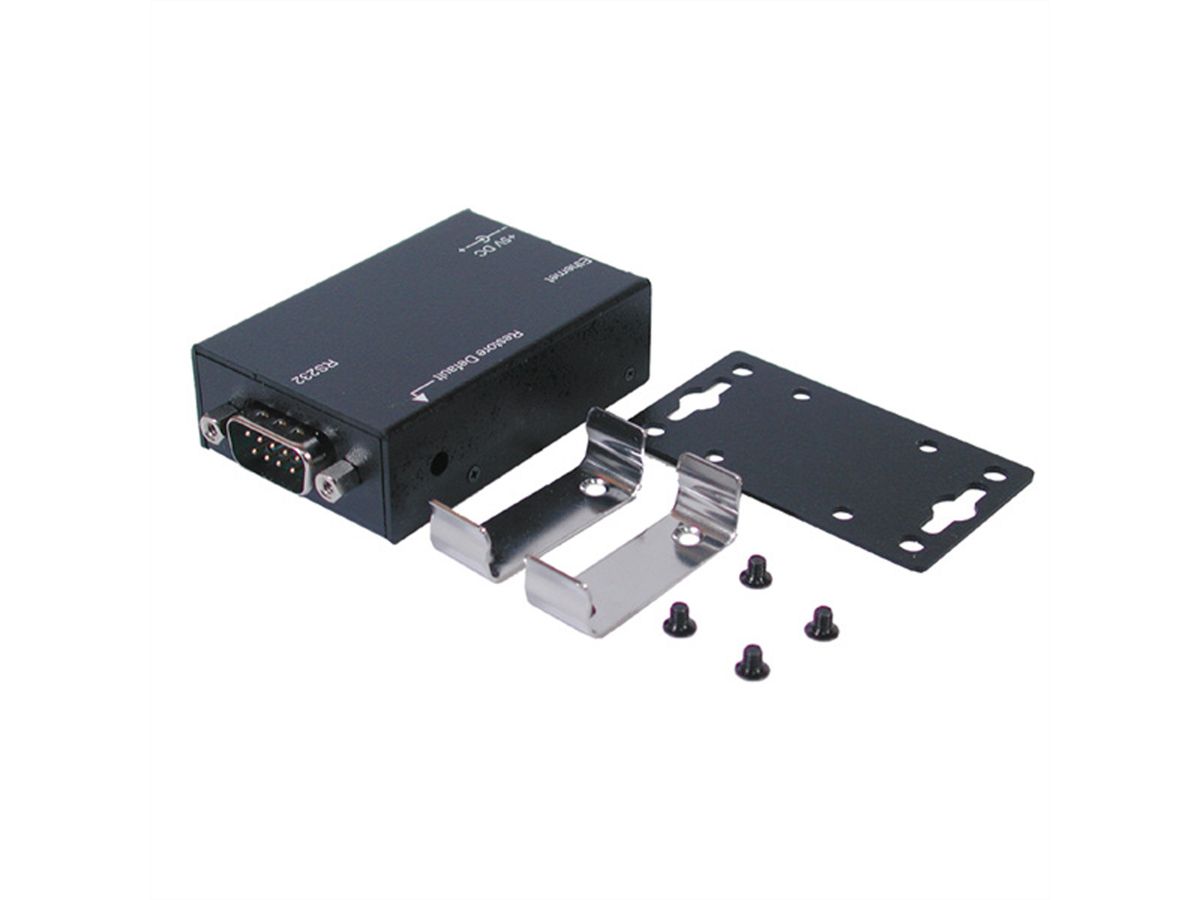

Sie können den EX-6030 einfach ins Netzwerk mit IP Adresse (UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping) einbinden. Die Ansteuerung ist auch über die beiliegende und andere Virtual Com Port Software möglich. Die COM Ports werden dann im Geräte Manager eingetragen. Der EX-6030 kann direkt an die Wand geschraubt werden oder mit dem DIN-Rail Kit auch in ein 19" Rack installiert werden.
  • RS-232 und Ethernet 10/100Mpbs
  • Serielle Schnittstelle: RS-232 V.24, Daten Bits: 7, 8; Parity: none, even, odd
  • Ethernet: Protokolle UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping
  • Chip-Set: Samsung S3C4510B
  • Datentransfer-Rate: Seriell - 50 Baud bis 115.2KBaud, Ethernet - 10/100Mbps
  • Anschlüsse : 1x 9 Pin D-SUB RS-232 Stecker, 1x RJ-45 Ethernet, 1x DC Netzteil Anschluss
  • Treiber: Win 2000/ XP/ Vista/ Server 2003 & 2008 & 2012 Win7/ 8 (32&64bit) mit Virtual Com Port Software
  • Betriebstemperatur: 0 bis 55°C (32 bis 131°F), Luftfeuchtigkeit: 5 bis 95%
  • Abmessung / Gewicht: 60 x 40 x 20 mm / 400g

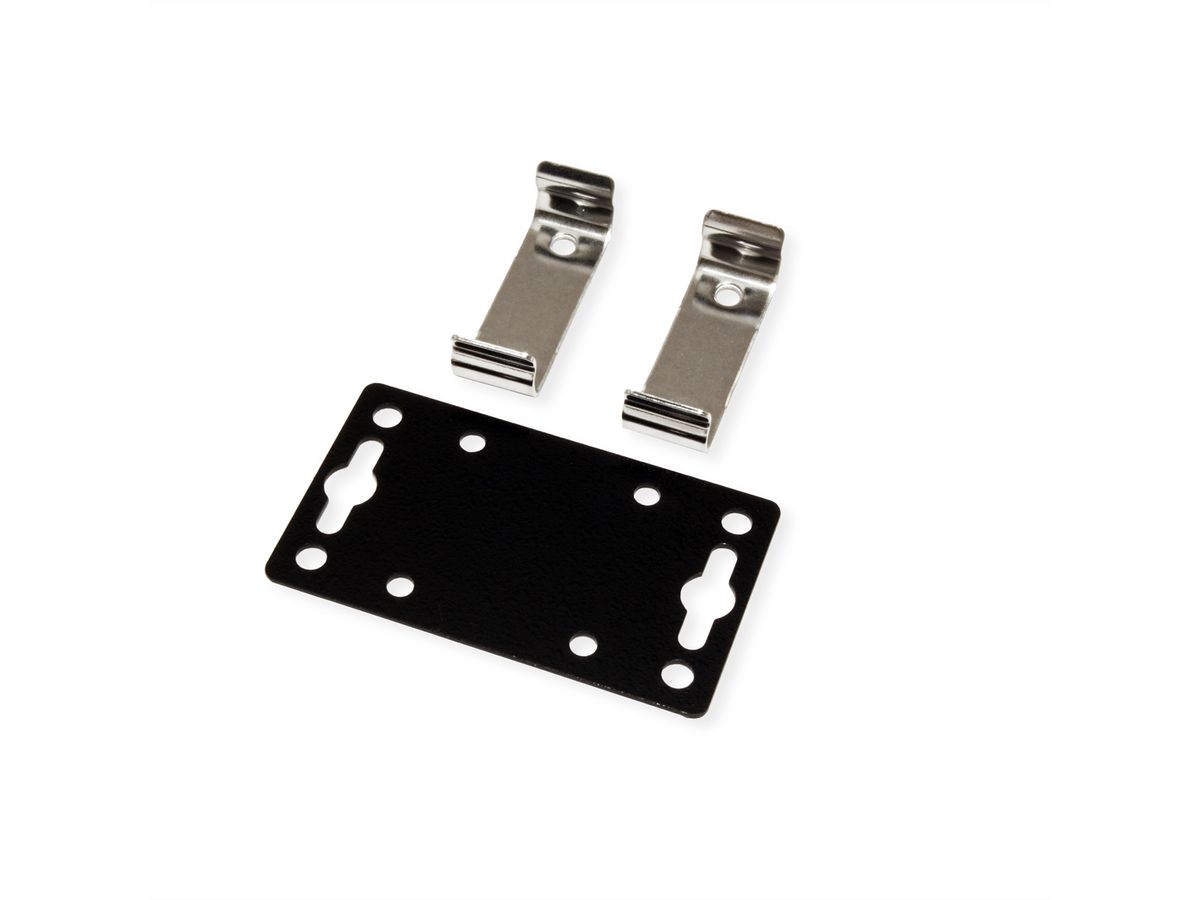

  • Lieferumfang: EX-6030, Netzteil, DIN-Rail-Kit, Treiber CD, Handbuch

Specifications

Manufacturer EXSYS
Product group Adapter, Terminatoren, Konverter
Product type Ethernet Data Gateway
Colour black
Scope of delivery EX-6030, Netzteil, DIN-Rail-Kit, Treiber CD, Handbuch
Side 2 connection (Peripherals) RJ45 Buchse
Area of application extern
Operating temperature min. 0 °C
Operating temperature max. 55 °C
Height 60 mm
Width 40 mm
Depth 20 mm
Weight 400 g
Height of packaging (single piece) 60 mm
Width of packaging (single piece) 170 mm
Depth of packaging (single piece) 240 mm
Package weight (single piece) 0.364 kg

Downloads

Manufacturer data sheet - English (362.1 KB)

Download
