EXSYS EX-60340 PoE+ Media Converter 60W, SFP
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 15063519 |
|---|---|
| Brand / Manufacturer | EXSYS |
| Manuf. item no. | EX-60340 |
| EAN | 4718359603402 |
| Item weight | 0.359 kg |
:strip_icc():strip_exif()/logos/exsys.png "EXSYS")
Description
The EX-60340 compact industrial-grade media converter provides reliable conversion between copper and fiber optic environments. It is compatible with 10/100/1000Base-T with 60W PoE+ and dual mode 100/1000Base-X SFP (auto detection).
The Ethernet port supports both half-duplex and full-duplex modes. Different types of optionally available SFP modules can be used depending on the requirements. Thanks to the rugged metal housing and the extended operating temperature range of -40°C to 75°C, it is suitable for a wide range of applications even in harsh environments. Power is supplied via the terminal block (12~48VDC). The EX-60340 supports Auto-MDI/MDI-X and Auto-Negotiation. Included is a DIN rail kit (pre-assembled) and a wall mounting bracket.- 1x 10/100/1000T RJ45-Port, 1x 100/1000X SFP slot, auto detection
- Fully IEEE 802.3af/at Power Over Ethernet (PoE) compliant
- Maximum power delivered (PD): Type 1 = 12.95W / Type 2 = 25.50W / 4PPoE+ = 60W
- Fully IEEE 802.3af/at Power Over Ethernet (PoE) compliant
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports auto-negotiation and half/full duplex
- Power supply via terminal block 12 V to 48 VDC
- Power Booster generates PoE voltage range 46 - 57 VDC
- Rugged, very compact metal housing, IP40
- Includes DIN-Rail Kit and wall mounting bracket
- Extended operating temperature range from -40°C to +75°C
Specifications
| Manufacturer | EXSYS |
|---|---|
| Product group | Network Components |
| Product type | Media Converter |
| Colour | black |

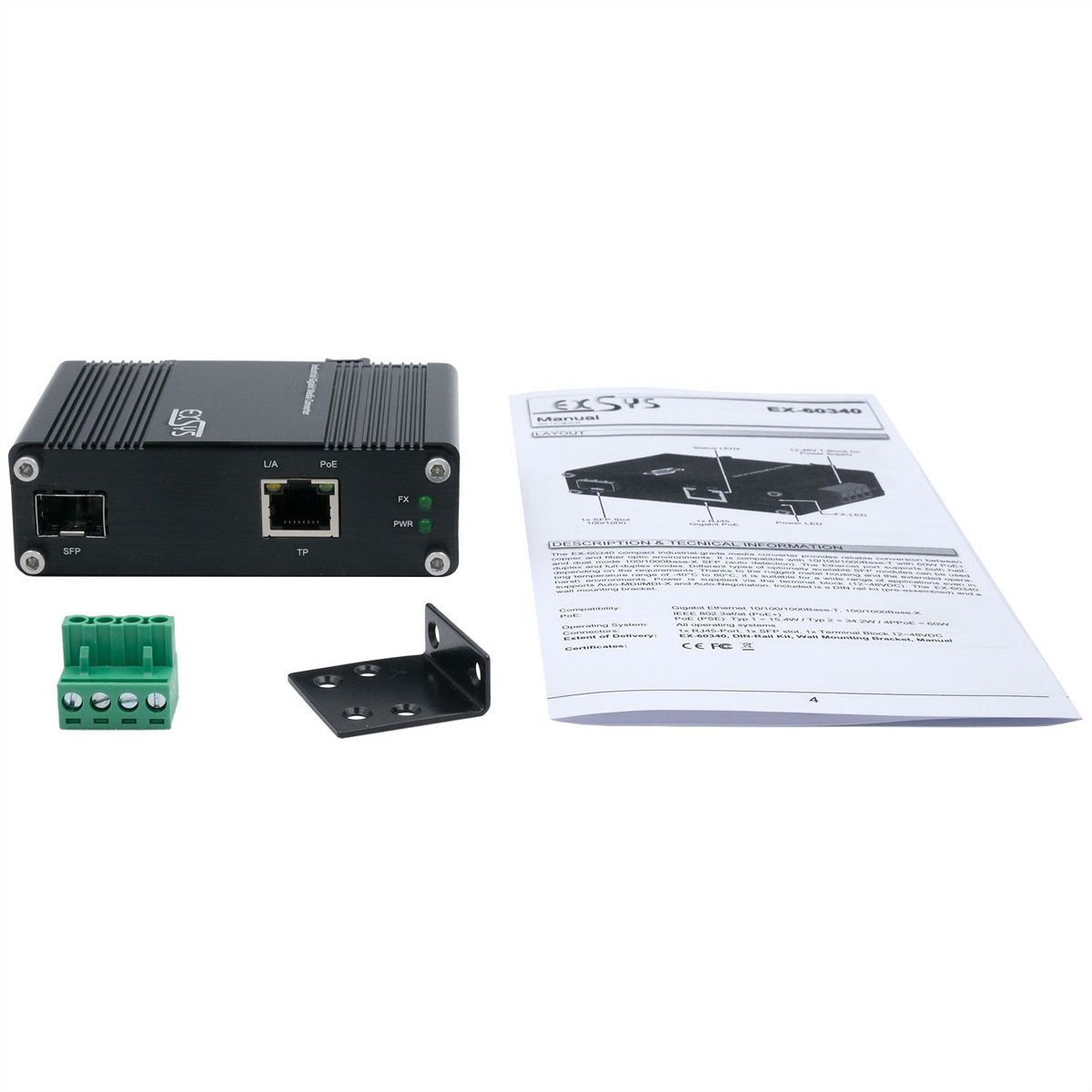

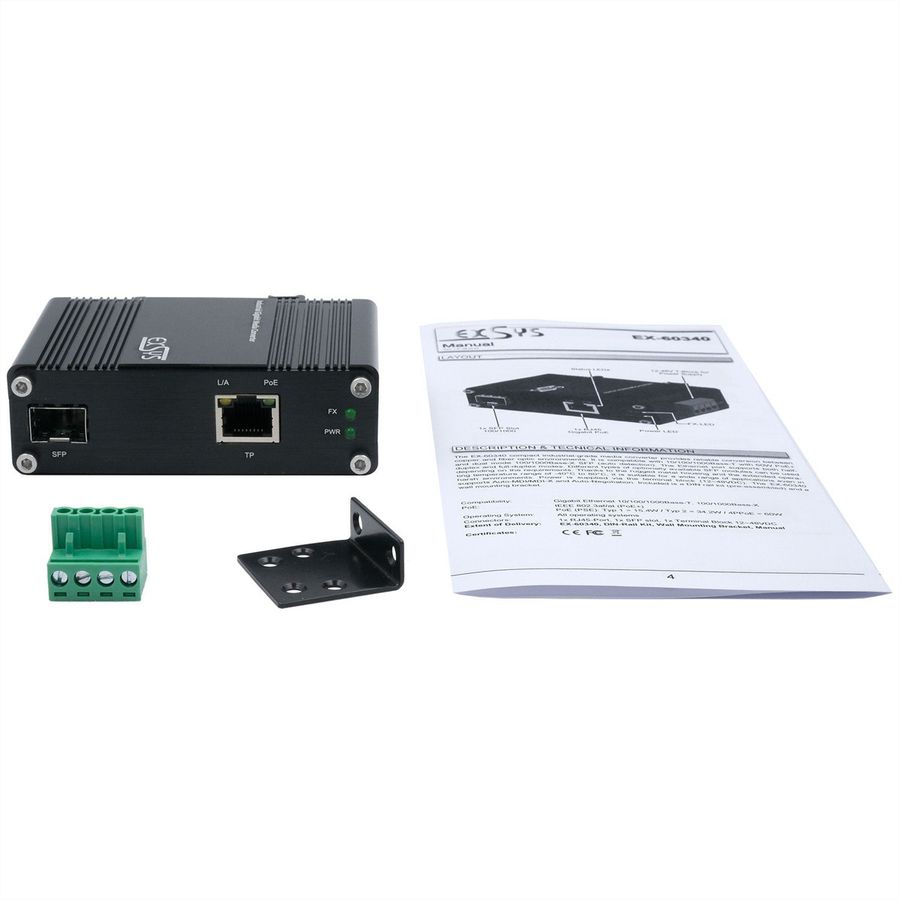

| Scope of delivery | EX-60340, DIN-Rail Kit (pre-assembled), Wallmount Kit, Manual |
| Network standard | Gigabit Ethernet |
| LAN (Mbps) | 10/100/1000 |
| Quantity of ports | 1 |
| Power over Ethernet (PoE) | PoE+ (IEEE 802.3at) |
| Quantity of PoE ports | 1 |
| Max. PoE output power (total) | 60 W |
| Mounting form | DIN Rail |
| Mounting angle | Included in content of delivery |
| Protection class (IP Code) | IP40 |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 75 °C |
| Height | 95 mm |
| Width | 70 mm |
| Depth | 30 mm |
| Weight | 370 g |
| Height of packaging (single piece) | 70 mm |
| Width of packaging (single piece) | 130 mm |
| Depth of packaging (single piece) | 200 mm |
| Package weight (single piece) | 0.359 kg |
