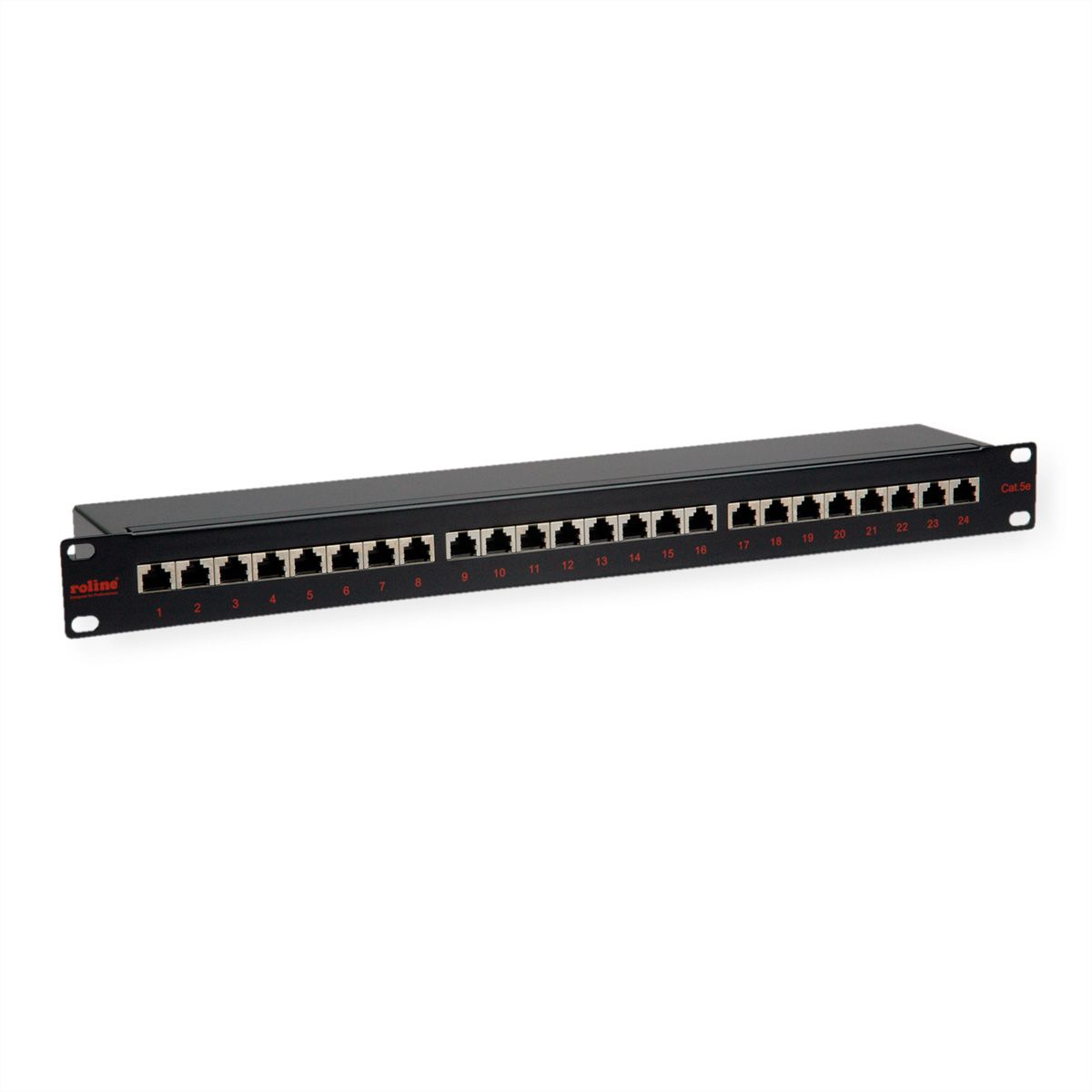

ROLINE Cat.5e (Class D) 19" Patch Panel, 24 Ports, STP, black

Item no. 26110328 Brand / Manufacturer ROLINE Manuf. item no. 26.11.0328 EAN 7611990147779 Item weight 1.93 kg
ROLINE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

  • The panels comply with the EIA / TIA 568 Cat. 5e TSB40A standard

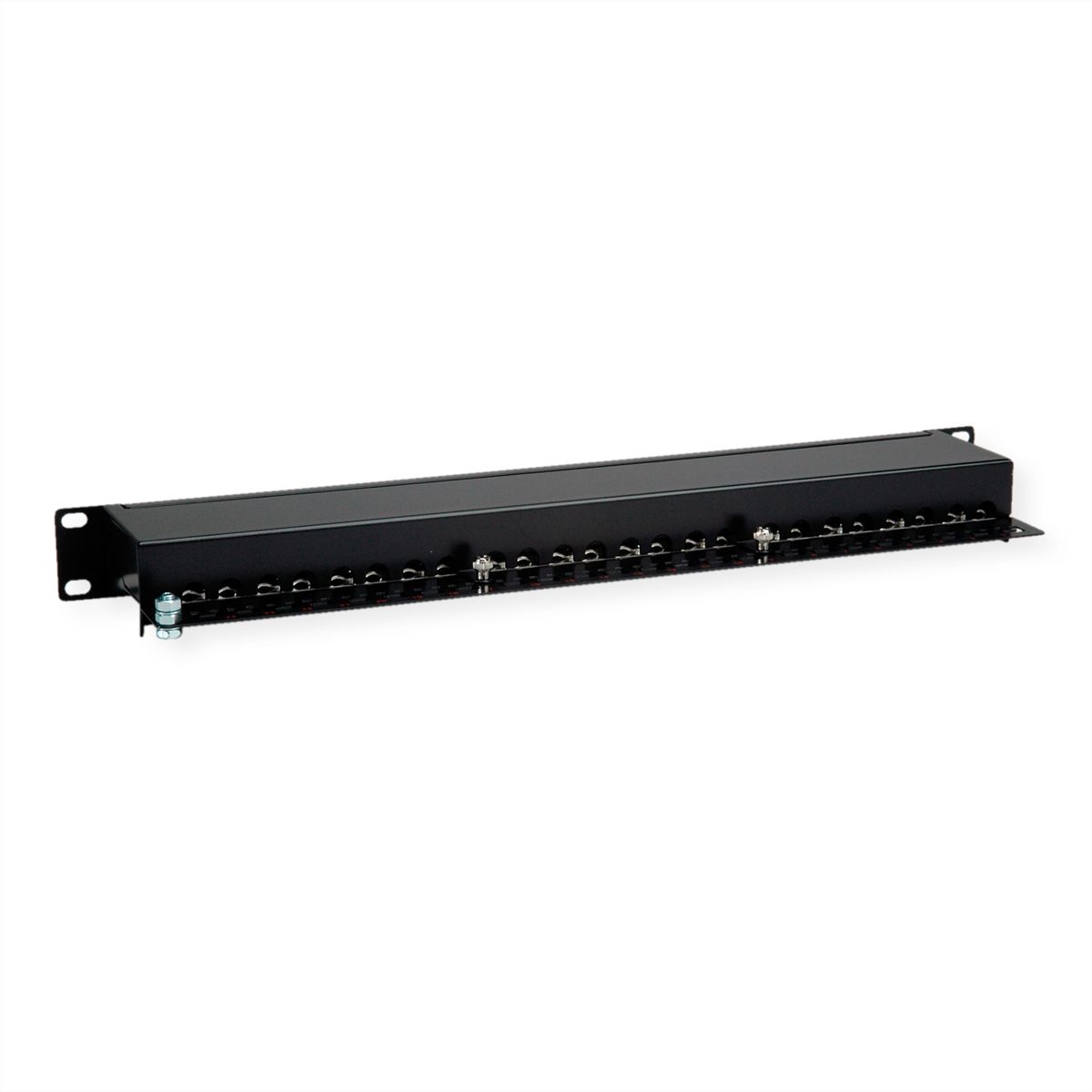

  • The cable connection on the back is implemented via LSA-plus connection technology with colour coding on the top in accordance with EIA/TIA 568
  • Sheet steel housing and cover
  • 24 Ports
  • Colour: Black

For a structured cabling system we recommend to use the following components:

ROLINE Cat.5e S/FTP Cable, Solid Wire, AWG24: 21.15.0019 (100 m), 21.15.0020 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, shielded: 25.16.8487 (white), 25.16.8486 (ivory)/25.16.8387 (white), 25.16.8386 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, shielded: 26.11.0329 (light grey), 26.11.0328 (black)
ROLINE Cat.5e S/FTP Patch Cord, grey, 5 m: 21.15.0305

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
Patchpanel Cat.5e
Colour
black
Scope of delivery
1x patch panel, cable ties, installation instructions
Shield type
Screened
Transfer quality
Cat5e / Class D
Cabinet system
19"-Technique
Quantity of ports
24
Assembly cable connection
Krone LSAplus
Assignment
EIA/TIA 568A & 568B
Modular assembly
no
Material (casing)
Sheet steel
Shield contacts
Yes
separate strain relief
yes
Connection direction
Straight
Height units
1 U
Height
44 mm
Width
482.6 mm
Depth
136 mm
Weight
1506.2 g
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
150 mm
Depth of packaging (single piece)
570 mm
Package weight (single piece)
1.93 kg

Downloads

Product data sheet - English (34.8 KB) Manufacturer data sheet - English (702.7 KB) User manual - Deutsch (340.6 KB) User manual - English (431.2 KB) User manual - Français (340.1 KB)
