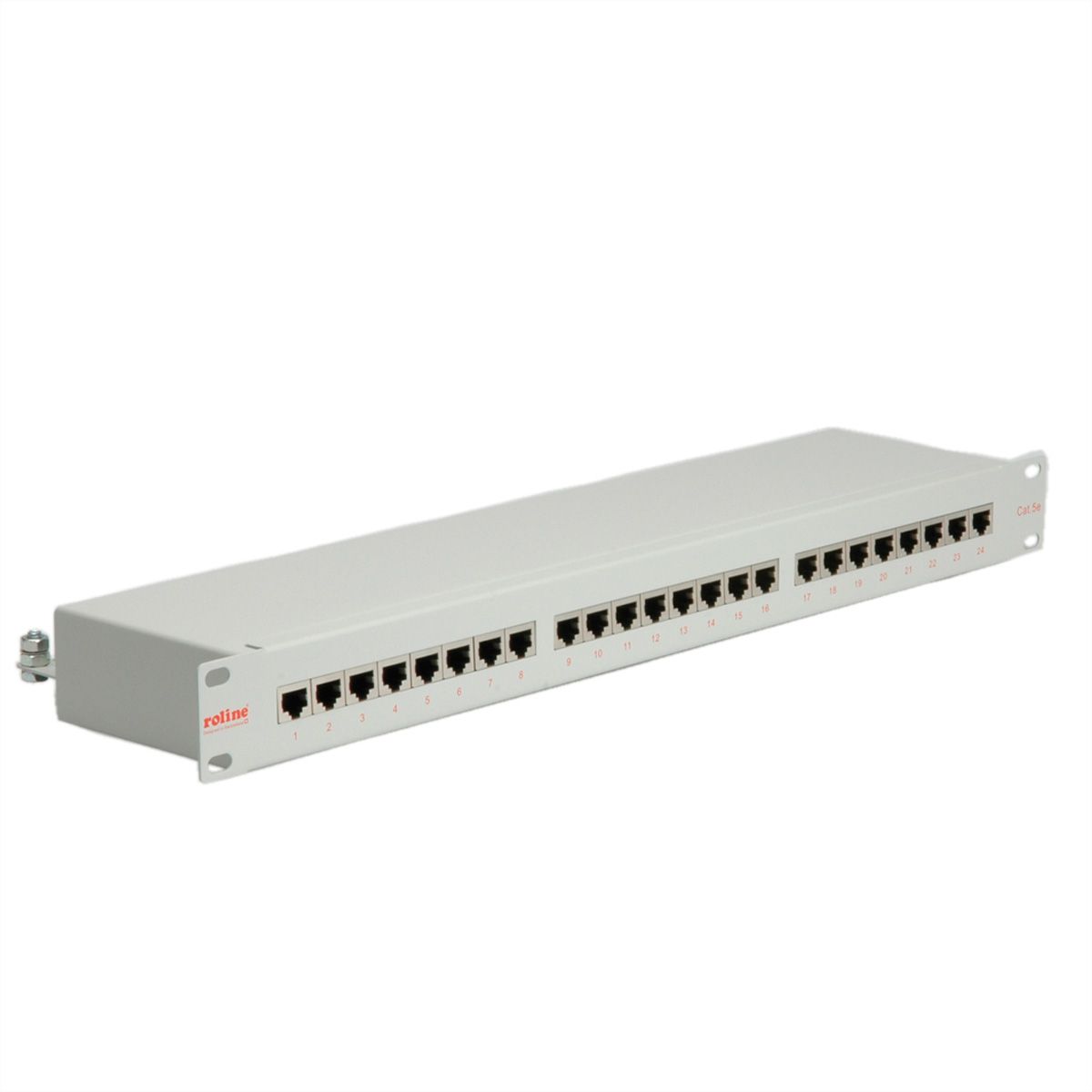

ROLINE Cat.5e (Class D) 19" Patch Panel, 24 Ports, STP, grey

Item no. 26110329 Brand / Manufacturer ROLINE Manuf. item no. 26.11.0329 EAN 7611990147786 Item weight 2.2 kg
ROLINE

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

  • The panels comply with the EIA / TIA 568 Cat. 5e TSB40A standard
  • The cable connection on the back is implemented via LSA-plus connection technology with colour coding on the top in accordance with EIA/TIA 568
  • Sheet steel housing and cover
  • 24 ports
  • Colour: Light grey

For a structured cabling system we recommend to use the following components:

ROLINE Cat.5e S/FTP Cable, Solid Wire, AWG24: 21.15.0019 (100 m), 21.15.0020 (300 m)
ROLINE Cat.5e Flush/Surface Mount Wall Jack, shielded: 25.16.8487 (white), 25.16.8486 (ivory)/25.16.8387 (white), 25.16.8386 (ivory)
ROLINE Cat.5e 19" Patch Panel, 24 Ports, shielded: 26.11.0329 (light grey), 26.11.0328 (black)
ROLINE Cat.5e S/FTP Patch Cord, grey, 5 m: 21.15.0305

Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specifications.

Specifications

Manufacturer
ROLINE
Product group
Connection technology TP
Product type
Patchpanel Cat.5e
Colour
grey
Shield type
Screened
Transfer quality
Cat5e / Class D
Cabinet system
19"-Technique
Quantity of ports
24
Assembly cable connection
Krone LSAplus
Assignment
EIA/TIA 568A & 568B
Modular assembly
no
Material (casing)
Metal
Shield contacts
Yes
separate strain relief
yes
Connection direction
Straight
Height units
1 U
Height
44 mm
Width
482.6 mm
Depth
136 mm
Weight
1505.7 g
Height of packaging (single piece)
80 mm
Width of packaging (single piece)
250 mm
Depth of packaging (single piece)
570 mm
Package weight (single piece)
2.2 kg
