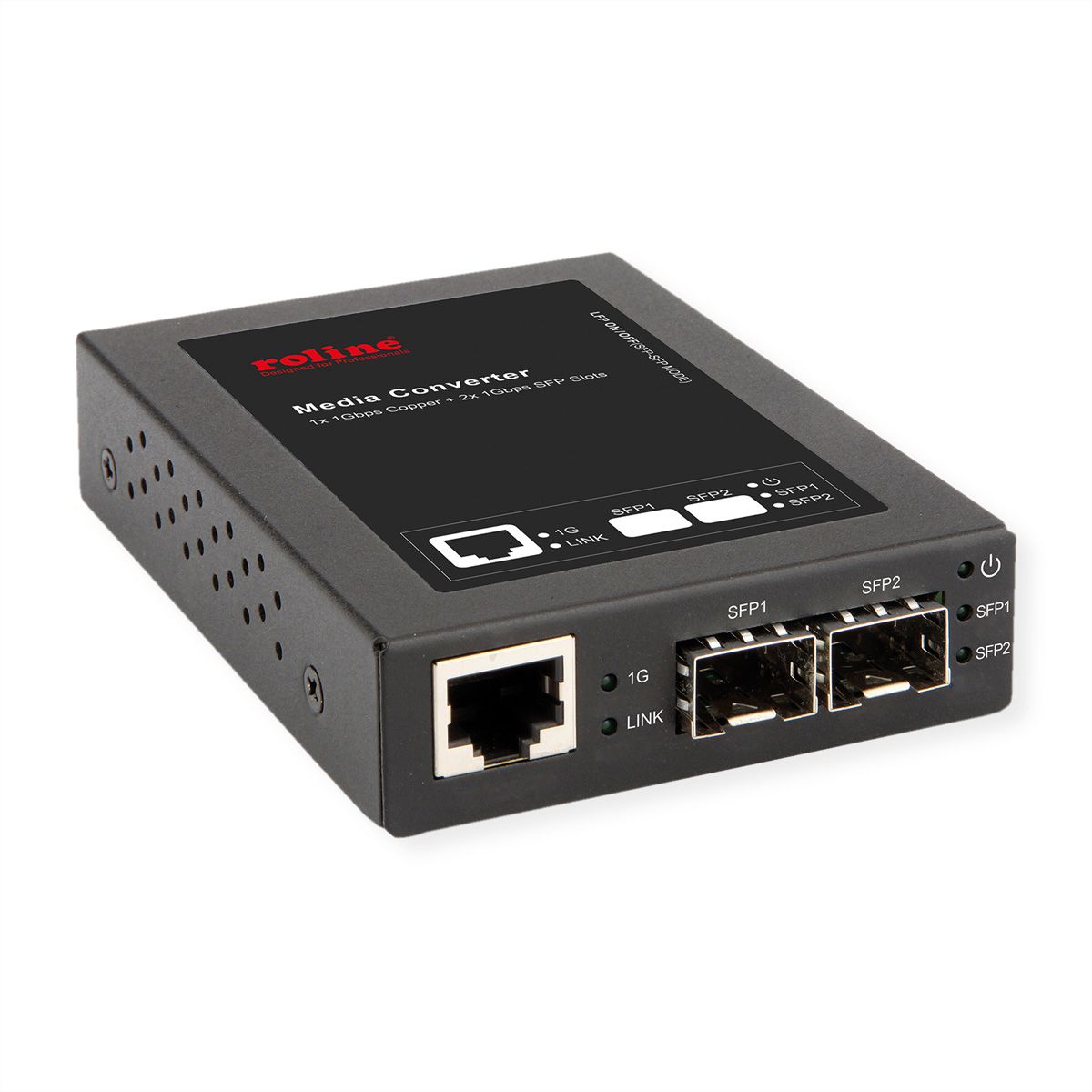

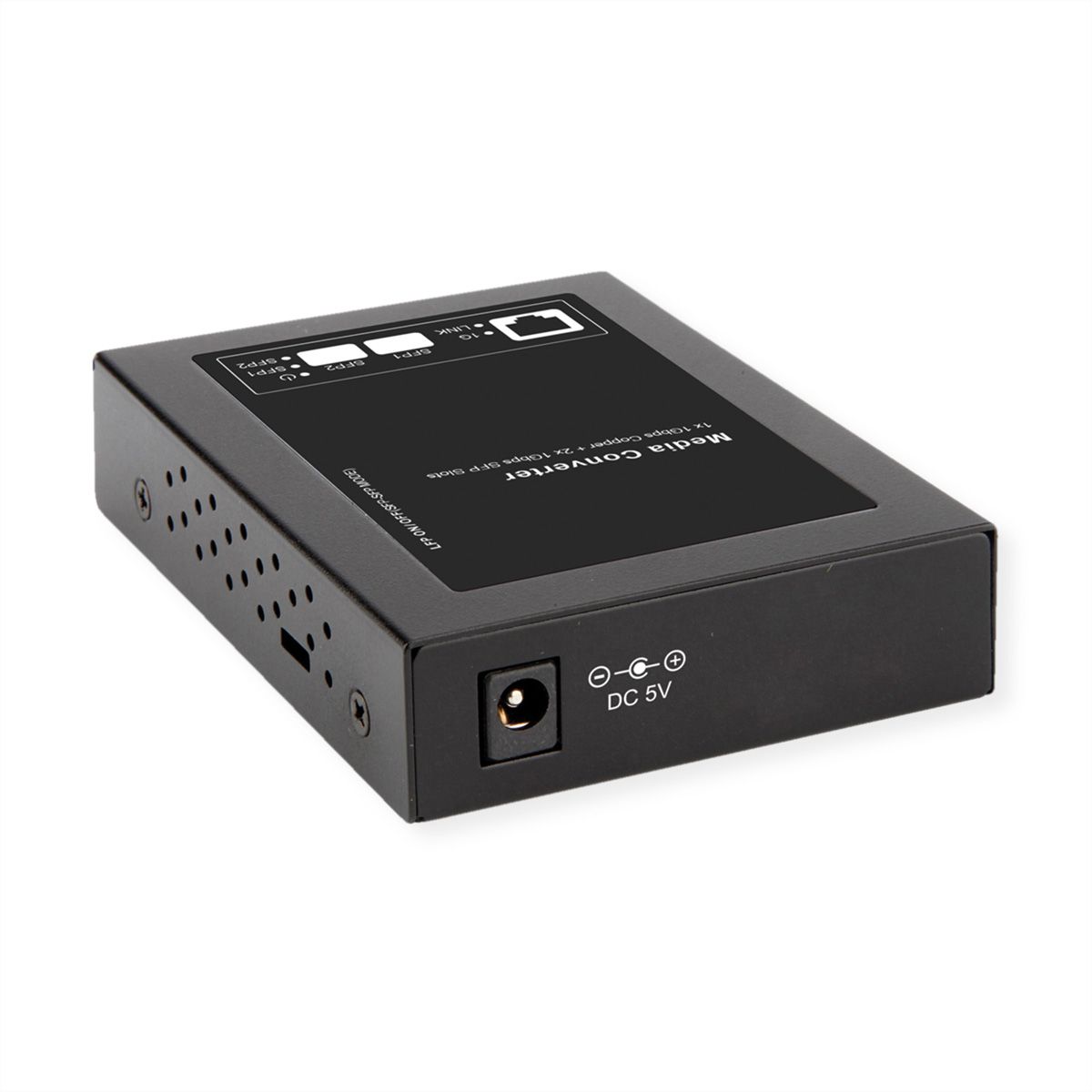

ROLINE Gigabit Converter, RJ-45 to Mini GBIC
Item no.
21131074
Brand / Manufacturer
ROLINE
Manuf. item no.
21.13.1074
EAN
7630049635128
Item weight
0.3 kg
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Description
Fiber optic converters can be used to adapt different cabling within a LAN to create a functional network. Whether for converting fiber optics to a classic twisted pair network with a Mini-GBIC or for converting fiber optics to another fiber optic network with two Mini-GBICs. The ROLINE GigaBit converter offers both options.
The ROLINE Gigabit Converter converts a Gigabit Ethernet TP port to fiber optic or a fiber optic port to a second fiber optic port. The fiber optic connections can be freely selected using a Mini-GBIC module. Mini-GBIC modules are available for SX/LC (21.14.3500) and LX/LC (21.14.3501: 10km, 21.14.3502: 20km).- Compliant with IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab 1000BaseT and IEEE 802.3z 1000BaseSX/LXGigabit Ethernet Standards
- Connectors: 1x 10/100/1000BaseT Gigabit Ethernet TP port and 2x Mini-GBIC slots on the fiber optic side
- Power is supplied via an external power supply (included)
- TP port supports Full-Duplex, Auto-MDI/MDI-X, Auto-Negotiation
- Each SFP slot supports both singlemode and multimode or mixed
- Link Loss Forwarding (LLF) / Link Fault Pass Through (LFP)
- Dimensions: 22 x 74 x 102 mm
- Scope of delivery: converter, quick installation guide, plug-in power supply unit (5V DC, 2A)
Specifications
- Manufacturer
- ROLINE
- Product group
- Network converters
- Product type
- Network Media Converters
- Colour
- black
- Scope of delivery
- Converter, Quick Installation Guide, Power Adapter (5V DC, 2A)
- RJ-45 Port (Mbps/s)
- 1000
- Fibre Ports (Mbps)
- 1000
- Quantity of RJ45 ports
- 1
- Technical particularity
- Fibre optic connection is realized by MiniGBIC Module
- Operating temperature min.
- 0 °C
- Operating temperature max.
- 50 °C
- Storage temperature min.
- -20 °C
- Storage temperature max.
- 80 °C
- Height
- 22 mm
- Width
- 74 mm
- Depth
- 102 mm
- Weight
- 295 g
- Height of packaging (single piece)
- 60 mm
- Width of packaging (single piece)
- 160 mm
- Depth of packaging (single piece)
- 200 mm
- Package weight (single piece)
- 0.3 kg
