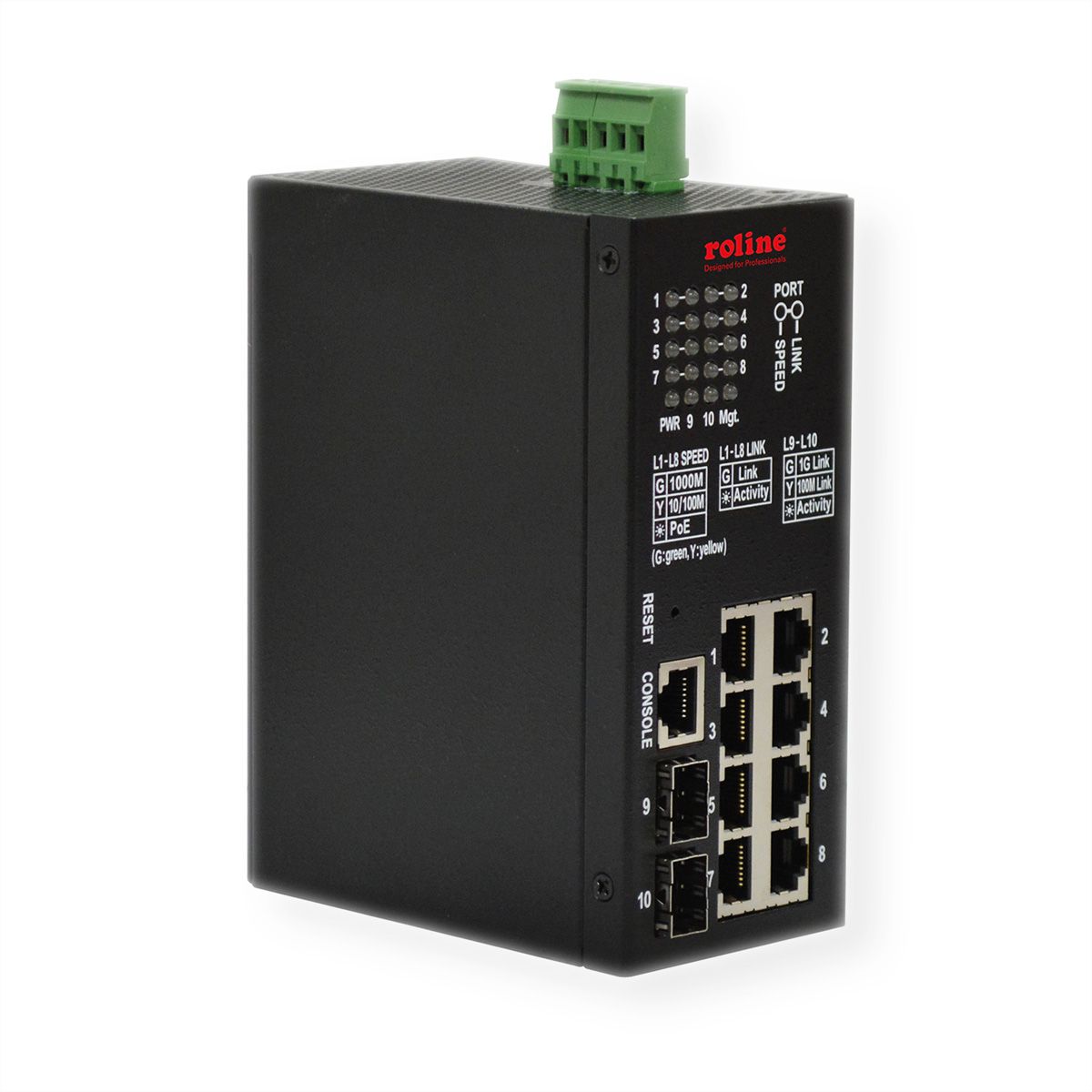

ROLINE Gigabit Switch 10-Port, (8x RJ45+2x SFP) Layer2 PoE+ Smart Managed

Item no. 21131137 Brand / Manufacturer ROLINE Manuf. item no. 21.13.1137 EAN 7630049614710 Item weight 0.8 kg
ROLINE
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Gigabit Switch with 8x 10/100/1000Mbps RJ-45 and two dual-speed SFP slots

  • Eight 10/100/1000Mbps RJ-45 and two dual-speed SFP slots
  • All copper ports support auto-negotiation and auto-MDI/MDI-X detection

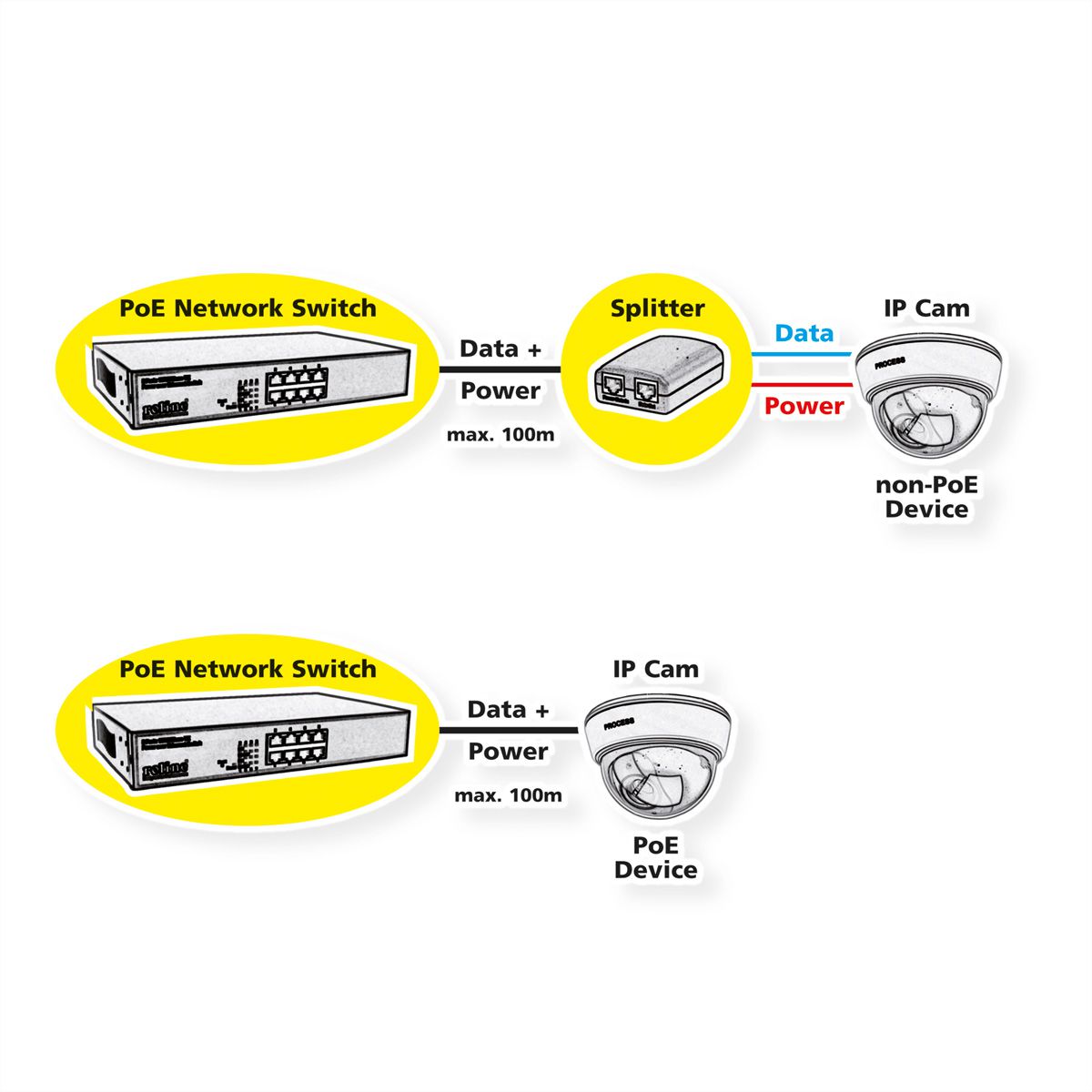

  • All copper ports are equipped with 802.3at-compliant PoE PSE
  • Two SFP slots support dual speed for 100BASE-FX and 1000BASE-X SFP transceivers
  • Full wire speed forwarding
  • Supports 802.3x flow control for full-duplex and backpressure for half-duplex
  • Supports SFP with Digital Diagnostic Monitoring (DDM)
  • Provides PoE PSE redundancy function
  • Provides fiber optical power alarm function, Automatic Laser Shutdown function
  • Power voltage DC 12V-30V

Management:

  • HTTP/HTTPS/SSHv2/CLI telnet/CLI console/SNMP v1/v2c/v3/RMON
  • DHCP/DHCPv6 client, DNS client, NTPv4
  • IPv6 support, System Syslog, Configuration down/upload, Software upload
  • private MIB for DDM monitoring, Remote boot, TFTP firmware update via SNMP

Security:
  • NAS, 802.1X, MAC-based/Web/CLI authentication, IP MAC binding, TACACS+, IP source guard

Layer 2:
  • QoS, 802.1Q/MAC-based/Protocol-based/Private/IP subnet VLAN, Port Isolation
  • Storm control for UC/MC/BC packets
  • Static MAC configuration
  • IGMP v2/v3 snooping, MLD v1/v2 snooping, DHCP snooping
  • Multiple Spanning Tree – MSTP, RSTP, STP

Auto Multi-Ring (KAMR) Technology:
  • Fast failover response time
  • Auto recovery when failure is repaired
  • Supports up to Five redundant rings
  • Works with RSTP network
  • Supports ring member status monitoring for up to 100 units

As a suitable power supply unit, we recommend the DIN rail power supply unit NDR-120-24 (21.13.1313).

Specifications

Manufacturer
ROLINE
Product group
Industrial Networking
Product type
Network Switch
Colour
black
Scope of delivery
1x switch, 1x product CD-ROM, 1x console cable
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Quantity of ports
10
Gigabit Ethernet Ports RJ-45
8
Free slots for SFPs
2
Power over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Quantity of PoE ports
8
Max. PoE output power per port
30 W
Max. PoE output power (total)
90 W
Dimensions (HxWxD)
60 x 106 x 140 mm
Mains connection
Loose cable / screw terminals
Height
60 mm
Width
106 mm
Depth
140 mm
Weight
768.1 g
Height of packaging (single piece)
80 mm
Width of packaging (single piece)
170 mm
Depth of packaging (single piece)
270 mm
Package weight (single piece)
0.8 kg

Downloads

Product data sheet - English (43.7 KB) Manufacturer data sheet - English (102.2 KB) User manual - Deutsch (4.7 MB) User manual - English (4.7 MB) User manual - Français (4.7 MB)
