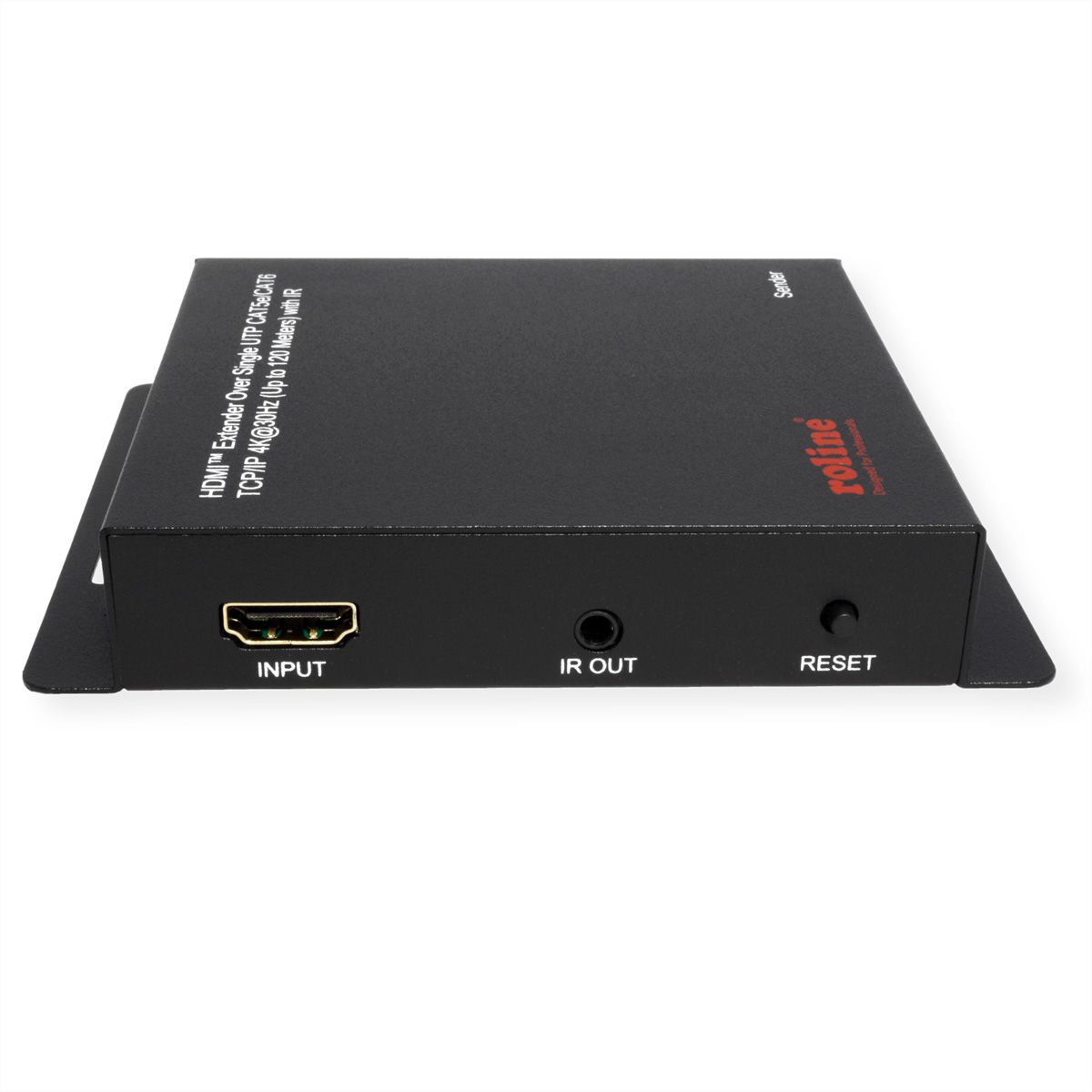

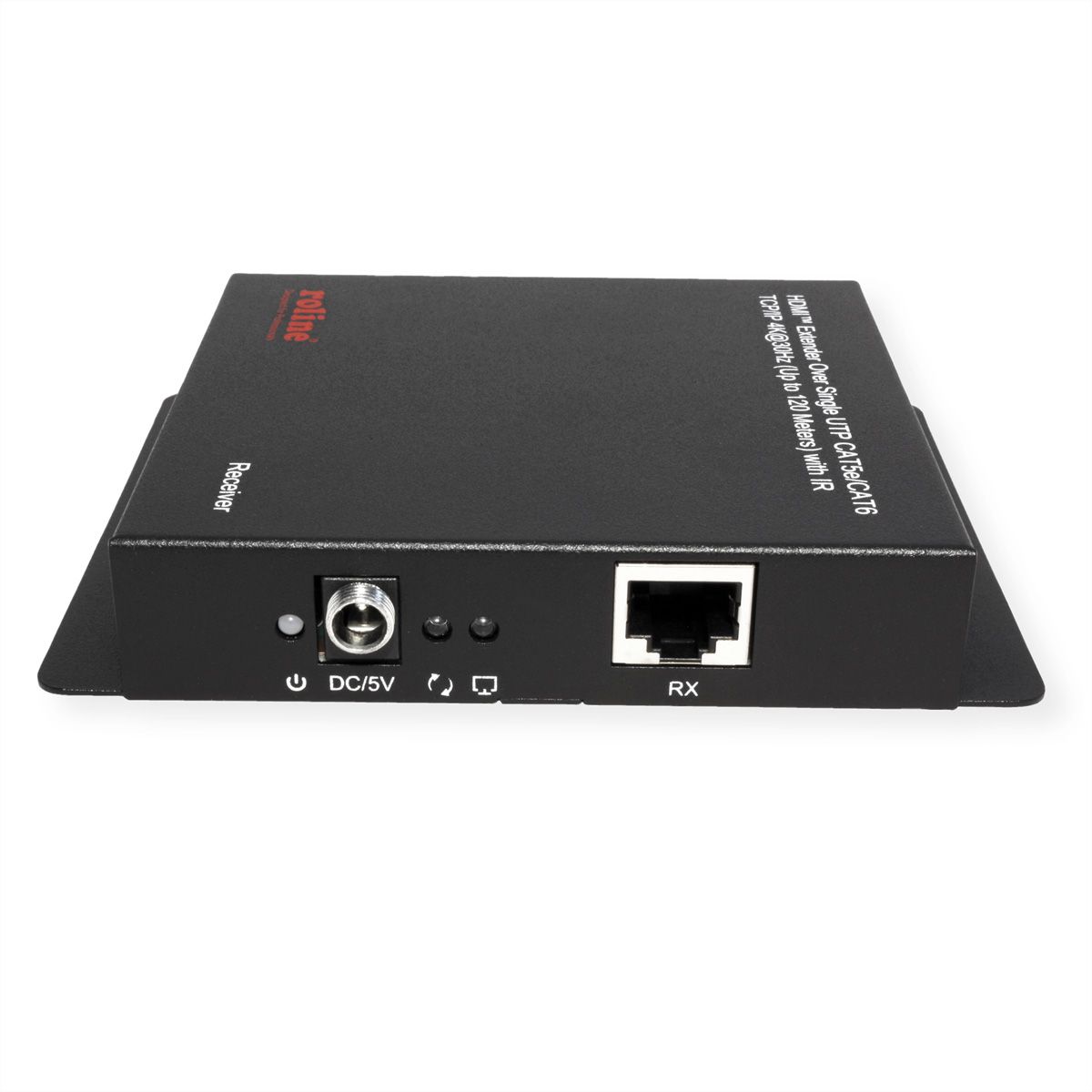

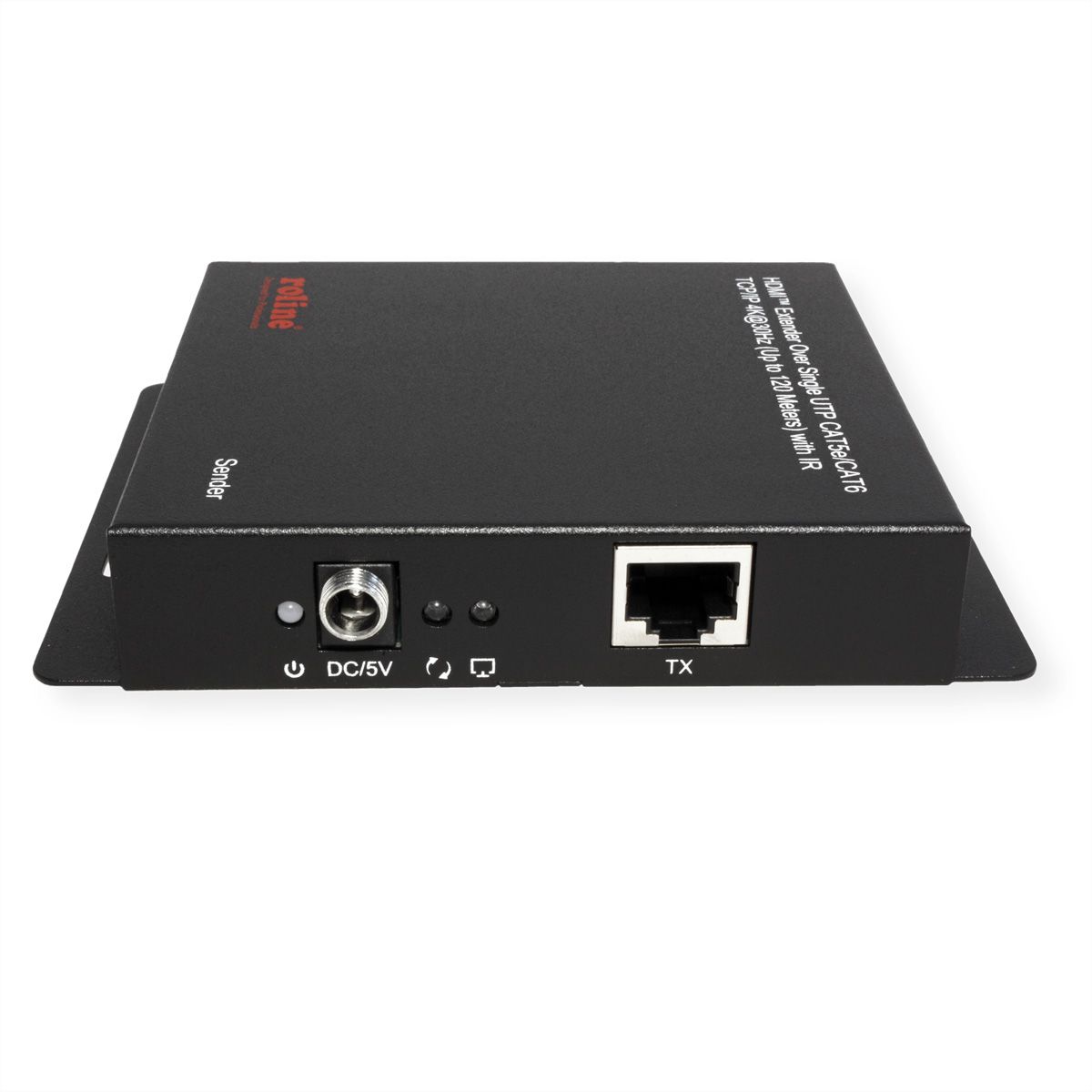

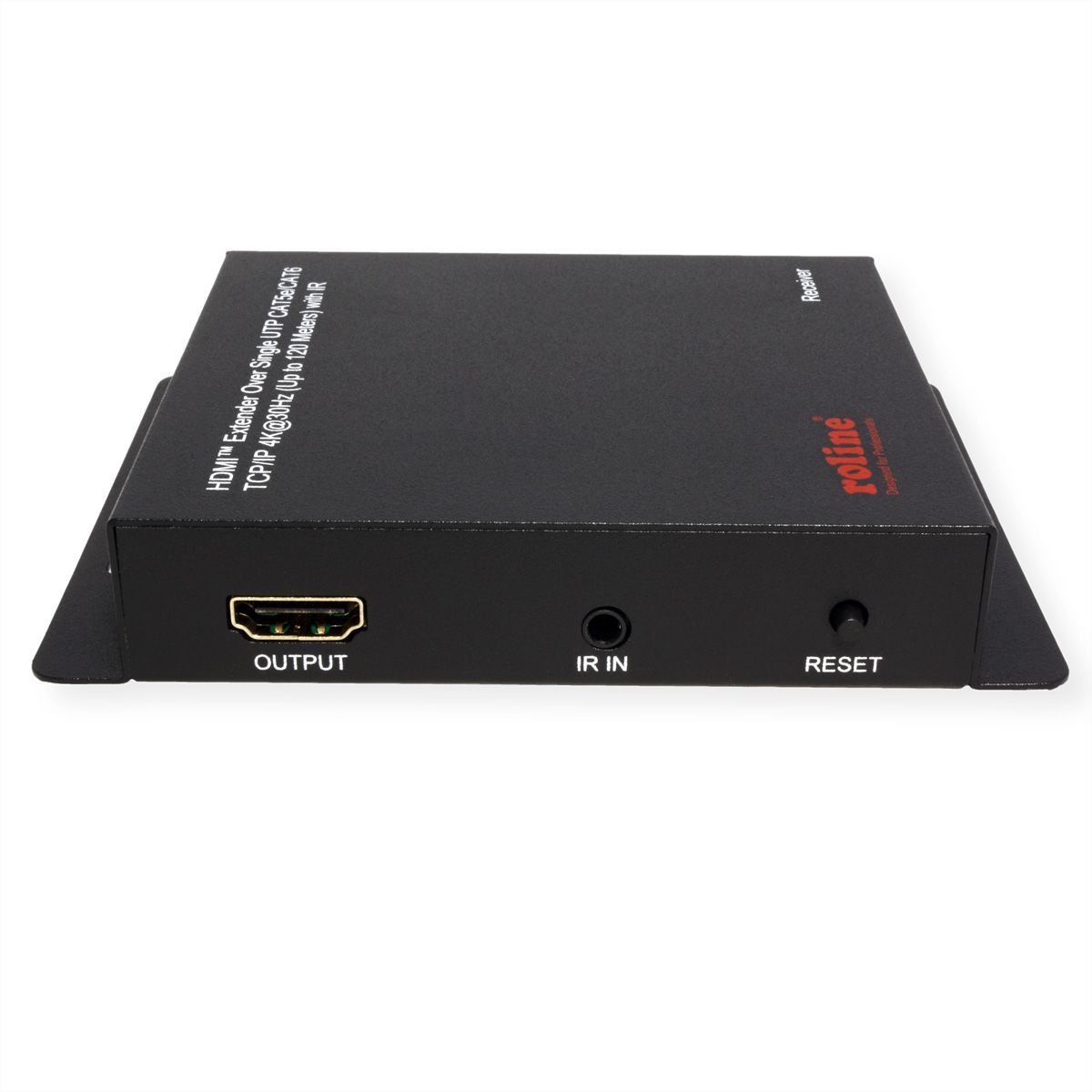

ROLINE HDMI over IP Extender, 4K30Hz, 120m, W/IR

Item no. 14013642 Brand / Manufacturer ROLINE Manuf. item no. 14.01.3642 EAN 7630049633391 Item weight 1 kg

ROLINE HDMI over IP Extender, 4K30Hz, 120m, W/IR

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

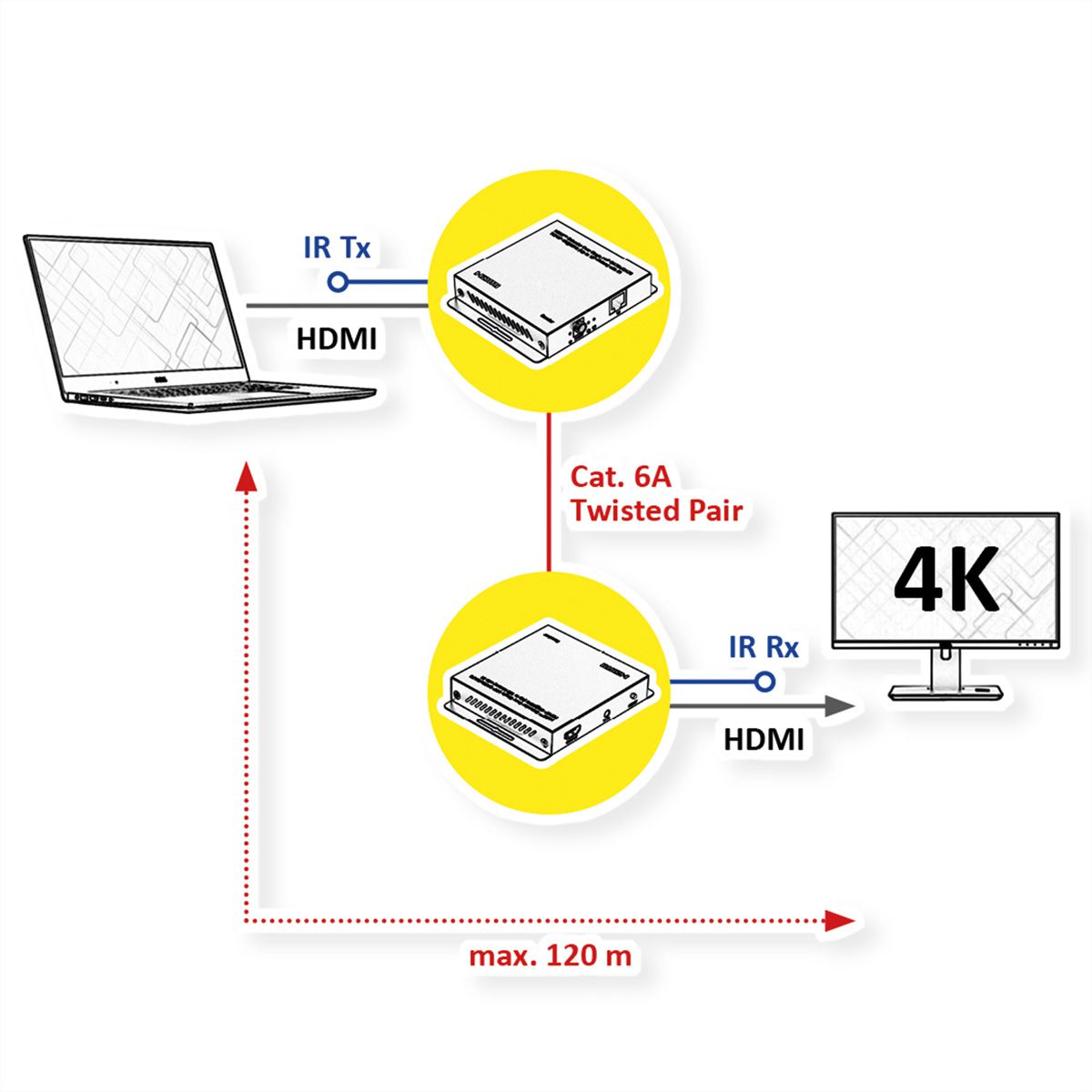

With this HDMI over IP Extender, you can extend HDMI signals up to 120 m with 4K@30Hz via a network cable of Cat. 5e or higher. An ideal solution for sharing a screen or projector over a LAN network. IR signals from a remote control of the video source can also be redirected - perfect for controlling your video source from your video destination.

Suitable for advertising, studios, multimedia classrooms, etc.

Following TCP/IP standard
Supports resolutions up to 4K@30Hz
Max. distance is 120m
Supports max video bandwidth of 3.4Gbps/340MHz per channel (10.2 Gbps all channels)
Cat5e/6 cable needs to follow the standard of IEEE-568B

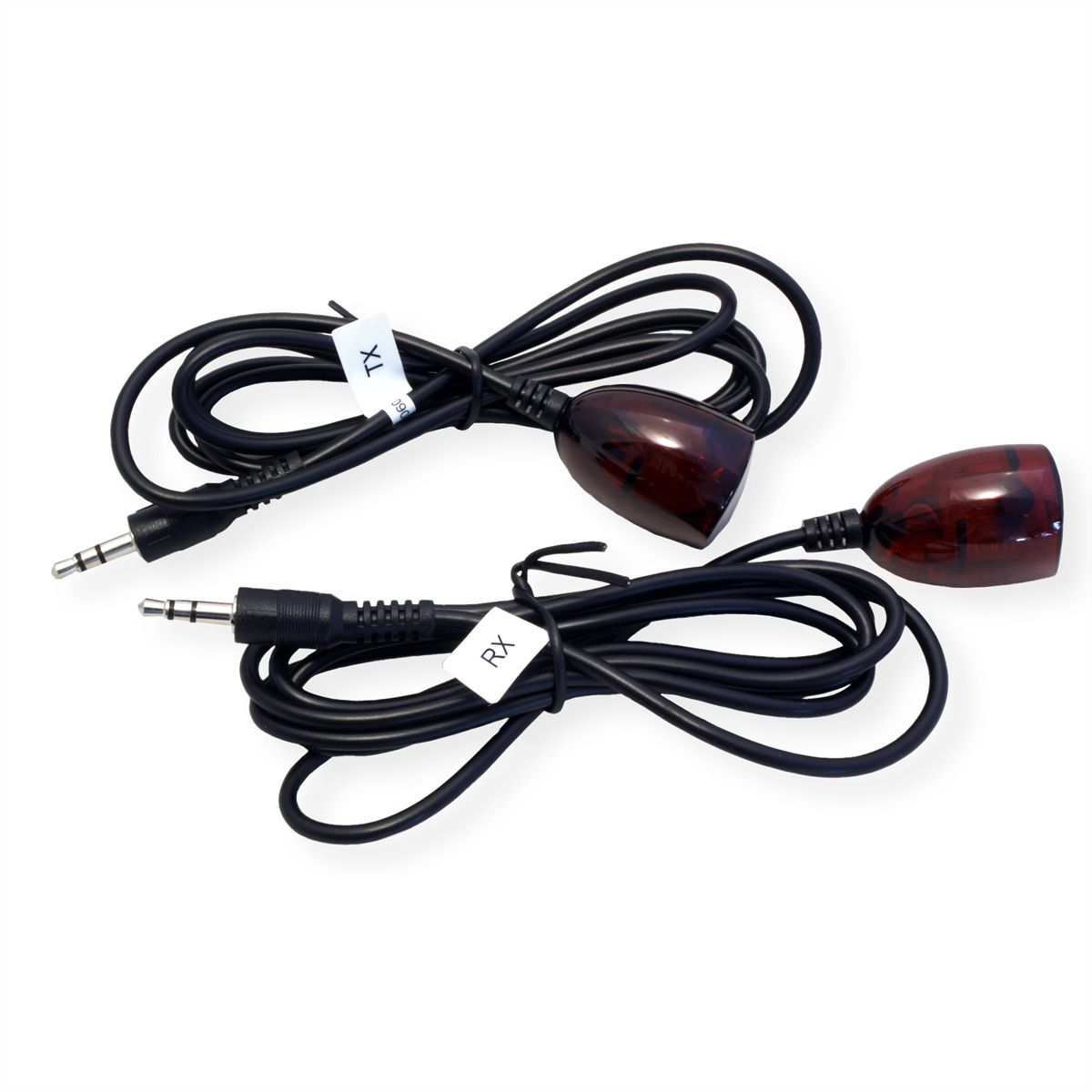

Features IR return, which enables you to control the video source from your video destination

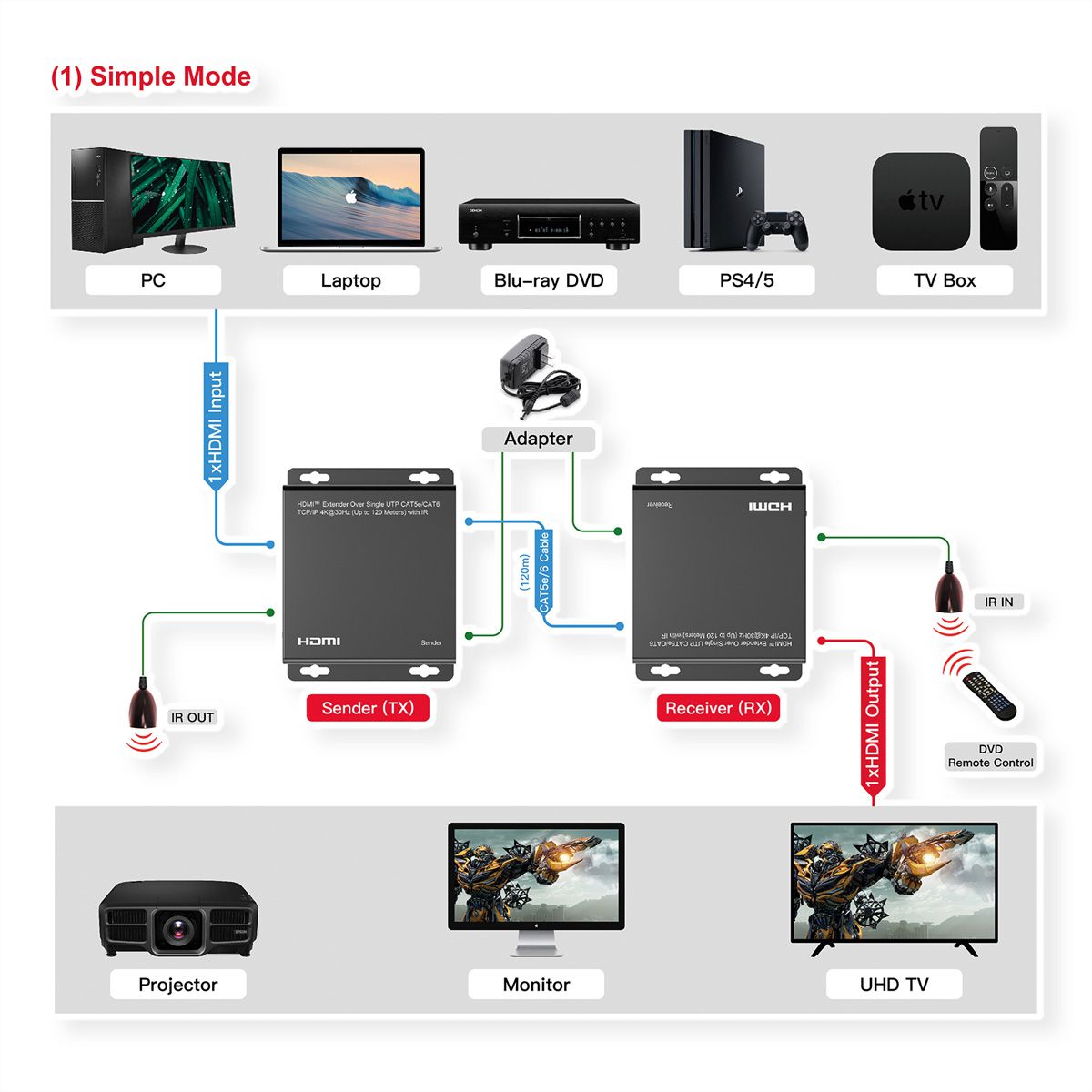

Features 2 extension modes: simple mode (1:1) and allocation mode (1:N)

Stable metal casing
Dimensions: TX/RX: 24 x 94 x 120 mm
Weight: TX/RX: 214 g

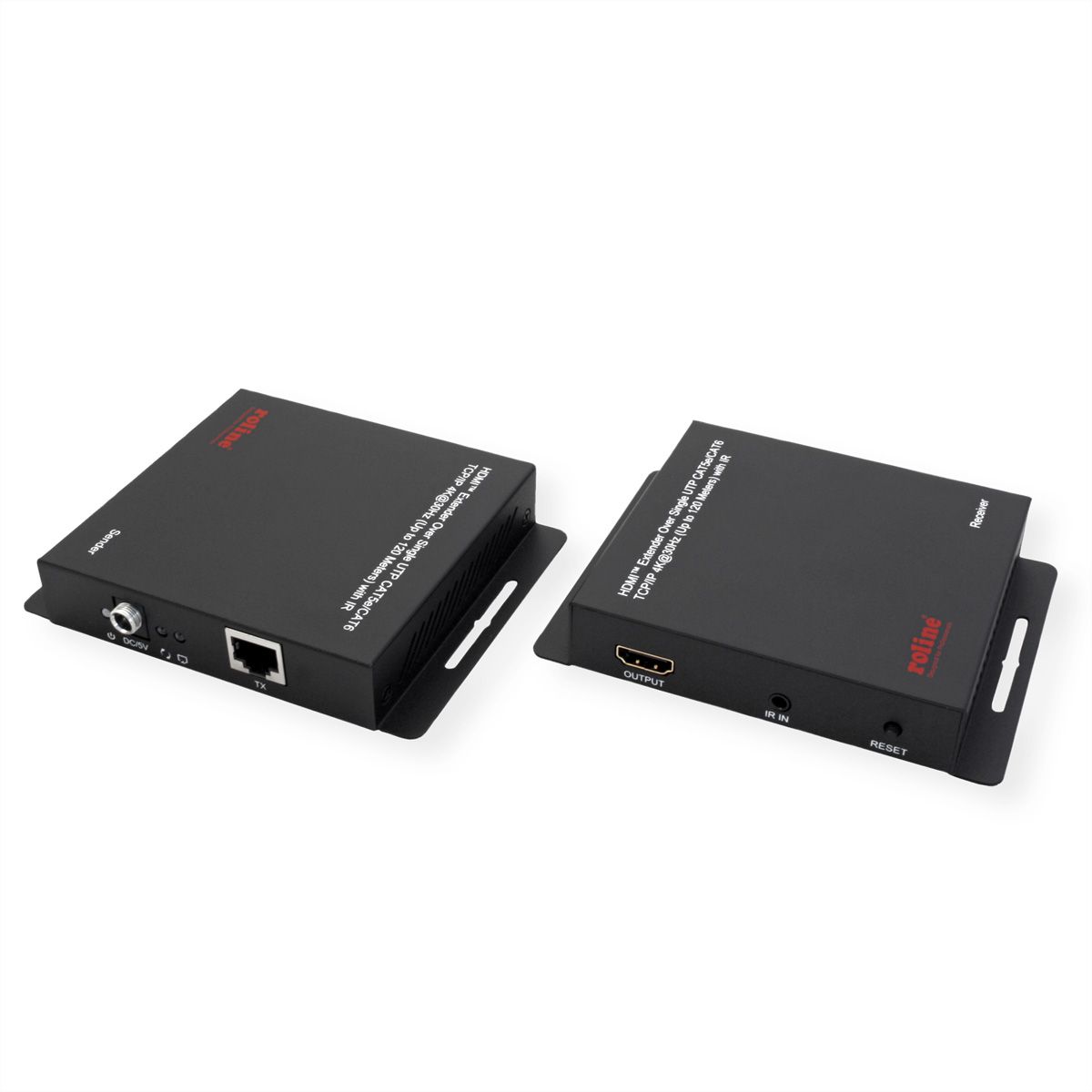

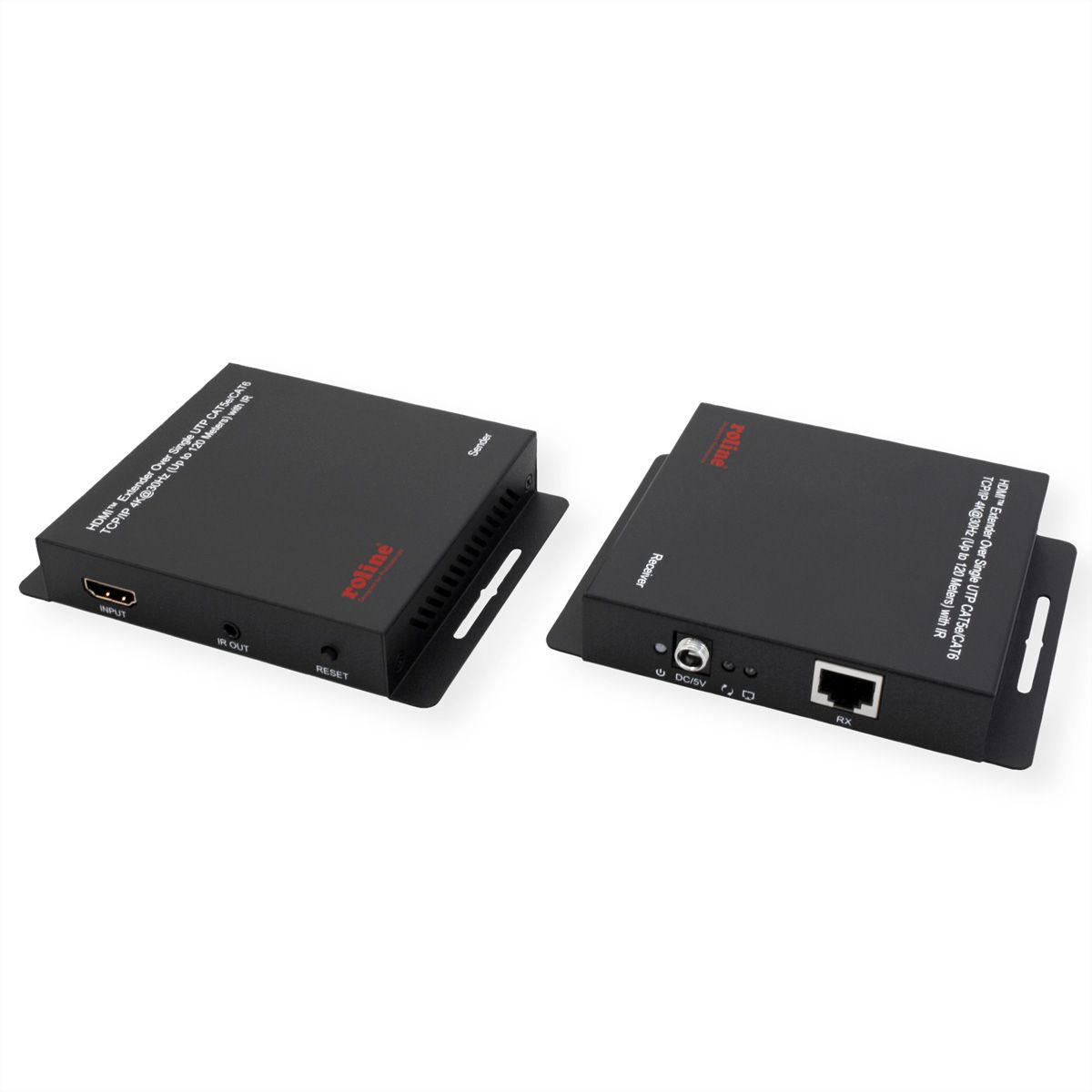

Contents: 1x Transmitter, 1x Receiver, 2x Power Supply (TX: 1x 5 VDC 1A, RX: 1x 5VDC 1A), User Manual

Specifications

Manufacturer: ROLINE
Product group: Splitters and selectors
Product type: HDMI Extender
Colour: black
Scope of delivery: 1x Transmitter, 1x Receiver, 2x Power Supply (TX: 1x 5 VDC 1A, RX: 1x 5 VDC 1A), User Manual
Interface: HDMI
Audio: HDMI
Inputs: 1
Outputs: 1
Max. distance: 120 m
Video input: HDMI
Audio input: HDMI
Video output: HDMI
Audio output: HDMI
Video band width: 10.2 Gbps
Max. resolution (nom.): 3840 x 2160 @30Hz
Max. resolution: 3840 x 2160 @30Hz (4K, Full HD)
Dimensions (HxWxD): TX: 24 x 94 x 120 mm, RX: 24 x 94 x 120 mm
Power supply unit: 2x
Power supply output: DC 5V 1A
Technical particularity: Extends the signal up to 120m
Operating temperature min.: 0 °C
Operating temperature max.: 50 °C
Height: 24 mm
Width: 94 mm
Depth: 120 mm
Weight: 428 g
Height of packaging (single piece): 60 mm
Width of packaging (single piece): 230 mm
Depth of packaging (single piece): 300 mm
Package weight (single piece): 1 kg
