The products of our own brand ROLINE are designed for professional continuous operation.
With a 5-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s26/26110379_2025_m_0_hi.jpg "ROLINE Keystone Holder, with Keystone, DIN-Rail, 45°")
:strip_icc():strip_exif()/bilder/s26/26110379_2025_p_0_hi.jpg "ROLINE Keystone Holder, with Keystone, DIN-Rail, 45°")

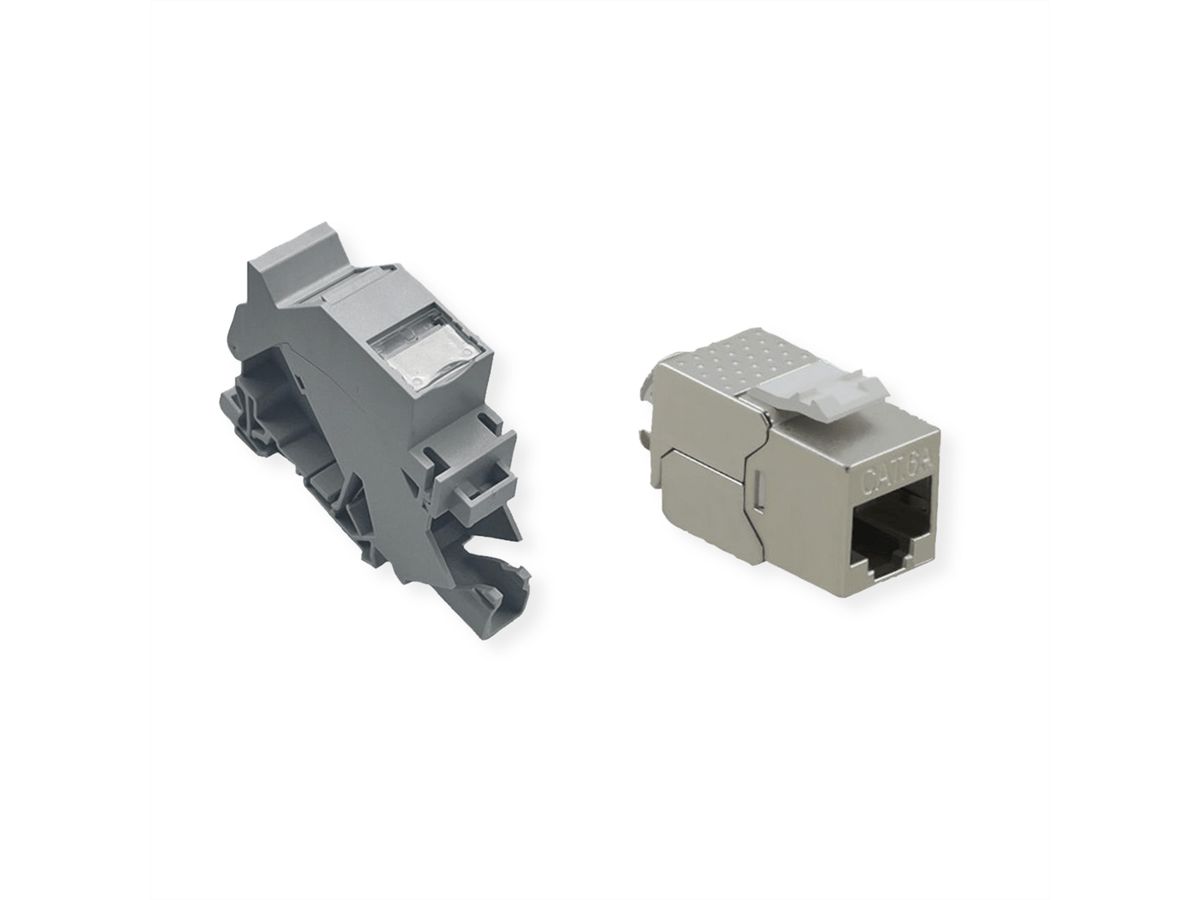

ROLINE Keystone Holder, with Keystone, DIN-Rail, 45°
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 26110379 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. item no. | 26.11.0379 |
| EAN | 7630049635692 |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
ROLINE RJ-45 DIN Rail Keystone Holder, including Keystone
- Cable access 45° from the top or bottom, connection direction 45° downwards
- With shielded plate (grounding)
- Holder with integrated dust cover
- For cables with outer diameter: 5.0 - 8.0mm
- Suitable for 26AWG (0.40mm) - 22AWG (0.65mm) cables
- Dimensions
- Keystone Holder: 78.25 x 17.7 x 63.9mm
- Keystone: 21.5 x 14.7 x 34.5 mm
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | DIN rail adapter |
| Colour | grey |
| Scope of delivery | DIN-Rail Keystone Holder and Keystone, Installation Guide, Cable Tie |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A & 568B |
| Material (casing) | ABS + Zinc Alloy |
| Dimensions (HxWxD) | Keystone Holder: 78.25 x 17.7 x 63.9mm, Keystone: 21.5 x 14.7 x 34.5 mm |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 70 °C |
| Height | 78.25 mm |
| Width | 17.7 mm |
| Depth | 63.9 mm |
| Weight | 31 g |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 0 kg |
