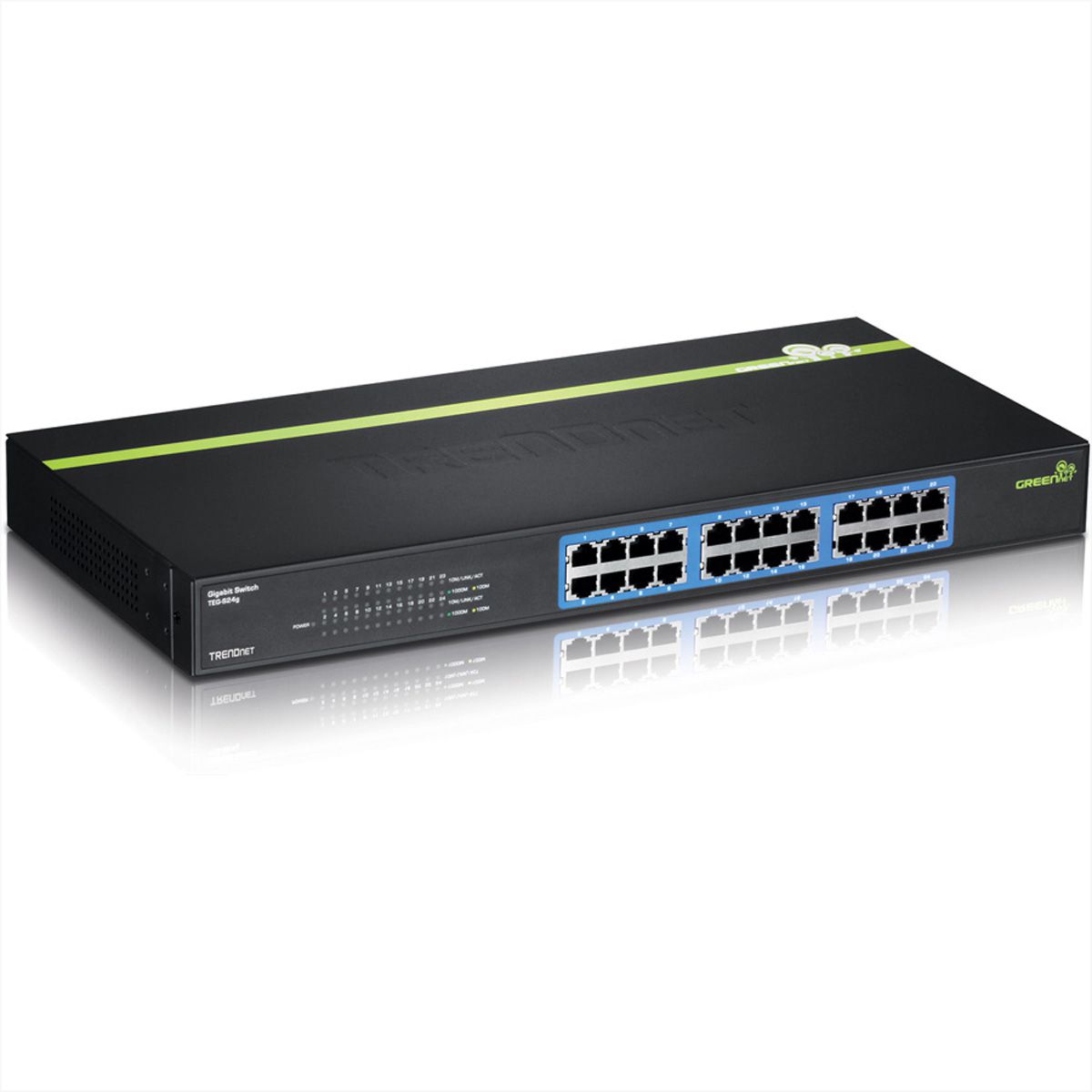

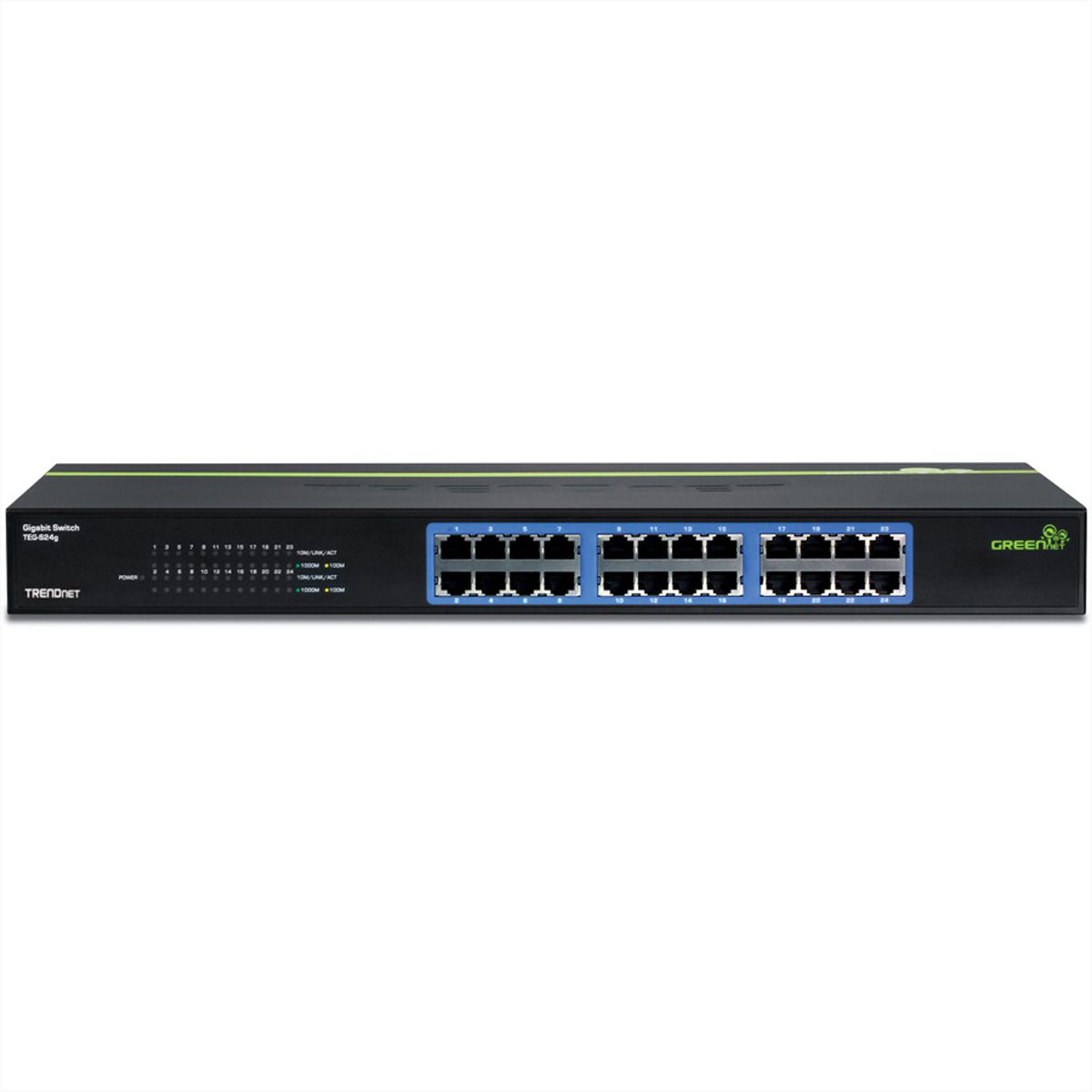

TRENDnet TEG-S24G Unmanaged Gigabit Ethernet Switch, 24-Port, GREENnet Technology

Item no. 21221052 Brand / Manufacturer TRENDNET Manuf. item no. TEG-S24g EAN 710931610246 Item weight 3.23 kg
TRENDNET

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/10/2026

Description

The TRENDnet TEG-S24G is a high-performance 24-port Gigabit GREENnet switch designed for reliable networking in offices and home environments.

  • 24 Gigabit Ethernet ports
  • 48 Gbps switching capacity
  • Fanless design for silent operation
  • Dimensions: 440 × 210 × 45 mm
  • Supports Jumbo Frames
  • Durable metal housing with included 19" rack mounting brackets
  • GREENnet technology reduces power consumption by up to 70%*
  • Limited Lifetime Warranty*

- GREENnet technology reduces power consumption by up to 70%*- 24 x Gigabit Auto-MDIX RJ-45 ports- Sturdy metal rackmount switch with built in power supply- 48Gbps forwarding capacityThe 24-Port Gigabit GREENnet Switch, model TEG-S24g, provides high bandwidth performance, ease of use and reliability, all while reducing power consumption by up to 70%.GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 48Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.

Specifications

Manufacturer
TRENDNET
Product group
Network Switches
Product type
Network Switch
Colour
black
Scope of delivery
TRENDnet TEG-S24G 24-Port Gigabit GREENnet Switch, Quick Installation Guide, Power cord, Rack mounting kit
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Quantity of ports
24
Fast Ethernet Ports RJ-45
24
Gigabit Ethernet Ports RJ-45
24
Dimensions (HxWxD)
440 x 210 x 45 mm
Mains connection
Cold appliance connection
Height
440 mm
Width
210 mm
Depth
45 mm
Weight
2867.37 g
Height of packaging (single piece)
300 mm
Width of packaging (single piece)
560 mm
Depth of packaging (single piece)
90 mm
Package weight (single piece)
3.23 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
24
Weight & dimensions
Weight
1.7 kg
Power
Input voltage
100-240 V
Power consumption (typical)
13 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Protocols
Supported network protocols
CSMA /CD, Star
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support
N
Full duplex
Y
Flow control support
Y
Auto MDI/MDI-X
Y
Data transmission
MAC address table
8000 entries
Switching capacity
48 Gbit/s
Supported data transfer rates
10, 20, 100, 200, 2000
Maximum data transfer rate
2 Gbit/s
Jumbo frames support
Y
Management features
Switch type
Unmanaged
Other features
Dimensions (WxDxH)
280 x 180 x 44 mm
Connectivity technology
Wired
Wi-Fi
Y
Input frequency
50-60 Hz
Design
Rack mounting
Y
Stackable
N
Product colour
Black
Housing material
Metal
LED indicators
Y
Power over Ethernet (PoE)
Power over Ethernet (PoE)
N
Performance
Harmonized System (HS) code
85176990
