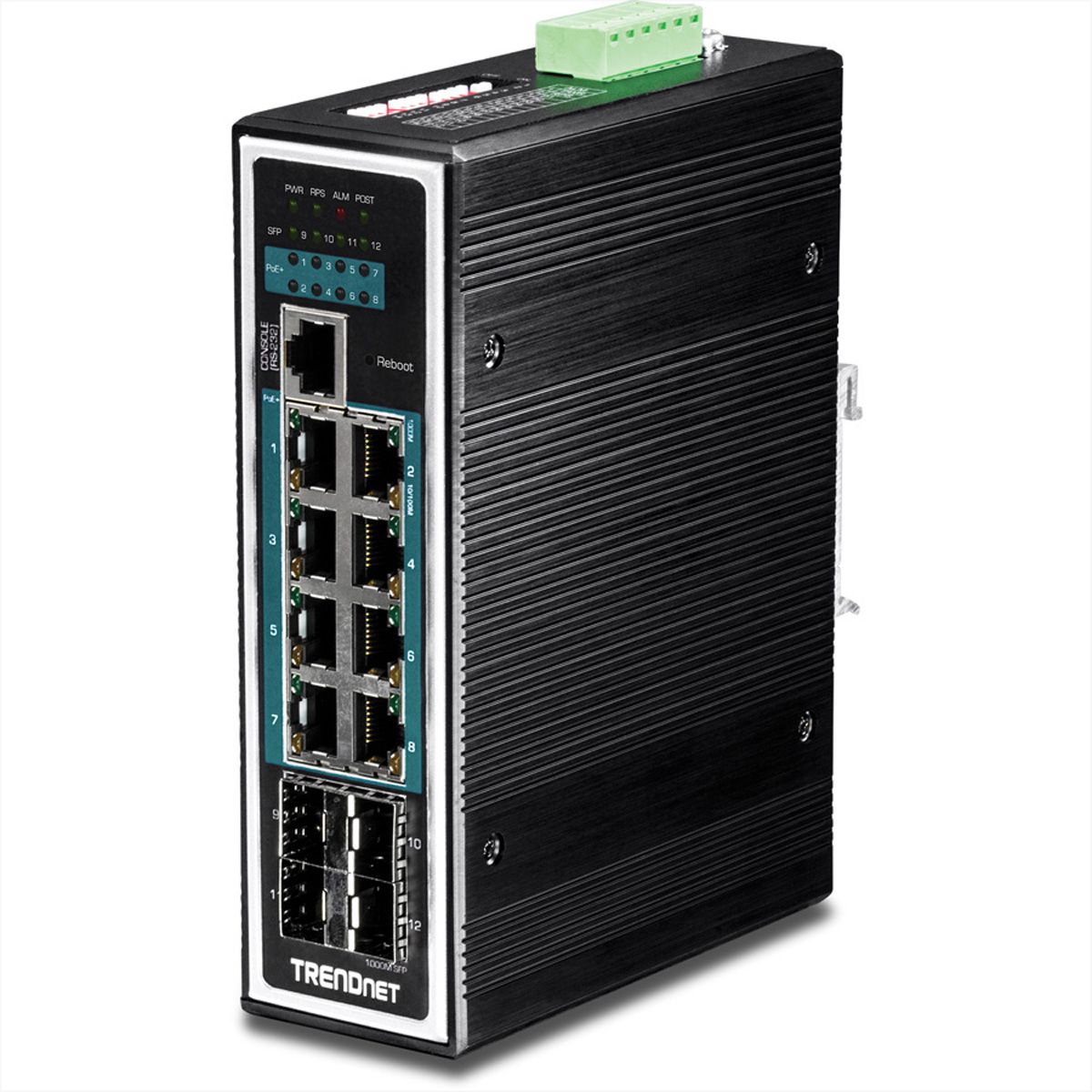

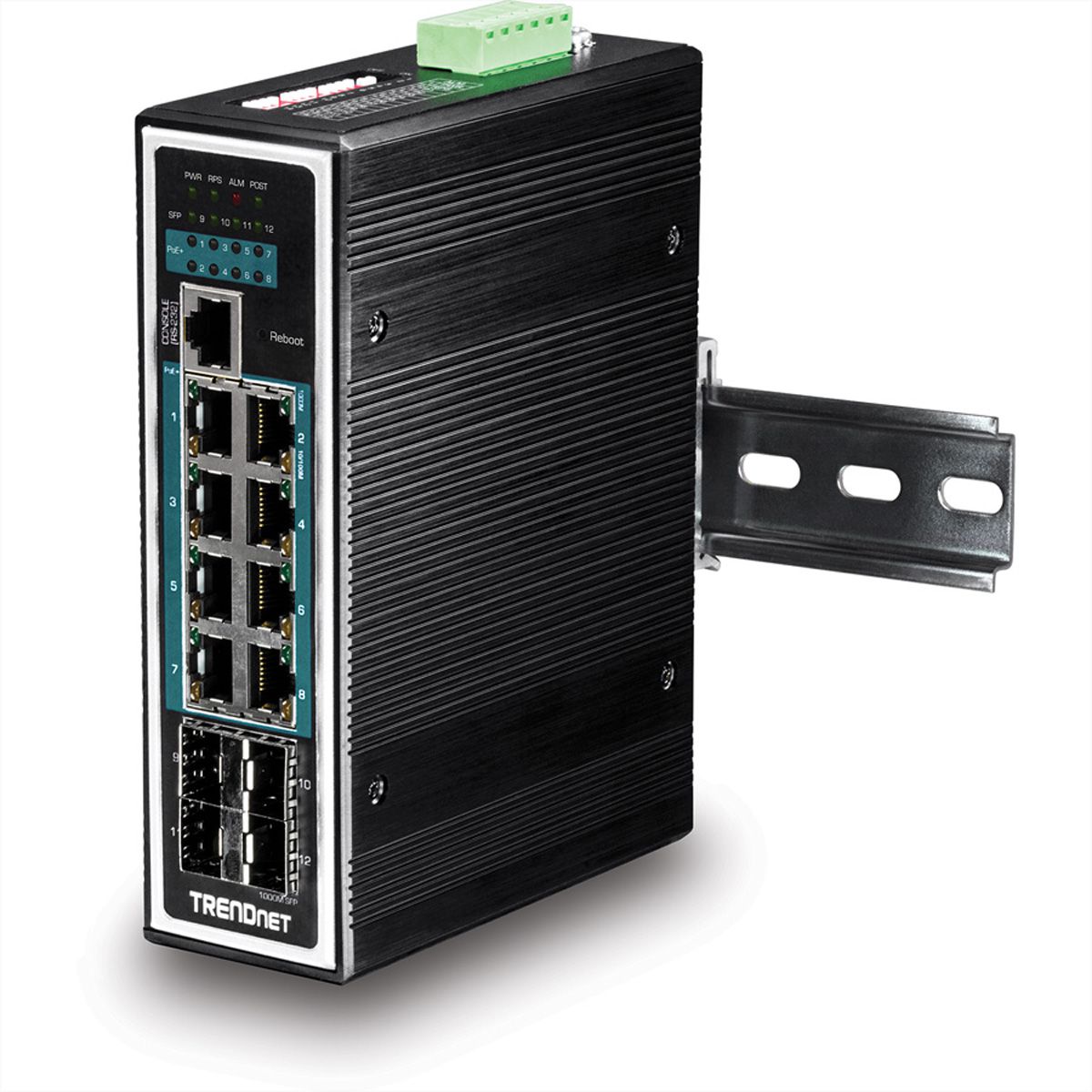

TRENDnet TI-PG1284i 12 Port Rail Switch

Item no. 21221193 Brand / Manufacturer TRENDNET Manuf. item no. TI-PG1284i EAN 710931160598 Item weight 1.32 kg
TRENDNET

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

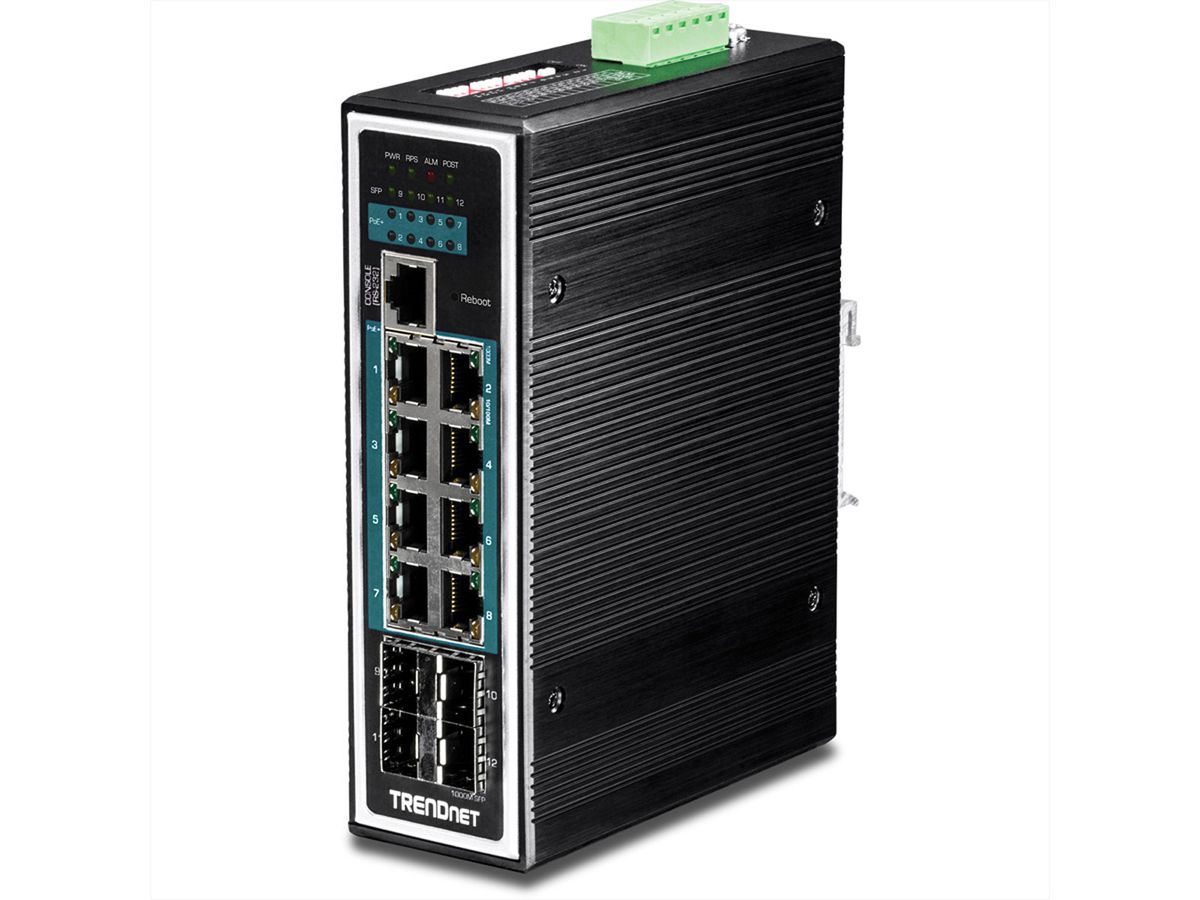

12-port hardened industrial Gigabit PoE+ Layer 2+ managed DIN-rail switch

The TRENDnet 12-port hardened industrial Gigabit PoE+ Layer 2+ managed DIN-rail switch, model TI-PG1284i, features eight Gigabit PoE+ ports, four Gigabit SFP slots, and a total PoE power budget of 240 watts. The switch features a rugged IP30-rated metal housing and is designed to withstand strong vibrations and shocks, with protection against ESD/EMI and overload conditions. It operates in an extended temperature range from -40 to 75 °C for harsh environments. L2+ management features include PoE port control, 802.1Q / Q-in-Q VLAN, multicast, spanning tree, link aggregation, QoS, IPv4/IPv6 static routing, ACL, and 802.1X for flexible network integration.

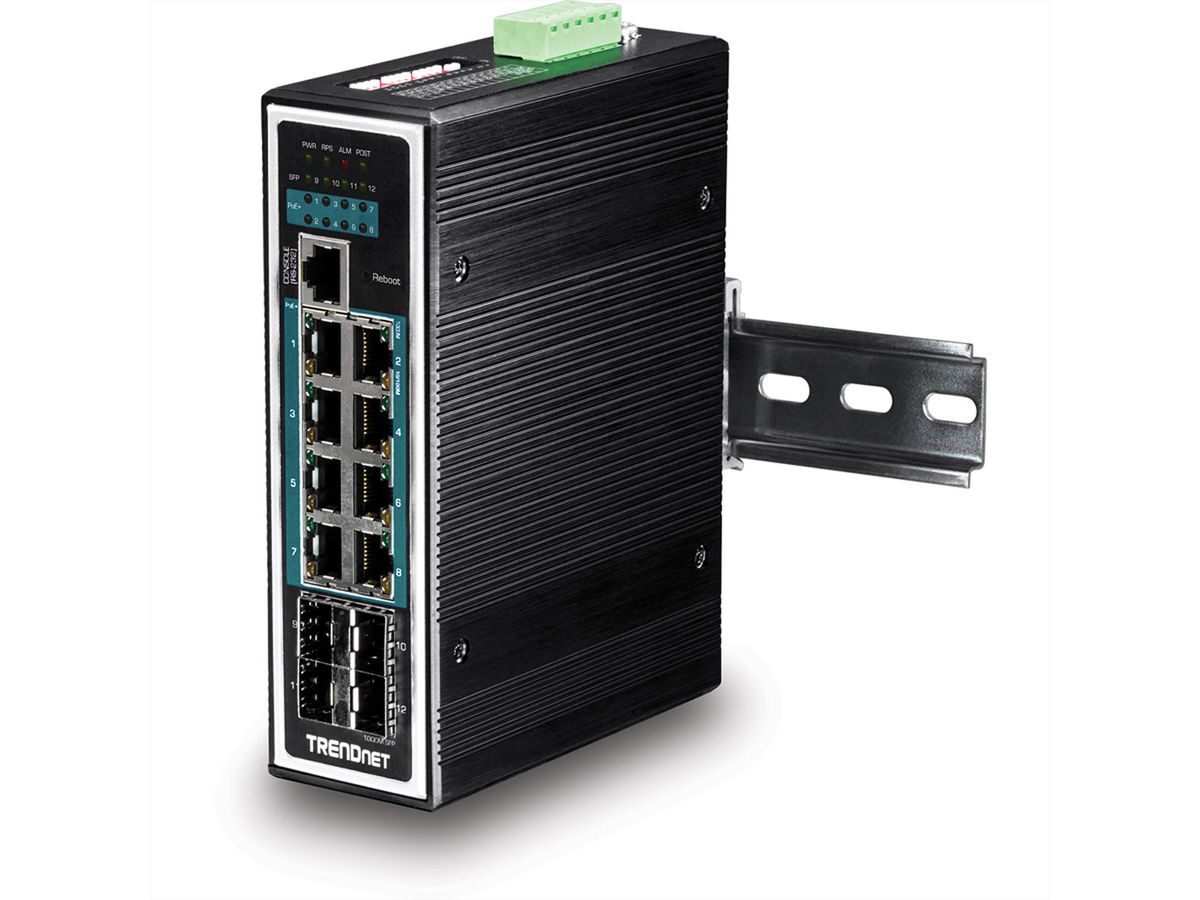

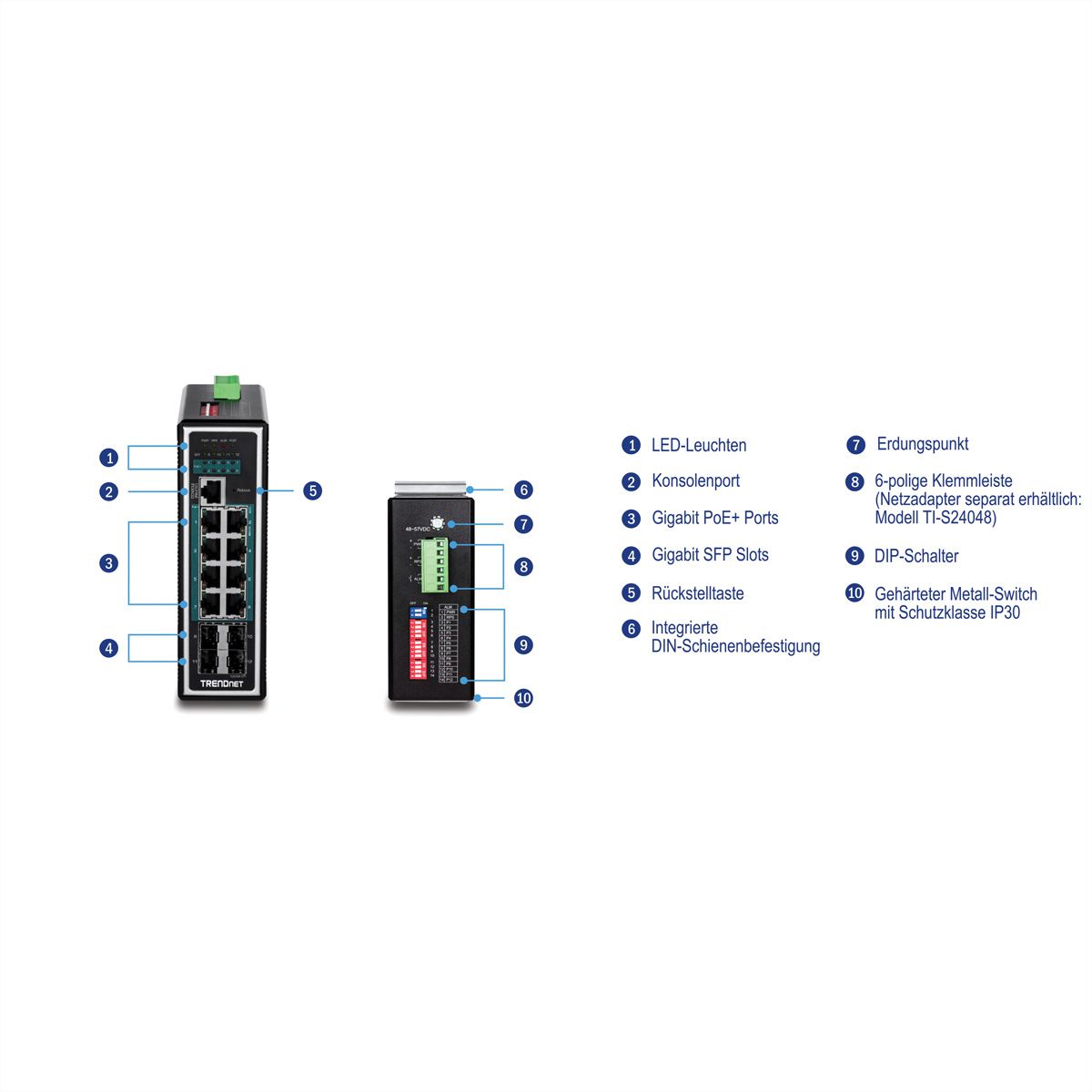

  • Hardened IP30-rated metal housing with integrated DIN-rail mount
  • Extended operating temperature range from -40 to 75 °C
  • 8 Gigabit PoE+ (802.3at) ports, 4 Gigabit SFP slots, and 1 console port
  • Total PoE power budget of 240 watts

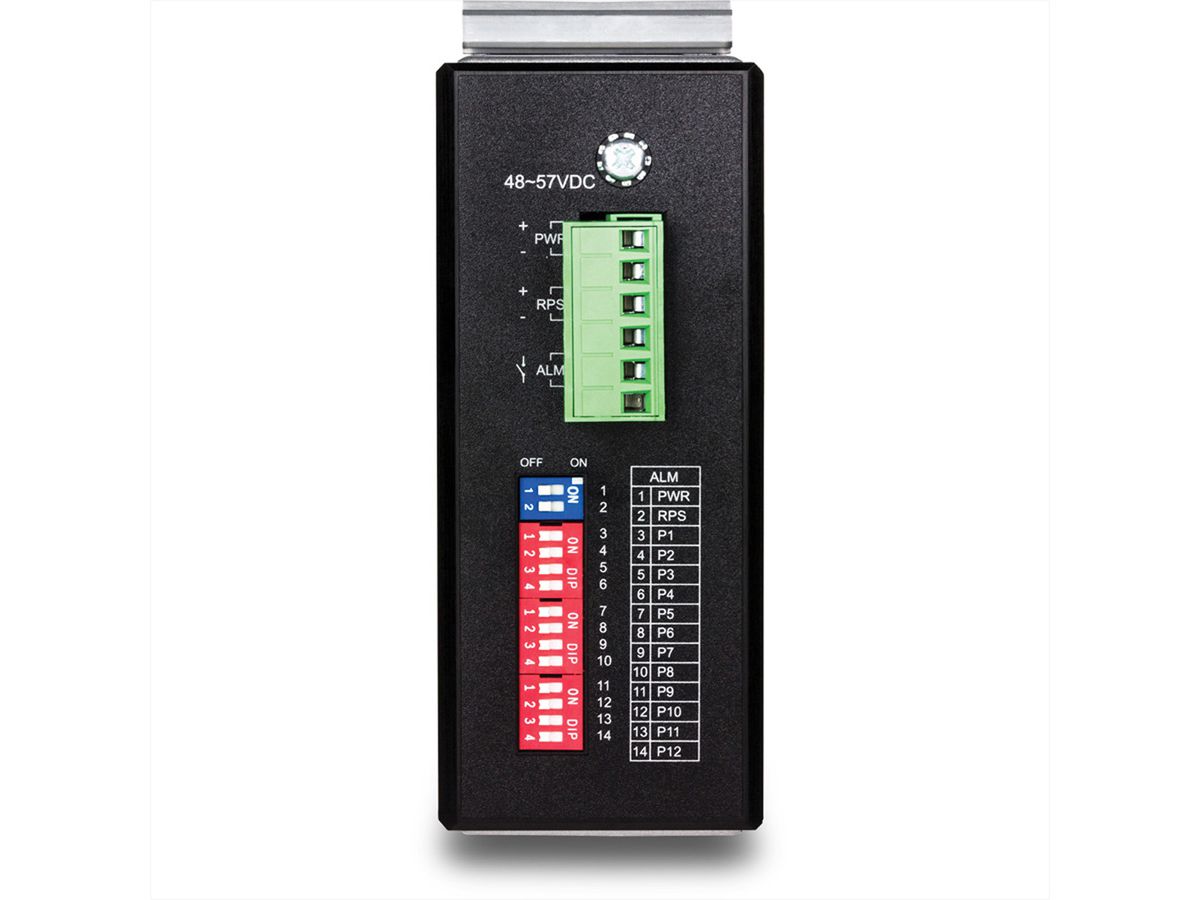

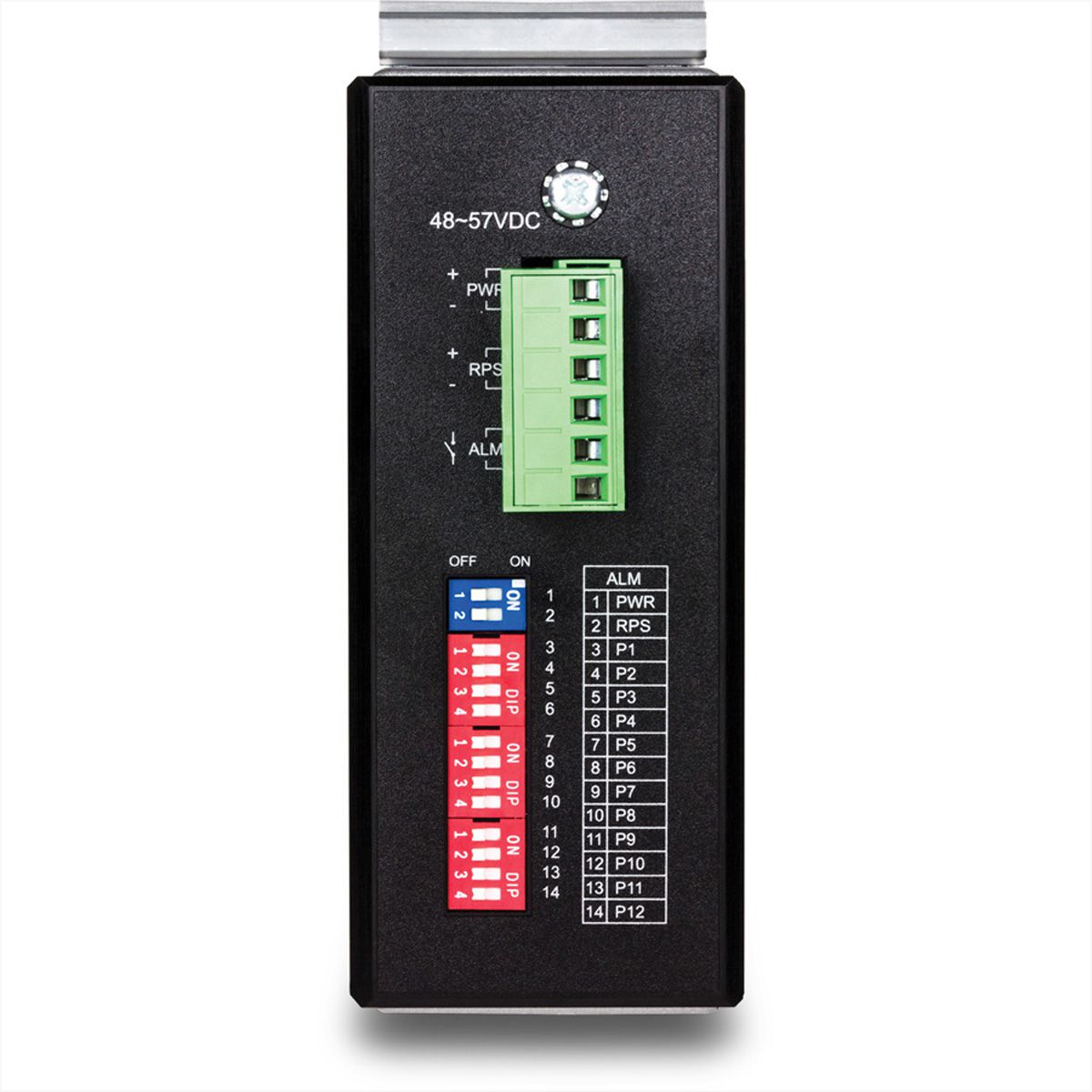

  • Redundant power inputs and alarm output
  • CLI (Console / Telnet / SSH), Web (HTTP / HTTPS), SNMP v1 / v2c / v3 management
  • 802.1Q / Q-in-Q VLAN support and IGMP / MLD / MVR filtering
  • 802.1p / DSCP / Queue scheduling (SPQ / WRR) QoS support
  • Power adapter sold separately (model: TI-S24048)

Specifications

Manufacturer
TRENDNET
Product group
Industrial Networking
Product type
Network Switch
Colour
black
Scope of delivery
TI-PG1284i, Quick Installation Guide, CD-ROM (User Guide), Cable (RJ-45 to RS-232)
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Quantity of ports
8
Gigabit Ethernet Ports RJ-45
8
Power over Ethernet (PoE)
yes
Quantity of PoE ports
8
Max. PoE output power (total)
240 W
Mounting form
DIN Rail
Protection class (IP Code)
IP30
Dimensions (HxWxD)
170 x 132 x 50 mm
Power supply
External power supply unit
Operating temperature min.
-40 °C
Operating temperature max.
75 °C
Height
170 mm
Width
132 mm
Depth
50 mm
Weight
0.92 kg
Height of packaging (single piece)
70 mm
Width of packaging (single piece)
200 mm
Depth of packaging (single piece)
240 mm
Package weight (single piece)
1.333 kg

Downloads

Manufacturer data sheet - Deutsch (957.2 KB)
