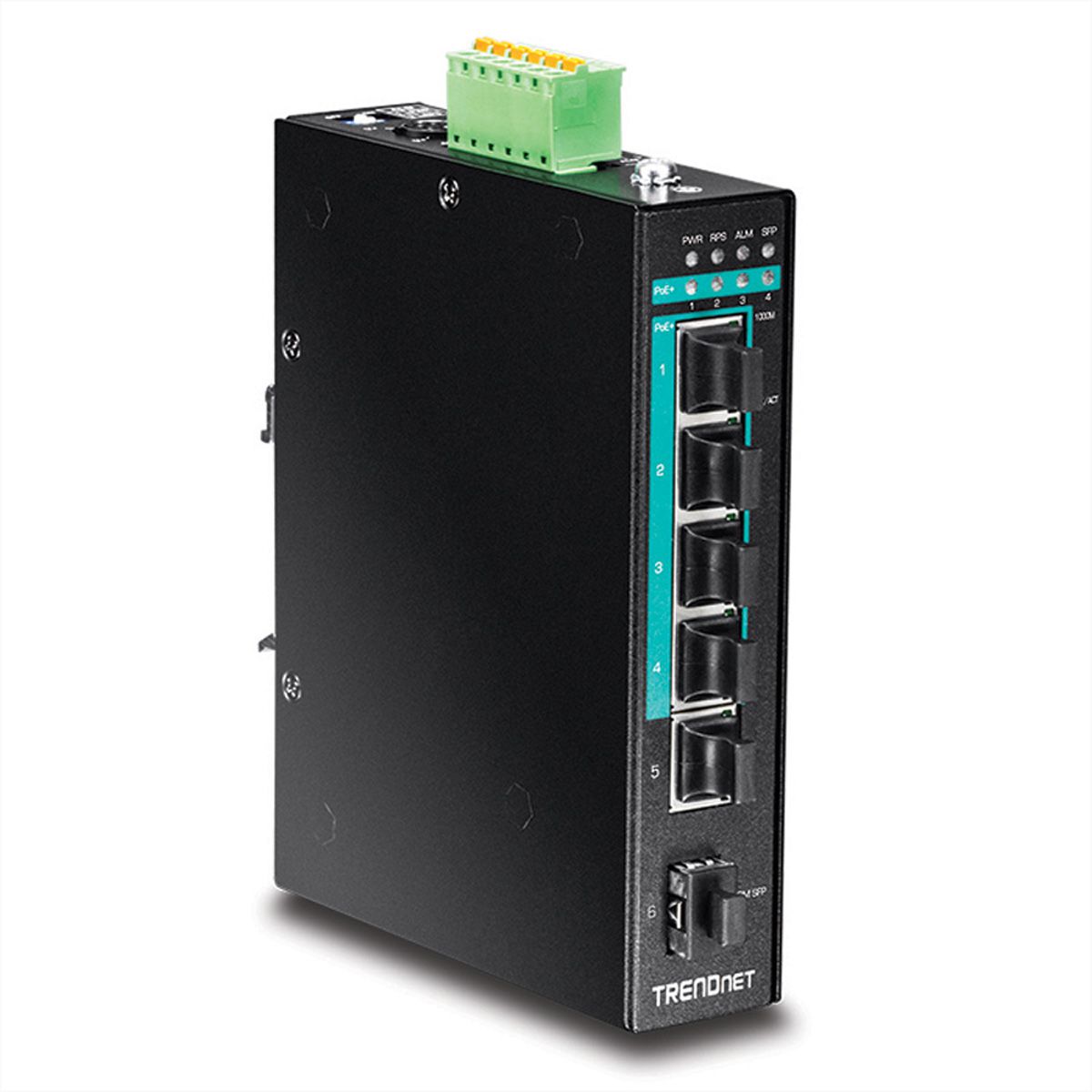

TRENDnet TI-PG541 5-Port Hardened Industrial Gigabit PoE+ DIN-Rail Switch

Item no. 21221191 Brand / Manufacturer TRENDNET Manuf. item no. TI-PG541 EAN 710931160246 Item weight 0.658 kg
TRENDNET

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/07/2026
Download PDF

Description

Hardened Industrial Gigabit PoE+ DIN-Rail Switch

The TRENDnet TI-PG541 is a reliable unmanaged IP30 PoE+ DIN-rail switch with hardened components, designed for extreme industrial environments. It features four Gigabit PoE+ ports (ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a total PoE power budget of 120 watts. Dual redundant power inputs (power adapter sold separately) with overload protection support zero downtime requirements. An alarm can be triggered during power failures on the primary and/or redundant power supply.

  • 4 Gigabit PoE+ ports (802.3at), 1 Gigabit port, and 1 Gigabit SFP slot
  • Total PoE+ power budget of 120W
  • 12 Gbps switching capacity
  • Hardened IP30-rated metal switch with DIN-rail mount included
  • Operating temperature range from -40 to 70 °C
  • Dual redundant power inputs with overload protection
  • Power failure alarm notification
  • Power adapter sold separately (models: 48VDC3000 / TI-S24048 / TI-S12048)

TRENDnet’s TI-PG541 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers four Gigabit PoE+ ports (Ports 1-4, 802.3at), one Gigabit port, one SFP slot, and a full PoE power budget of 120 Watts. Dual redundant power inputs (power adapter sold separately) with overload current protection support zero downtime requirements. An alarm output can be triggered by a primary and/or redundant power failure.

Specifications

Manufacturer
TRENDNET
Product group
Industrial Networking
Product type
Network Switch
Colour
black
Scope of delivery
TI-PG541, Quick Installation Guide, DIN-rail kit
Network standard
Gigabit Ethernet
LAN (Mbps)
10/100/1000
Quantity of ports
5
Gigabit Ethernet Ports RJ-45
5
Free slots for SFPs
1
Other connectors
6-pin removable terminal block
Power over Ethernet (PoE)
PoE+ (IEEE 802.3at)
Quantity of PoE ports
4
Mounting form
DIN Rail
Protection class (IP Code)
IP30
Dimensions (HxWxD)
135 x 100 x 30 mm
Power supply
External power supply unit
Operating temperature min.
-40 °C
Operating temperature max.
70 °C
Height
135 mm
Width
100 mm
Depth
30 mm
Weight
0.5 kg
Height of packaging (single piece)
60 mm
Width of packaging (single piece)
160 mm
Depth of packaging (single piece)
180 mm
Package weight (single piece)
0.658 kg
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
1
Copper ethernet cabling technology
1000BASE-T,100BASE-TX,10BASE-T
Gigabit Ethernet (copper) ports quantity
5
Weight & dimensions
Width
100 mm
Depth
30 mm
Height
135 mm
Weight
500 g
Power
Power consumption (typical)
130 W
Power connector
DC-in jack
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Redundant power supply (RPS) support
Y
Operational conditions
Operating temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 95%
Networking
Networking standards
IEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
N
Full duplex
Y
Flow control support
Y
Data transmission
MAC address table
8000 entries
Switching capacity
12 Gbit/s
Throughput
8.9 Mpps
Store-and-forward
Y
Jumbo frames support
Y
Management features
Switch type
Unmanaged
Switch layer
L2
Packaging content
Quick start guide
Y
Optical fiber
Fiber ethernet cabling technology
1000BASE‑LX,100BASE-SX
Design
Rack mounting
N
Product colour
Black
LED indicators
Y
Housing material
Metal
International Protection (IP) code
IP30
Certification
CE, FCC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
120 W
Performance
Buffer size
512 KB

Downloads

Manufacturer data sheet - Deutsch (1,006.5 KB) PDF data sheet - Trendnet TI-PG541 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black Power over Ethernet (PoE) - English (1.4 MB)
